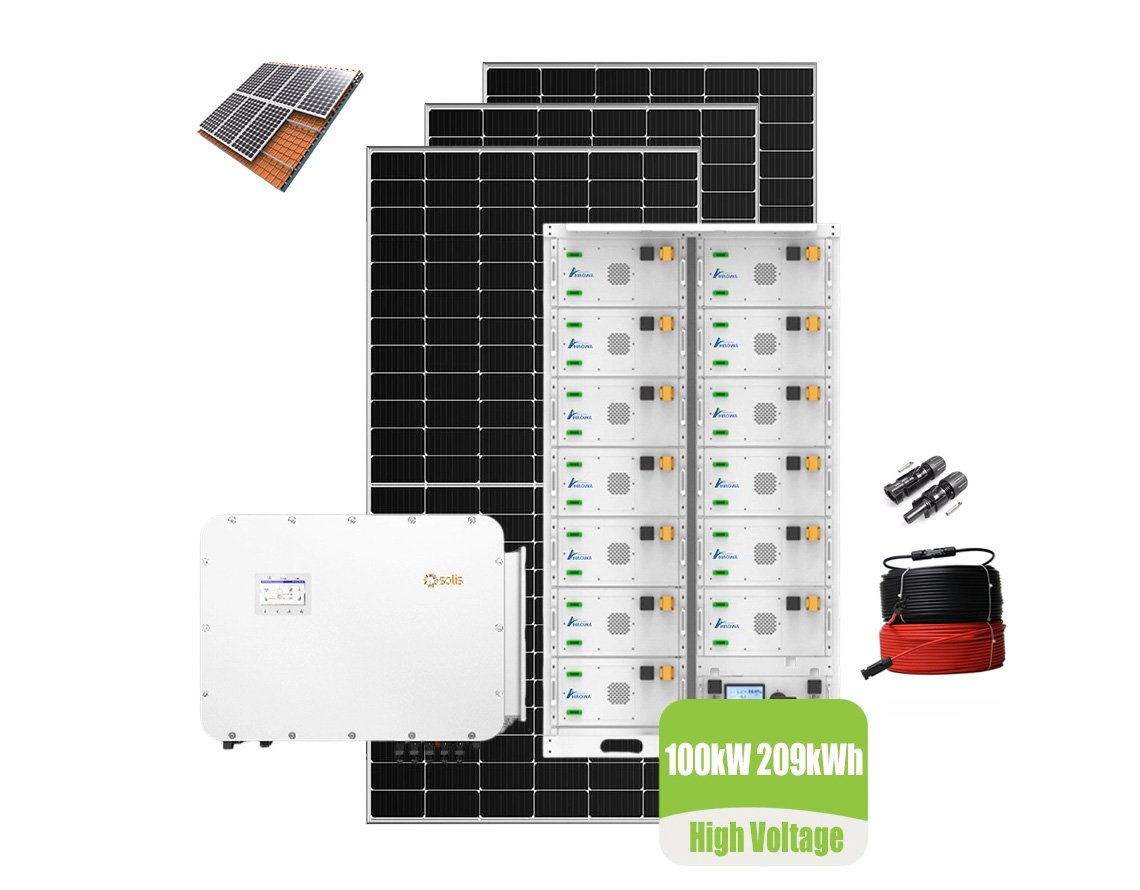

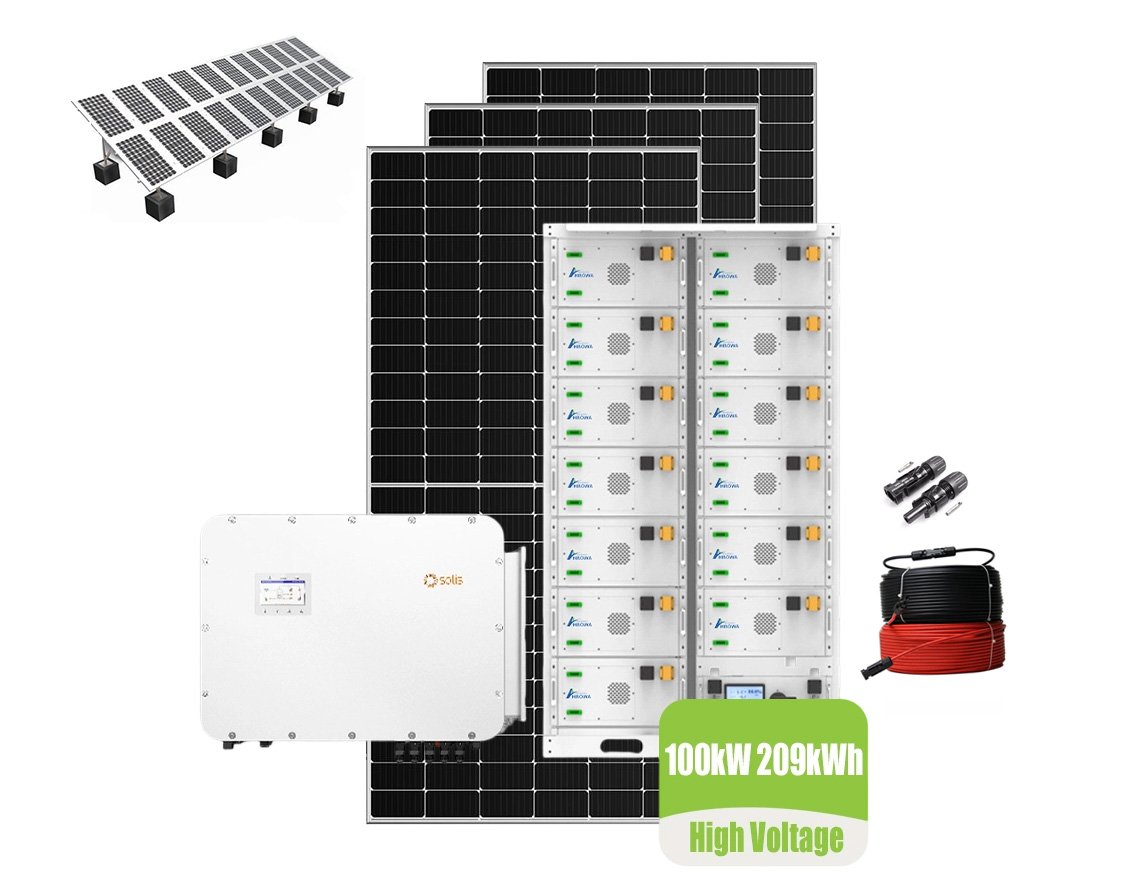

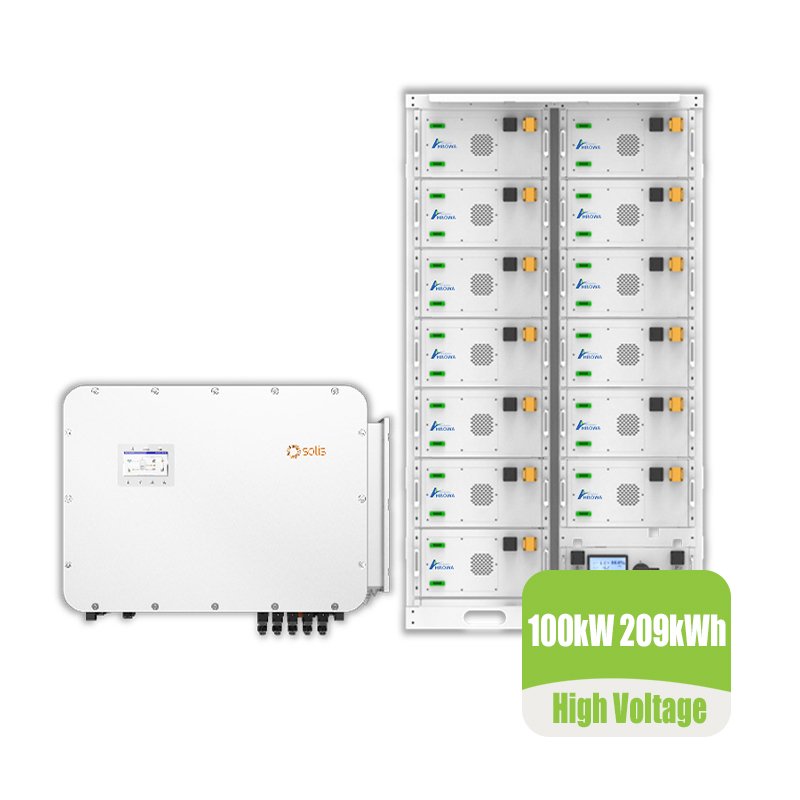

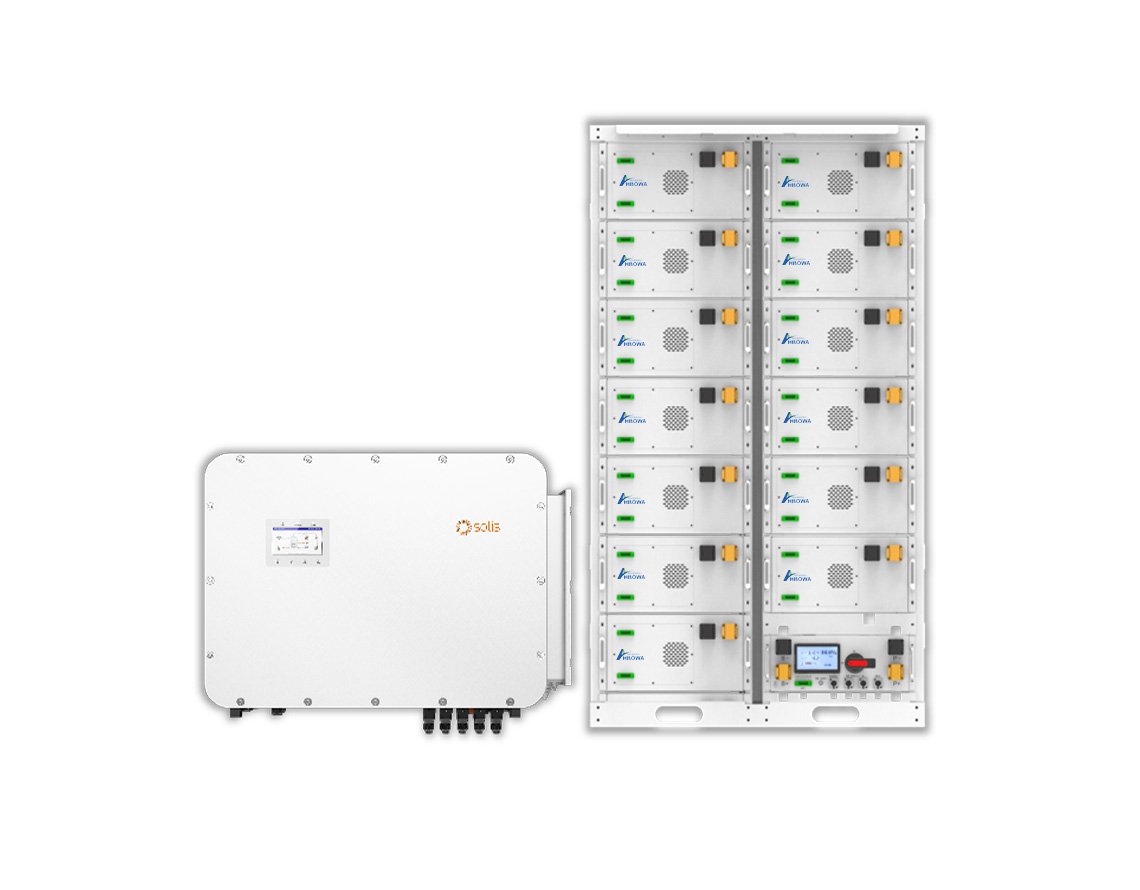

100kW 209kWh High Voltage Hybrid Solar System
System: 100KW 209KWh Three phase
Output Voltage:220/380V, 230/400V 0.85Un-1.1Un
Inverter Type: 100kw hybrid inverter with MPPT controller
Battery: High-voltage LiFePO4 rack 209kwh
Complete kit: brackets, accessories, instructions included.
Certification: CE, IEC, UN38.3, CNAS by Sea, CNAS by Road, MSDS
Place of origin: China
Datasheet for 100 kW 209 kWh Hybrid Solar System 3 Phase
For More Datasheets, please view Download at the end of this page.
Description
Composition of the 100 kW hybrid solar system with 209 kWh battery:

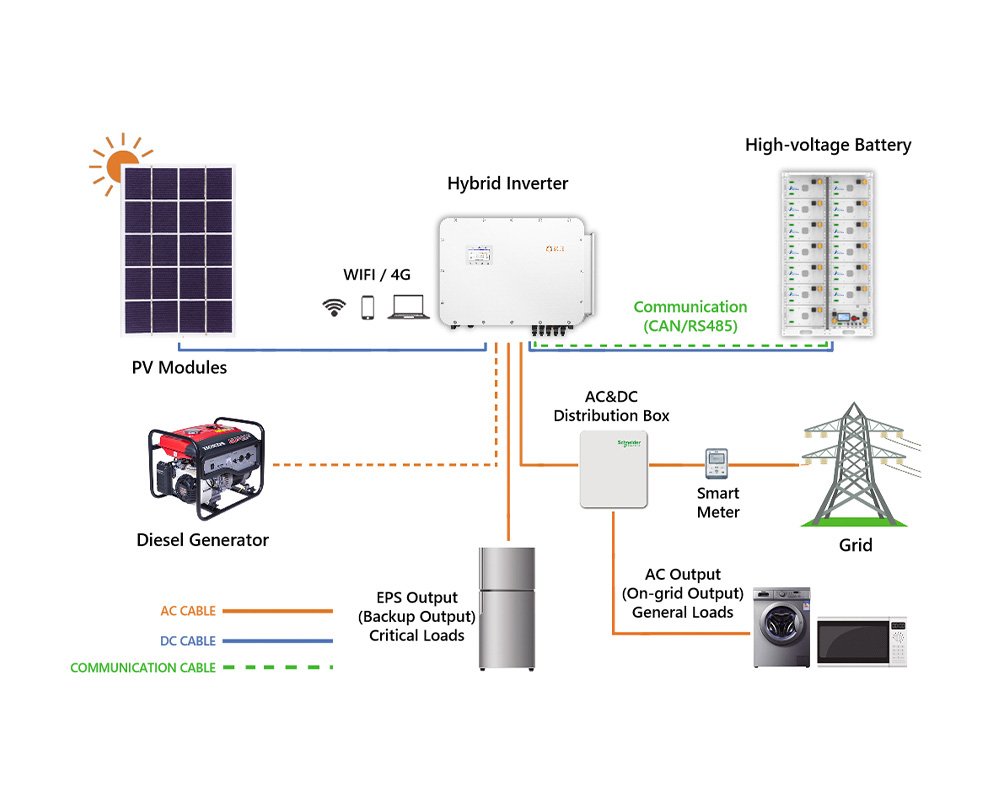

The 100kw hybrid solar system consists of the Solis 100kw hybrid three phase inverter, 13 pieces of high voltage LiFePO4 batteries 209kWh,625W TOPCon solar panels, a solar mounting system, and solar accessories. The 100kw solar hybrid system is design for commerci and industrial sites that need reliable solar power, battery storage, and flexible grid support. The system can be configured with multiple hybrid inverter brands, including but not limited to Growatt, Deye, Solis, and Afore, depending on project requirements, local grid standards, and your preferences.
The 100kw system supports solar self-consumption, peak shaving, backup power, and off-grid backup applications. It can work with the utility grid and can also be connected with a diesel generator when the project requires stronger power continuity. For sites with growing electricity demand, the battery capacity can be expanded by adding additional battery packs, helping businesses improve backup time and long-term energy flexibility.
This 100kW hybrid solar system uses LiFePO4 battery technology and can be configured with a high-voltage battery system such as 209kWh storage capacity. The battery system supports CAN, RS485, and RS232 communication, with a design life of 15+ years and a cycle life of more than 6000 cycles. Certifications such as CE, IEC, UN38.3, MSDS, and RoHS are available. Welcome to inquire and find your tailored solar system.
Technical Data
- DATA
100KW Solar Power System
625W Solar Panel
Mono-crystalline Half Cell Panel
Maximum Power(Pmax): 625W
Maximum Power Voltage: 44.16V
Maximum Efficiency: 23.1%
Dimension: 2382*1134*30mm
Per Weight: 33.5kg Total number: 32 pieces
Warranty: 15 years
Brand panel available: Longi/JA/Jinko/Trina/…

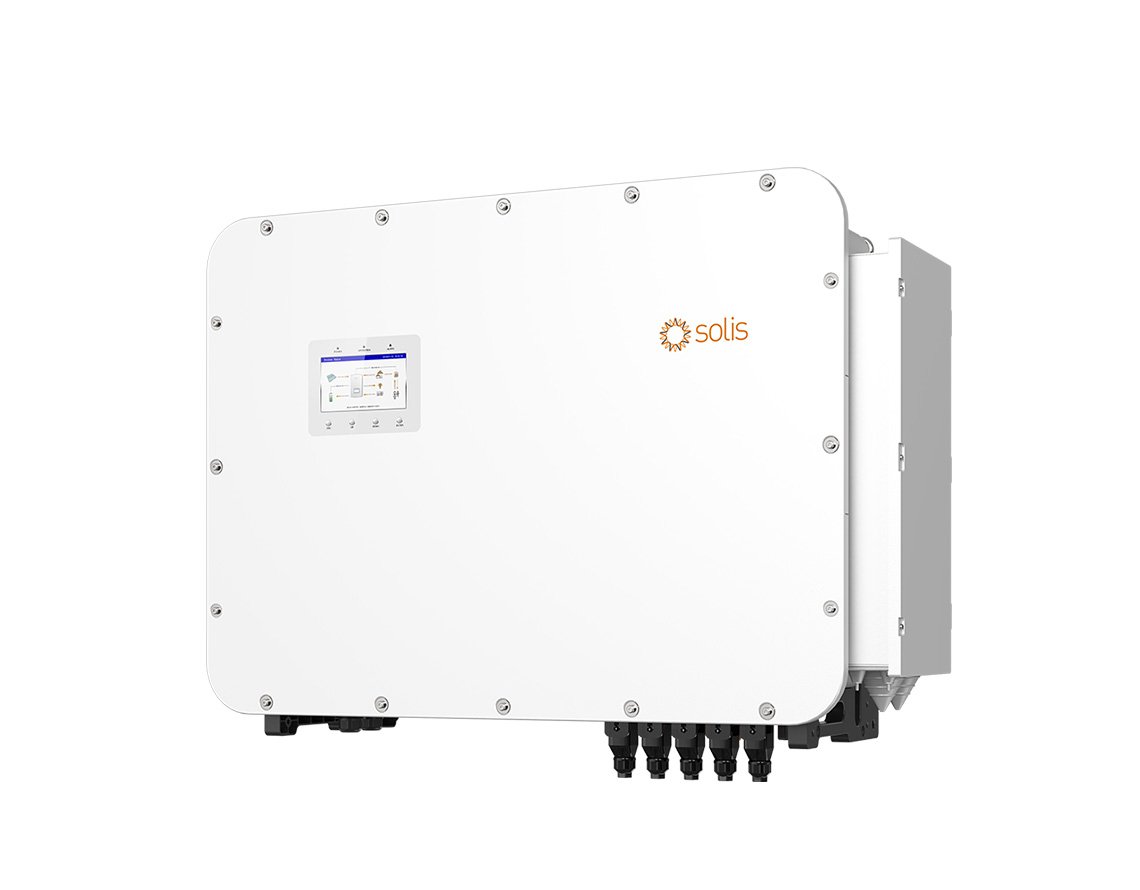

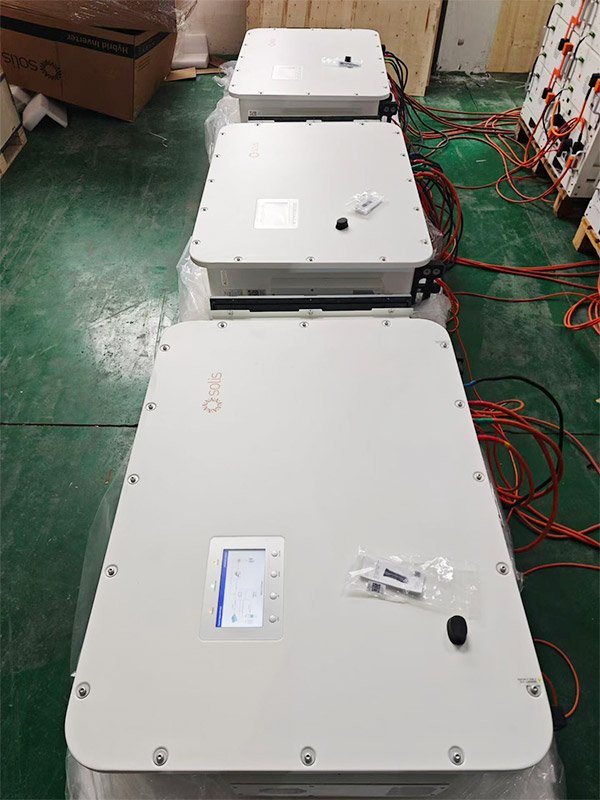

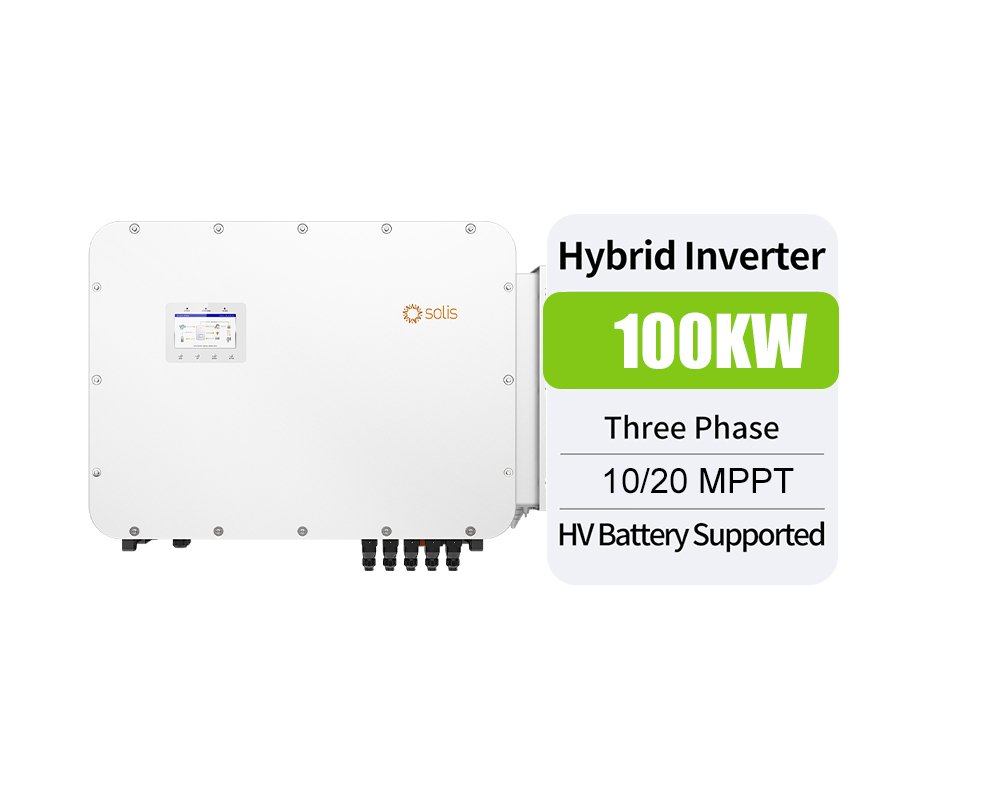

100KW Solar Power System Inverter
Integrated MPPT charger controller
Inverter Power: 100kW
Output Voltage: 3L/N/PE 220/380Vac 230/400Vac
Max Efficiency: 97.5%
Rated AC Output Power: 100kw
Communication:RS485/CAN
Protection Degree:lP65
Warranty:5 years

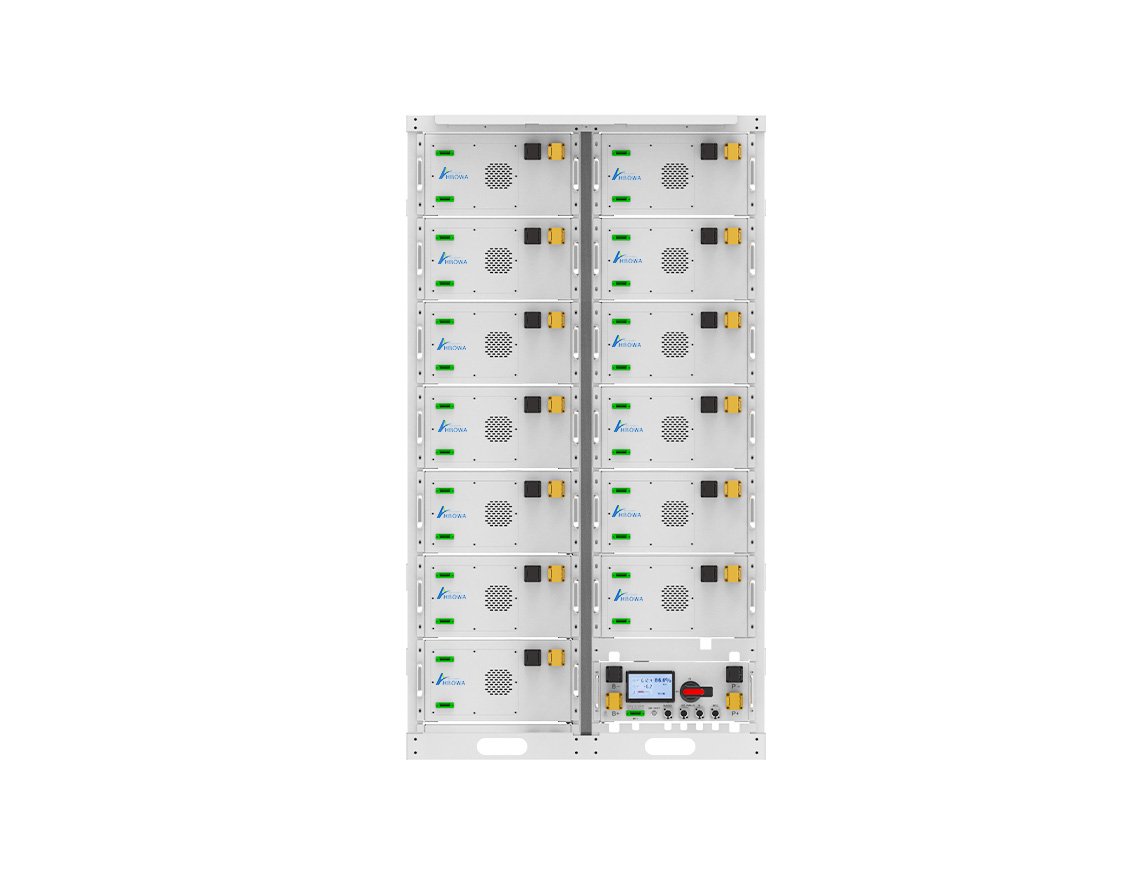

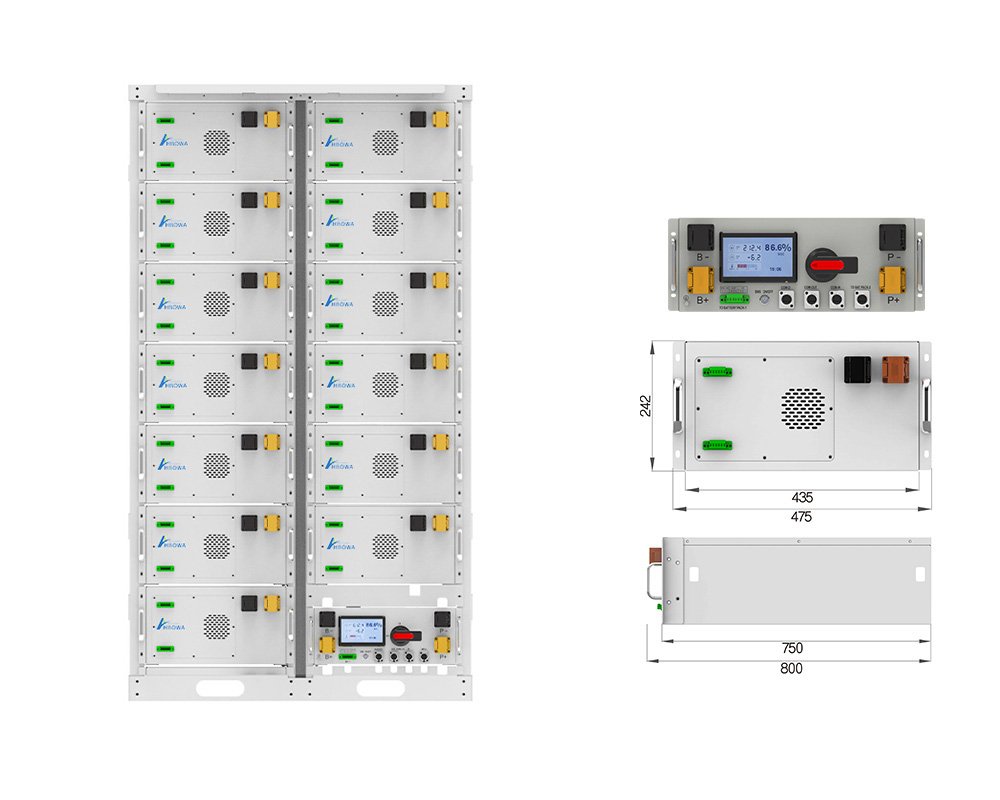

Rack Battery 209kWh LiFePO4
Battery Type: High Voltage LiFePO4 209 kWh
Cycle Time: More than 6000 times
High energy density, High Voltage
Installation type: Rack Mounted
Communication:RS485/CAN
Warranty: 5-10 years
Certificates: CE, MSDS, UN38.3, CNAS
Mounting Structure for Solar Panel
Our solar mounting structure of the 100KW solar power system offers a robust and versatile solution.
- Ground solar mounting structure
- Residential roof mounting structure
- Vertical wall solar mounting system
- All aluminum solar mounting system
Solar System Accessories
* Combiner box with voltage resistance of 500V;
* PV single core cable 4m㎡,6m㎡,10m㎡ etc;
* MC4 connectors, rated voltage:1500VDC.
* DC switches, AC breaker
100KW Hybrid Solar Power System Details

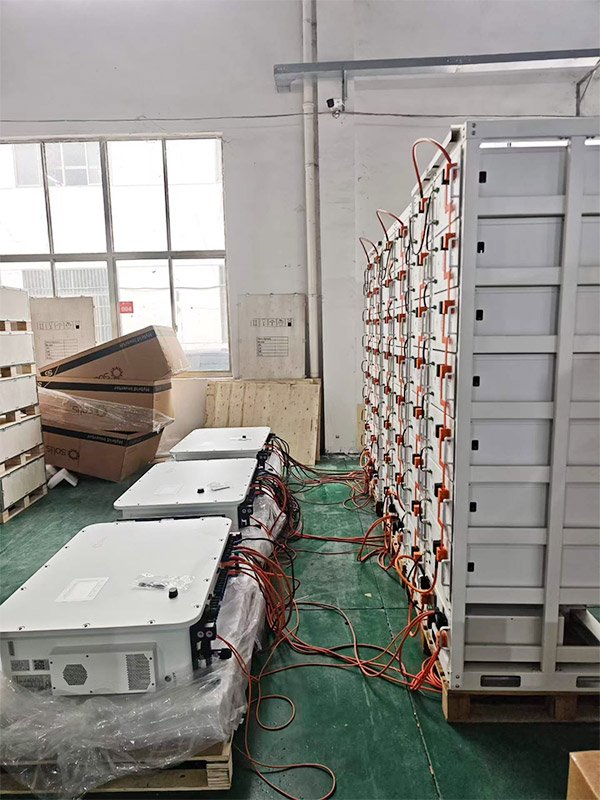

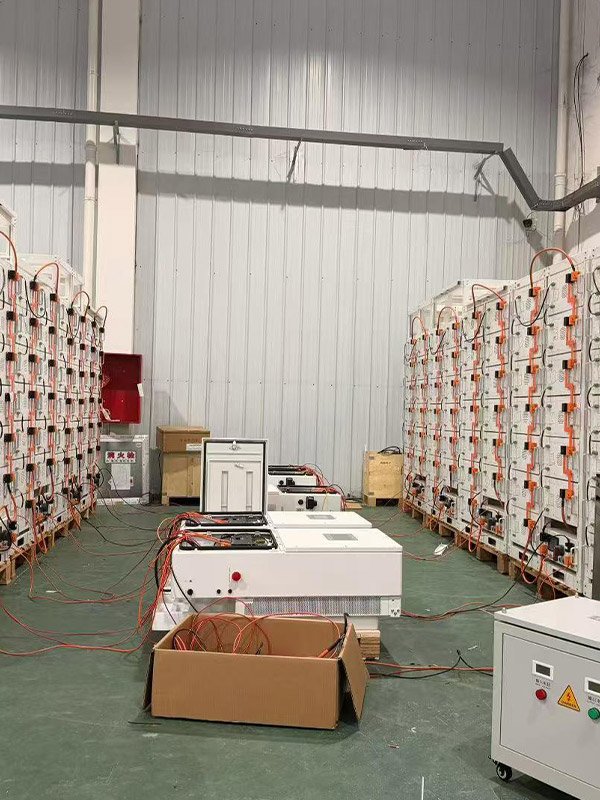

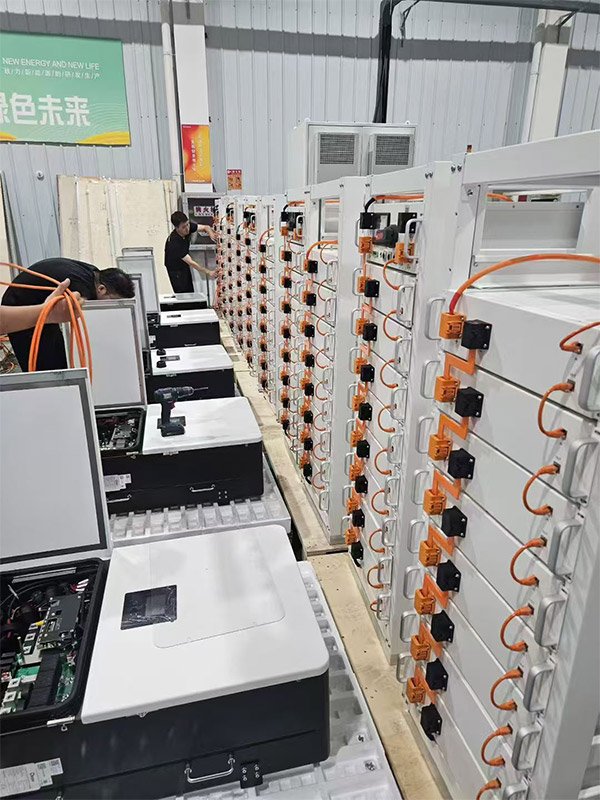

- Detailed Images

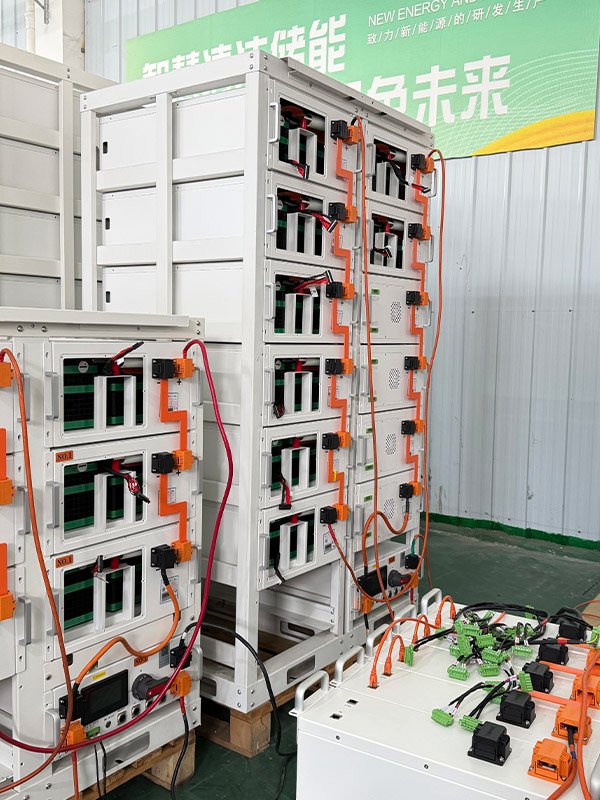

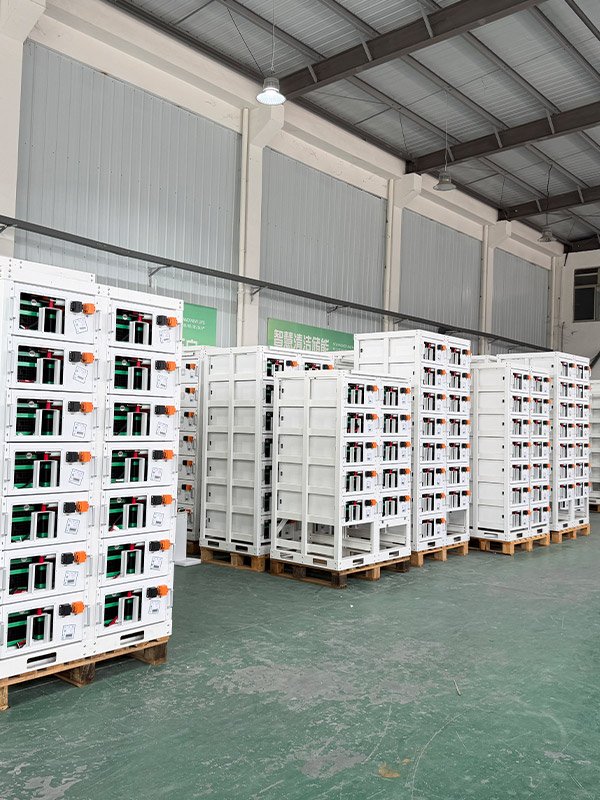

- Battery Packs
- Certificates
- Packaging Show
