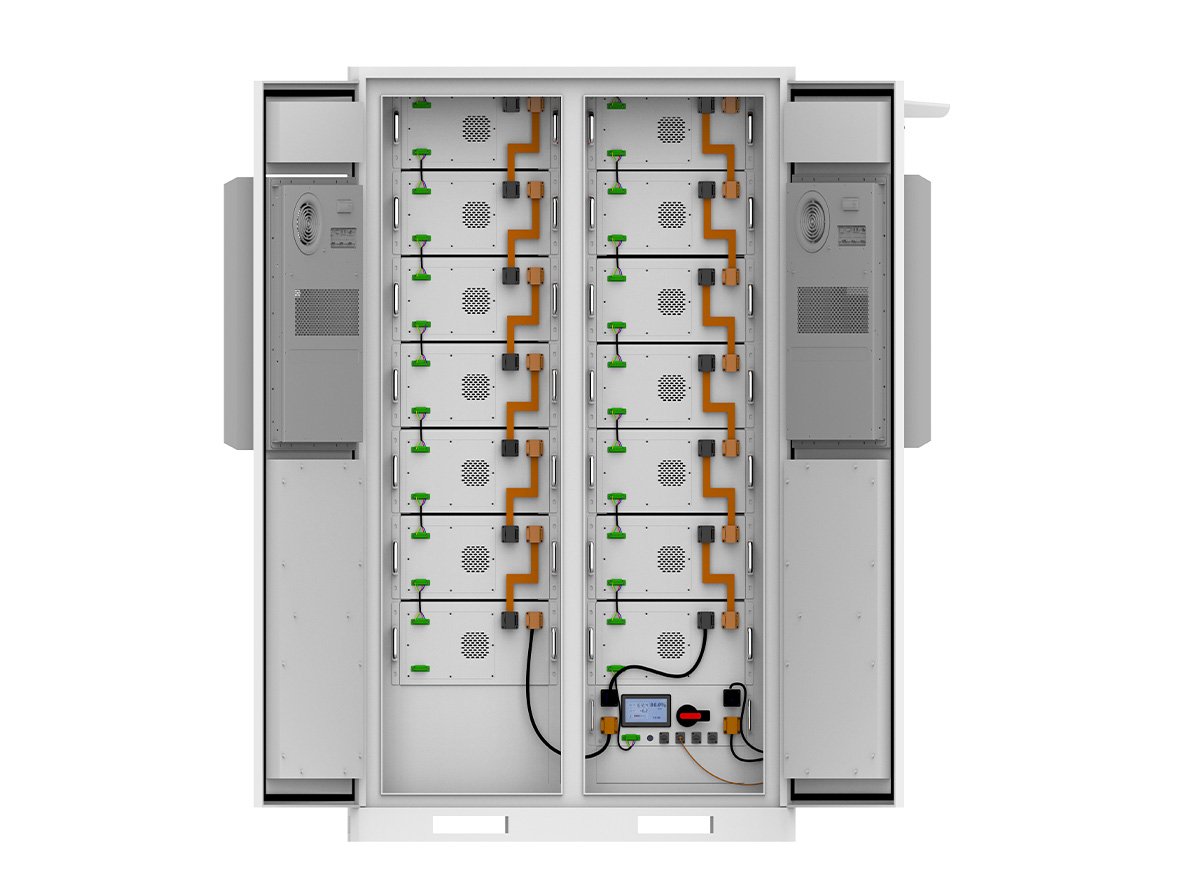

225kWh Energy Storage System 100kW C&I Battery Cabinet
Model:Hbowa-100kW/225kWh Outdoor
Capacity: Hybrid inverter 100KW, LiFePO4 Battery 225kWh
Cooling Type: Air-cooling
Output Voltage: AC 380V / 400V
Output Frequency: 50Hz / 60Hz
Class of Protection: IP54(outdoor)
Certificates: CE/IEC/UN38.3/MSDS
Datasheet of 100KW Hybrid Solar Inverter Default Growatt225kWh Battery Outdoor Energy Storage Cabinet
What Is a 225kWh Energy Storage System?
HBOWA 225kWh energy storage system is a battery storage cabinet that stores about 225 kilowatt-hours of electrical energy for commercial and industrial use. It is commonly used for factory solar self-consumption, commercial backup power, EV charging support, and microgrid projects. With certificates of CE/IEC/UN38.3/MSDS, HBOWA 225kWh energy storage cabinets have been supplied to customers in overseas markets, supporting reliable energy storage solutions for factories, commercial buildings, and industrial parks.
What Is Included in the 225kWh System?

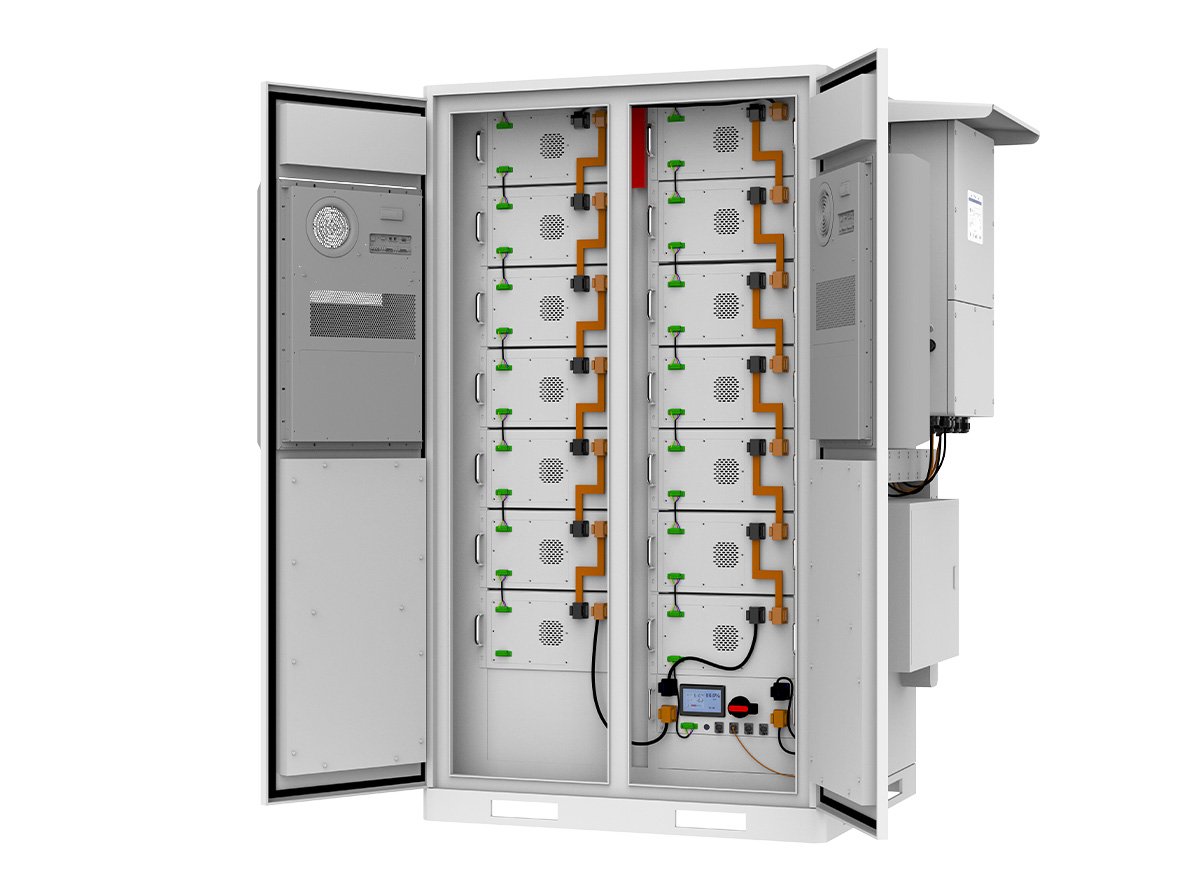

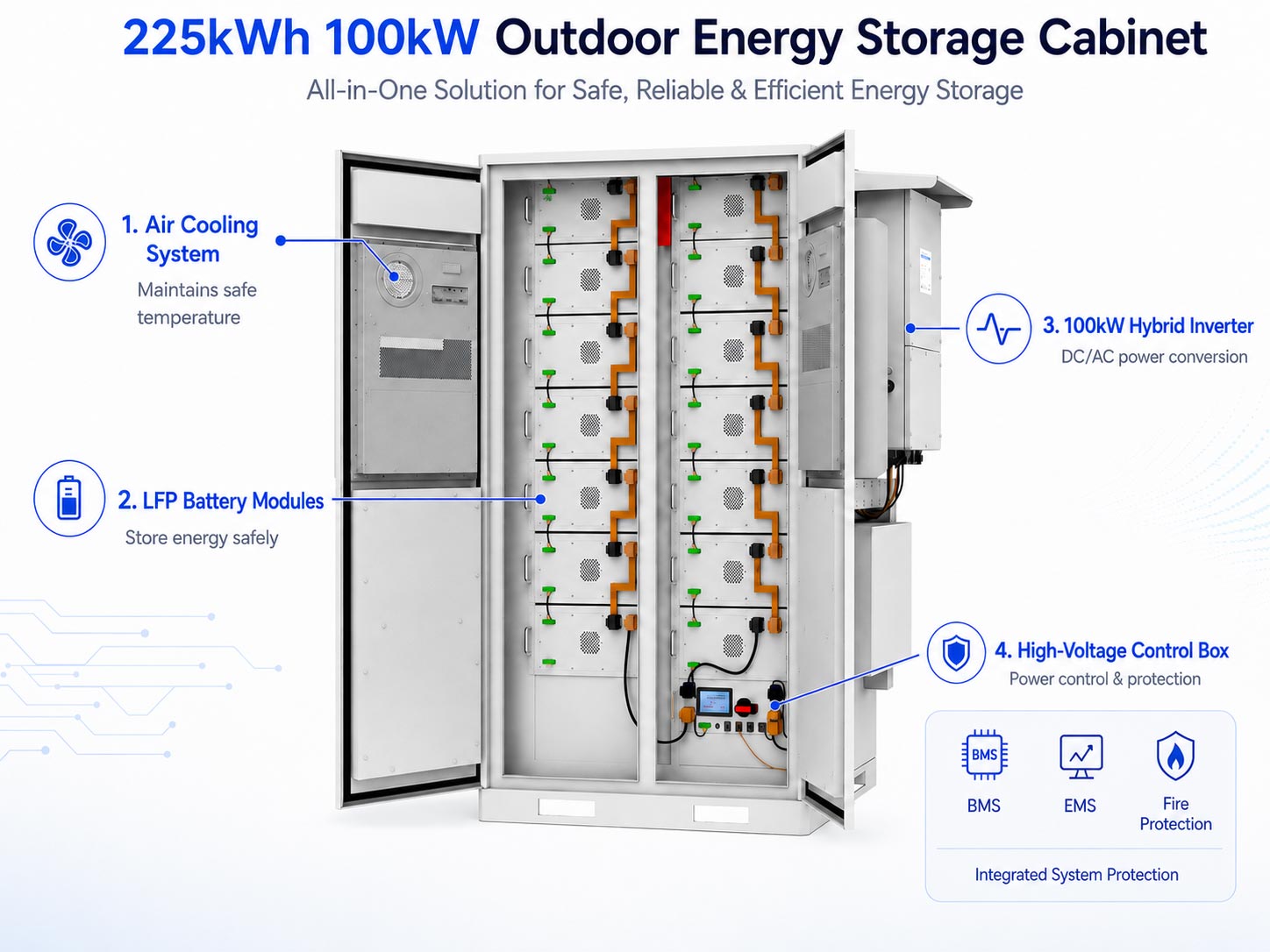

HBOWA 225kWh energy storage system cabinet integrates LiFePO4 battery modules, a hybrid inverter, BMS, EMS, air cooling system, fire protection, and AC/DC distribution inside an outdoor cabinet.
| Component | Function |
| LFP Battery Modules | Store 225kWh of electrical energy with over 6000 cycle life and stable chemistry |
| Hybrid Inverter | Convert DC into AC for loads, grid, or backup circuits, and convert AC into DC for battery charging |
| BMS | Monitor cell voltage, temperature, SOC, SOH, and safety protection |
| EMS | Manage charging, discharging, energy strategy, alarms, and remote monitoring |
| Air Cooling System | Keep battery temperature within a safe operating range |
| Fire Protection | Provide system-level fire safety protection inside the cabinet |
| AC/DC Distribution | Connect the battery, PCS, PV, grid, generator, and loads safely |
| Outdoor Cabinet | Protect the system for commercial and industrial outdoor installation |
Technical Data
| Item | Specification |
|---|---|
| Model | Hbowa-100kW/225kWh Outdoor |
| Product Type | Outdoor C&I Energy Storage System |
| Battery Capacity | 225kWh |
| Rated Power | 100kW / project-based configuration |
| Battery Chemistry | LiFePO4 / LFP |
| Battery Voltage | High voltage system, around 716.8V |
| Battery Module | 51.2V module configuration |
| Cooling Method | Air cooling or liquid cooling, based on configuration, default air cooling |
| PCS / Inverter | PCS or hybrid inverter matched by the project, default hybrid inverter |
| AC Output | 380V / 400V, 3-phase |
| Frequency | 50Hz / 60Hz |
| Communication | CAN / RS485 / Ethernet / Modbus TCP/IP |
| Protection Level | Outdoor cabinet, IP54 |
| Applications | Peak shaving, solar storage, backup power, EV charging, microgrid |
How Long Can a 225kWh Battery Last?
The 241 kWh battery commonly lasts for about 1 to 8 hours. The detailed runtime depends on the DOD of the battery, inverter efficiency, ambient temperature, and reserved SOC settings. The table below is for your reference.
| Average Load | Approx. Runtime |
|---|---|
| 30kW load | About 6.7 hours |
| 50kW load | About 4 hours |
| 75kW load | About 2.7 hours |
| 100kW load | About 2 hours |
| 125kW load | About 1.6 hours |
225kWh vs 215kWh vs 241kWh
| Model | Image | Best For | Difference |
|---|---|---|---|
| 215kWh Battery Storage Cabinet |  | Standard commercial backup and peak shaving | 51.2V 280Ah * 15 |

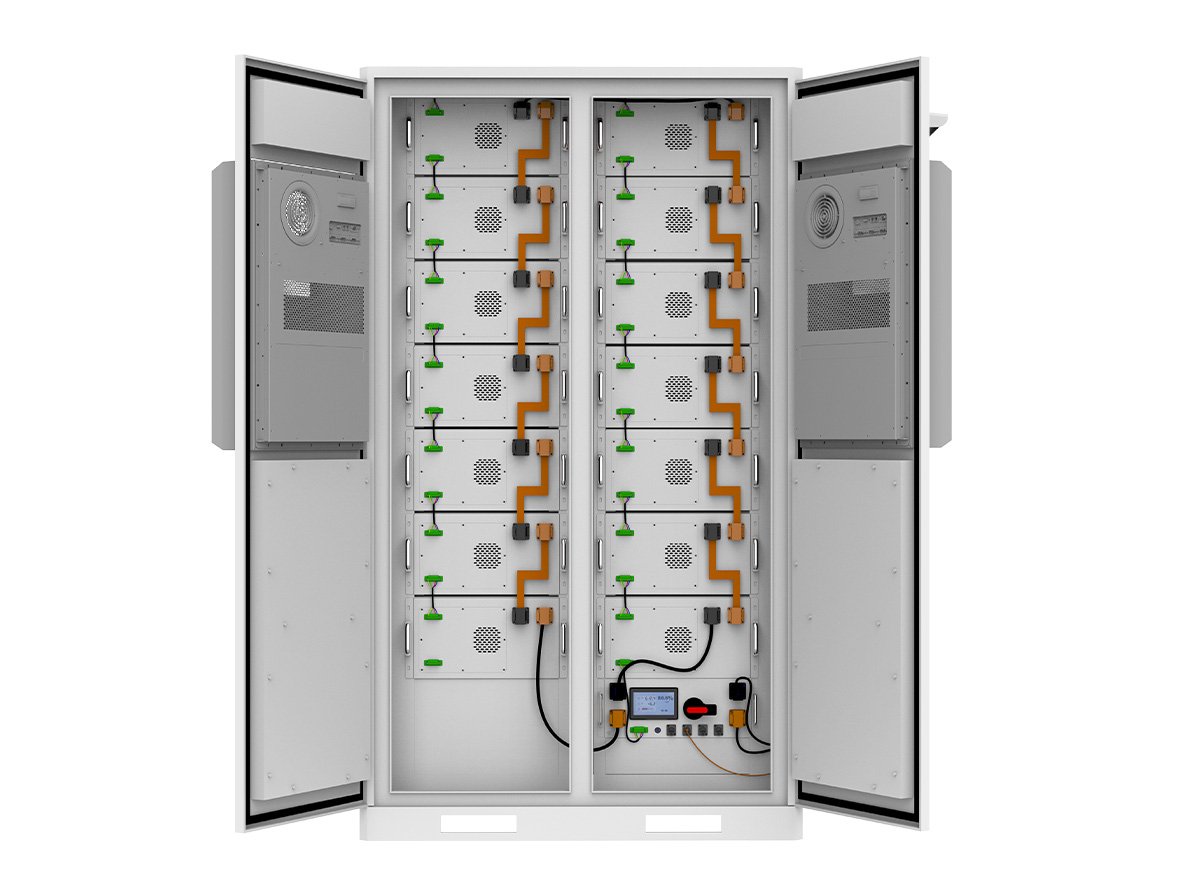

| 225kWh Energy Storage System |  | Standard C&I solar storage, backup power, and peak shaving | 51.2V 314Ah * 14 |

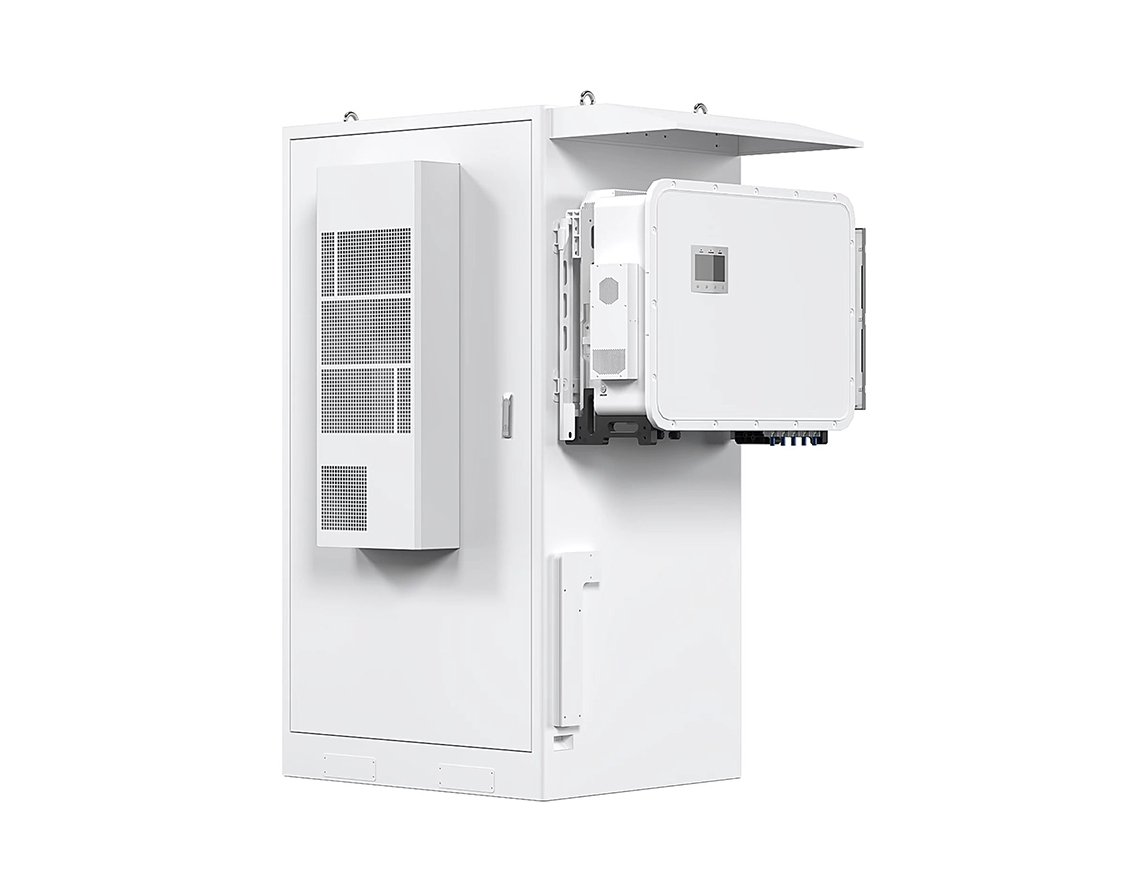

| 241kWh Battery Storage Cabinet |  | Longer backup time and higher energy reserve | 51.2V 314Ah * 15 |
Energy Storage Cabinets in HBOWA
- Factory Details
- Shipping Show
- Certificates
- Installation Video
Download Center
Related Product (11)
A 225kWh battery can support commercial and industrial loads such as lighting, office equipment, security systems, and so on. With 80%DOD, the usable energy of 225kwh battery is 180kwh; it can run a 50kw load for about 3.6 hours. Actual runtime depends on load size, inverter power, and your site conditions.
Yes. A 225kWh battery is well suited for factory peak shaving. The 225kwh energy storage system can charge during off-peak periods, and discharge during high-demand hours to reduce grid draw.
Yes. A 225kWh energy storage system can work with rooftop solar or ground-mounted PV. It can store excess solar power during the day and release it when solar output drops or electricity demand increases at night.
Yes. Multiple 225kWh cabinets can be connected in parallel for larger commercial and industrial projects. But the actual parallel number depends on the hybrid inverter or pcs you choose.
Please provide the following information for an accurate quotation:
- Project country
- Grid voltage and frequency
- Application type: peak shaving, solar storage, backup power, EV charging, microgrid, etc.
- Existing or planned solar PV capacity
- Daily electricity consumption
- Required backup time
- Installation environment: indoor, outdoor, rooftop, factory yard, etc.
- Whether there are motors, pumps, compressors, HVAC equipment, or other inductive loads
- Any special requirements for better communication
After getting these info, our HBOWA engineers will help design the tailored solution for you.
