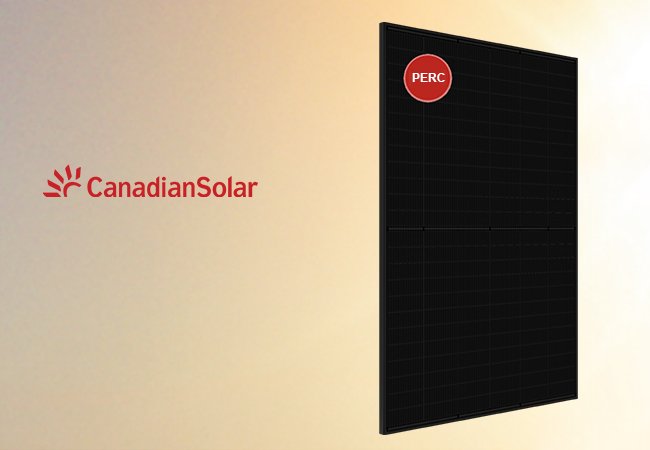

395W 400W Canadian Solar Panels Mono Single Glass
Model: HiKu6 All Black
Cell: monocrystalline
Power Range: 380-405W
Glass: single glass
Certification: CE, UL, IEC
Lead Time:7-10 days
Warranty: 25 Years
MOQ: One pallet of 35 pieces
CanadianSolar HiKu6 380W-405WDescription
If you’re looking to enhance your commercial or industrial solar offering, the 395W Canadian solar panels (HiKu6 All Black CS6R-395MS) deliver exceptional performance with up to 20.2% efficiency and advanced LeTID/LID mitigation, reducing long-term degradation by up to 50%. Designed with robust construction to handle snow loads up to 5400 Pa and wind loads up to 2400 Pa, this all-black mono PERC module is perfect for premium solar installations where aesthetics, reliability, and output matter. With a 25-year linear power warranty, it’s an ideal choice for you seeking long-term value. Upgrade your solar inventory today with proven Canadian quality and maximize ROI for your projects.
- Electrical Data STC
- Electrical Data NMOT
- Mechanical Data
| Model | 380MS | 385MS | 390MS | 395MS | 400MS | 405MS |
| Nominal Max. Power (Pmax) | 380 W | 385 W | 390 W | 395 W | 400 W | 405 W |
| Opt. Operating Voltage (Vmp) | 30.0 V | 30.2 V | 30.4 V | 30.6 V | 30.8 V | 31.0 V |
| Opt. Operating Current (Imp) | 12.69 A | 12.77 A | 12.84 A | 12.91 A | 12.99 A | 13.07 A |
| Open Circuit Voltage (Voc) | 36.0 V | 36.2 V | 36.4 V | 36.6 V | 36.7 V | 37.0 V |
| Short Circuit Current (Isc) | 13.55 A | 13.63 A | 13.70 A | 13.77 A | 13.85 A | 13.93 A |
| Module Efficiency | 19.50% | 19.70% | 20.00% | 20.20% | 20.50% | 20.70% |
| Operating Temperature | -40°C ~ +85°C | |||||
| Max. System Voltage | 1500V (IEC/UL) or 1000V (IEC/UL) | |||||
| Module Fire Performance | TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) | |||||
| Max. Series Fuse Rating | 25 A | |||||
| Application Classification | Class A | |||||
| Power Tolerance | ± 5 W | |||||
| Model | 380MS | 385MS | 390MS | 395MS | 400MS | 405MS |
|---|---|---|---|---|---|---|
| Nominal Max. Power (Pmax) | 284 W | 288 W | 291 W | 295 W | 299 W | 303 W |
| Opt. Operating Voltage (Vmp) | 28.1 V | 28.3 V | 28.4 V | 28.6 V | 28.8 V | 29.0 V |
| Opt. Operating Current (Imp) | 10.12 A | 10.19 A | 10.26 A | 10.33 A | 10.39 A | 10.45 A |
| Open Circuit Voltage (Voc) | 33.9 V | 34.1 V | 34.2 V | 34.4 V | 34.6 V | 34.7 V |
| Short Circuit Current (Isc) | 10.91 A | 10.98 A | 11.05 A | 11.11 A | 11.17 A | 11.23 A |
| Specification | Data |
|---|---|
| Cell Type | Mono-crystalline |
| Cell Arrangement | 108 [2 × (9 × 6)] |
| Dimensions | 1722 × 1134 × 30 mm (67.8 × 44.6 × 1.18 in) |
| Weight | 21.3 kg (47.0 lbs) |
| Front Cover | 3.2 mm tempered glass with anti-reflective coating |
| Frame | Anodized aluminium alloy |
| J-Box | IP68, 3 bypass diodes |
| Cable | 4 mm² (IEC), 12 AWG (UL) |
| Connector | PV-KST4/xy-UR, PV-KBT4/xy-UR (IEC 1000 V) or PV-KST4-EVO2/xy, PV-KBT4-EVO2/xy (IEC 1500 V) |
| Cable Length (Including Connector) | Portrait: 410 mm (16.1 in) (+) / 290 mm (11.4 in) (−); landscape: 1100 mm (43.3 in)* |
| Per Pallet | 35 pieces |
| Per Container (40′ HQ) | 910 pieces |
