430W-450W Pure Black LESSO Dual Glass Solar Panels
Model:430C-450C(BBD)54(182)
Cell: 182mm N-TOPCon Mono Cell(Half Cell)
Power Range: 430W-450W
Glass: Dual glass
Certification: ISO, IEC, TUV, CE
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 36 pieces

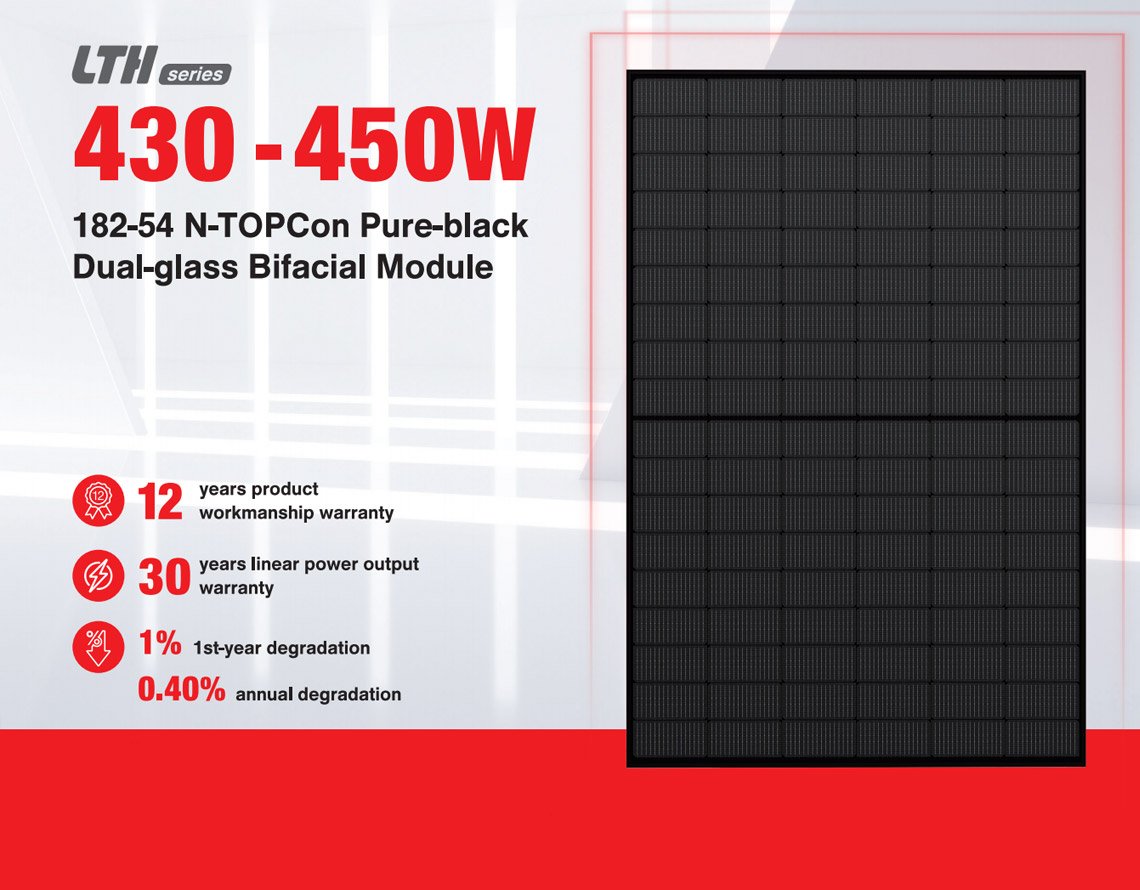

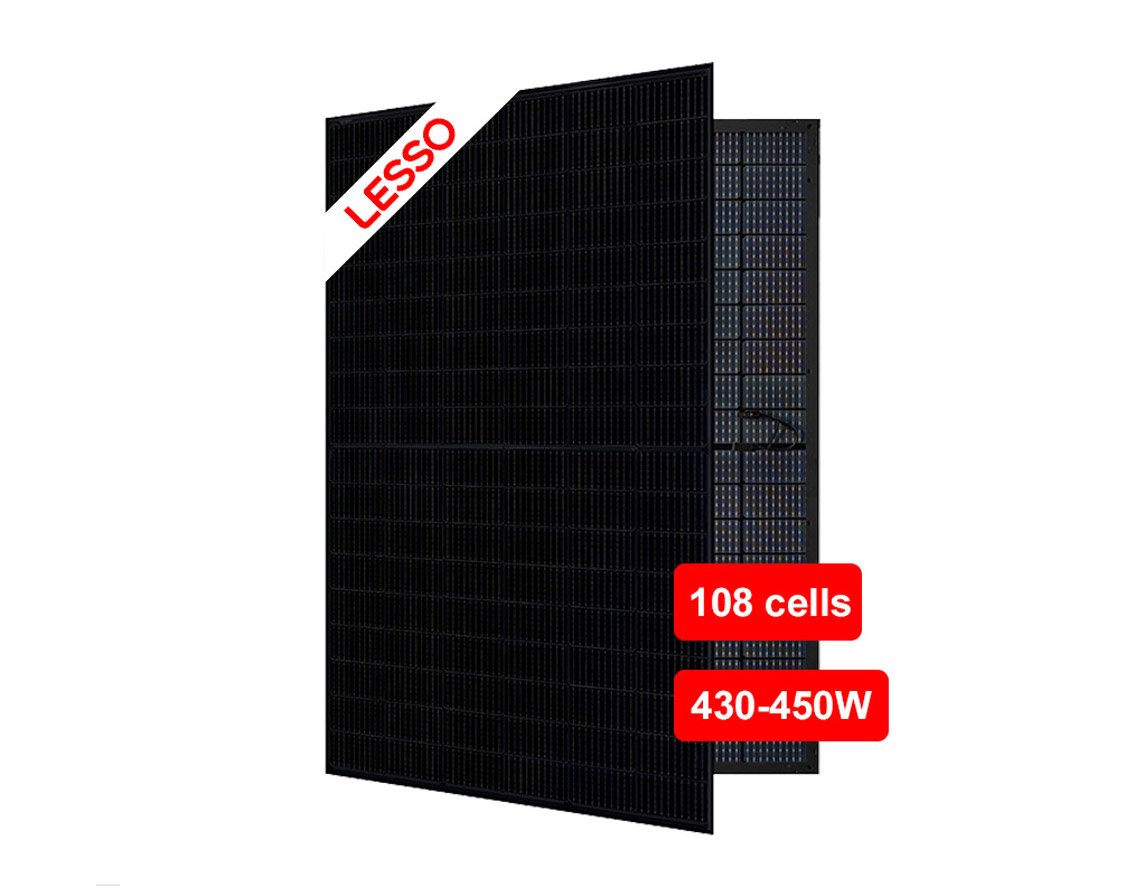

LESSO Solar Panel Black 430W-450W BifacialDescription
LESSO solar panels 430–450W pure black (LTH series 182-54) combine N-TOPCon half-cells with a dual-glass bifacial design for premium rooftop aesthetics and higher kWh. The output of the LESSO black solar panel is 430–450W with 0~+5W tolerance and up to 23.04% efficiency. They provide 12-year workmanship and 30-year linear power warranty.
- Electrical Performance Parameters
- Structure Performance
| Model Type | 430C(BBD)54(182) | 435C(BBD)54(182) | 440C(BBD)54(182) | 445C(BBD)54(182) | 450C(BBD)54(182) | |
| Nominal Max. Power | PMAX (W) | 430 | 435 | 440 | 445 | 450 |
| Max. Power Voltage | VMP (V) | 31.69 | 31.92 | 32.15 | 32.38 | 32.61 |
| Max. Power Current | IMP (A) | 13.57 | 13.63 | 13.69 | 13.75 | 13.81 |
| Open Circuit Voltage | VOC (V) | 37.15 | 37.35 | 37.55 | 37.75 | 37.95 |
| Short Circuit Current | ISC (A) | 14.82 | 14.88 | 14.94 | 15.00 | 15.06 |
| Module Efficiency | (%) | 22.02 | 22.28 | 22.53 | 22.79 | 23.04 |
| Solar Cell Type | 182mm N-TOPCon Mono Cell (Half Cell) |
| Solar Cell Arrangement | 108pcs(6×18) |

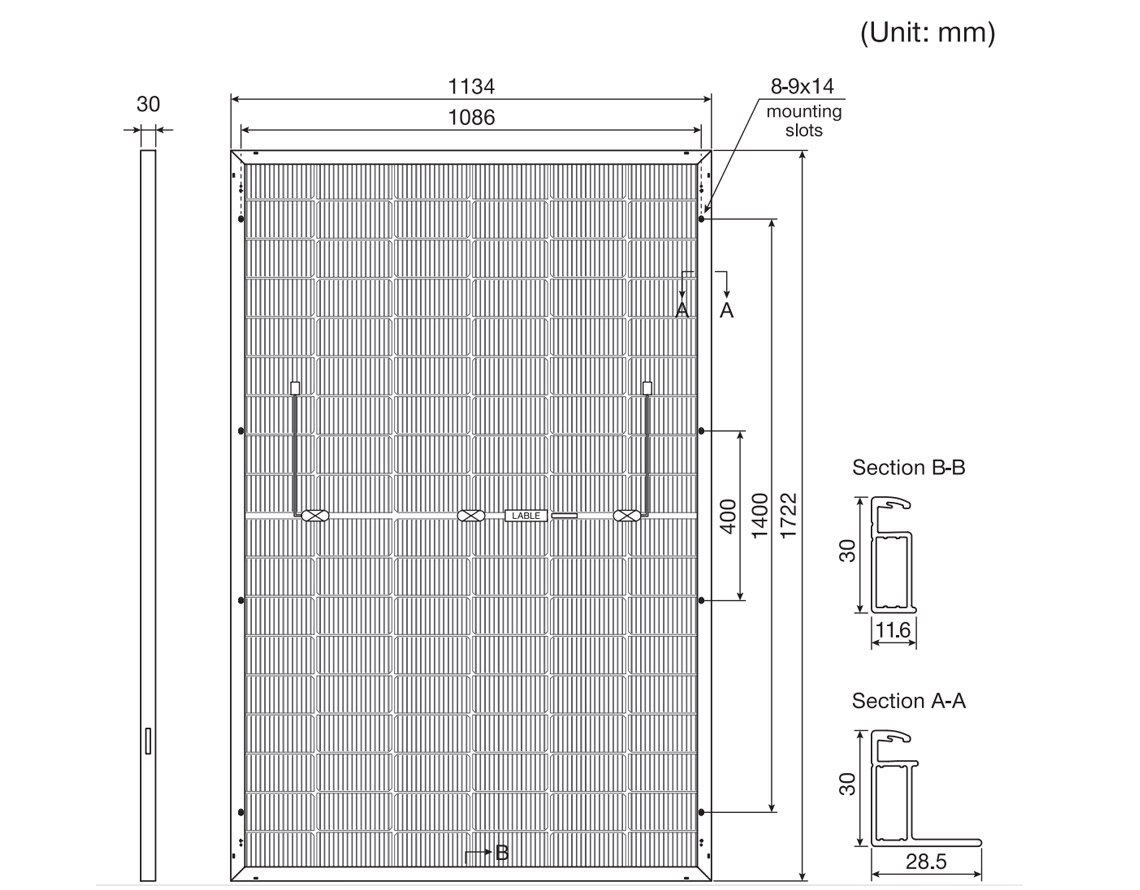

| Module Dimension | 1722×1134×30mm |
| Weight | 23.1kg |
| Front Glass | 2.0mm, highly transparent tempered glass with anti-reflective coating |
| Frame | Anodized Aluminum Alloy (Black) |
| Junction Box | IP68 rated |
| Cable | 4mm2, portrait 400mm (+) 200mm (−) , landscape 1400mm (+) 1400mm (−) Length can be customized |
| Diode Quantity | 3 pcs |
| Front side / Rear side | 5400pa / 2400pa |
| Connector | MC4 Compatible |
| Per Pallet | 36pcs |
| Per Container(40’HQ) | 936pcs |
