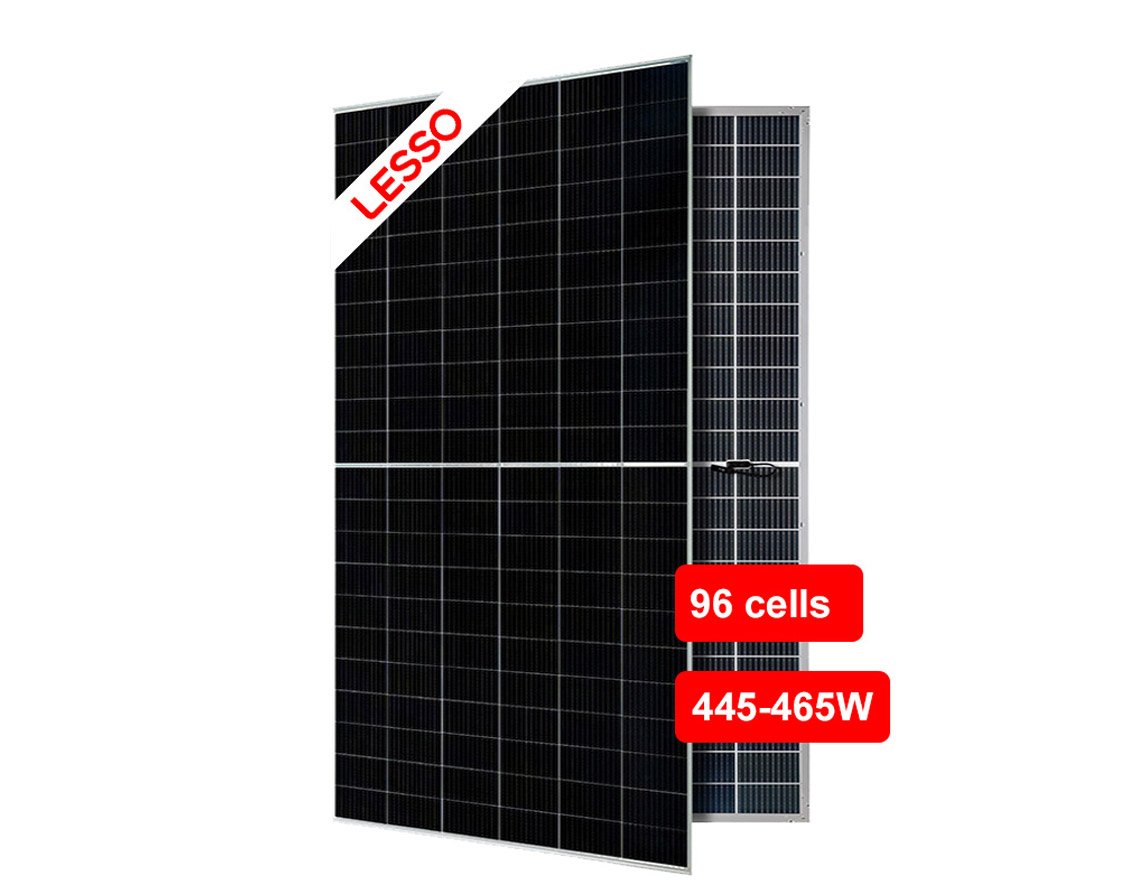

445W-465W LESSO Bifacial Solar Panels
Model:445C-465C(HBD)48(210R)
Cell: 210R N-TOPCon Mono Cell(Half Cell)
Power Range: 445W-465W
Glass: Dual glass
Certification: ISO, IEC, TUV, CE
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 36 pieces
LESSO Solar Panel 445W-465W Bifacial SeriesDescription
LESSO solar panels 445–465W (LTH series) are TOPCon dual-glass bifacial modules built for reliable yield in global utility and C&I projects. They deliver 445–465W with 0~+5W tolerance and up to 23.27% efficiency, plus extra energy from rear-side bifacial gain on reflective surfaces. LESSO sola r panels 445W-465W have a 12-year product warranty and 30-year linear output warranty.
- Electrical Performance Parameters
- Structure Performance
| Model Type | 445C(HBD)48(210R) | 450C(HBD)48(210R) | 455C(HBD)48(210R) | 460C(HBD)48(210R) | 465C(HBD)48(210R) | |
| Nominal Max. Power | PMAX (W) | 445 | 450 | 455 | 460 | 465 |
| Max. Power Voltage | VMP (V) | 30.05 | 30.19 | 30.34 | 30.48 | 30.63 |
| Max. Power Current | IMP (A) | 14.81 | 14.91 | 15.00 | 15.09 | 15.19 |
| Open Circuit Voltage | VOC (V) | 35.20 | 35.35 | 35.50 | 35.65 | 35.80 |
| Short Circuit Current | ISC (A) | 15.83 | 15.92 | 16.00 | 16.08 | 16.16 |
| Module Efficiency | (%) | 22.27 | 22.52 | 22.77 | 23.02 | 23.27 |
| Solar Cell Type | 210R N-TOPCon Mono Cell (Half Cell) |
| Solar Cell Arrangement | 96pcs(6×16) |

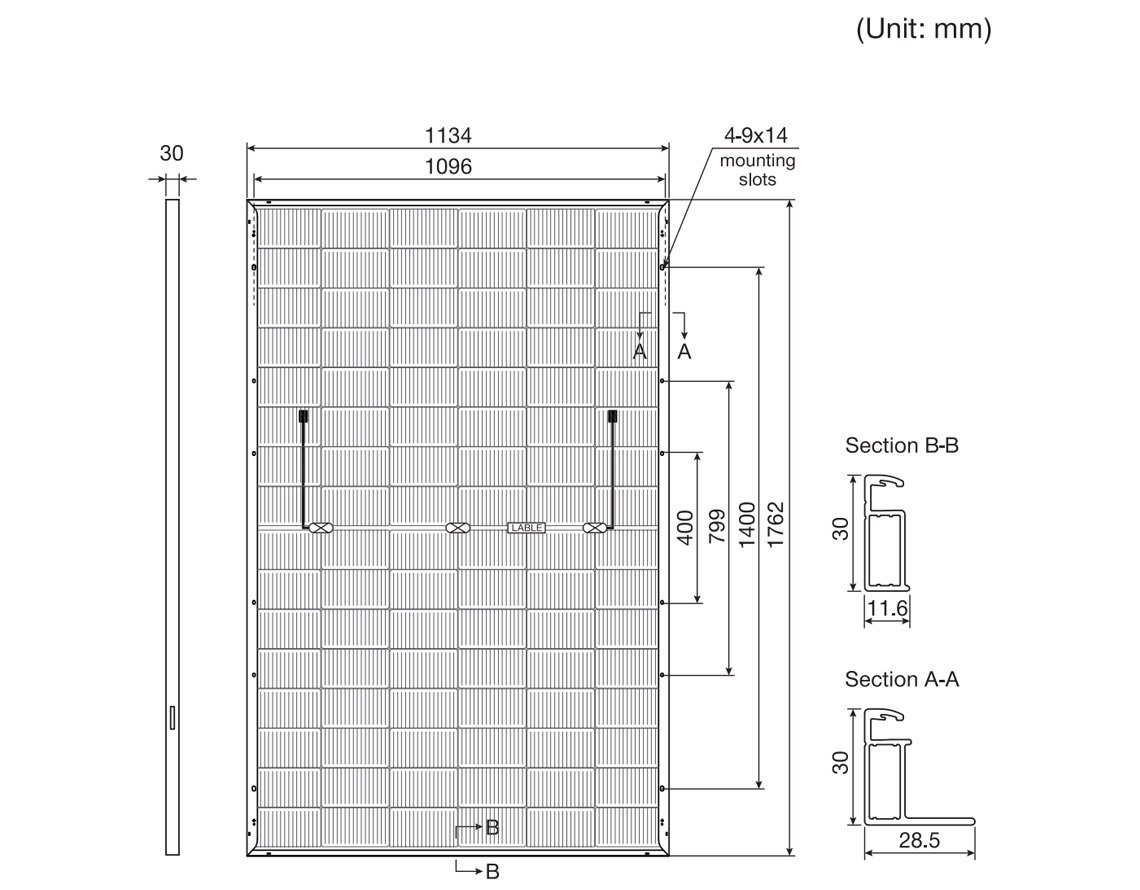

| Module Dimension | 1762×1134×30mm |
| Weight | 24.7kg |
| Front Glass | 2.0mm, highly transparent tempered glass with anti-reflective coating |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 rated |
| Cable | 4mm2, portrait 400mm (+) 200mm (−) , landscape 1400mm (+) 1400mm (−) Length can be customized |
| Diode Quantity | 3 pcs |
| Front side / Rear side | 5400pa / 2400pa |
| Connector | MC4 Compatible |
| Per Pallet | 36pcs |
| Per Container(40’HQ) | 936pcs |
