51.2V 200Ah Stacked Battery & 10KW Single Phase Inverter
Each Battery Pack: 51.2V 200Ah LifePO4
Inverter: 10KW off-grid single phase inverter
Cycle Life: More than 6000 times (@25℃ 80% DOD)
Working Temperature:0℃ – 55℃(32℉ – 131℉)
Warranty: 5 years, 10 years(Customization)
Max Parallel: Max 15 in Parallel to 153.6KWh
Place of Origin: China
User InstructionDescription
How to install and operate the stacked type 10KW all in one energy storage system(battery & inverter)?
10KW All In One Energy Storage System
- Technical Data

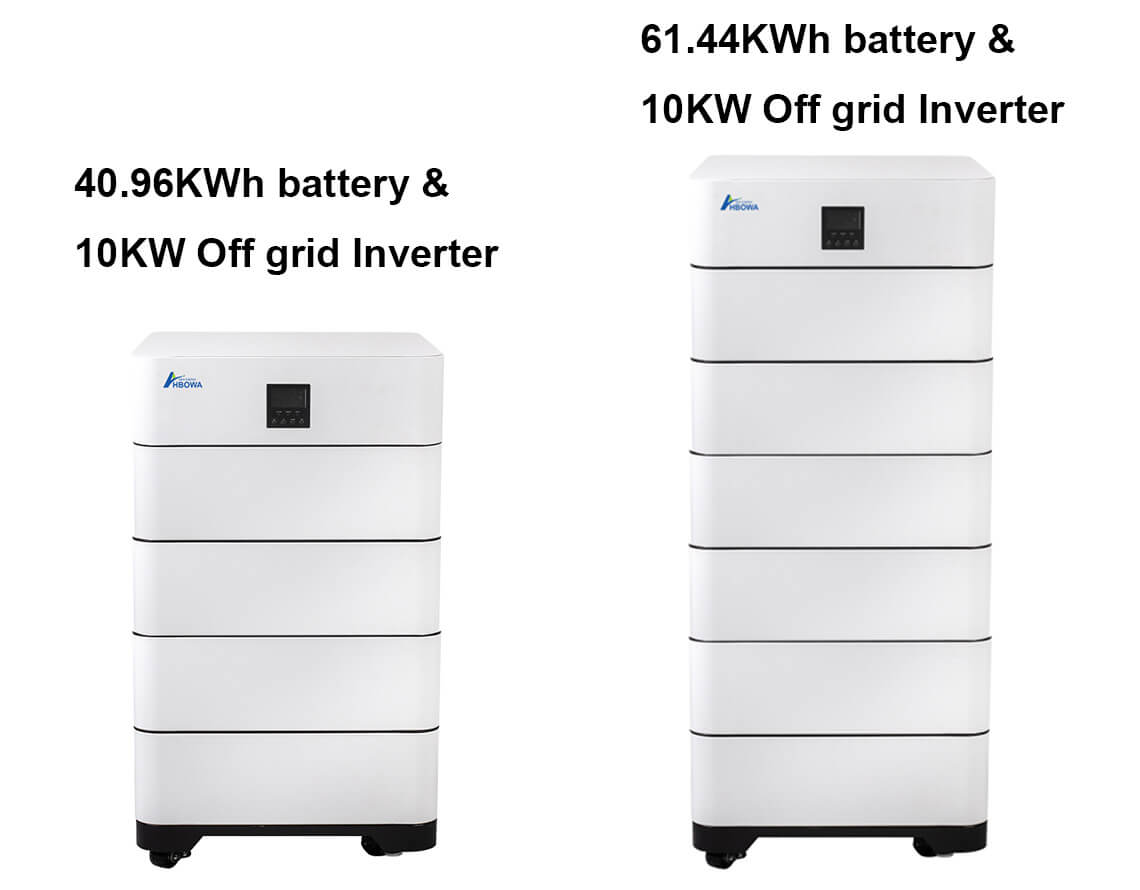

| Model | HBC10KW+40.96KWh | HBC10KW+51.2KWh | HBC10KW+61.44KWh | HBC10KW+71.68KWh |
| Basic Parameters | Inverter layer ×1 | Inverter layer ×1 | Inverter layer ×1 | Inverter layer ×1 |
| Battery layer×4 | Battery layer×5 | Battery layer×6 | Battery layer×7 | |
| Product Size(mm) | 750×700×965mm | 750×700×1136mm | 750×700×1307mm | 750×700×1478mm |
| Net Weight(kg) | 390 | 475 | 560 | 645 |
| Gross Weight(kg) | 392 | 479 | 566 | 650 |
| Nominal capacity(kWh) | 40.96 | 51.2 | 61.44 | 71.68 |
| Nominal voltage (V) | 51.2 | |||
| Working Voltage(V) | 43.2-57.6 | |||
| Standard discharge current（A） | 100 | |||
| DOD | 90% | |||
| Installation | Stacked | |||
| PV Input | ||||
| Voltage (V) | 500VDC | |||
| Working voltage range (V) | 120-425VDC | |||
| Input Power | 5500W +5500W | |||
| Max Input Current | 22A+22A | |||
| AC Output/Input | ||||
| AC Input/output rate Current | 40A | |||
| Rated Input Voltage | 220/230VAC | |||
| Rated Output Power | 10000W | |||
| Ingress Protection | IP20 | |||
| Detection temperature | 65±2℃(149±2℉) | |||
| Operating Charge Temperature | 0℃ – 55℃(32℉ – 131℉) | |||
| Storage Temperature | -20℃ – 55℃(-4℉ – 131℉) | |||
Advantages
51.2V Lifepo4 Stacked Battery
1) Automatic Address Set: When multiple modules are paralleling connected, module addresses are set automatically.
2) Easy Updation: Support for upgrading the battery module from the upper controller through 232 or 485 communication
3) Non-polluting: The module is non-toxic, and environmentally friendly.
4) Long Cycle Life: Cathode material is made from LiFePO4 with over 6000 cycle times.
5) Flexible Configuration: multiple battery modules can be connected to expand capacity and power.
6) Lower Noise: Adopted self-cooling mode rapidly reduced battery entire noise.
All In One System
The all in one energy storage battery has battery layers, off grid single-phase low voltage inverter layer of 10kw, the structure makes it easy to install with few tools needed, plug and play. The battery layers can be expanded to up to 15 units to meet your diverse electricity storage needs. Though the all-in-one storage system is heavy, the swivel wheels of its bottom make it easy to move and use, no need for maintenance, over 6000 cycle times, and a warranty of 5 years, 10 years optional. The Wi-Fi and Bluetooth functions support you in remote control and viewing the status of the battery. You can charge the battery with solar panels, utility grids, and generators, reducing your electricity bills to the maximum extent.

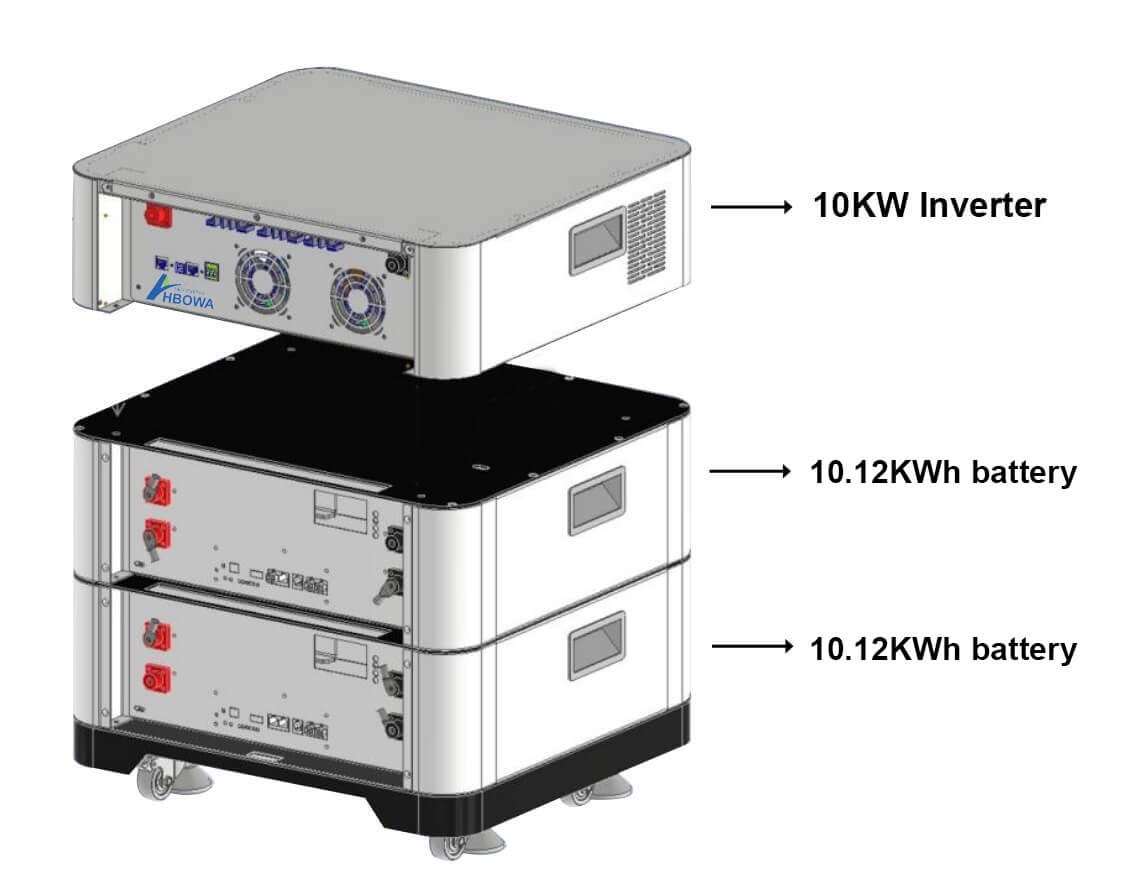

Two Battery Layers Parts List
1. Red 6AWG positive inverter connection line 0.18m, Black 6AWG negative inverter connection line 0.42m;
2. Red 6AWG parallel positive wire line 0.15m, black 6AWG negative parallel wire line 0.15m;
3. M6*10 Fix screws * 6;
4. RJ45 Inverter communication network cable 0.5m;
5. RJ45 Parallel communication network cable 0.5m;
6. Ground wire yellow and green line 1.5M;
7. RS232 BMS communication network cable (optional)
8. User instruction
10KW off grid inverter * 1, stacked lithium battery 10.24KWh *2.
