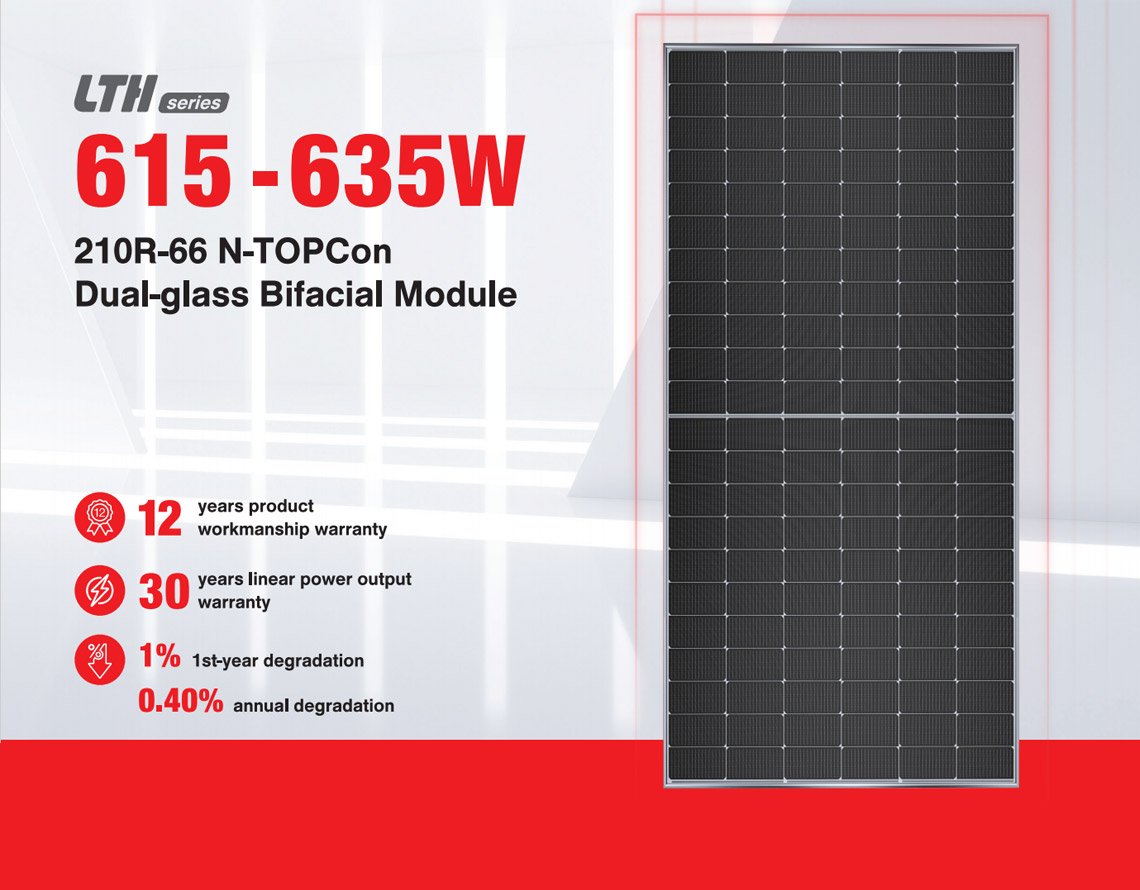

615W-635W LESSO Solar Panels Dual Glass
Model:615C-635C(HBD)66(210R)
Cell: 210R N-TOPCon Mono Cell(Half Cell)
Power Range: 615-635W
Glass: Dual glass
Certification: ISO, IEC, TUV, CE
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 36 pieces
LESSO Solar Panel 615-635W Bifacial SeriesDescription
LESSO solar panels 615–635W (LTH series) are 210R-66 N-TOPCon dual-glass bifacial modules designed for utility-scale and C&I projects worldwide. 615W to 635W LESSO solar panels output power efficiency can be up to 23.51%, they deliver extra kWh from rear-side bifacial gain on reflective surfaces. We provide 12-year product warranty and 30-year linear output warranty. If you have bulk purchase needs, feel free to contact us anytime.
- Electrical Performance Parameters
- Structure Performance
| Model Type | 615C(HBD)66(210R) | 620C(HBD)66(210R) | 625C(HBD)66(210R) | 630C(HBD)66(210R) | 635C(HBD)66(210R) | |
| Nominal Max. Power | PMAX (W) | 615 | 620 | 625 | 630 | 635 |
| Max. Power Voltage | VMP (V) | 40.76 | 40.88 | 40.99 | 41.12 | 41.24 |
| Max. Power Current | IMP (A) | 15.09 | 15.17 | 15.25 | 15.33 | 15.40 |
| Open Circuit Voltage | VOC (V) | 48.82 | 48.95 | 49.08 | 49.21 | 49.34 |
| Short Circuit Current | ISC (A) | 15.98 | 16.06 | 16.15 | 16.23 | 16.31 |
| Module Efficiency | (%) | 22.77 | 22.95 | 23.14 | 23.32 | 23.51 |
| Solar Cell Type | 210R N-TOPCon Mono Cell (Half Cell) |
| Solar Cell Arrangement | 132pcs(6×22) |
| Module Dimension | 2382×1134×30mm |
| Weight | 32.5kg |
| Front Glass | 2.0mm, highly transparent tempered glass with anti-reflective coating |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 rated |
| Cable | 4mm2, portrait 400mm (+) 200mm (−) , landscape 1400mm (+) 1400mm (−) Length can be customized |
| Diode Quantity | 3 pcs |
| Front side / Rear side | 5400pa / 2400pa |
| Connector | MC4 Compatible |
| Per Pallet | 36pcs |
| Per Container(40’HQ) | 576pcs (horizontal packing) / 720pcs (vertical packing) |
