630W-650W LESSO N-Topcon Solar Panels By Container 576 pcs
Model:630C-650C(HBD)78(182)
Cell: 182mm N-TOPCon Mono Cell(Half Cell)
Power Range: 630-650W
Glass: Dual glass
Certification: ISO, IEC, TUV, CE
Warranty: 30 Years
MOQ: One container 576 pcs

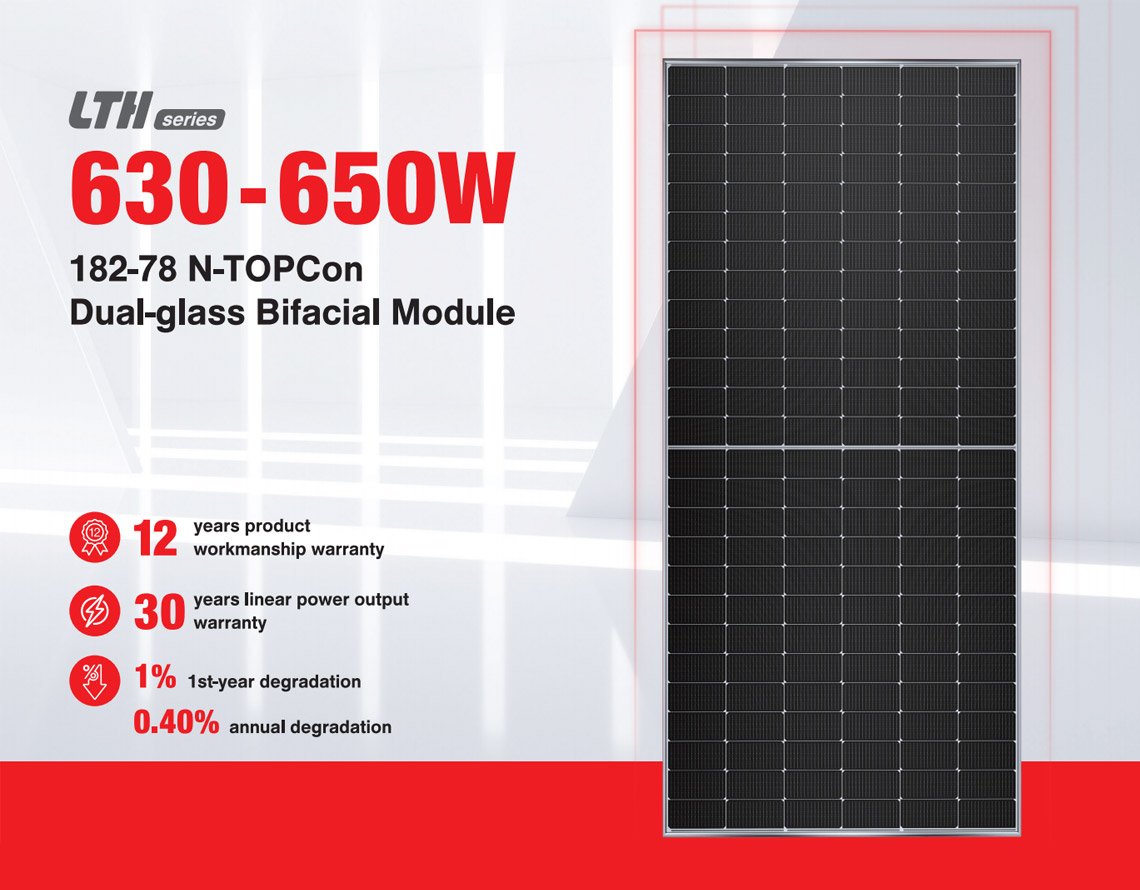

LESSO Solar Panel 630-650W Bifacial SeriesDescription
LESSO solar panels 630-650W (LTH series) use 182mm N-TOPCon half-cells and a dual-glass bifacial structure, the power output efficiency can be up to 23.25%. Bifacial gain increases kWh on reflective ground (sand, concrete, snow), helping EPCs and distributors improve project ROI, they’re ideal for utility-scale and C&I ground-mount or tracker sites worldwide.

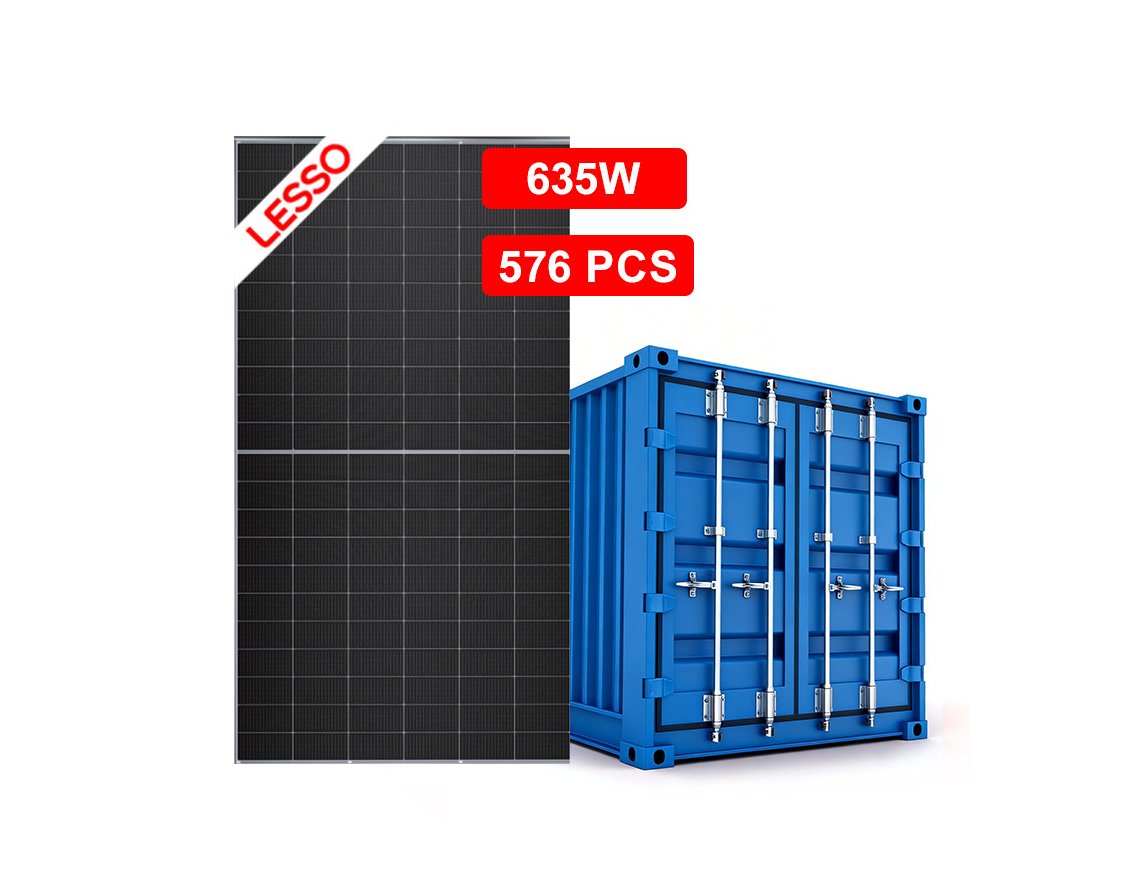

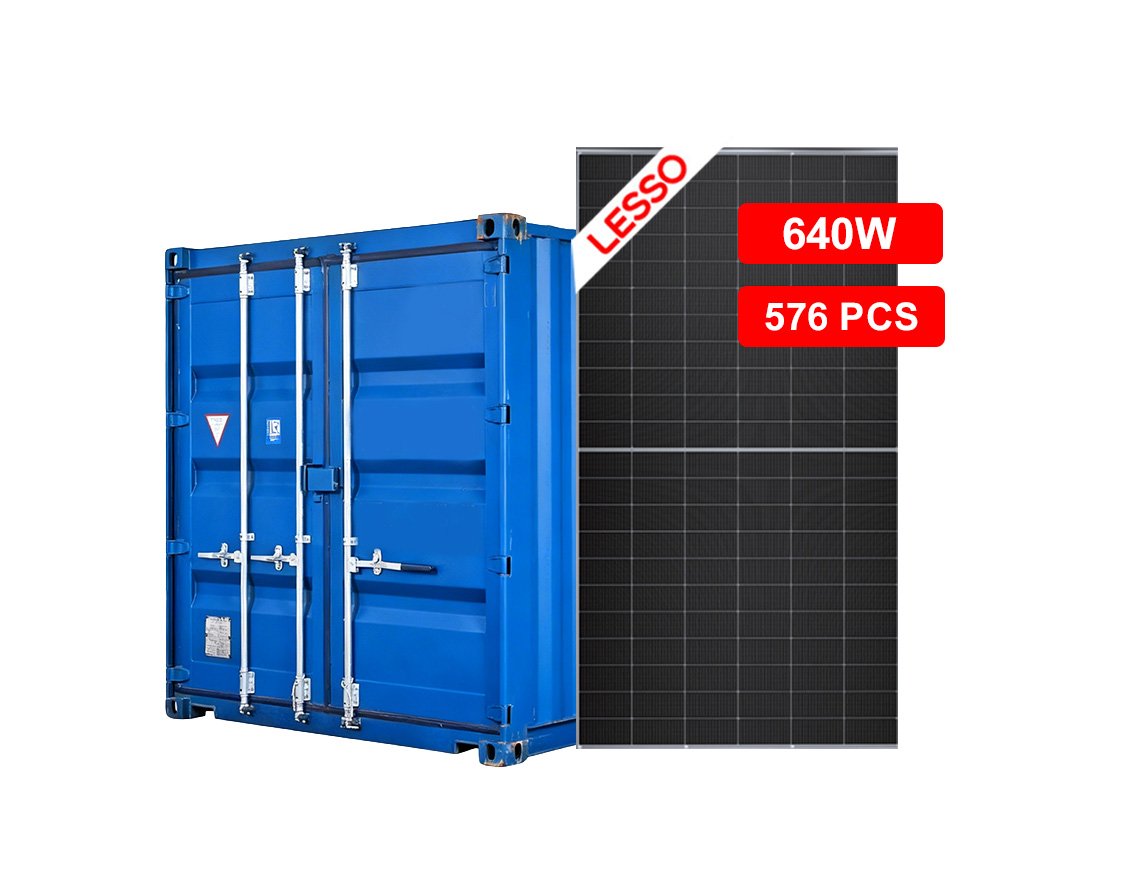

630W-650W LESSO solar panels in a 40’HQ container are 576 pcs.
- Electrical Performance Parameters
- Structure Performance
| Model Type | 630C(HBD)78(182) | 635C(HBD)78(182) | 640C(HBD)78(182) | 645C(HBD)78(182) | 650C(HBD)78(182) | |
| Nominal Max. Power | PMAX (W) | 630 | 635 | 640 | 645 | 650 |
| Max. Power Voltage | VMP (V) | 46.37 | 46.50 | 46.63 | 46.76 | 46.89 |
| Max. Power Current | IMP (A) | 13.59 | 13.66 | 13.73 | 13.80 | 13.87 |
| Open Circuit Voltage | VOC (V) | 56.46 | 56.61 | 56.76 | 56.91 | 57.06 |
| Short Circuit Current | ISC (A) | 14.42 | 14.50 | 14.58 | 14.66 | 14.74 |
| Module Efficiency | (%) | 22.54 | 22.72 | 22.90 | 23.07 | 23.25 |
| Solar Cell Type | 182mm N-TOPCon Mono Cell (Half Cell) |
| Solar Cell Arrangement | 156pcs(6×26) |
| Module Dimension | 2465×1134×30mm |
| Weight | 33.5kg |
| Front Glass | 2.0mm, highly transparent tempered glass with anti-reflective coating |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 rated |
| Cable | 4mm2, portrait 400mm (+) 200mm (−) , landscape 1400mm (+) 1400mm (−) Length can be customized |
| Diode Quantity | 3 pcs |
| Front side / Rear side | 5400pa / 2400pa |
| Connector | MC4 Compatible |
| Per Pallet | 36pcs |
| Per Container(40’HQ) | 576pcs |
