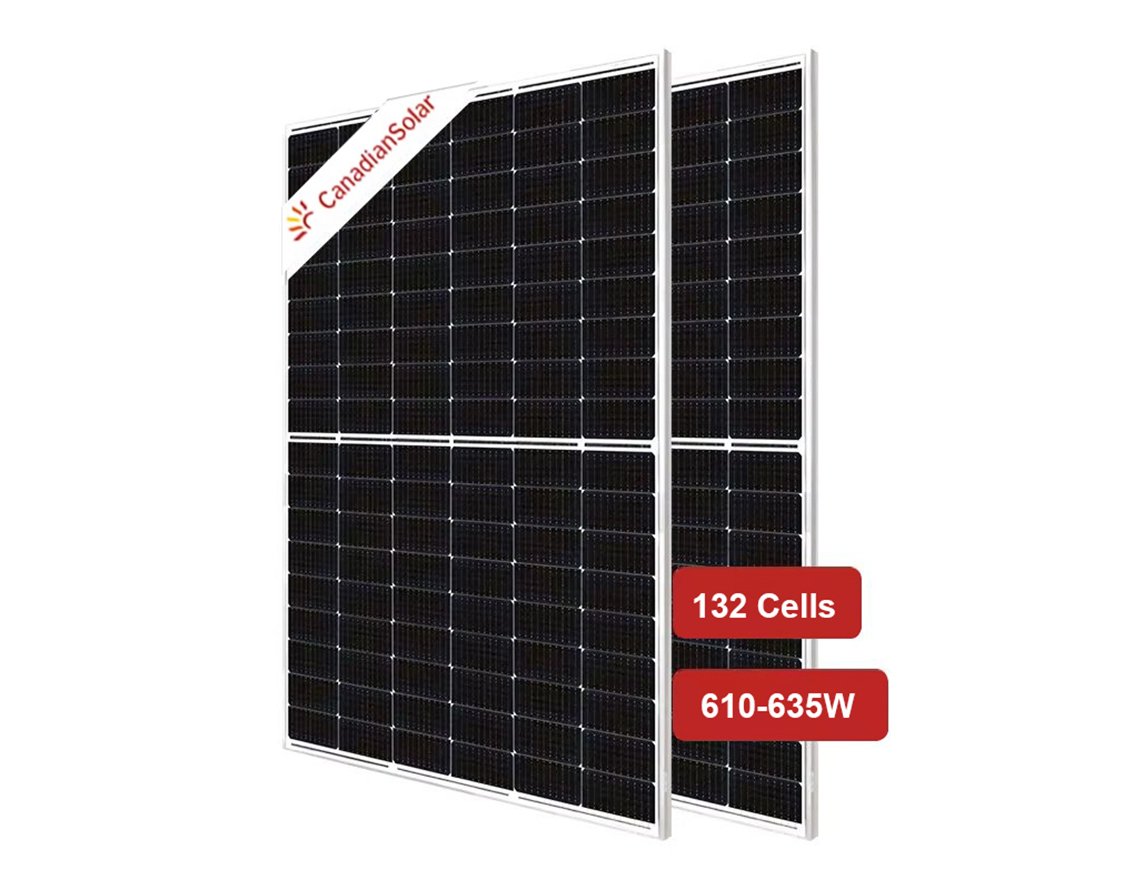

635W Canadian Solar Panel N Type TOPCon
Model: TOPHiKu6
Cell: TOPCon N-type monocrystalline
Power Range: 610-635W
Glass: single glass
Certification: CE, UL, IEC
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 36 pieces

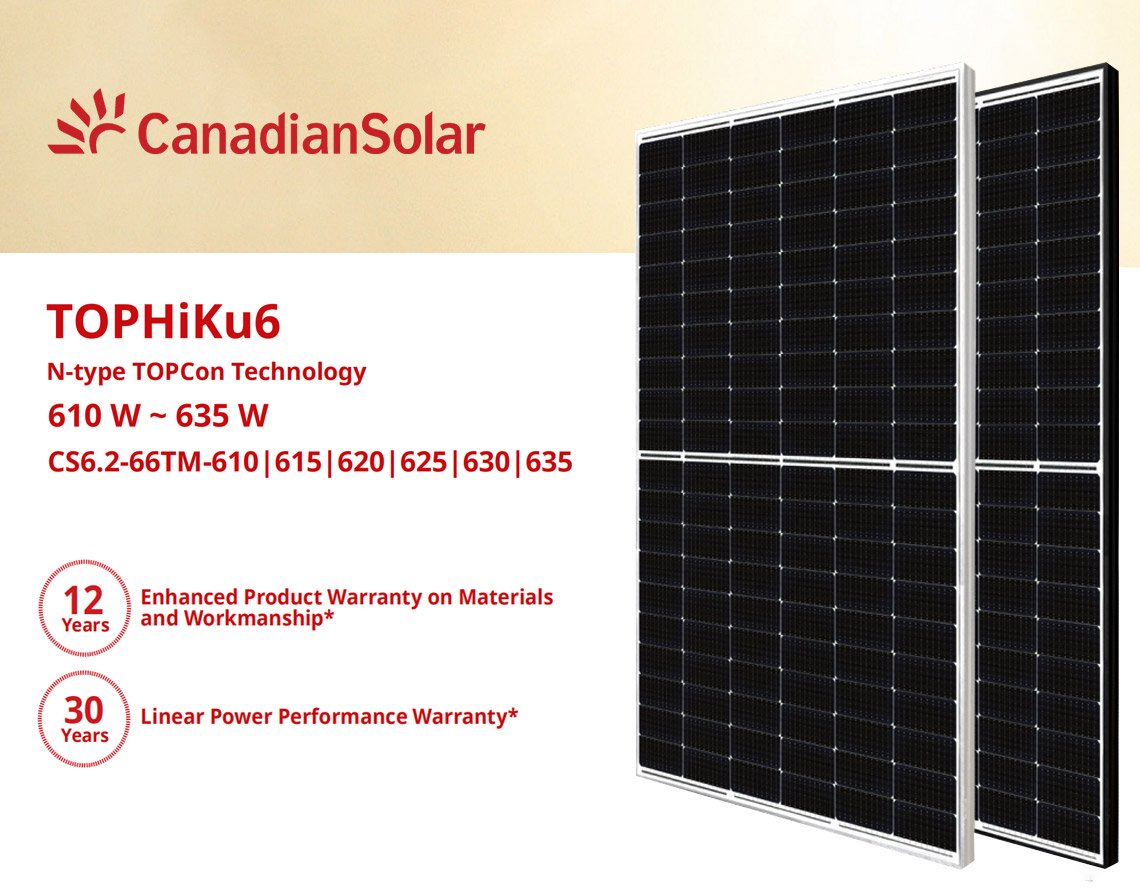

CanadianSolar TOPHiKu6 610W-635WDescription
The 635W Canadian Solar Panel with N-Type TOPCon technology delivers outstanding efficiency up to 23.5%, making it an ideal choice for commercial and utility-scale installations. Built with 132 high-performance TOPCon cells and anti-reflective tempered glass, this module ensures enhanced durability, power output, and minimal degradation over time. Its robust design supports 1500V systems, snow loads up to 5400 Pa, and wind loads up to 2400 Pa. This 635W Canadian solar panel promises lower LCOE and a faster ROI—engineered for performance and built to last.
- Electrical Data STC*
- Electrical Data NMOT*

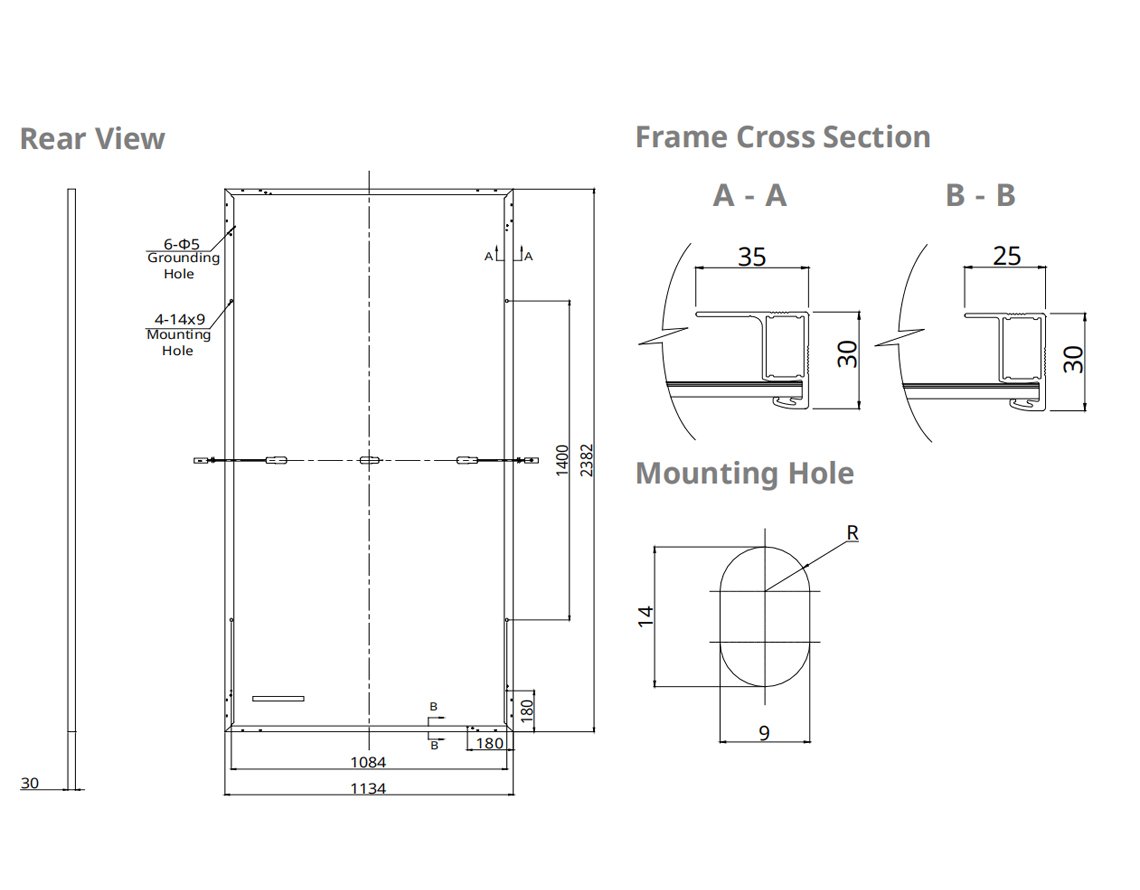

- Mechanical Data
| Parameter | 610 W | 615 W | 620 W | 625 W | 630 W | 635 W |
| Nominal Max. Power (Pmax) | 610 W | 615 W | 620 W | 625 W | 630 W | 635 W |
| Opt. Operating Voltage (Vmp) | 40.8 V | 41.0 V | 41.2 V | 41.4 V | 41.6 V | 41.8 V |
| Opt. Operating Current (Imp) | 14.96 A | 15.01 A | 15.06 A | 15.11 A | 15.16 A | 15.21 A |
| Open Circuit Voltage (Voc) | 48.0 V | 48.2 V | 48.4 V | 48.6 V | 48.8 V | 49.0 V |
| Short Circuit Current (Isc) | 15.97 A | 16.02 A | 16.08 A | 16.14 A | 16.20 A | 16.26 A |
| Module Efficiency | 22.60% | 22.80% | 23.00% | 23.10% | 23.30% | 23.50% |
| Operating Temperature | -40°C ~ +85°C | |||||
| Max. System Voltage | 1500 V (IEC/UL) | |||||
| Module Fire Performance | TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) | |||||
| Max. Series Fuse Rating | 30 A | |||||
| Protection Class | Class II | |||||
| Power Tolerance | 0 ~ +10 W | |||||
| Parameter | 610 W | 615 W | 620 W | 625 W | 630 W | 635 W |
|---|---|---|---|---|---|---|
| Nominal Max. Power (Pmax) | 461 W | 465 W | 469 W | 473 W | 477 W | 480 W |
| Opt. Operating Voltage (Vmp) | 38.6 V | 38.8 V | 38.9 V | 39.1 V | 39.3 V | 39.5 V |
| Opt. Operating Current (Imp) | 11.96 A | 12.00 A | 12.04 A | 12.08 A | 12.12 A | 12.16 A |
| Open Circuit Voltage (Voc) | 45.4 V | 45.6 V | 45.8 V | 46.0 V | 46.2 V | 46.4 V |
| Short Circuit Current (Isc) | 12.87 A | 12.91 A | 12.96 A | 13.00 A | 13.05 A | 13.10 A |
| Specification | Data |
|---|---|
| Cell Type | TOPCon cells |
| Cell Arrangement | 132 [2 × (11 × 6)] |
| Dimensions | 2382 × 1134 × 30 mm (93.8 × 44.6 × 1.18 in) |
| Weight | 28.1 kg (61.9 lbs) |
| Front Cover | 3.2 mm tempered glass with anti-reflective coating |
| Frame | Anodized aluminium alloy |
| J-Box | IP68, 3 bypass diodes |
| Cable | 4 mm² (IEC), 12 AWG (UL) |
| Cable Length (Including Connector) | 300 mm (11.8 in) (+) / 200 mm (7.9 in) (–) or customized length* |
| Connector | T6 or MC4-EVO2 or MC4-EVO2A |
| Per Pallet | 36 pieces |
| Per Container (40′ HQ) | 720 pieces |
