Astronergy Solar Panels Bifacial 530W 510W 520W
Model: CHSM54RN(DG)/F-BH
Cell: n-type mono-crystalline
Power Range: 510-530W
Glass: Dual glass
Certification: CE, TUV
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 36 pieces
Astronergy Solar Panel 510-530W Bifacial SeriesDescription
Astronergy Solar Panels 530W are part of the CHSM54RN(DG)/F-BH bifacial series, built for long-life production with warranties your finance team can trust. The module pairs n-type TOPCon 5.0 cells with a zero-busbar (ZBB) interconnection, so there are no visible busbars, just a sleek, integrated look and lower resistive loss.
Ready to specify Astronergy Solar Panels 530W? Send your bulk buying plan, we will send you detailed quotation and plan shipment for you immediately.
- Specifications STC

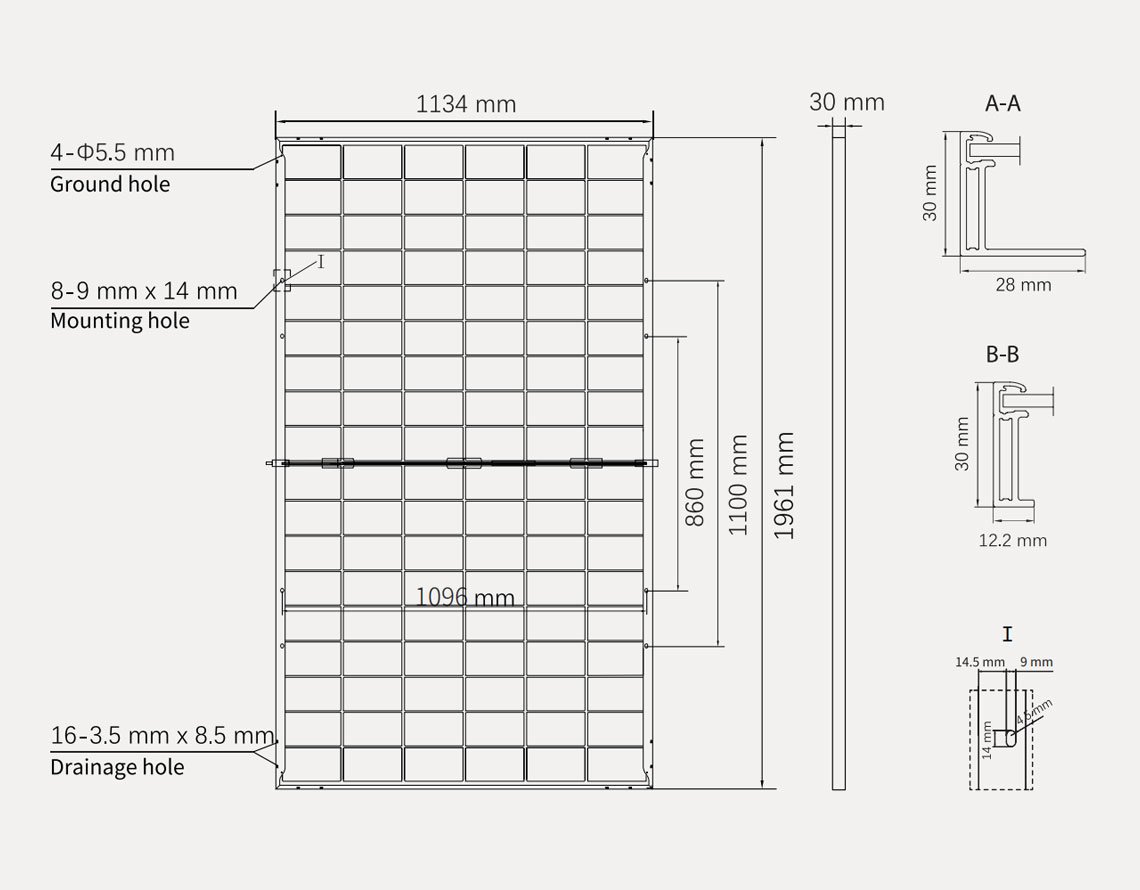

- Mechanical Data
| Parameter | 510 W | 515 W | 520 W | 525 W | 530 W |
|---|---|---|---|---|---|
| Rated voltage (Vmpp / V) | 34.29 | 34.42 | 34.44 | 34.52 | 34.60 |
| Rated current (Impp / A) | 14.87 | 14.96 | 15.10 | 15.21 | 15.32 |
| Open-circuit voltage (Voc / V) | 41.21 | 41.37 | 41.39 | 41.49 | 41.59 |
| Short-circuit current (Isc / A) | 15.70 | 15.79 | 15.82 | 15.93 | 16.04 |
| Module efficiency | 22.9% | 23.2% | 23.4% | 23.6% | 23.8% |
| Specification | Value |
|---|---|
| Outer dimensions (L × W × H) | 1961 × 1134 × 30 mm |
| Cell type | n-type mono-crystalline |
| No. of cells | 108 (6 × 18) |
| Frame technology | Aluminum, black anodized |
| Front / Back glass | 2.0 + 2.0 mm |
| Cable length (including connector) | Landscape: 1200 mm; or customized length |
| Cable diameter (IEC/UL) | 4 mm² / 12 AWG |
| Maximum mechanical test load | 6000 Pa (front) / 4000 Pa (back) |
| Connector type (IEC/UL) | MC4-EVO2A (Standard) / HCB40 (Optional) |
| Module weight | 26.9 kg |
| Packing unit | 36 pcs / box |
| Weight of packing unit (for 40′ HQ container) | 1016 kg |
| Modules per 40′ HQ container | 864 pcs (subject to sales contract) |
