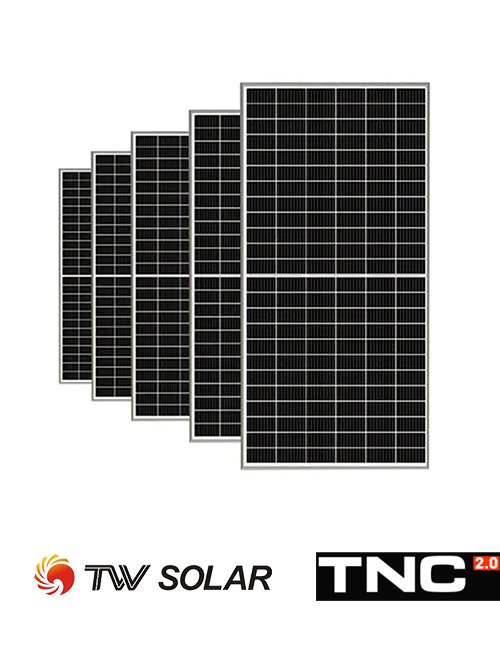

Bifacial Module Tongwei Solar Panels 575W-595W
Model: TWMND-72HD575-595W
Cell: TNC
Power Range:575-595W
Glass: dual glass
Certification: CE, TUV
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 36 pieces
Tongwei TWMND-72HD Solar Panels 575-595WDescription
Tongwei solar panels 575–595W combine N-type half-cell tech with a bifacial design to capture rear-side light, improve shade tolerance, and slow degradation over time. The rugged construction, sealed junction box, and strict reliability testing deliver stable output in hot, dusty, coastal, or high-wind sites, which reduces maintenance and drives down lifetime cost. HBOWA has large solar panels in stock, various watts available, feel free to reach out anytime.
- Specifications STC
- Mechanical Data
| Parameter | 575 | 580 | 585 | 590 | 595 |
|---|---|---|---|---|---|
| Maximum Power (Pmax) [W] | 575 | 580 | 585 | 590 | 595 |
| Open-Circuit Voltage (Voc) [V] | 52.10 | 52.30 | 52.50 | 52.70 | 53.20 |
| Short-Circuit Current (Isc) [A] | 13.80 | 13.85 | 13.90 | 13.95 | 14.15 |
| Voltage at Maximum Power (Vmp) [V] | 43.76 | 43.93 | 44.10 | 44.27 | 44.41 |
| Current at Maximum Power (Imp) [A] | 13.14 | 13.21 | 13.27 | 13.33 | 13.40 |
| Module Efficiency (η) [%] | 22.3 | 22.5 | 22.6 | 22.8 | 23.0 |
| Specification | Details |
|---|---|
| Cells | TNC (N-type monocrystalline) |
| Cell Orientation | 144 (6×24) |
| Dimensions | 2278 ± 2 × 1134 ± 2 × 30 mm |
| Weight | 31.5 kg |
| Front Glass | 2.0 mm high-transmittance, AR semi-tempered glass |
| Rear Glass | 2.0 mm semi-tempered glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68, 3 diodes |
| Output Cable | 4.0 mm² |
| Cable Length | +400 mm / −200 mm; length customizable |
| Wind/Snow Load | 2,400 Pa / 5,400 Pa |
| Packaging | 36 pcs per pallet; 720 pcs per 40′ HC |
