Growatt Hybrid Solar Inverter 3 Phase Low Voltage 8KW-15KW

Model Number: Growatt WIT 8K-15K-HU

Inverter Type: hybrid

Output Voltage: 220V/380V, 230V/400V

Output power: 8KW/10WK/12KW/15KW

Warranty: 5 years(10 years optional)

Fast Shipping: from the warehouse in Germany

Place of Origin: China

pdf document Datasheet of WIT-8K-15K-HU Growatt Solar Inverter

PRODUCT DETAILS

Send Your Inquiry

Description
Technical Data
Details
Cases
Download
Top

Description

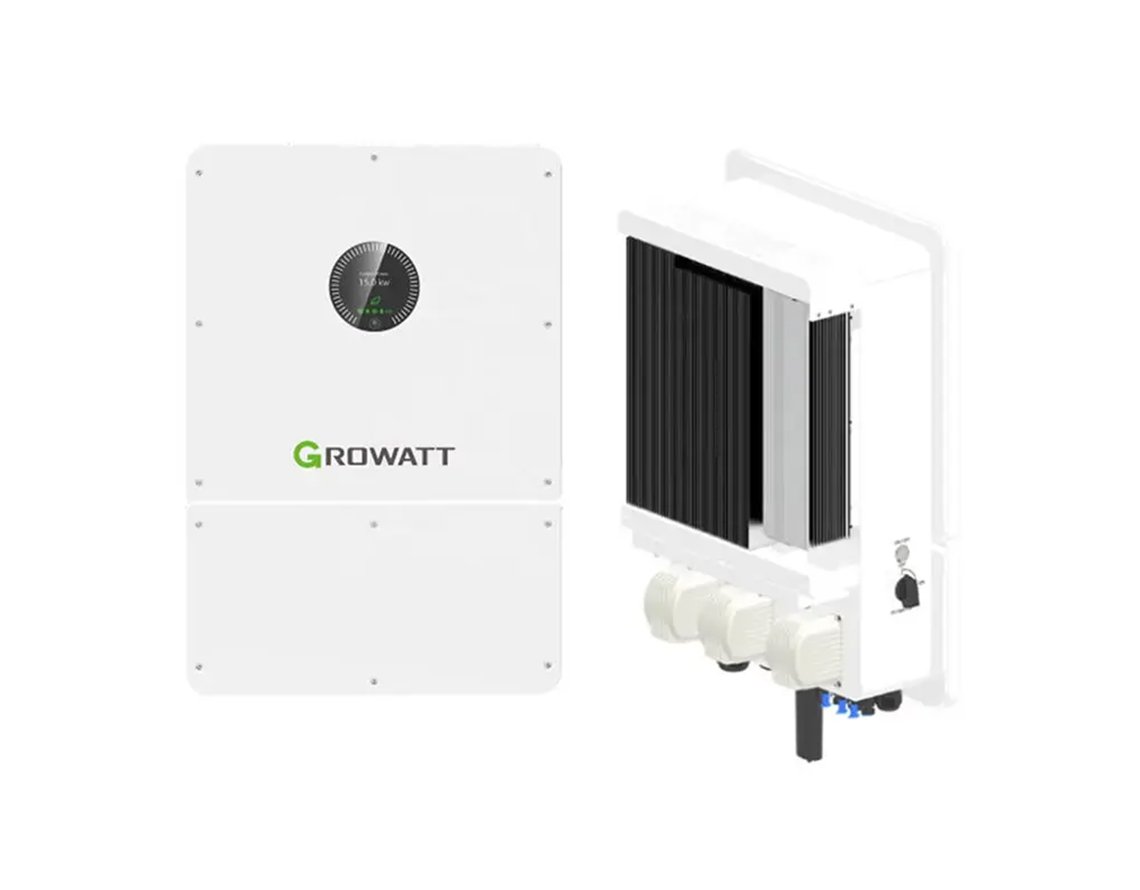

The Growatt hybrid solar inverter WIT 8–15kW series is a smart, three-phase unit that manages power from your solar panels and the 48V battery. It has built-in MPPTs to pull the most energy from the sun, mounts on the wall, and is IP66 weather-ready for indoor or outdoor use. It works with common LiFePO4 or lead-acid batteries and should be connected to batteries for normal operation.

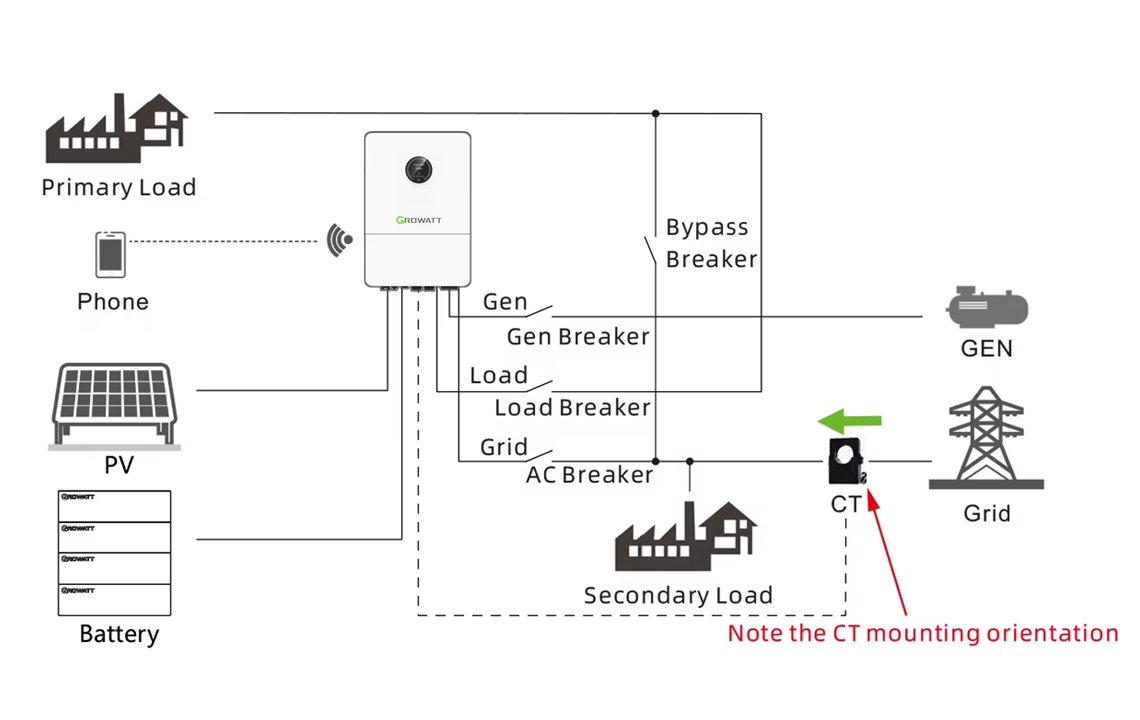

Think of it like a simple power manager for you. On sunny days, it uses solar first to run your appliances and charge the batteries. When the sun fades, it automatically switches to the grid so your electrical equipment stay on. You can choose what to use first—solar, grid, or battery—and change it anytime. If you need more power later, it can work together with other matching units to grow with you.

As a cooperative distributor of Growatt, HBOWA offers you Growatt products – genuine factory products, with original factory warranty and after-sales service, ensuring you have no worries. We welcome both small and bulk orders for WIT series of Growatt hybrid inverters, if you need them, feel free to contact us directly.

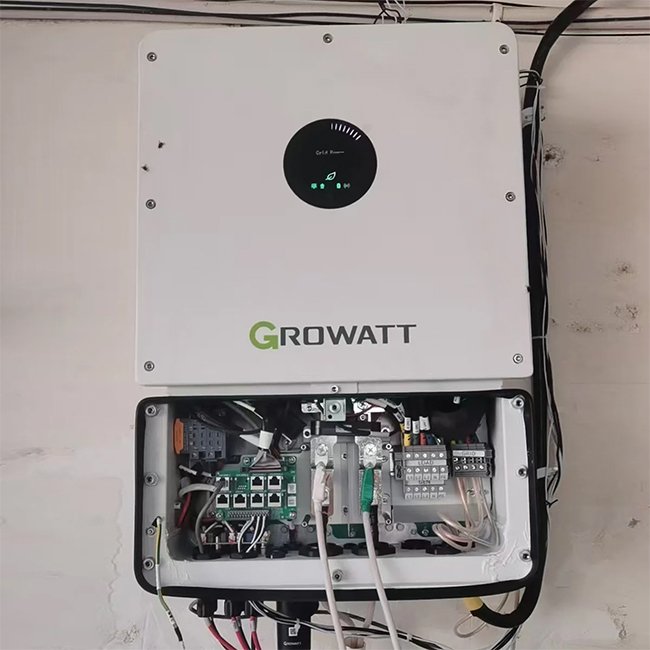

growatt-hybrid-solar-inverter-low-voltage-3-phase-8kw-structure-details-show

Technical Data

Input Data
Output AC
Physical Data

Parameter	WIT 8K-HU	WIT 10K-HU	WIT 12K-HU	WIT 15K-HU
Max. recommended PV power (STC)	12,800 W	16,000 W	19,200 W	24,000 W
Max. input voltage	1000 V	1000 V	1000 V	1000 V
Start voltage	180 V	180 V	180 V	180 V
Nominal voltage	600 V	600 V	600 V	600 V
MPPT voltage range	150–850 V	150–850 V	150–850 V	150–850 V
Max. input current per MPP tracker	20 A	20 A	40 A	40 A
Max. short-circuit current per MPP tracker	25 A	25 A	50 A	50 A
No. of PV strings per MPP tracker	1	1	2/1*	2/1*
No. of MPP trackers	2	2	2	2

AC (Grid) specs	WIT 4K-HU	WIT 5K-HU	WIT 6K-HU	WIT 8K-HU	WIT 10K-HU	WIT 12K-HU	WIT 15K-HU
AC input/output nominal power (Grid)	8000 W / 4000 W	10000 W / 5000 W	12000 W / 6000 W	16000 W / 8000 W	20000 W / 10000 W	24000 W / 12000 W	30000 W / 15000 W
Max. AC input/output apparent power (Grid)	8800 VA / 4400 VA	11000 VA / 5500 VA	13200 VA / 6600 VA	17600 VA / 8800 VA	22000 VA / 11000 VA	26400 VA / 13200 VA	33000 VA / 16500 VA
Max. input/output current (Grid)	13.4 A / 6.7 A	16.7 A / 8.4 A	20.0 A / 10.0 A	26.6 A / 13.3 A	33.3 A / 16.7 A	40.0 A / 20.0 A	50.1 A / 25.0 A
Max. input current (GEN/AC couple)	12.2 A	15.2 A	18.2 A	24.2 A	30.4 A	36.4 A	45.4 A
Max. continuous AC passthrough current	50.1 A	50.1 A	50.1 A	50.1 A	50.1 A	50.1 A	50.1 A
Nominal AC voltage / range	220 V/380 V, 230 V/400 V, −15%~+10%	same	same	same	same	same	same
Nominal AC grid frequency / range	50/60 Hz, 45–55 Hz / 55–65 Hz	same	same	same	same	same	same
Adjustable power factor	−1…+1	−1…+1	−1…+1	−1…+1	−1…+1	−1…+1	−1…+1
THDi	<3%	<3%	<3%	<3%	<3%	<3%	<3%
AC grid connection type	3P3W+PE / 3P4W+PE	same	same	same	same	same	same

Parameter	Value
Dimensions (W×H×D)	475 × 698 × 240 mm
Weight	43 kg
Operating temperature range	−30°C to +60°C (derating >45°C)
Noise	≤50 dB(A)
Relative humidity	0–100%
Altitude	3000 m
Topology	Transformerless
Cooling	Smart air cooling
Ingress protection (IP)	IP66
Display	OLED / LED + App
Interfaces: RS485 / USB	Yes
Interfaces: Wi-Fi / LAN	Yes
Warranty (5/10 years)	Yes / Optional
