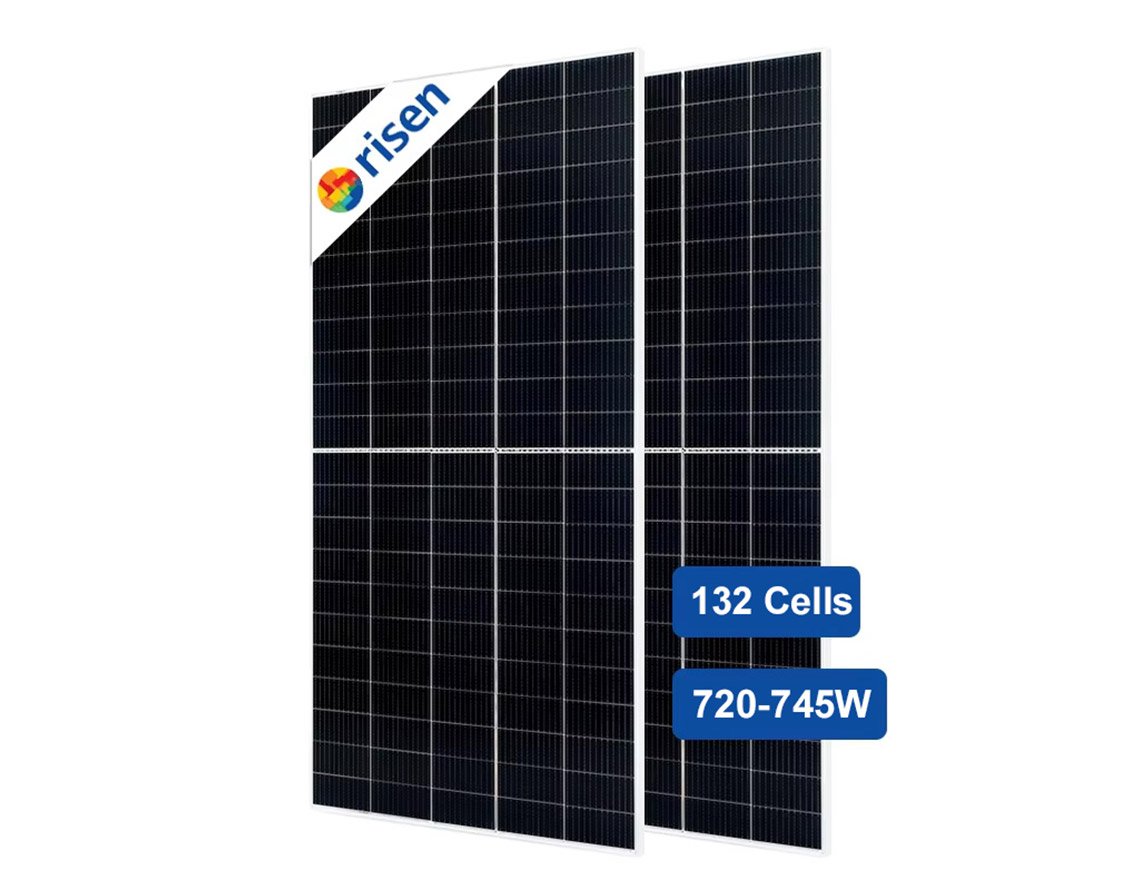

HJT Bifacial Risen 720W - 745W Solar Panel Aluminum Alloy Frame
Model: RSM132-8-720-745BHDG
Cell: N-Type HJT
Power Range:720-745W
Glass: dual glass
Certification: CE, TUV
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 33 pieces
Risen 720-745W HJT Solar Panel with Aluminum Alloy FrameDescription
HJT Risen bifacial solar panels 720W-745W are ultra-high-output N-type HJT modules built for utility-scale and C&I solar projects that need strong bifacial gain. The bifacial dual-glass design helps capture extra backside generation in reflective environments, while HJT technology supports low degradation, stable temperature behavior, and reliable field performance. This aluminum-alloy-frame version uses an anodized aluminium alloy frame, reaches up to 24.0% efficiency, and is engineered for 5400 Pa front-side and 2400 Pa rear-side mechanical loads. It also comes with a 15-year product warranty and a 30-year linear power warranty.
Planning a bulk order? Share your project schedule and we can help secure HJT Risen bifacial solar panels 720W-745W to match your delivery timeline.
- Specifications STC

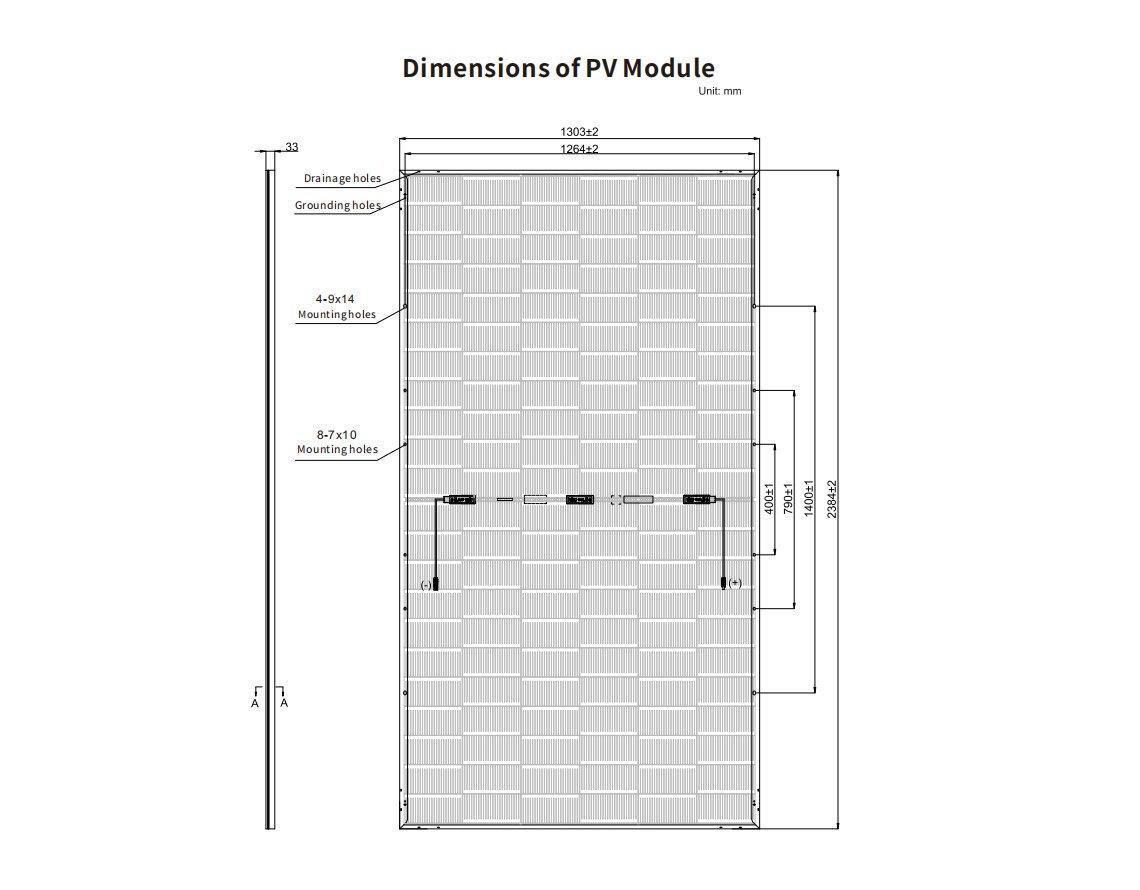

- Mechanical Data
| Rated Power in Watts-Pmax(Wp) | 720 | 725 | 730 | 735 | 740 | 745 |
| Open Circuit Voltage-Voc(V) | 50.18 | 50.26 | 50.33 | 50.40 | 50.47 | 50.54 |
| Short Circuit Current-Isc(A) | 18.19 | 18.29 | 18.38 | 18.47 | 18.56 | 18.65 |
| Maximum Power Voltage-Vmpp(V) | 42.08 | 42.14 | 42.20 | 42.26 | 42.32 | 42.38 |
| Maximum Power Current-Impp(A) | 17.13 | 17.23 | 17.32 | 17.41 | 17.50 | 17.59 |
| Module Efficiency (%) ★ | 23.2 | 23.3 | 23.5 | 23.7 | 23.8 | 24.0 |
| Solar cells | n-type HJT |
| Cell configuration | 132 cells (6×11+6×11) |
| Module dimensions | 2384×1303×33mm (93.86×51.30×1.30 in) |
| Weight | 37.5kg (82.67 lb) |
| Superstrate | 2.0mm (0.08in), High Transmission, AR Coated Heat Strengthened Glass |
| Substrate | 2.0mm (0.08in), Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy, Silver Color |
| J-Box | Potted, IP68, 1500VDC, 3 Schottky bypass diodes |
| Cables | 4.0mm2, 350mm (13.78 in) (+), 230mm (9.06 in) (-), connector Included, or customized length |
| Connector | PV-SY02/Others |
| Maximum mechanical test load | 5400 Pa (front) / 2400 Pa (back), under certain installation method |
