Introduction
Many people often ask when they are installing a solar or home backup unit about “how inverters work”. “How do inverters work?” is an article that helps to familiarize oneself with the conversion of energy that is stored or generated into electrical energy. In simpler terms, an inverter is a device that converts current from batteries or a solar panel to AC. The article concludes with a step-by-step explanation of DC to AC power conversion, internal parts, and the working of different types of inverters, and their comparison. Also, the article concludes with the application of an inverter, its efficiency, the efficiency chart, and lastly, how to select the right inverter for an energy system.
What is an Inverter?
An inverter, also called a DC to AC power inverter circuit or electronic inverter circuit, is the bridge between the power generation source and the power used. Its primary function is to transform the DC power produced by solar panels or stored in LiFePO₄ batteries into the AC power that is required for turning on the lights or fridge in the household or running machinery. The process allows a renewable or backup system to power the devices that run on the same alternating current.
To grasp how an inverter works, imagine a solar array or battery as a constant DC source. The inverter switches the current direction continuously with the help of electronic components, usually transistors or IGBTs, to create an AC waveform. This inverter manages the electricity to be synchronized with the grid frequency (50Hz or 60Hz) in the region.
Inverters play an important role in solar energy systems, uninterruptible power supplies (UPS), electric vehicles (EVs), and industrial automation. The functionality of the inverter extends to managing voltage, frequency, and most power qualities to operate the equipment, and is very sensitive. According to Wikipedia, the modern inverters’ efficiencies are more than 98%, and fewer energy losses take place during the conversion.
Today, HBOWA offers many advanced hybrid and pure sine wave inverters suitable for residential, commercial, and industrial applications. To keep the houses and industries up and running!
Fundamental Theory: DC -> AC Conversion
Understanding the work of an inverter has to begin with its internal working, which is how a DC to AC inverter circuit operates, i.e., transforming the constant voltage into alternating power. Rapid electronic switching for this transformation, rather than mechanical rotation or transformers. Inside an inverter circuit, there exist semiconductor devices such as IGBTs (Insulated Gate Bipolar Transistors) or MOSFETs, which behave as high-speed electronic switches. These devices turn ON and OFF the DC input repeatedly at high speeds in accurate sequences to produce alternating polarity power, which results in simulating AC power.

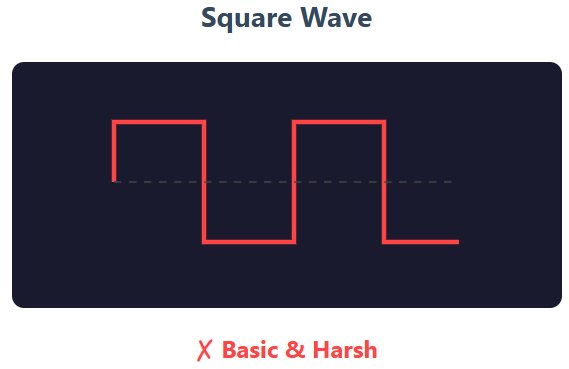

The H-bridge or full-bridge circuit lies at the core of this process. It reverses the direction of DC flow through the load rapidly and repeatedly producing a basic square wave. Using Pulse Width Modulation (PWM), we further refine the square wave into a clean and perfect AC output. In this method, the on/off time of each pulse varies so as to build up a sine wave of near-perfect proportions. Filtering and control circuits smooth the output, after which we send it to the output.
Think of turning signal lights at traffic to manage the car flow at an intersection. Signals for the regular intervals give the cars the “average” direction and rate. It makes the process smooth and continuous. Inverter design is also somewhat similar to these lines.
| Step | Description |
| Input DC voltage | Supplied by a solar panel or LiFePO₄ battery |
| Switch control | IGBTs or MOSFETs alternate polarity |
| PWM shaping | Controls pulse timing to create a sine-like signal |
| Filtering | Removes harmonic noise and smooths the output |
| AC output | Delivers stable current to the connected load |
Types of Inverters & Their Workings
Inverters are broadly categorized into three types based on their workings and design. The way in which the inverters work varies and lies in how they refine and convert power into the needed form. Users need to study these patterns to pick the right kind of inverter system for their specific application. Do you want to know in what way does an inverter works under each of these types and how they are contrasted? Read the table below for a better understanding:
| Inverter Type | Efficiency | Waveform Quality | Cost | Best Application | Compatibility |
|---|---|---|---|---|---|
| Pure Sine Wave | 96-98% | Excellent | $$$$ | Sensitive electronics, medical equipment | Universal |
| Modified Sine Wave | 90-93% | Good | $$ | Basic appliances, power tools | Limited |
| Square Wave | 85% | Poor | $ | Simple resistive loads only | Very Limited |
| Hybrid/Bidirectional | 96-98% | Excellent | $$$$$ | Solar + storage systems | Universal |
| Three-Level | 98%+ | Excellent | $$$$$$ | Industrial applications | Universal |
The wave accuracy, the price, and the reliability of the inverters differ in different types. Among all of the inverters, pure sine wave and hybrid inverters are being most popular in the new power market since it has the most accurate wave with the highest efficiency of using the power. According to the 2024 efficiency report of inverters by IEA, the modern generation inverters produce 2-3% more effective power by improving the switching algorithm and SiC transistor against the old generation inverters. So, these inverters are much more reliable for residential and industrial power storage, where a continuous and pure power supply is very much necessary.
Step-by-Step: How an Inverter Works in a Real System
In an actual instance to comprehend how inverters work, consider a typical Residential Solar plus Storage setup that comprises an inverter, solar panels, LiFePO₄ battery, and grid. A Logic was followed in the conversion to have a smooth and effective system.
Generally, solar panels are used that produce (DC) as a voltage. The DC that is formed has to be regulated and transformed as per requirements, and the electric system or appliances to which it is connected. The solar DC is first regulated by an MPPT Controller that fixes up the ideal voltage so that maximum power can be obtained.
The optimised DC then enters the switching bridge of the inverter. The transistors, a part of the inverter, work to alter the polarity at a high frequency so that a pulsed (voltage) waveform is obtained. This wave at the output is cleaned, its magnitude and frequency are synchronised with the grid to attain a voltage as well as an alternating current that is suitable for the refrigerating system or home load. Next, the Electricity is returned to the grid.

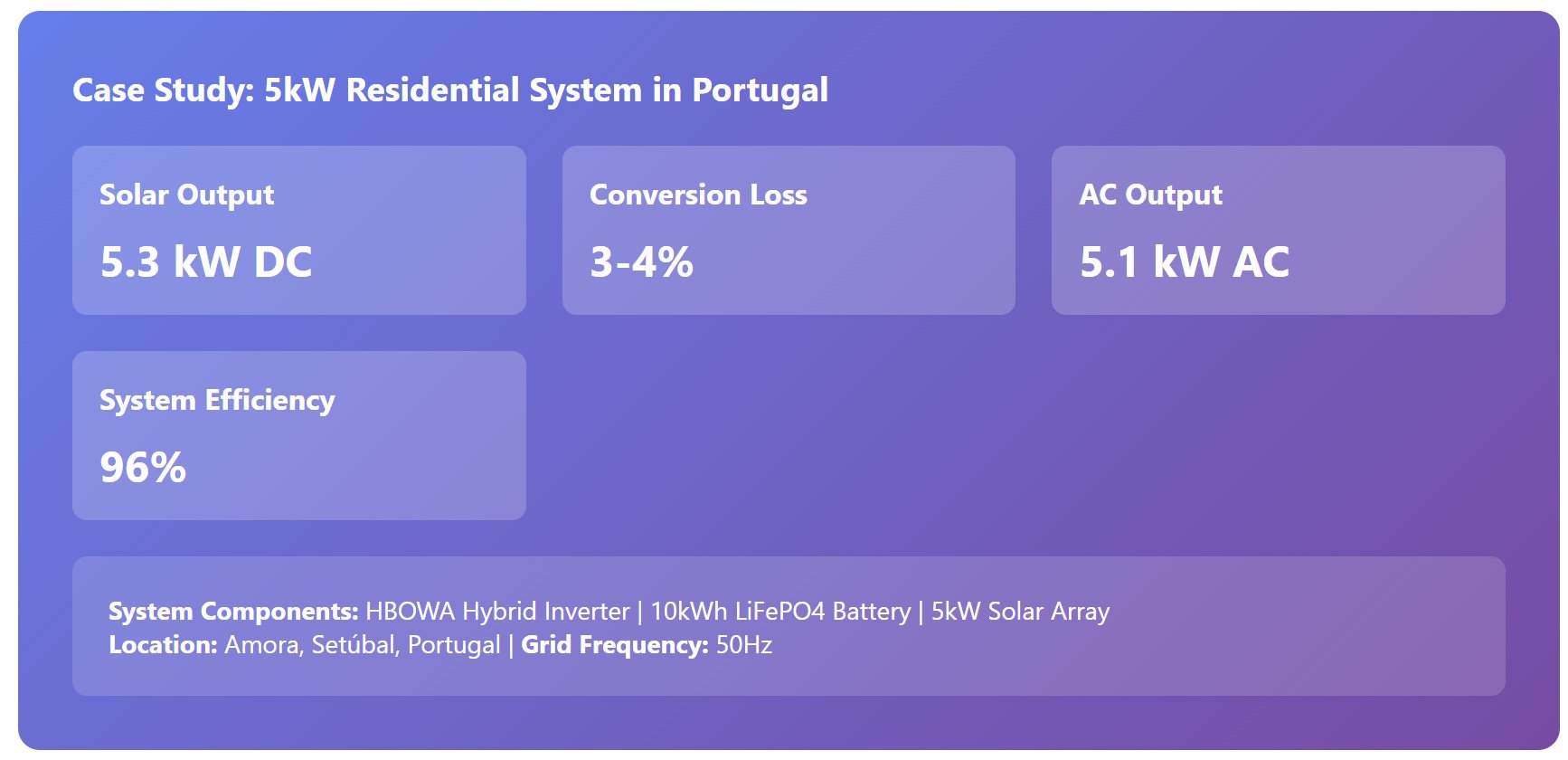

For instance, for a 5Kw Solar System in Portugal having an HBOWA Hybrid inverter with a 10kWh LiFePO4, and if the solar panels for the system produce around 5.3Kw DC, and assuming conversion losses are around 3˜4% ±, the solar inverter effectively supplies around 5.1 kW AC to the home circuits or grid export. This relates to a similarly high quality of an equivalent of less than 1% of the overall system output. It results in an average efficiency of about 96% which you normally can expect as per the 2024 data by IEA.
Efficiency, Losses & Performance Curves
Inverters are never 100% efficient. They lose some power to heat, to the switching noise, or simply because they consume power even when no load is connected to them. Conversion efficiency is defined as, η = Pₐc / Pdc. This gives the ratio of the AC power output to the DC input. Leading inverters, when in the lab or in ideal conditions, can reach a peak efficiency of 96–98.5%, thus minimising the losses in the conversion process. The average efficiency in real-world operations at a given output power level depends on the load, temperature, and the inverter-specific design.
Yet, the efficiency of an inverter also changes with the load. To reflect typical daily operation at the usually encountered load levels, manufacturers often specify the efficiency of the inverter in terms of a weighted or European efficiency. This gives us an average efficiency when the inverter performs well and poorly at different load levels. When the load is very low, less than 15%, the inverter efficiency drops severely. Whereas, the inverter is guaranteed to be put in the prime range of the highest efficiency between 30–80%. Beyond the rated power, the total output ac energy is limited because the inverter cannot output more than its maximum power or rated power.
| Load Fraction | Efficiency Behavior | Notes |
| < 10–15 % | Steep drop | Standby and self-consumption dominate losses |
| 30–80 % | Flat, near-optimum | Most efficient operating zone |
| > 100 % | Output capped | Prevents overload or waveform distortion |
In the absence of wear and tear-related damage to the components, the efficiency of an inverter decreases after a certain period of time. Field data published in an MDPI (2024) research work suggests that the performance of an inverter can decrease by around 0.7% after three years of operation. Thermal stress and aging of the components create most of these issues. A broader research work by the National Renewable Energy Laboratory (NREL) suggests total system performance loss in 0.5-0.75% per year on average, including panels, inverters, and other electrical components.
Common Invert Issues & Solution:
There are some issues and their solutions below:
| Issue | Cause | Impact | Solution |
|---|---|---|---|
| Low Efficiency at Light Load | High standby consumption | Wasted energy below 15% load | Operate at 30-80% load range |
| Overheating | Poor ventilation, overload | Reduced lifespan, shutdowns | Ensure proper cooling, size correctly |
| Energy Clipping | Undersized inverter | Lost peak solar production | Use DC/AC ratio of 1.15-1.30 |
| Harmonic Distortion | Poor filtering, square wave | Appliance damage, noise | Use pure sine wave inverter |
| Grid Disconnection | Voltage/frequency mismatch | System shutdown | Verify grid compatibility settings |
How to Choose and Size an Inverter
Choosing the perfect inverter depends on balancing the capacity of the system, the voltage range, and the efficiency, i.e., how much power the inverter will produce given the DC power from the solar panels.
The DC/AC ratio (On-Grid System Inverter Loading Ratio (ILR)) is an important design parameter for an On-Grid System inverter because it accounts for how much power each solar panel array with DC power produces. It should ideally be around 1.1 – 1.3. This helps to make sure that the solar panels produce enough power, but without regularly forcing the inverter to produce more power beyond its AC-rated output. That way, no power is lost in energy clipping before it reaches the inverter. At the system level, having a DC/AC ratio of 1 would be optimal. Since electron movements generate heat and the solar panels can get hot, there’s a wide practical range for the DC/AC ratio between 1 and 1.3 that one can use for their solar panel system. Oversizing reduces efficiency, while undersizing can cause energy clipping during peak sunlight hours.
| Application Type | Recommended DC/AC Ratio | Typical System Size | Inverter Type |
|---|---|---|---|
| Residential Solar | 1.15 – 1.25 | 3-10 kW | Pure Sine / Hybrid |
| Commercial Solar | 1.20 – 1.30 | 10-100 kW | Three-Phase Hybrid |
| Off-Grid Systems | 1.00 – 1.15 | 2-8 kW | Pure Sine Wave |
| Backup Power (UPS) | 1.00 – 1.10 | 1-5 kW | Pure Sine Wave |
| Industrial Applications | 1.25 – 1.30 | 50-500 kW | Three-Level Industrial |
The compatibility between the DC input voltage (Voc, Isc) and the MPPT window of the inverter is also an important factor. The inverter should be able to operate across variable temperatures to accommodate increased heat, which cuts down the conversion performance. For an expandable grow system, you will need to choose modular inverters having an input for the battery and an input for the solar array in certain capacities, without having to completely replace your inverter.
For example, HBOWA offers Growatt inverter models, such as WIT 29.9~50K-XHU (50 kW three-phase hybrid inverter), WIT 50-100K-HU (high voltage hybrid inverter in the 50–100 kW class), MAX 100KTL3-X (three-phase on-grid inverter at ~100 kW), the following sizing and derating procedures to maintain over 98% efficient DC to AC conversion performance across a range of conditions.
Do’s & Don’ts:
• Do size the inverter so that average operation is between 40–80% of its rated load.
• Don’t operate the inverter below 10% load for extended periods.
• Do verify grid voltage, frequency, and surge tolerance before installation.
Conclusion
Understanding how inverters work is a very important topic for anyone who is involved in designing or maintaining power systems, solar panels, and backup power systems. The three major points that you should get covered in your basics are how inverters convert DC to AC power, what the major circuit principles are, what the common types of inverters are, and what effect performance and sizing have on the operation of an inverter. This will help you make informed decisions to be able to operate your solar or backup power system in a stable, reliable, and the most efficient way for you to use and protect your equipment over the long run.
To explore models that we recommend in regards to being durable and high-performing in a solar or backup power system, get in touch with the HBOWA experts!
Frequently Asked Questions
They draw DC power from the battery and convert it into AC electricity through a high-speed switching circuit, allowing stored energy.
Yes, a pure sine wave inverter is recommended because it provides clean, stable AC output compatible with most electrical appliances.
Pure sine inverters generate smooth AC like a grid, but modified sine inverters use stepped waveforms that create noise and are harmful, especially to sensitive electronics.
At low power levels, internal self-consumption and standby circuits use a larger fraction of total energy, lowering overall output.
With proper care, quality models from brands such as Growatt inverters last more than 15 years, but the condition should be conducive regarding temperature and load patterns.
