Huasun Solar Panels HJT Module 730W 720W 700W
Model: HSN-210-B132DSN
Power Range: 700-730W
Cell Technology: HJT, 132 half-cells

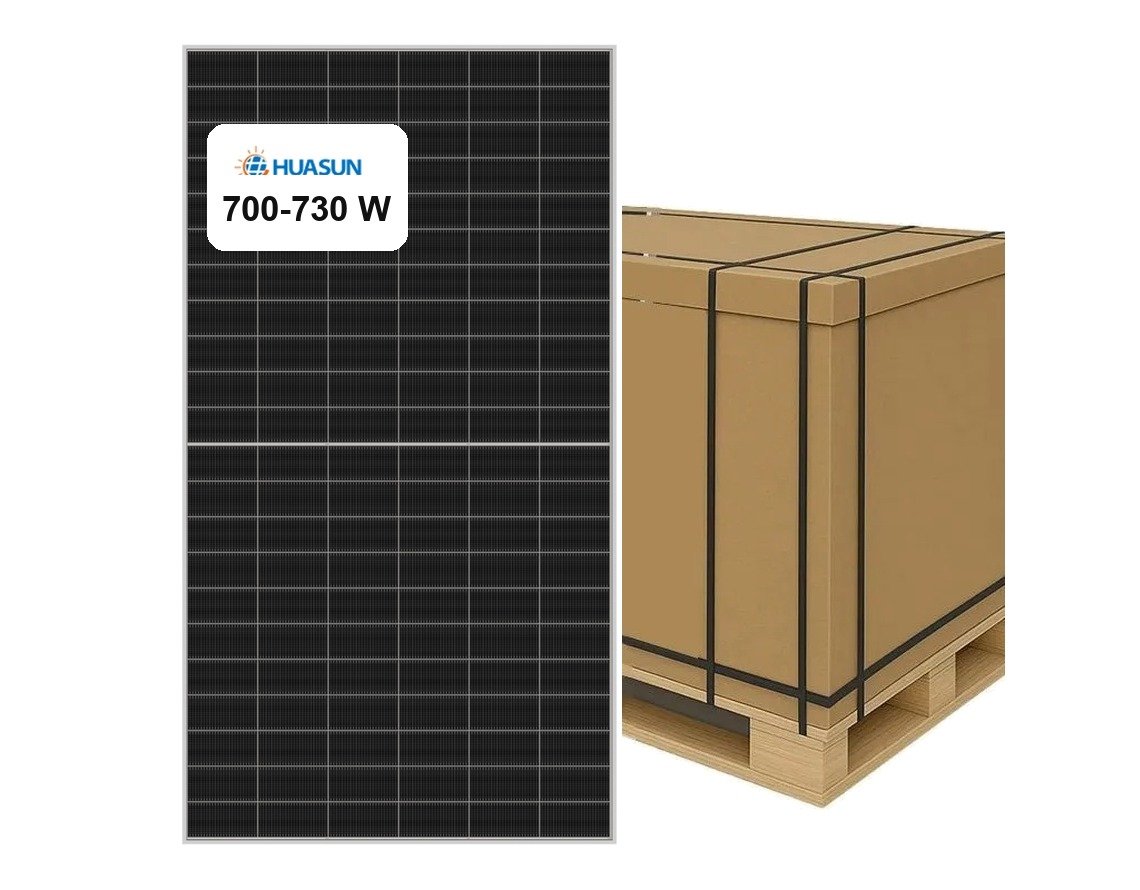

MOQ: One Pallet
FOB: Shanghai
Download Aluminium 700-730W Datasheet (PDF)
Download Alloy Steel 700-730W Datasheet (PDF)
Description
The Huasun Himalaya G12 HSN-210-B132DSN family covers 700-730W HJT solar modules with 132 half-cells and dual-glass construction. This page brings together the supplied product versions and their datasheets so buyers can compare the required electrical and mechanical configuration.
The DSN family offers aluminium, alloy-steel and two composite-frame constructions. All four supplied versions share the same electrical ratings, DC 1500V maximum system voltage and 75 ± 5% bifaciality. Compare the separate 37.8 kg and 38.4 kg composite versions before selecting mounting hardware.
The Pmax temperature coefficient is -0.24%/°C. Use the version-specific tables for dimensions, weight, maximum system voltage, connector, mechanical loading and packaging. Power classes available within each version are shown in its electrical table.
Send Pretapower your preferred wattage, version, quantity and destination for availability and a quotation. MOQ: One Pallet. FOB: Shanghai.
- Electrical Specifications
- Mechanical Data & Packaging
- Temperature & Maximum Ratings
STC Electrical Characteristics
| Parameter | HSN-210-B132DSN700 | HSN-210-B132DSN705 | HSN-210-B132DSN710 | HSN-210-B132DSN715 | HSN-210-B132DSN720 | HSN-210-B132DSN725 | HSN-210-B132DSN730 |
|---|---|---|---|---|---|---|---|
| Maximum Power (Pmax) [W] | 700 | 705 | 710 | 715 | 720 | 725 | 730 |
| Voltage at Pmax (Vmp) [V] | 41.78 | 41.87 | 41.96 | 42.05 | 42.14 | 42.23 | 42.32 |
| Current at Pmax (Imp) [A] | 16.76 | 16.84 | 16.93 | 17.02 | 17.10 | 17.18 | 17.26 |
| Open-Circuit Voltage (Voc) [V] | 49.77 | 49.87 | 49.97 | 50.07 | 50.17 | 50.27 | 50.37 |
| Short-Circuit Current (Isc) [A] | 17.81 | 17.90 | 17.99 | 18.08 | 18.17 | 18.26 | 18.35 |
| Module Efficiency [%] | 22.5 | 22.7 | 22.9 | 23.0 | 23.2 | 23.3 | 23.5 |
BNPI Electrical Characteristics
| Parameter | HSN-210-B132DSN700 | HSN-210-B132DSN705 | HSN-210-B132DSN710 | HSN-210-B132DSN715 | HSN-210-B132DSN720 | HSN-210-B132DSN725 | HSN-210-B132DSN730 |
|---|---|---|---|---|---|---|---|
| Maximum Power (Pmax) [W] | 770 | 776 | 781 | 787 | 792 | 798 | 803 |
| Voltage at Pmax (Vmp) [V] | 41.92 | 42.02 | 42.11 | 42.20 | 42.29 | 42.38 | 42.47 |
| Current at Pmax (Imp) [A] | 18.39 | 18.48 | 18.57 | 18.66 | 18.75 | 18.84 | 18.93 |
| Open-Circuit Voltage (Voc) [V] | 49.94 | 50.04 | 50.14 | 50.24 | 50.34 | 50.44 | 50.54 |
| Short-Circuit Current (Isc) [A] | 19.61 | 19.71 | 19.81 | 19.91 | 20.01 | 20.11 | 20.21 |
| Specification | Value |
|---|---|
| Cell Type | HJT |
| Cell Configuration | 132 half-cells (6 × 22) |
| Junction Box | IP68 |
| Cable | 4 mm²; +350 / -250 mm or customized; UV resistant |
| Glass | Dual glass, 2.0 mm |
Aluminium 700-730W
| Specification | Value |
|---|---|
| Frame | Anodized aluminium alloy |
| Dimensions | 2384 × 1303 × 33 mm |
| Weight | 36.5 kg |
| Connector | PV-H1 / MC4-Evo 2 / Others |
| Maximum Static Load (Front / Rear) | 5,400 / 2,400 Pa |
| Modules per Pallet | 33 |
| Pallets per 40HQ | 18 |

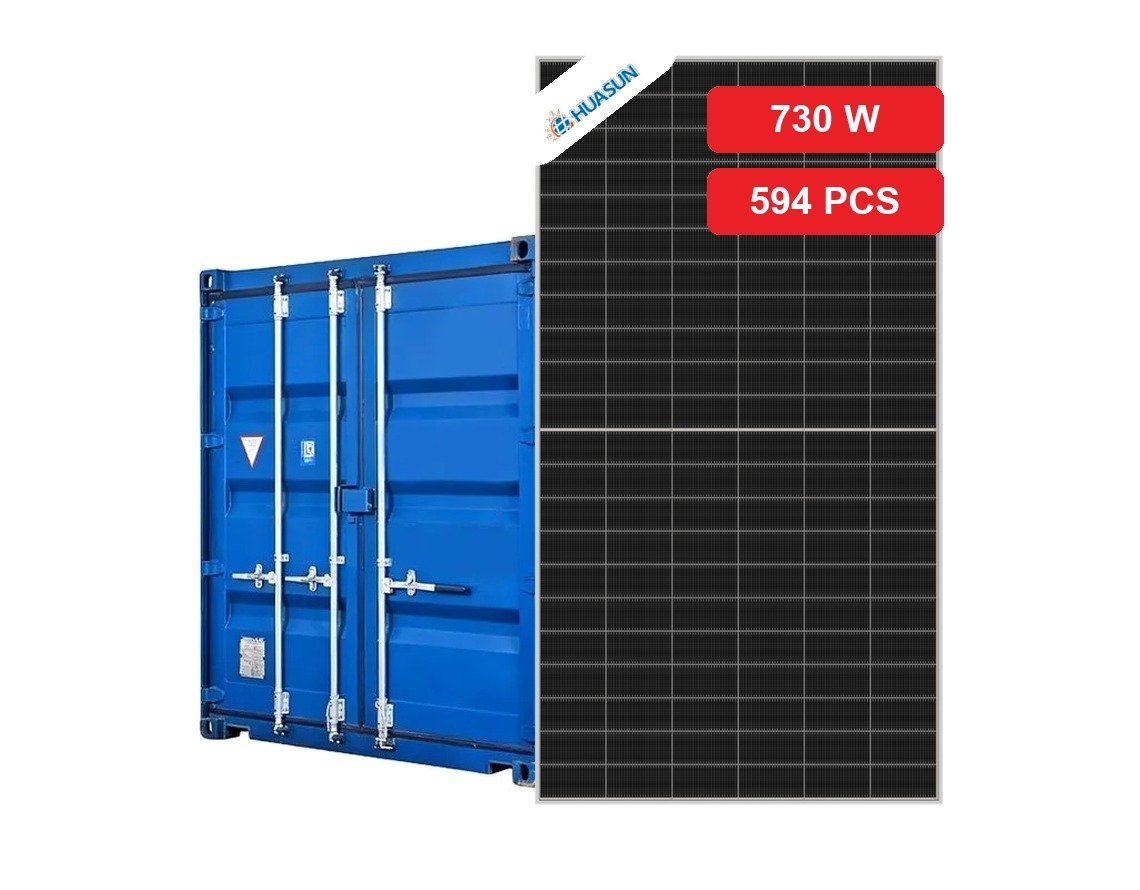

| Modules per 40HQ | 594 |

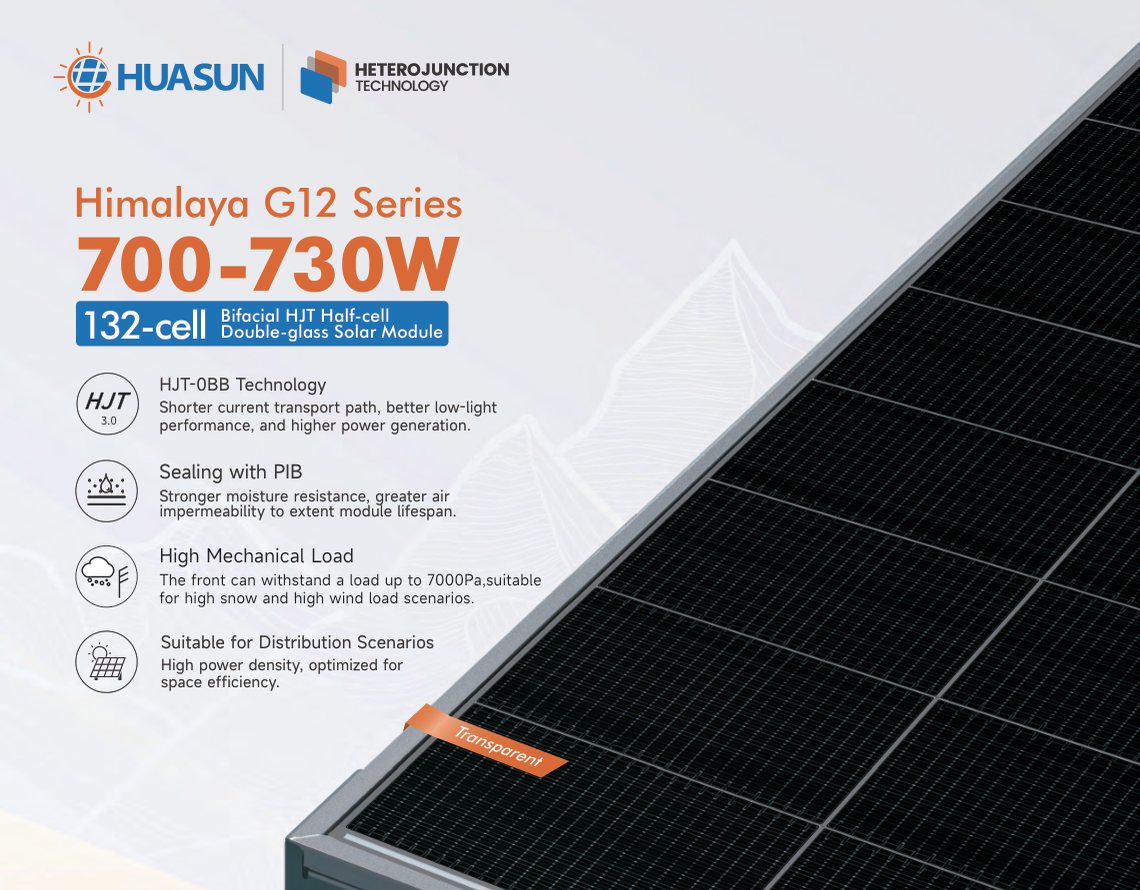

Alloy Steel 700-730W
| Specification | Value |
|---|---|
| Frame | Alloy steel |
| Dimensions | 2384 × 1303 × 30 mm |
| Weight | 39.9 kg |
| Connector | PV-H1 / MC4-Evo 2 / Others |
| Maximum Static Load (Front / Rear) | 7,000 / 3,000 Pa |
| Modules per Pallet | 35 |
| Pallets per 40HQ | 16 |
| Modules per 40HQ | 560 |

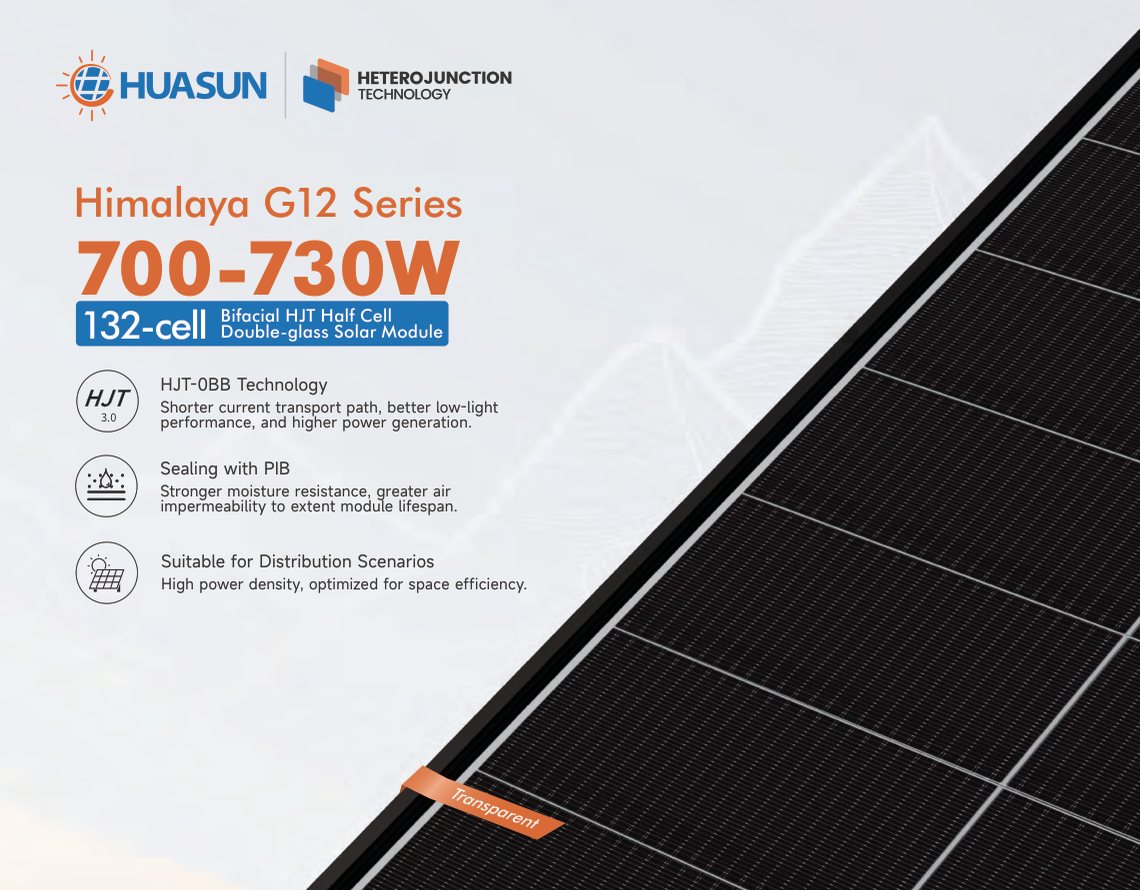

Composite 37.8 kg 700-730W
| Specification | Value |
|---|---|
| Frame | Composite material |
| Dimensions | 2384 × 1303 × 35 mm |
| Weight | 37.8 kg |
| Connector | PV-H1 / MC4-Evo 2 / Others |
| Maximum Static Load (Front / Rear) | 5,400 / 2,400 Pa |
| Modules per Pallet | 31 |
| Pallets per 40HQ | 18 |
| Modules per 40HQ | 558 |
Composite 38.4 kg 700-730W
| Specification | Value |
|---|---|
| Frame | Composite material |
| Dimensions | 2384 × 1303 × 35 mm |
| Weight | 38.4 kg |
| Connector | PV-H1 / MC4-Evo 2 / Others |
| Maximum Static Load (Front / Rear) | 5,400 / 2,400 Pa |
| Modules per Pallet | 31 |
| Pallets per 40HQ | 18 |
| Modules per 40HQ | 558 |
| Specification | Value |
|---|---|
| Temperature Coefficient of Pmax | -0.24%/°C |
| Temperature Coefficient of Voc | -0.22%/°C |
| Temperature Coefficient of Isc | +0.04%/°C |
| Nominal Operating Cell Temperature | 44 ± 2°C |
| Maximum Series Fuse Rating | 35 A |
| Tolerance of Pmax | 0 to +3% |
| Power Selection | 0 to +5 W |
| Safety Class | Class II |
| Version | Operating Temperature | Maximum System Voltage | Bifaciality |
|---|---|---|---|
| Aluminium 700-730W | -40°C to +70°C | DC 1500V (IEC) | 75 ± 5% |
| Alloy Steel 700-730W | -40°C to +70°C | DC 1500V (IEC) | 75 ± 5% |
| Composite 37.8 kg 700-730W | -40°C to +70°C | DC 1500V (IEC) | 75 ± 5% |
| Composite 38.4 kg 700-730W | -40°C to +70°C | DC 1500V (IEC) | 75 ± 5% |
