Introduction
The world over, the adoption of solar systems has been on the rise over the past few years. Energy management has become a crucial factor that determines the choices made by both homeowners and businesses. Everyone needs a system that can work with as much efficiency and cost-effectiveness. A hybrid solar power inverter provides just that. They easily integrate solar energy conversion, battery management, and grid support. Following that, the MPPT solar inverter has made it easier to extract the maximum amount of energy from solar panels.
What is a Hybrid Solar Power Inverter?
A hybrid solar power inverter is a more advanced version of the regular solar power inverter. Its structure combines some energy flows into a single unit. The conventional string inverters convert the direct current from the panels into the alternating form of the current for using it in homes, businesses, etc. But the hybrid inverters can do the above tasks and also provide UPS (Uninterrupted Power Supply), and the energy generated by the panels can be stored in a battery.
Most of the hybrid inverters are also adjusted to manage the power supply from another electric network, like the electricity producer of an entire town. Therefore, it is also called the grid power flow and is the central part of the new hybrid solar-power plants that can adjust to some shifting, as per requirement.
If you want to know what is hybrid inverter technology is, you must compare the new technology with the previous version to prepare a strategy. As the off-grid inverters are only accustomed to solar panels and batteries, after the development of inverters, they can not be used in a house or industry tied to the electric grid.
Understanding MPPT Technology
There are two meanings of the MPPT, the first is multiple-point power tracking, and the second is maximum power point tracking. While connected to any solar source, the solar power panel’s produced current and voltage are varied depending on physical parameters like sunlight intensity, temperature, and shading. An unaltered voltage will bring on a triggered misfortune to the force because of the lack of alignment of the panel’s characteristics to the matrix. To find the most extreme power in these conditions, MPPT inverters or solar panel inverters are utilized.
The earlier or the conventional method of following who offers the energy is known as PWM (Pulse Width Modulation). In an MPPT inverter solar system, using an MPPT inverter is far better than a PWM (pulse width modulation) controller. In the case of PWM systems, the current to the battery is supplied at a constant voltage, which results in a loss of energy and a waste of energy. This waste occurs whenever either the solar is partially shadowed or the weather is very cloudy, and there is less sunlight. An MPPT inverter defines the voltage of the current feeding to the battery naturally. The MPPT inverter can bring in 20 to 30% more energy from the same solar panel in the same array.
When it comes to what is mppt solar inverter is, then a simple answer is that an MPPT solar inverter is the inverters that utilize MPPT techniques for power conversion and power management. This sort of inverter ensures that the solar panels give the maximum force (generally approx. 20%) in daylight. In normal inverters (like Gridtie or Off-grid), it isn’t necessary to use MPPT technology. In this way, the capacity of storing energy in the solar inverter’s battery is more fundamentally utilized, especially if it is a hybrid.
How Does a Hybrid MPPT Inverter Work?
A solar MPPT inverter in a hybrid solar system manages the harmony among the solar panels, battery stack, loads, and matrix more quickly. The cycle starts from the sun-based boards producing power as DC electricity. This power is changed through the inverter machine with mppt innovation.
The inverter solar MPPT uses a special algorithm to extract the highest usable energy. From there on, the power moves to the MPPT mixed solar charge regulator introduced inside the inverter. The charge regulator typically charges the inverter battery close to a safe range.
The inverter battery will release the capacity to meet the top loads or in large-scale short-term conditions when required. It will diminish the additional faith in the battery stockpiling. Simultaneously, the force from the inverter likewise changes over the DC to AC to use in the appliances or other devices. The abundance influenced the electricity to the network when the automatic meter reading was being finished.
The smooth progress is completed because of the work of the mppt hybrid charge controller innovation. This technology switches between the phases, such as solar power, stockpiling battery power, or network power, to run the framework easily with no interference. In the cutting-edge inverter machine, the crossover MPPT solar-powered charge controller lessens the danger of overcharging or deep discharging, which further improves the battery life and system stability. A simple solar inverter diagram can help to imagine the cycle pointedly; however, in actuality, the MPPT hybrid inverter would be the fundamental part utilized in solar energy.
Key Differences
The inverter does more than convert DC electricity into usable current. There are different types of inverters and there is a specific type of inverter, and the rise of the hybrid solar power inverter has increased the options available to us.
A traditional string inverter is used in grid-tied systems. They convert the direct current from the panels into electricity, and then we get to use the electricity in the house. These inverters are excellent at their job, but do not have the option for battery integration. This means no power during a grid outage.
Off-grid inverters are used in isolated systems where there is no utility connection. Since there is no utility connection, the inverters are entirely dependent on batteries and solar generation. They cannot export power to the grid and are used mostly in remote areas. The limitation of these inverters is that they are not scalable and depend on the battery bank. For maximum energy harvest, an inverter with mppt technology is used.
A hybrid solar power inverter utilises the benefits that both these inverters provide. It means that it is a battery-integrated solar inverter, and also takes care of the grid interaction while having a built-in inverter with MPPT.
For users asking which is more efficient power inverter vs hybrid solar inverter, the answer lies in context: a power inverter is more efficient than a hybrid solar inverter. For grid-tied use only, the string inverter is very efficient. However, a hybrid inverter uses two sources of power, thus ensuring higher efficiency in the real world. This could be achieved by the usage of hybrid solar by entering the STC through MPPT and thus storing its surplus for future use.
Practical Advantages of Hybrid Solar Power Inverters
There are several advantages to hybrid solar power inverters, the primary of which is adaptability. A hybrid inverter can use solar energy while prioritizing it over battery storage. It can also export surplus power to the grid.
Thus, it allows your business and home to have an efficient and resilient energy solution. For obvious reasons, people can install hybrid solar power systems in remote areas or locations with an underdeveloped electricity system.
One of the practical benefits of a hybrid solar power system is reducing power cuts, which is energy security. When the electricity fails, the hybrid inverter automatically switches to battery stored power. This will cause power to the most critical appliances of your home and business equipment. Yet, countries or areas with strong and various policies like net metering bills, grid and solar feed-in, allowing hybrid solar inverter setups to maximize grid export, the focus shifts away from battery storage as well as towards minimizing usage.
Another advantage of considering hybrid solar power systems is that they are easily expandable. Hybrid inverters will support adding further solar panels and storage anytime the availability of power increases.
Thus, the solar inverter is an affordable and future-proof power supply solution, primarily for businesses and industries planning to scale their operation without buying new infrastructure. It is also always brief, and the appliance is more efficient thanks to the built-in MPPT solar inverter function.
If you require constant solar power to sustain at your residence without increasing electricity bills, or if you see a high return on your company’s scale in investment in commercial projects, hybrid inverter systems are the one-stop solution to the dilemma. It is thus considered a connection between the conventional solar systems and solar power inverters, as well as complicated, grid-tied networks, that will be sure to maximize resilience and reduce costs, business, and company, offering benefits to a wide variety of different geographic contexts.
Limitations and Considerations
Although the Solar hybrid inverter is flexible, it comes with some long-term benefits, and looking into smaller limitations that might concern one who is about to install solar inverters for their power requirements. Let me remind you of the pros of having this Solar hybrid inverter.
Cost Allocation is one of the major things to consider with this Solar hybrid inverter. The hybrid inverter may cost high initially, but it helps you in cost-cutting and provides power for the long run. Although the money is the major thing of concern for many, once installed, the Solar hybrid inverter will provide a return on investment. It is a powerful tool manufactured and sold on a small scale.
The application of a Solar hybrid inverter retrofit is a more complex way of installation. The user would require a properly licensed contractor to rewire and reconfigure the existing solar setup. This additional work will increase the labor cost marginally and require some downtime for the users. This is the reason many solar users prefer a Solar hybrid inverter in the long run.
The Solar hybrid inverter has sizing limits, which require a perfect combination of solar and battery storage. Oversizing and undersizing will reduce the efficiency of the inverter and the life of the inverter.
Some users ask does hybrid solar inverter works without battery? Yes. A hybrid right solar inverter can work in grid-tied mode without any battery storage. Likewise, can solar hybrid inverter be used as a normal inverter? Yes. In most cases, the Solar hybrid inverter works similarly to any string inverter, and it can work without a battery, too. When you use a solar hybrid inverter without a battery, you would not be able to value all the power generation features of the inverter as per its cost.
Real-World Applications & Case Studies
Real-world examples of how hybrid solar power systems work make things even easier for the readers to see their resilience, cost benefits, and scalability.
A homeowner hooked up an HBOWA LiFePO4 battery system to a Growatt inverter at their place. The design mainly focused on increasing self-consumption since the power generated from the solar panels in the antitype was stored during the day to be used at night. The inverter replaced a standard no-battery type inverter design that enabled the house to continue working when the grid faces an outage, while helping the grid import at a lower rate than a regular household without battery storage.
A mid-sized commercial organization set up Risen Solar panels with hybrid inverters for solar panels and an HBOWA storage. The combination of solar inverter mppt technology ensures that the solar system was finally able to hit its maximum daily yield. The excess energy produced was stored and released during the peak tariff timing of the day, allowing the bills to shrink by a massive rate while increasing energy independence when compared to the regular grid-tied system.
A manufacturing site set up a 1MW HBOWA energy storage system using hybrid MPPT inverters connected to the grid. The system was mainly designed to shed peaks (peak shaving), consuming grid-generation during the off-peak hours, backing up the storage, and reforming back during the current exceptional or some high-demand cases. When compared with the standard inverter system, although the hybrid system allowed massive storage to be hooked onto the grid, it also made the generation more optimal than before.
These real-world examples give a clear view of how hybrid solar systems provide a better alternative in terms of expense across residential setups, commercial applications, or industrial scales.
How to Choose the Right Hybrid MPPT Inverter?
When you’re seeking the right hybrid solar power inverter for your solar power system, it depends on the size of the system you require. A small residential solar power system may only require a few kilowatts of inverter capacity. On the other hand, commercial and industrial solar power systems require higher-rated inverters that receive substantial solar input along with storage.
Another thing to consider is grid reliability. An inverter with MPPT and HBOWA LiFePO4 batteries would be needed in areas with an unstable power supply to continue. You could also export excess energy back to the grid in areas with reliable grids and net metering programs, significantly cuffing electric costs.
Battery storage capacity could also shape your decision. Homeowners could size their batteries to meet their evening needs. Alternatively, businesses might require larger banks to shave their peak loads. In this mppt solar inverter, the panels will provide the highest amount of efficiency possible in charging up the batteries as long as there’s sunlight.

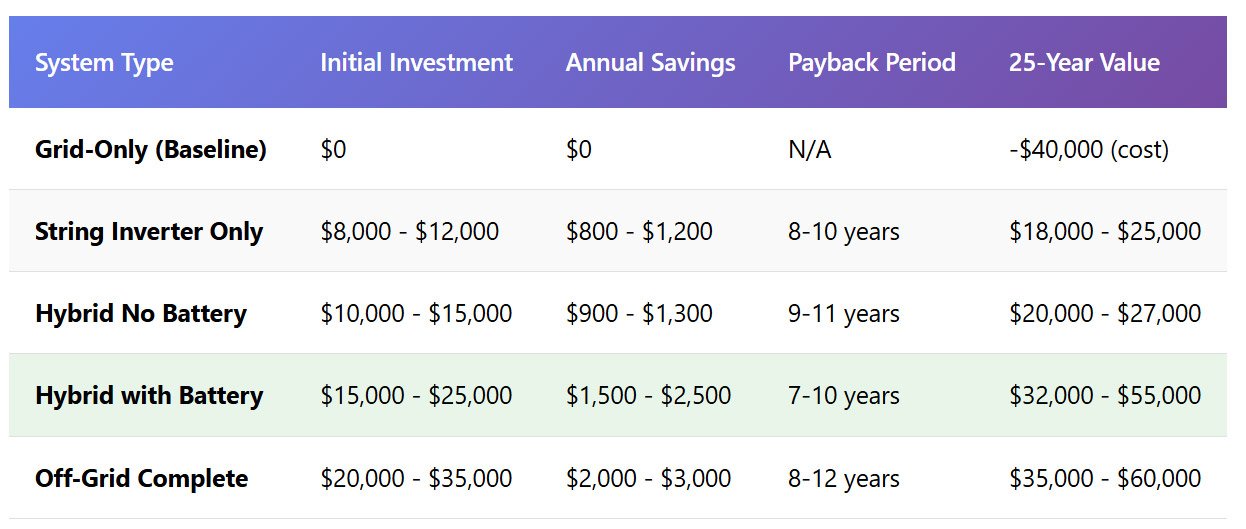

Comparison Table: Choosing the Right Hybrid Inverter
HBOWA provides a complete portfolio including Tier-1 panels (Risen, Jinko, Longi, Trina), LiFePO4 batteries, and hybrid inverters from high-end brands such as Deye and Growatt.
Conclusion
A hybrid solar power inverter is a battery storage flexible solution for a solar PV system that includes solar, batteries, and grid electricity. The best choice to support home energy priorities, whether that means back-up storage, reduced electricity costs, or independence from the electric grid. HBOWA offers hybrid mppt inverters from reputable brands, such as Growatt’s latest hybrid series such as SPM, WIT, and SPE. Some of the models included are Growatt hybrid solar inverter SPM 6000 TL-HU, Growatt hybrid solar inverter single phase SPM 10000 TL-HU, Growatt hybrid solar inverter 3-phase low voltage WIT 8K-HU, WIT 12K-HU, WIT 15K-HU, Growatt 50kw inverter hybrid three-phase high voltage WIT 29.9~50K-XHU, and many more hybrid panel solutions with LiFePO4 batteries, ready for use in your residential, commercial, and industrial energy systems projects.
