Formula: W = J ÷ s
This tool (J to W calculator) helps convert energy from joules (J) to energy in watts (W) using a time cube within this duration. Target users of this tool are students, engineers, solar technicians, and electrical systems planners who need to assess the speed of energy usage or delivery. The input of energy in joules and time in seconds gives the corresponding output power result in watts. This is commonly used for system analysis, device evaluation, and checking joules to watts conversion, and actual j to w conversion rates.
Formula & Variable Definitions
W = J / t
W: Power, measured in Watts, rate of energy transfer
J: Energy, measured in Joules, total work or stored energy
t: Time, measured in seconds, duration of energy transfer
This relationship states that when total energy is spread over a period of time, it becomes power. Energy refers to the total work available, while watts refer to the rate at which this energy is used or delivered, but one point you have to remember, if an amount of energy is released in a shorter time, its power level rises; the same energy released more slowly has a lower power level.
If the same number of joules is transferred in half the time, the watt value would double as the energy is transferred faster, and that actually shows us why time is a necessary component of any joules to watts calculation, and without a time length, the energy can do nothing to tell you the rate it is being used up.
This idea also illustrates why a watt is sometimes expressed in joules per second. The calculation indicates the energy delivered during a period of time, which allows understanding of equipment performance, system output, and energy being used over time.

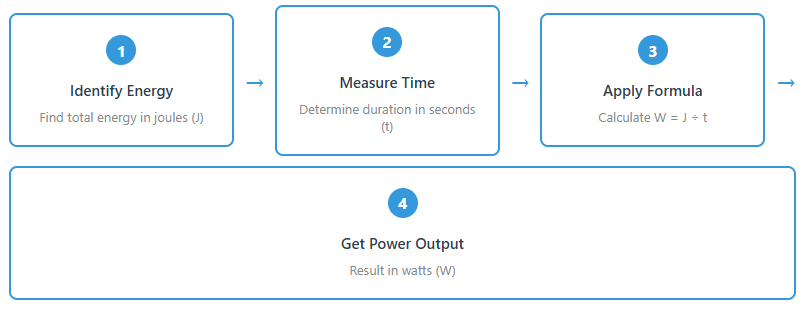

Example Calculation

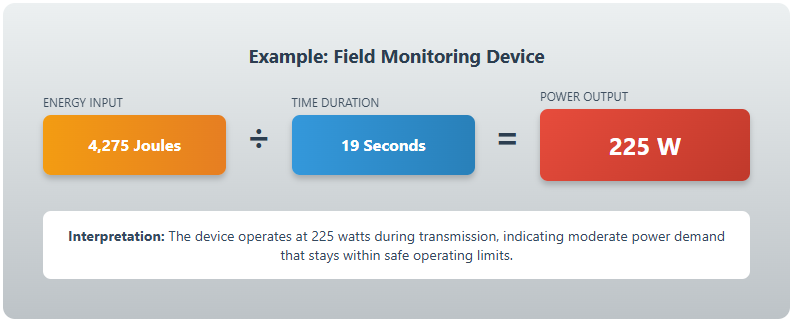

Look at a field monitoring device supported by a small battery system. In one transmission cycle, it sends collected data to the main server and releases 4,275 joules of energy over a period of 19 seconds.
The power output of the system can be calculated by comparing the total energy generated with the time taken for the device to use it. If the energy discharges speedily, then the working of the system is high power. A lower power level is less stressful on components when the same energy is released at a slower pace.
The average output of the system is almost equal to 225 W after dividing the total energy by the duration, and this finding allows engineers, technicians, or electricity personnel to determine how hard the battery works during each transmission event. It lets them also compare this value against the safe operating limits of wiring, regulators, and connected electronics.
In practical systems, this Joules to Watts estimation type helps ensure safety on devices that are able to handle the energy transfer rate. This can also be used for performance testing for leisure storage that ultimately gets realized within operating cycles.
When to Use This Calculator
This calculator is used to determine the rate at which energy is delivered by a system and not just the amount of energy. The relationship of joules to watts is often studied by engineers when analyzing battery discharge, capacitor releases, and short-duration energy bursts. It is used by solar experts to determine how much energy from battery banks is converted to a load at peak hours.
It also endorses sizing and verification of systems. Understanding j to w conversion provides assurance in the possible energy storage and delivery rate in electrical system design as per load. In a research context of testing, where energy is valued, and the power level must be calculated, which is all about performance.
Reference Table (Typical Values)
The table below illustrates how much power is released if energy is used to generate power over a specific time. This has been done by intentionally making it non-integer in value.
| Energy (Joules) | Time (Seconds) | Power (Watts) |
| 845 | 4 | 211.25 |
| 1,265 | 7 | 180.7 |
| 1,940 | 8 | 242.5 |
| 2,375 | 11 | 215.9 |
| 3,110 | 13 | 239.2 |
| 3,685 | 15 | 245.7 |
| 4,420 | 17 | 260 |
| 5,095 | 19 | 268.2 |
| 5,880 | 22 | 267.3 |
| 6,740 | 24 | 280.8 |
| 7,515 | 27 | 278.3 |
| 8,360 | 29 | 288.3 |
| 9,140 | 31 | 294.8 |
| 10,275 | 34 | 302.2 |
| 11,460 | 38 | 301.6 |
The given examples indicate an important relationship in joules, watts, and time. When energy grows slowly over time, power levels increase steadily but not drastically. It mirrors a real system that discharges energy over intervals in a controlled manner. The table offers a handy visual guide for how watts from joules are affected by the various combinations of energy and time in planning and diagnostics work.
Accuracy & Limitations
The calculator has been set up to assume energy transfer at a constant rate over the period you choose. The behavior of machine components, the variation of the load, and the conditions of the operation can cause the actual system’s power output to deviate from its rated value. The value obtained should be considered as the average power level, not as a constant or peak value.
Waste in value creation can also play a role. Electrical components during operation could lose some of the energy supplied to them. The speed of energy delivery in battery systems depends upon internal resistance and temperature. As a result of these factors, the actual output of the power will be lower than the calculated value.
Even though the method has certain limitations, the conversion from j to w still gives a reliable estimation in connection with planning.
Case Study

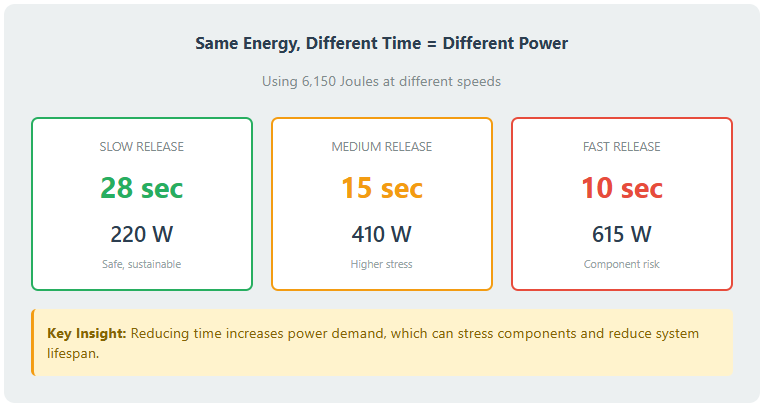

An HBOWA LiFePO4 battery-powered remote sensing tool uploads data every few minutes to a base station in the vicinity. In a single cycle measured over 28 seconds, 6,150 joules are pumped into the environment to activate sensors, process data, and transmit info.
By taking both energy and time into consideration, engineers or the electrician establish that, during transmission, the system generates an average output value of almost 220 watts. It confirms that the wiring and power electronics are working well within safe power limits.
The analysis also indicates that the increase will be tremendous if the transmission interval is reduced significantly. This may put stress on internal parts, putting stress on the operation of the system. With this in mind, the team keeps the current cycle time to achieve adequate performance and long-term reliability.
Conclusion
The J to W Calculator is a practical calculator that can be used to determine how much stored or transferred energy is converted to power. By linking energy quantities to temporal values, it enables users to interpret system performance, validate energy discharge rates, and assist in design decisions. The joules to watts conversion process becomes clearer and useful for electrical, solar, as well as battery applications that require knowledge of energy flow.
More Calculators for You
Solar Products for Your Project
Solar Panels | Solar System | C&I Battery Storage |
 |  |  |
Frequently Asked Questions
“Joules(J)” measure total energy, while “watts(W)” measure how quickly that energy is used, but the most important element in this relationship is “time(t)”, which determines the rate of energy transfer, which is well explained in the first two sections.
You can answer this question straightforwardly because a “single joule(J)” does not directly equal a fixed number of “watts(W)”, and the watt(W) value depends on how quickly that joule(J) of energy is used, which is why “time(t)” is required for the conversion which is thoroughly explained in the section “Formula and Variable Definations”.
Yes, because it helps determine whether energy storage systems, batteries, or devices are delivering power at a safe and usable rate, and this is also very important for system planning and performance evaluation, which is explained in detail in the sections “Example Calculation, and Case Study”.
Yes, because power measured in W is essentially a representation of energy transfer per second(t), which is why the terms are closely related and relate to this concept, if you have more queries or further explanation, contact an HBOWA expert, and they will explain and provide complete solutions for your electric needs.
