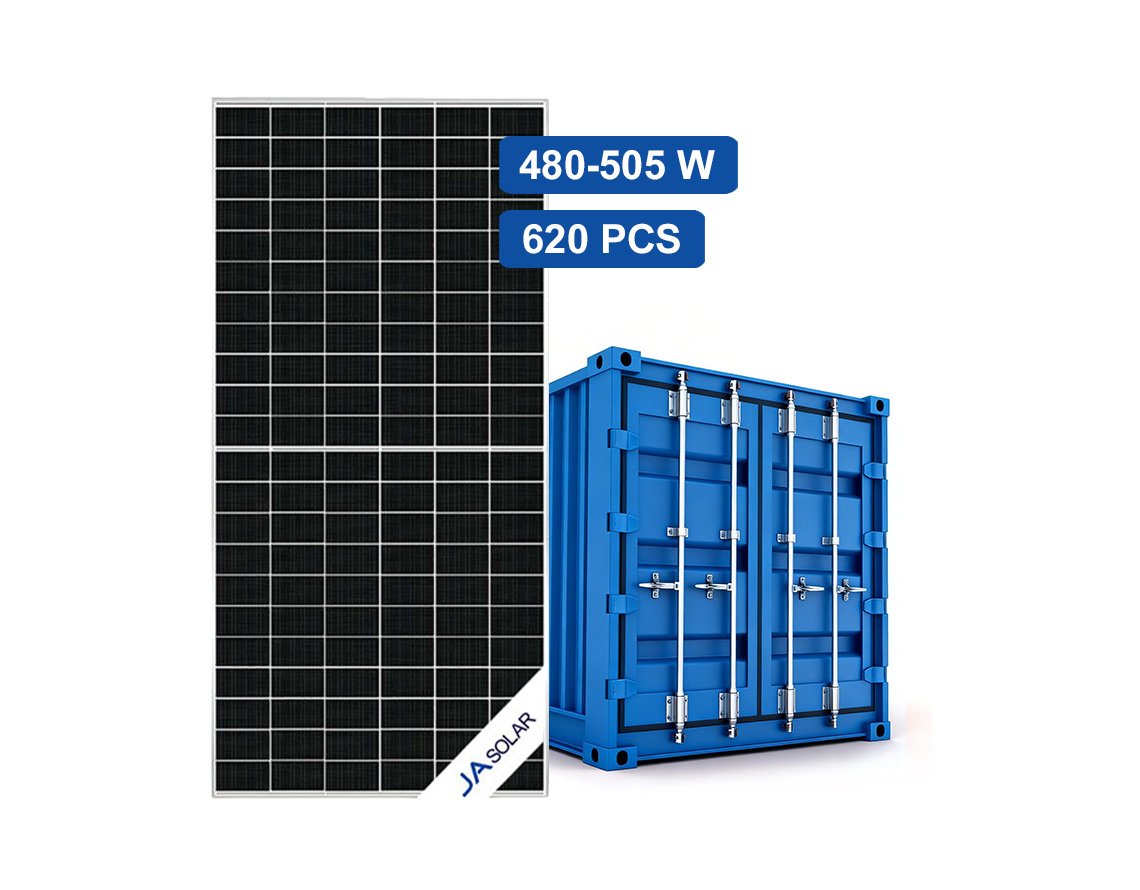

JA Solar Panels 480W-500W Per Container 620PCS
Model: JAM66S30 480-505/MR/1500V
Cell: monocrystalline
Power Range: 480W-505W
Glass: single glass
Certification: TUV, CE
Warranty: 25 Years
MOQ: One container of 620pcs
JA JAM66S30 480-505W Solar Panels By Container Description
JA solar panels 480-505W give you high power in a compact footprint. The solar panels in one container are 620 pcs, ideal for C&I rooftops and ground-mounts. If you are sourcing solar modules in this range in bulk, talk to us about bulk pricing and delivery windows, we will lock in JA solar panels for your next build.
- Electrical Characteristics
- Electrical Data (STC & NOCT)
- Mechanical Data
| Parameter | JAM66S30-480/MR/1500V | JAM66S30-485/MR/1500V | JAM66S30-490/MR/1500V | JAM66S30-495/MR/1500V | JAM66S30-500/MR/1500V | JAM66S30-505/MR/1500V |
|---|---|---|---|---|---|---|
| Rated Max Power (Pmax) [W] | 363 | 367 | 370 | 374 | 378 | 382 |
| Open Circuit Voltage (Voc) [V] | 42.15 | 42.30 | 42.43 | 42.58 | 42.72 | 42.86 |
| Max Power Voltage (Vmp) [V] | 35.54 | 35.67 | 35.76 | 35.84 | 35.93 | 36.02 |
| Short Circuit Current (Isc) [A] | 10.99 | 11.06 | 11.13 | 11.20 | 11.27 | 11.34 |
| Max Power Current (Imp) [A] | 10.21 | 10.28 | 10.36 | 10.44 | 10.52 | 10.60 |
| Parameter | JAM66S30-480/MR/1500V | JAM66S30-485/MR/1500V | JAM66S30-490/MR/1500V | JAM66S30-495/MR/1500V | JAM66S30-500/MR/1500V | JAM66S30-505/MR/1500V |
|---|---|---|---|---|---|---|
| Rated Maximum Power (Pmax) [W] | 480 | 485 | 490 | 495 | 500 | 505 |
| Open Circuit Voltage (Voc) [V] | 45.07 | 45.20 | 45.33 | 45.46 | 45.59 | 45.72 |
| Maximum Power Voltage (Vmp) [V] | 37.62 | 37.81 | 37.99 | 38.17 | 38.35 | 38.53 |
| Short Circuit Current (Isc) [A] | 13.65 | 13.72 | 13.79 | 13.86 | 13.93 | 14.00 |
| Maximum Power Current (Imp) [A] | 12.76 | 12.83 | 12.90 | 12.97 | 13.04 | 13.11 |
| Module Efficiency [%] | 20.2 | 20.4 | 20.6 | 20.9 | 21.1 | 21.3 |
| Power Tolerance | 0~+5 W | 0~+5 W | 0~+5 W | 0~+5 W | 0~+5 W | 0~+5 W |
| Temperature Coefficient of Isc (α_Isc) | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C | +0.045%/°C |
| Temperature Coefficient of Voc (β_Voc) | −0.275%/°C | −0.275%/°C | −0.275%/°C | −0.275%/°C | −0.275%/°C | −0.275%/°C |
| Temperature Coefficient of Pmax (γ_Pmp) | −0.350%/°C | −0.350%/°C | −0.350%/°C | −0.350%/°C | −0.350%/°C | −0.350%/°C |
| Item | Specification |
|---|---|
| Cell | Mono |
| Weight | 26.3 kg |
| Dimensions | 2093±2 mm × 1134±2 mm × 30±1 mm |
| Cable Cross Section Size | 4 mm² (IEC), 12 AWG (UL) |
| No. of Cells | 132 (6×22) |
| Junction Box | IP68, 3 diodes |
| Connector | Stäubli MC4-EVO2A / MC4-EVO2; QC Solar QC 4.10-351 |
| Cable Length (Including Connector) | Portrait: 200 mm(+) / 300 mm(−); Landscape: 1200 mm(+) / 1200 mm(−) |
| Country of Manufacturer | China / Vietnam |
