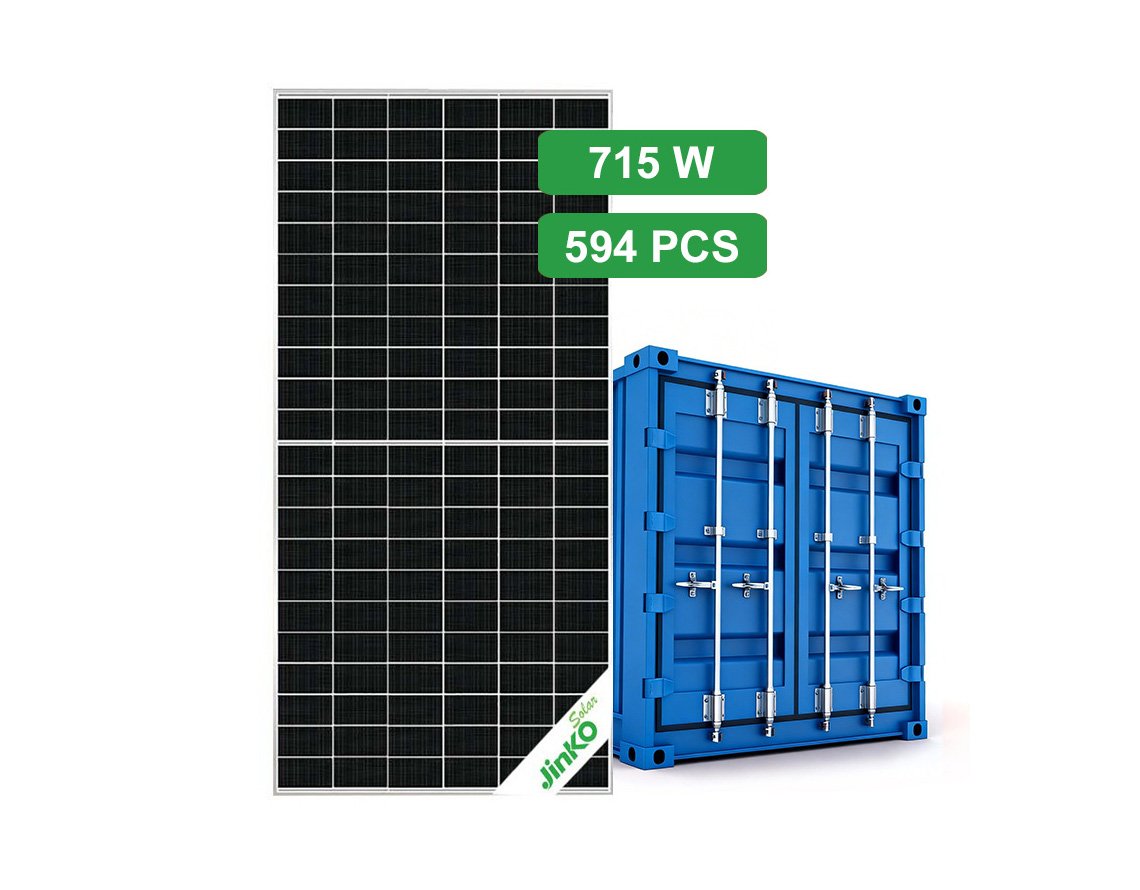

Jinko Solar Panels 700W-715W Per Container 594 PCS
Model: 66HL5-BDV
Cell: Mono N-Type
Power Range: 700-715W
Glass: dual glass
Certification: CE, TUV
Warranty: 30 Years
MOQ: One container of 594 pcs
Jinko JKM700-715N-66HL5-BDV-Z1-AU 700WDescription
Jinko solar panels 700W -715W are high-output, N-type bifacial modules built for utility and C&I fleets that need more energy per string and dependable field performance. Dual-glass construction and backside generation add extra kWh in reflective sites. The 700W-715W Jinko solar modules are with long product and linear power warranties of 30 years. Ready to plan a bulk order? Tell us your schedule and we will secure Jinko solar panels 700w-715W and match your project timeline.
The Jinko solar panels 700W-715W per container are 594 pcs. If you want bulk for a large project, welcome to send you inquiry any time.
- Specifications STC
- Mechanical Data
| Parameter | 700 Wp | 705 Wp | 710 Wp | 715 Wp |
|---|---|---|---|---|
| Maximum Power (Pmax) [Wp] | 700 | 705 | 710 | 715 |
| Maximum Power Voltage (Vmp) [V] | 40.42 | 40.53 | 40.65 | 40.77 |
| Maximum Power Current (Imp) [A] | 17.32 | 17.40 | 17.47 | 17.54 |
| Open-circuit Voltage (Voc) [V] | 48.40 | 48.56 | 48.73 | 48.88 |
| Short-circuit Current (Isc) [A] | 18.40 | 18.46 | 18.53 | 18.60 |
| Module Efficiency STC [%] | 22.54 | 22.70 | 22.86 | 23.02 |
| Item | Specification |
|---|---|
| Cell Type | N-type Monocrystalline |
| No. of Cells | 132 (66 × 2) |
| Dimensions | 2384 × 1303 × 33 mm |
| Weight | 37.5 kg |
| Front Glass | 2.0 mm, anti-reflection coating |
| Back Glass | 2.0 mm, heat-strengthened glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68 rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | Jinko: JK03M / JK03M2; Stäubli: MC4-EVO2 |
| Output Cables | 4.0 mm²; (+): 400 mm, (−): 200 mm or customized length |
