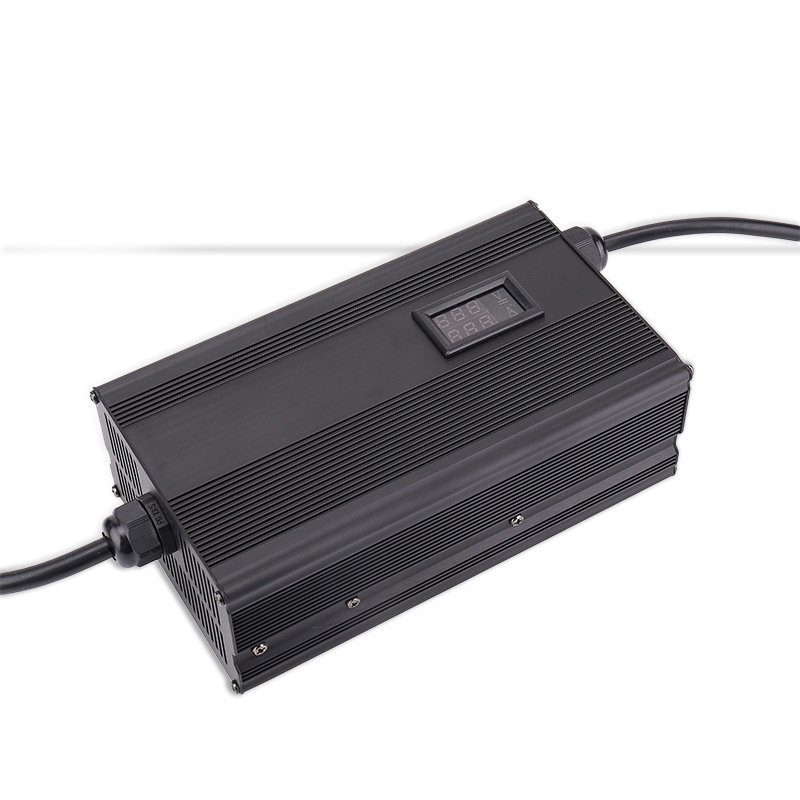

Lifepo4 Battery Charger
Output Data: DC48V20A
Rated Power: 1200W
AC plug: US/EU/AU/UK/CN/IT/ZA/ISR/IN/BR/DNK etc.
Efficiency:90%
Cooling method: Natural cooling down
Application: for lifepo4 battery charging
Certificates: CE, FCC, KC, etc.
Warranty: 2 Years
Customization: logo, current, voltage, size, components, color, etc.
MOQ: 10PCS
Description
The LiFePO4 battery charger is designed with over-current power-off protection and reverse connection protection. It simplifies your life and enables convenient charging. Specially designed for charging lithium iron phosphate batteries, it can meet your various needs. There are multiple specifications of plugs for the lifepo4 battery charger to choose from, such as those for the United States, Europe, the United Kingdom, South Korea, Australia and so on. There are also various specifications for the output plugs. You can directly contact us online to customize the specifications you need.
Technical Data
- Lifepo4 Battery Charger
| 1200W LiFePO4 Battery Charger | |||
| Input | 90-120V/180-240Vac 50/60Hz | Input plug | EU/US/UK/AU/Korea/India/South Africa plugs |
| Rated output | 14.6v40a; 29.2v30a; 43.8v25a; 58.4v20a; 73v15a; 87.6v12a | DC cable length | can be 1.2m/1.5m/1.8m/2m/3m or customized |
| Charge mode | CC-CV | Led indicator | Red—on charging Green—fully charged |

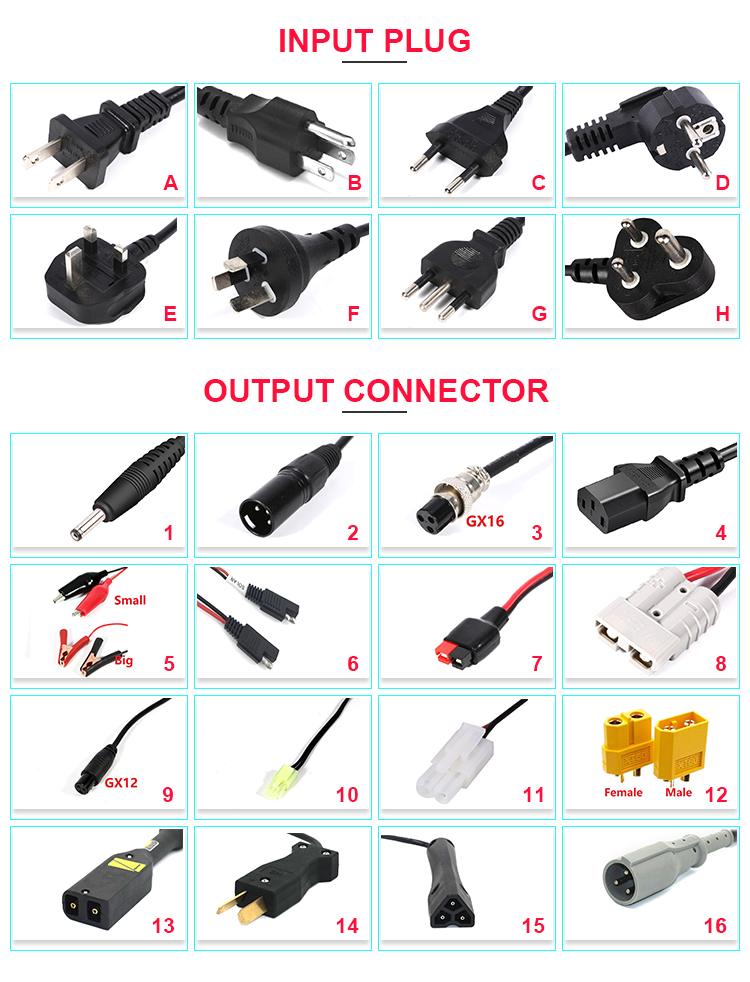

| Output connector | DC, alligator clips, XLR,RCA, Anderson plug, XT60, XT90, Housing plug, etc. | Safety protection | Over-current;Over-voltage;Over-load; Short circuit protection; |
| Ripple noise | <850mV | Efficiency | >85% |
| Load regulation | ±5% | Size & N.W | 220*120*70mm;2.5kg |
| Hi-Pot | 1500Vac/10s | MTBF | 30000hrs |
| Operating temperature | -20℃ to 50℃ | Storage temperature | -40℃ to 80℃ |
| Safe certification | CE/FCC/KC/PSE | Lead time | 3-5days for sample;about 20days for mass order |
| Warranty | 2 years | Package | 67*24*45mm;6kgs/ctn;14.5kgs/ctn |
| Application | LiFePO4 battery charger, functional stability | ||
Advantages
Built-in Smart Chip
Equipped with an AI intelligent chip, the lifepo4 battery charger has high-temperature power-off protection to prevent the service life loss of the lifepo4 battery charger.

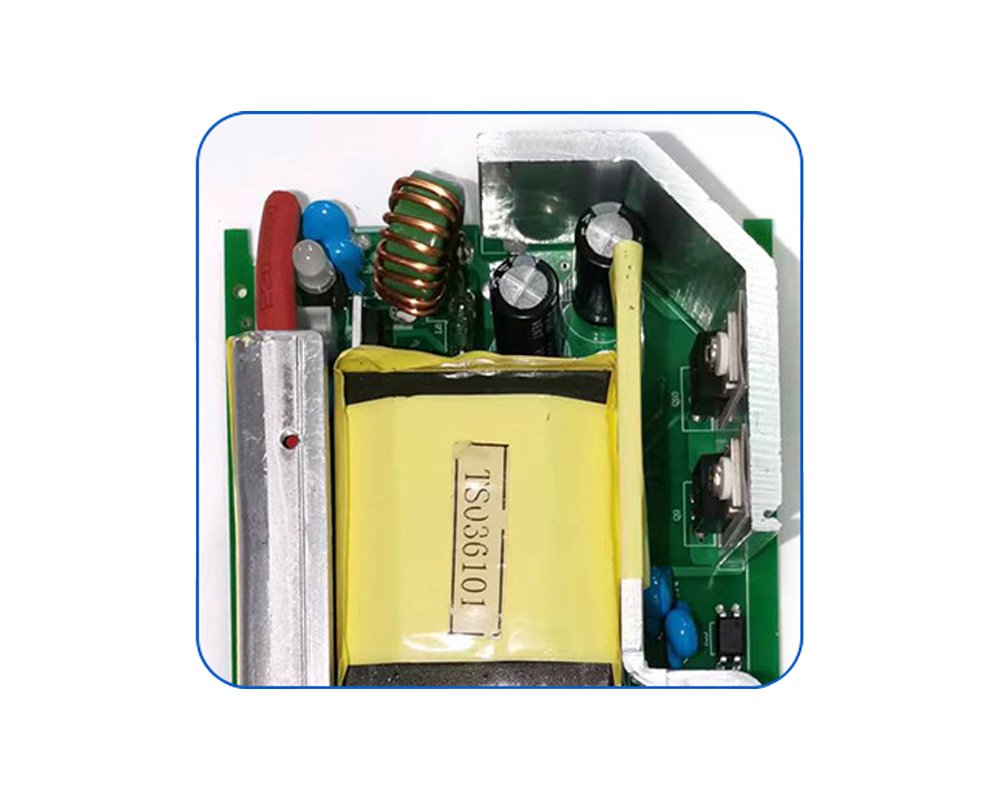

Core Transformer
The quality of the core transformers of lithium iron phosphate batteries charger is controlled by ourselves, reducing the damage caused by overcurrent and overvoltage to the chargers.
Customization Available
Selected excellent shells are made of reassuring materials that are high-strength and not afraid of being dropped. There are multiple specifications available for your selection, and we support customization, including customizing logos, colors, performance components, or functions of the lifepo4 battery charger.
