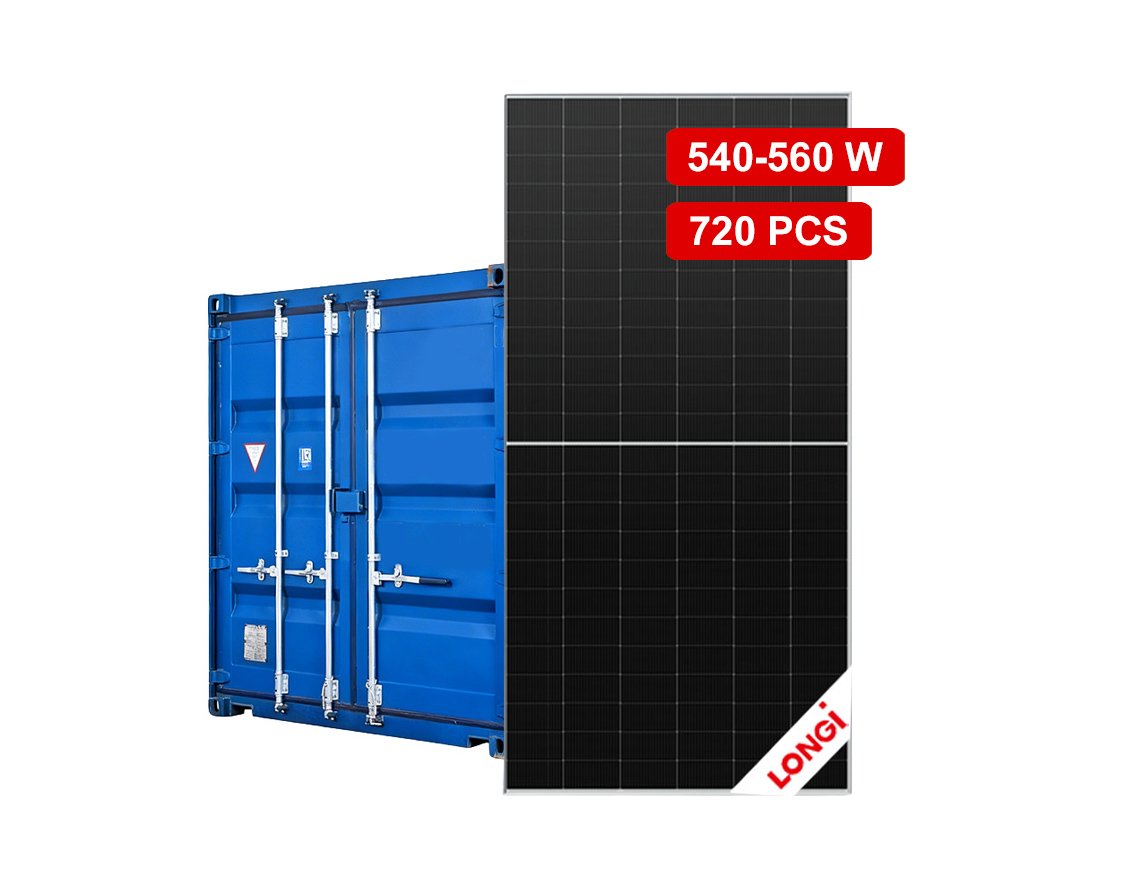

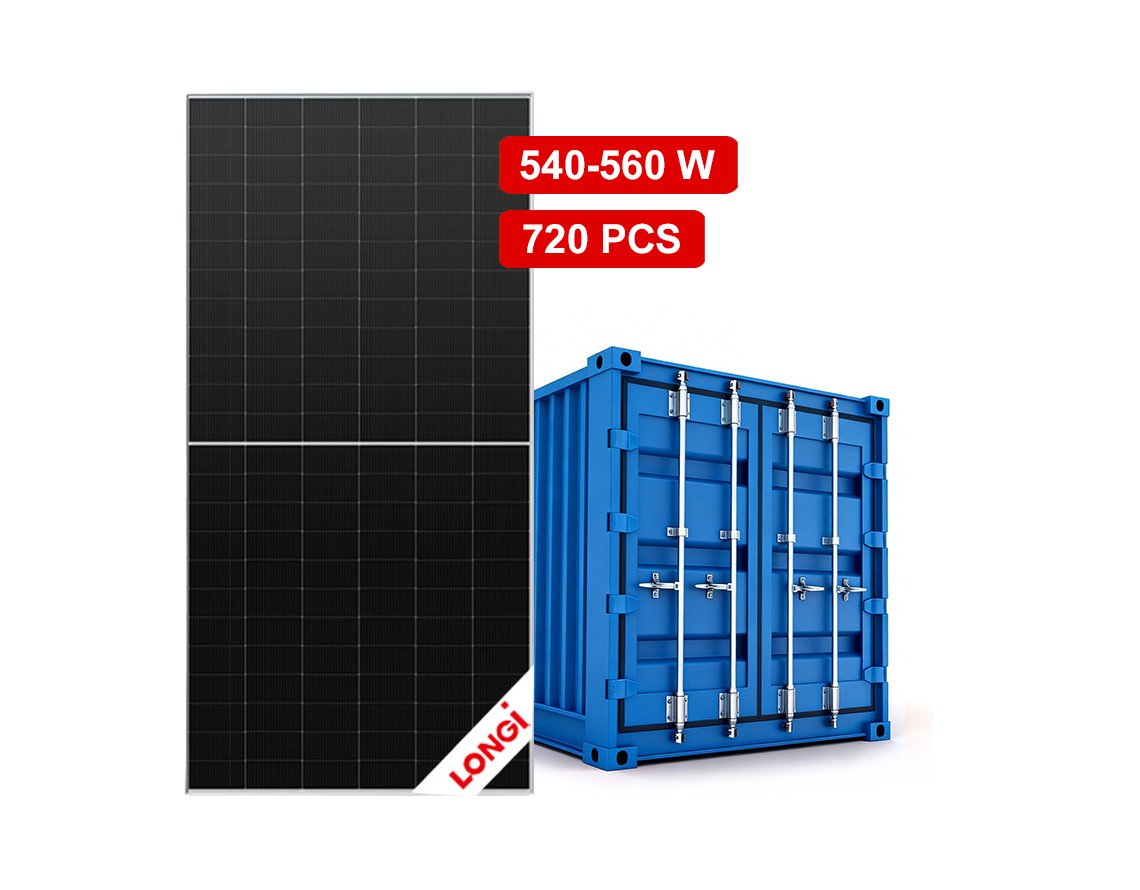

Longi Solar Panels 540W-560W Per Container 720 PCS
Model: Longi LR5-72HBD
Cell Orientation: 144(6*24) cells
Power Range:540-560W
Glass: Dual glass
Certification: CE, TUV, CQC, BIS
Warranty: 30 Years
MOQ: One container of 720 pcs
Longi LR5-72HBD 540W-560W Solar DatasheetDescription
As the official authorized agent of Longi solar panels, HBOWA provides you with Longi solar panels for all models of grade A type with competitive prices. The string of numbers on the back of each solar panel is the barcode of the product, you can check and identify it on the authenticity page of the Longi official website. The warranty of each panel is 25 to 30 years.
The Longi solar panels 540W-560W per container are 720 pcs and we provide comprehensive after-sales service, feel free to reach out.
- Mechanical Parameters
- Operating Parameters
| Cell Orientation | 144(6*24) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm2,+400,-200mm/±1400mmlength can be customized |
| Glass | Dual glass, 2.0+2.0mm heat strengthened glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 31.8kg |
| Dimension | 2278x1134x30mm |
| Packaging | 36pcs per pallet/180pcs per 20’GP/720pcs per 40’HC |
| OperationalTemperature | -40°C~+85°C |
| Power Output Tolerance | 0~3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 30A |
| Nominal Operating Cell Temperature | 45±2°C |
| Protection Class | Class II |
| Bifaciality | 70士5% |
| Fire Rating | UL type 29 IEC Class C |
Longi A Type Solar Panel
Longi bifacial dual glass solar panel based on M10 wafer is the best choice for ultra-large power plants, advanced 9-busbar half-cut cell module technology delivers superior module efficiency, high module quality ensures long-term reliability.
Delivery
Each solar panel will be packaged well into the wood pallet box. We support door-to-door delivery service, taking care of custom clearness for you. Before, during, and after shipment, we will closely track the status of the goods and give you feedback as soon as possible. Just sit back and relax while we handle these for you.
