Longi HIBC Solar Panels 690W 685W 680W 144 Cells Hi-MO S10

Model: LONGi Hi-MO S10 LR7-72HJD

Cell Orientation: 144 (6 × 24) cells

Power Range: 665-690W

Cell Technology: N-type HIBC (Hybrid Interdigitated Back Contact) with TaiRay wafers

Glass: Dual glass, 2.0 + 2.0 mm

Module Efficiency: 24.62%-25.54% (STC)

Warranty: 15-year product; 30-year performance

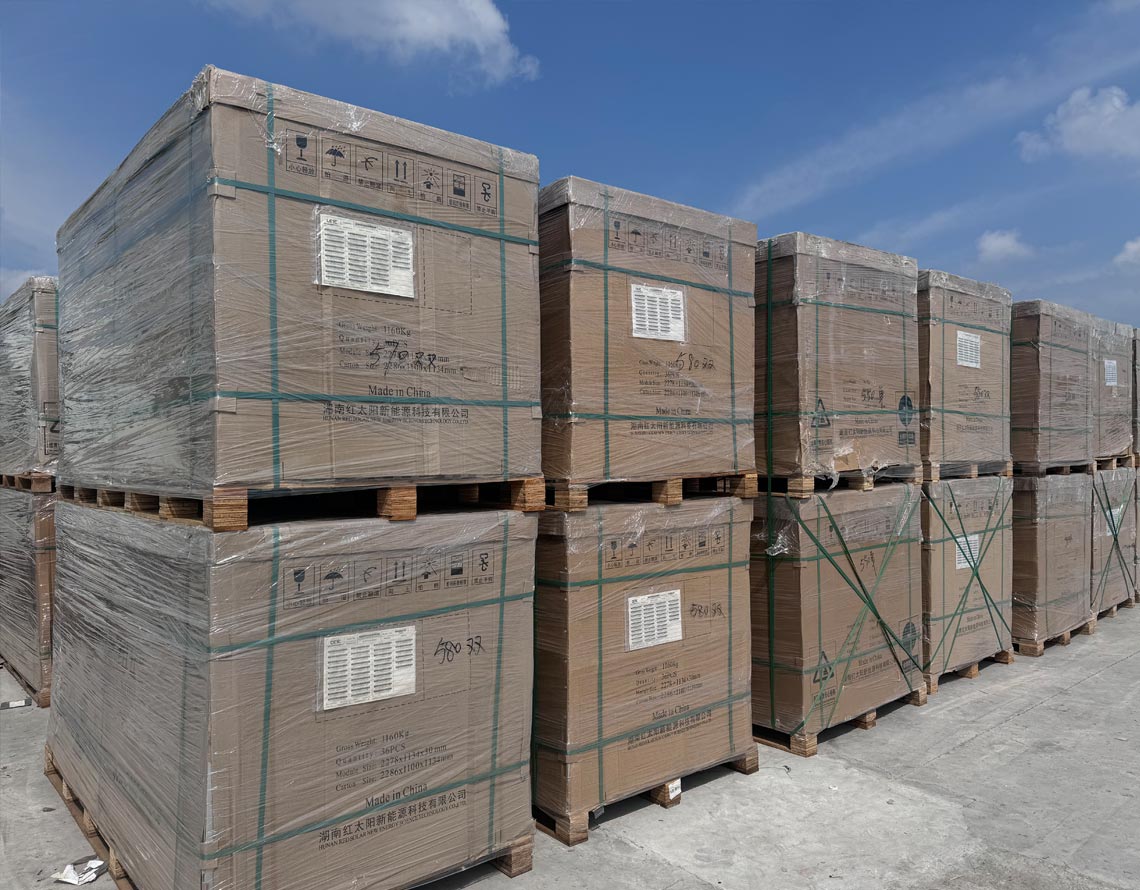

Packaging: 36 pcs/pallet; 720 pcs/40′ HC

MOQ: One pallet

FOB:Shanghai

LONGi Hi-MO S10 LR7-72HJD 665-690W Datasheet

Request Pallet Pricing

Description

LONGi Hi-MO S10 Solar Panels – LR7-72HJD Series

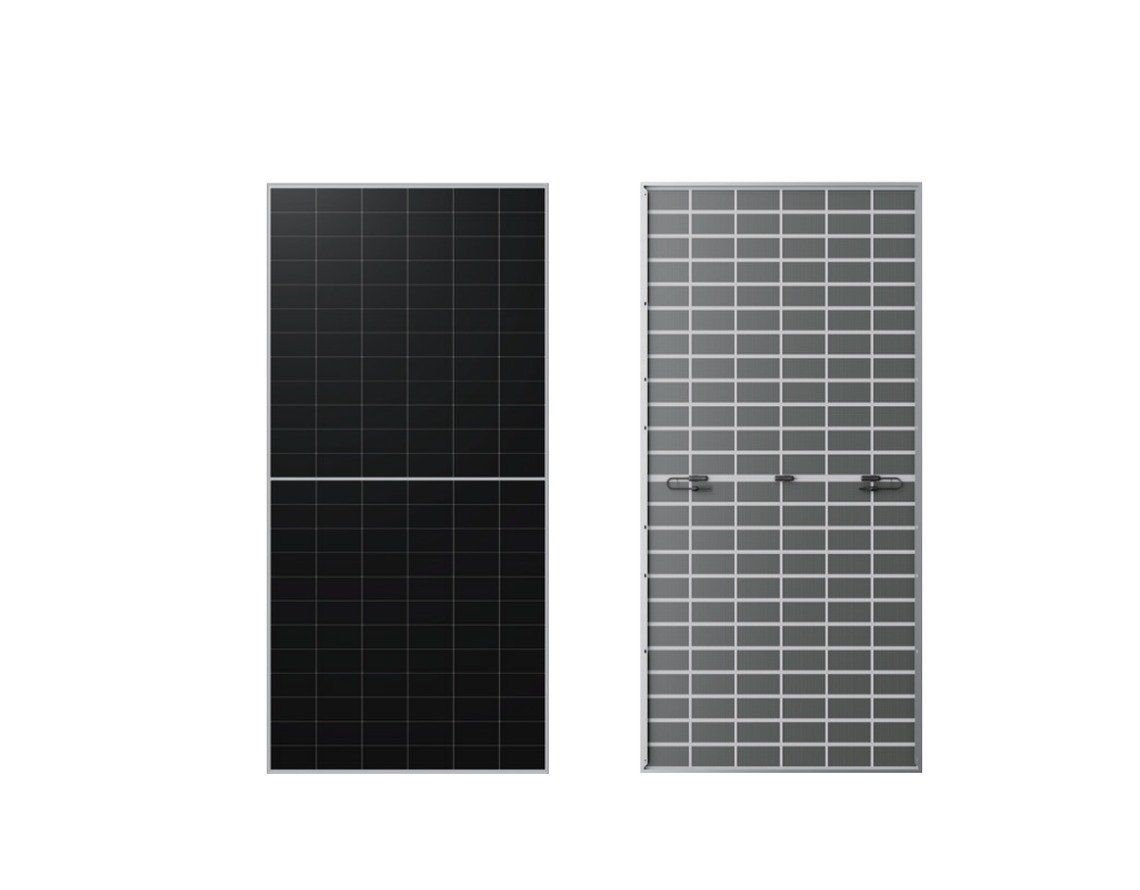

The LONGi Hi-MO S10 LR7-72HJD series combines N-type HIBC (Hybrid Interdigitated Back Contact) cell technology with TaiRay wafers and a front surface without gridlines. This 144-cell bifacial dual-glass module offers 665W to 690W under STC, including 680W, 685W and 690W options.

Module efficiency of 24.62% to 25.54% under STC
Pmax temperature coefficient of -0.240%/°C
2382 × 1134 × 30 mm dimensions and 32.5 kg module weight
15-year product warranty and 30-year performance warranty
Specified power degradation of 1% in the first year and 0.35% per year from years 2 to 30

The datasheet lists IEC 61215 and IEC 61730. Review the electrical, operating and mechanical parameters below when selecting modules for your project, contact Pretapower for availability and a quotation.

Send Inquiry Now

LONGi Hi-MO S10 LR7-72HJD 665W-690W technology overview

Mechanical Parameters
Operating Parameters
Electrical Characteristics (STC)

Mechanical Parameters	Specification
Cell Orientation	144 (6 × 24)
Junction Box	IP68, three diodes
Output Cable	4 mm²; +400/-200 mm or ±1,400 mm; length customizable
Glass	Dual glass, 2.0 + 2.0 mm semi-tempered glass
Frame	Anodized aluminum alloy frame
Weight	32.5 kg

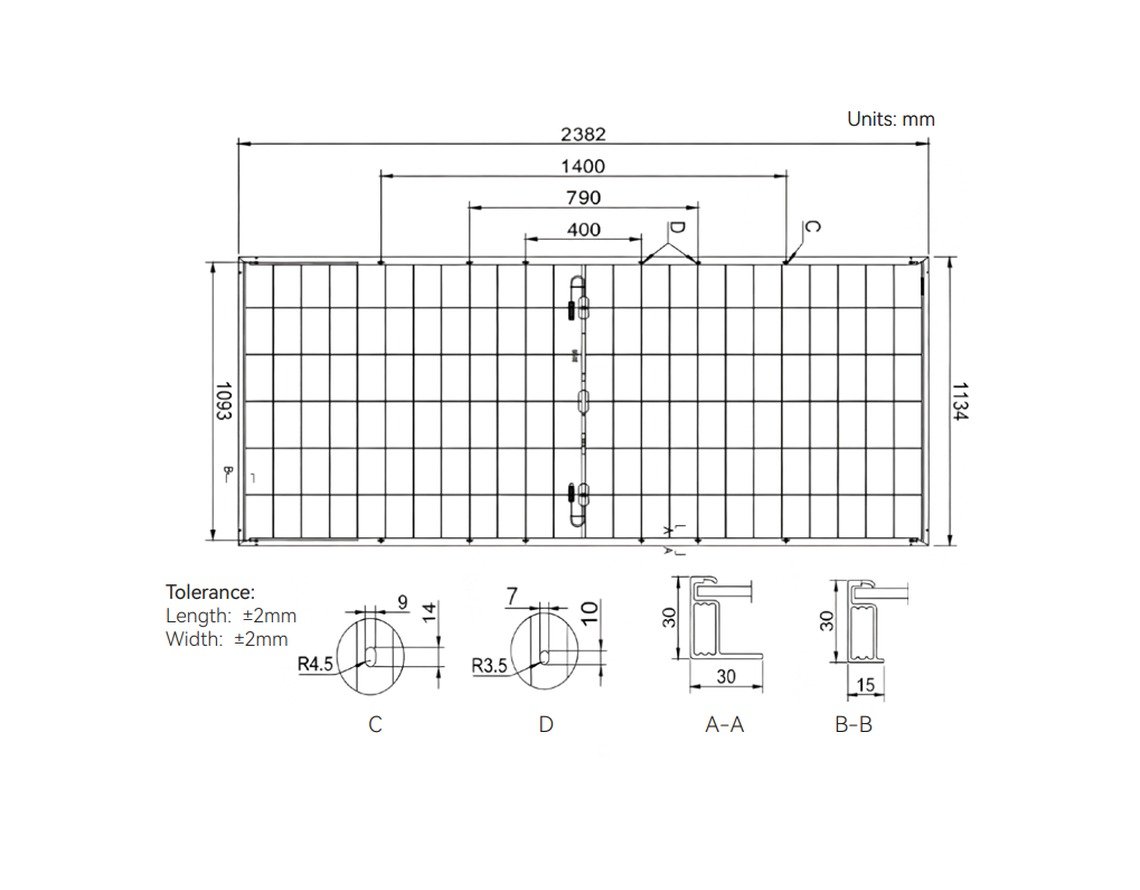

Dimensions	2382 × 1134 × 30 mm; length and width tolerance ±2 mm
Packaging	36 pcs/pallet; 144 pcs/20′ GP; 720 pcs/40′ HC

Operating Parameter	Specification
Module [T98] Max	70°C
Operational Temperature	-40°C to +85°C
Power Output Tolerance	0 to +3%
Maximum System Voltage	DC 1500 V (IEC)
Maximum Series Fuse Rating	30 A
Nominal Operating Cell Temperature	45 ± 2°C
Protection Class	Class II
Bifaciality (Pmax)	60 ± 5%
Fire Rating	IEC Class C

Mechanical Loading

Parameter	Specification
Minimum Designed Mechanical Load	1,600 Pa / 1,600 Pa
Front Side Maximum Static Loading	5,400 Pa
Rear Side Maximum Static Loading	2,400 Pa
Hailstone Test	25 mm hailstone at 23 m/s

Temperature Ratings (STC)

Parameter	Specification
Temperature Coefficient of Isc	+0.050%/°C
Temperature Coefficient of Voc	-0.210%/°C
Temperature Coefficient of Pmax	-0.240%/°C

Parameter	LR7-72HJD-665M	LR7-72HJD-670M	LR7-72HJD-675M	LR7-72HJD-680M	LR7-72HJD-685M	LR7-72HJD-690M
Maximum Power (Pmax) [W]	665	670	675	680	685	690
Open-Circuit Voltage (Voc) [V]	55.10	55.20	55.30	55.40	55.50	55.60
Short-Circuit Current (Isc) [A]	15.28	15.36	15.44	15.52	15.60	15.68
Voltage at Maximum Power (Vmp) [V]	45.51	45.61	45.71	45.81	45.91	46.01
Current at Maximum Power (Imp) [A]	14.61	14.69	14.77	14.84	14.92	15.00
Module Efficiency [%]	24.62	24.80	24.99	25.17	25.36	25.54

STC: irradiance 1,000 W/m², cell temperature 25°C, AM 1.5. Test uncertainty for Pmax: ±3%. Source: LONGi LR7-72HJD 665-690M datasheet, BGV03 20260618.

Download Datasheet

LONGi Hi-MO S10 Solar Panels

Compare the 680W, 685W, and 690W LR7-72HJD options for your project. The series uses 144 cells and bifacial dual-glass construction, with a Pmax bifaciality rating of 60 ± 5%. Share your required power rating, quantity, and destination with Pretapower to request a quotation.
