Megarevo REVO C&I Three-Phase Hybrid Inverter 30-50kW
Model: R30KH3 / R40KH3 / R50KH3
Power: 30-50 kW C&I three-phase
Grid: 380/400V, 50/60Hz
Battery: HV 150-800V, dual 80A ports
Protection: IP65
Load: 100% unbalanced
Place of Origin: China
Warranty: 5 years
MOQ: 1 Set
FOB: Shanghai
Lead Time: 7-10 days
Description

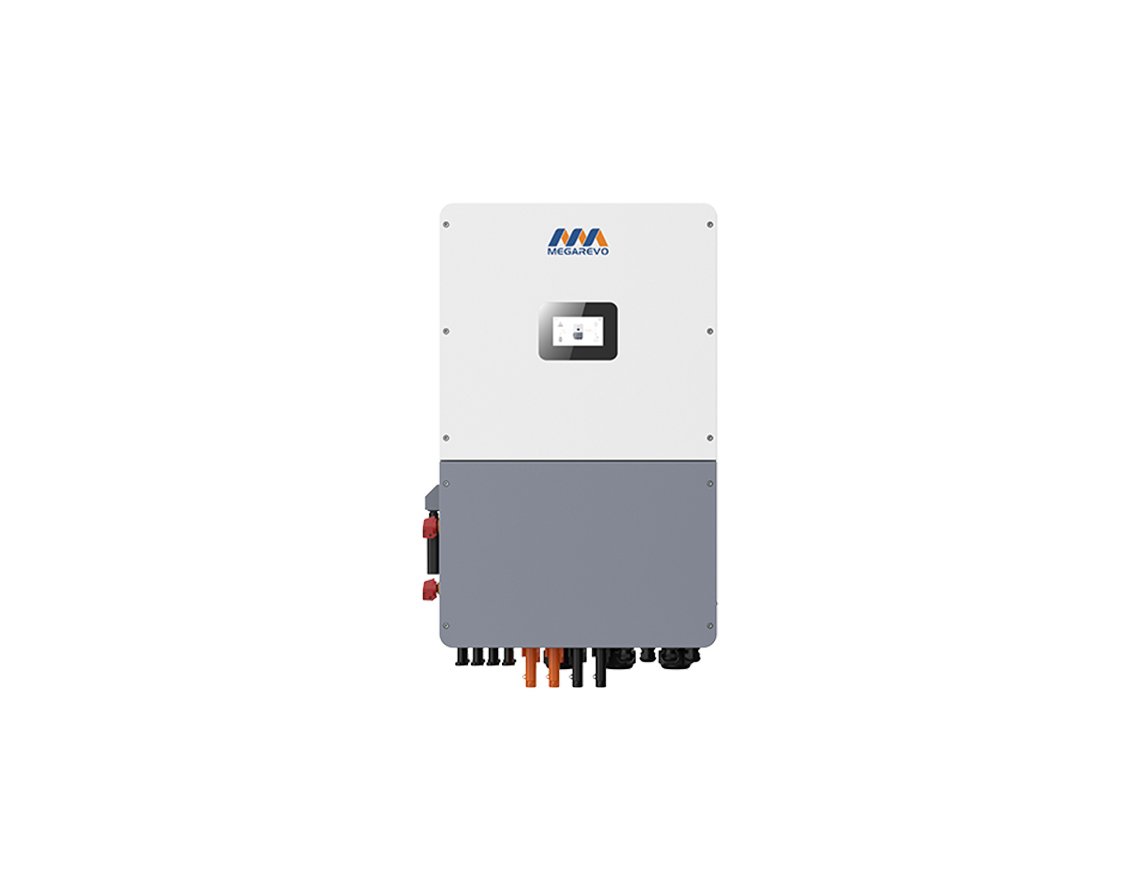

The REVO R30/R40/R50KH3 Megarevo inverter is a wall-mounted three-phase hybrid inverter for commercial and industrial energy storage. It delivers 30 to 50kW on a 380/400V grid, accepts up to 75kWp of PV across four MPPTs with a wide 150-850V MPPT window, and runs a 150-800V high-voltage battery.
We have large Megarevo REVO solar inverters in stock for bulk sale; the MOQ is only 1 set. Feel free to contact us for a detailed quotation anytime.
Technical Data
- PV Input Data
- Battery Data
- AC Output - Grid Side
- AC Output - Off-grid
- General Data
| Parameter | R30KH3 | R40KH3 | R50KH3 |
|---|---|---|---|
| Max. PV input power (kW) | 45 | 60 | 75 |
| Max. PV input voltage (V) | 1000 | ||
| MPPT voltage range (V) | 150~850 | ||
| Start-up voltage (V) | 180 | ||
| Rated input voltage (V) | 600 | ||
| No. of MPPT trackers | 4 | ||
| Strings per MPPT | 2 | ||
| Max. input current per MPPT (A) | 40 / 40 / 40 / 40 | ||
| Max. short-circuit current per MPPT (A) | 60 / 60 / 60 / 60 | ||
| Parameter | R30KH3 | R40KH3 | R50KH3 |
|---|---|---|---|
| Max. charge / discharge power (kW) | 30 | 40 | 50 |
| Max. charge / discharge current (A) | 33 | 44 | 55 |
| Battery voltage range (V) | 150~800 | ||
| No. of battery inputs | 2 (dual 80A ports) | ||
| Battery type | Lithium-ion | ||
| Parameter | R30KH3 | R40KH3 | R50KH3 |
|---|---|---|---|
| Rated AC output power (kW) | 30 | 40 | 50 |
| Max. apparent power (kVA) | 33 | 44 | 55 |
| Rated AC output current (A) | 45.6 | 60.8 | 76 |
| Max. AC output current (A) | 50.1 | 66.9 | 83.6 |
| Max. continuous AC pass-through (A) | 200 | ||
| Rated grid voltage (V) | 380 / 400, 3W+N+PE | ||
| Rated grid frequency (Hz) | 50 / 60 | ||
| Power factor | >0.99 (0.8 leading ~ 0.8 lagging) | ||
| THDi | <3% | ||
| Parameter | R30KH3 | R40KH3 | R50KH3 |
|---|---|---|---|
| Rated off-grid output (kW) | 30 | 40 | 50 |
| Max. off-grid apparent (kVA) | 33 | 44 | 55 |
| Off-grid output voltage (V) | 380/400, 0.85Un~1.1Un, 3W+N+PE | ||
| Switching time (ms) | <10 | ||
| THDu | <2% | ||
| Parameter | R30KH3 | R40KH3 | R50KH3 |
|---|---|---|---|
| Protection | Islanding, PV/battery reverse, insulation & residual current monitoring, AC over-current/power, back-up short, short circuit | ||
| Ingress protection | IP65 | ||
| Operating temperature (°C) | -30 ~ +60 | ||
| Relative humidity | 0~100% | ||
| Operating altitude (m) | 0~4,000 | ||
| Cooling | Forced air | ||
| Noise (dB) | <65 | ||
| Weight (kg) | 73 | ||
| Dimensions W*D*H (mm) | 530 x 280 x 850 | ||
| Installation | Wall mounted | ||
| Topology | Non-isolated | ||
| Display | Touch panel | ||
| Communication | RS485, CAN, Wi-Fi / 4G / GPRS | ||
Why REVO C&I Three-Phase
Commercial & Industrial Storage
30-50kW Wall-Mounted Hybrid Inverter
- Up to 75kW PV, wide 150-850V MPPT range
- Dual 80A battery ports, 314Ah cell ready
- IP65, -30~+60°C outdoor rated
- 4 MPPT, 40A per MPPT for high-power modules
- 100% unbalanced load for asymmetric C&I sites
