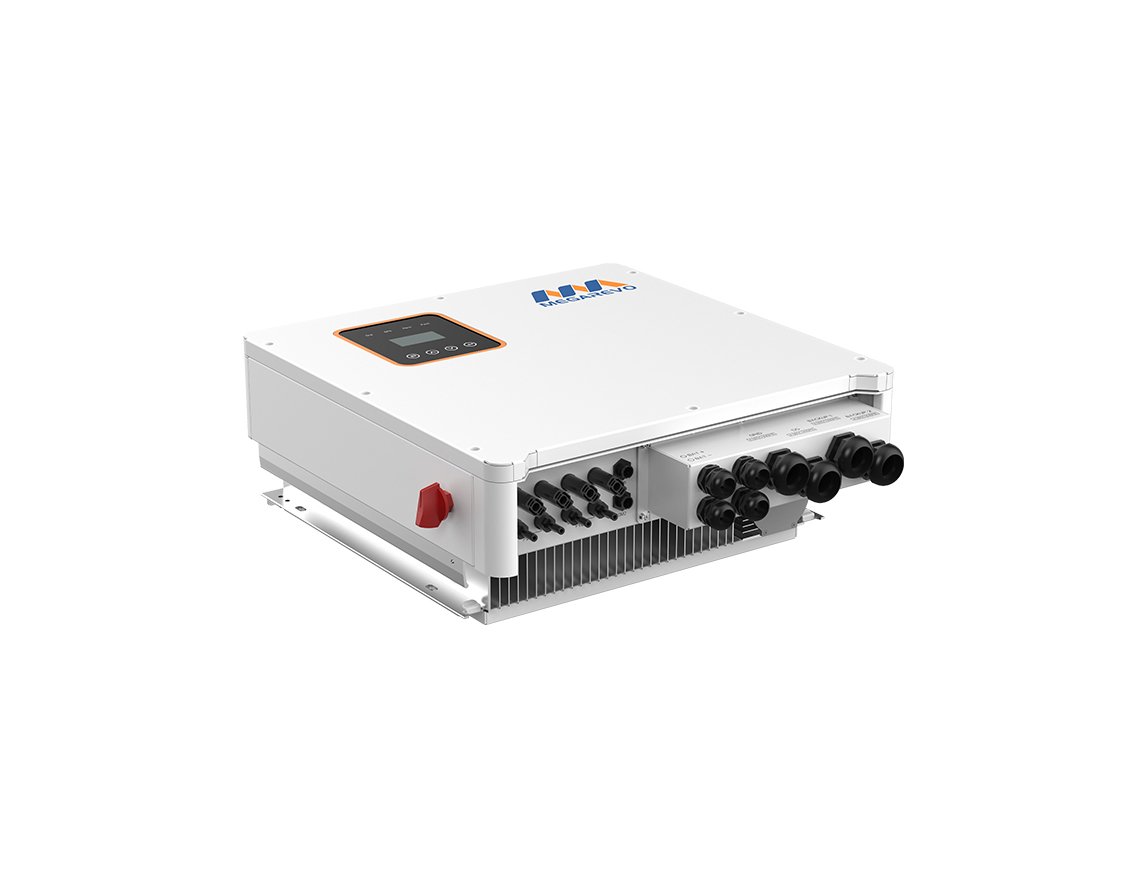

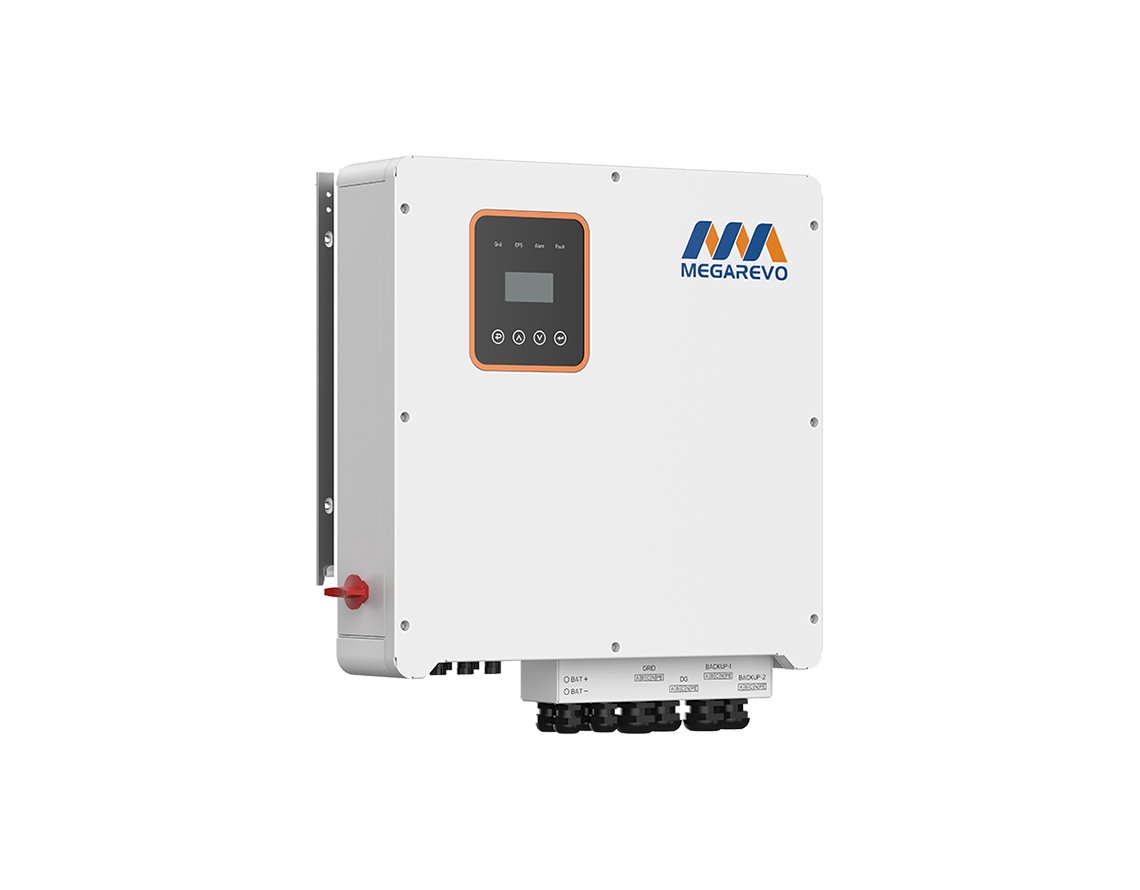

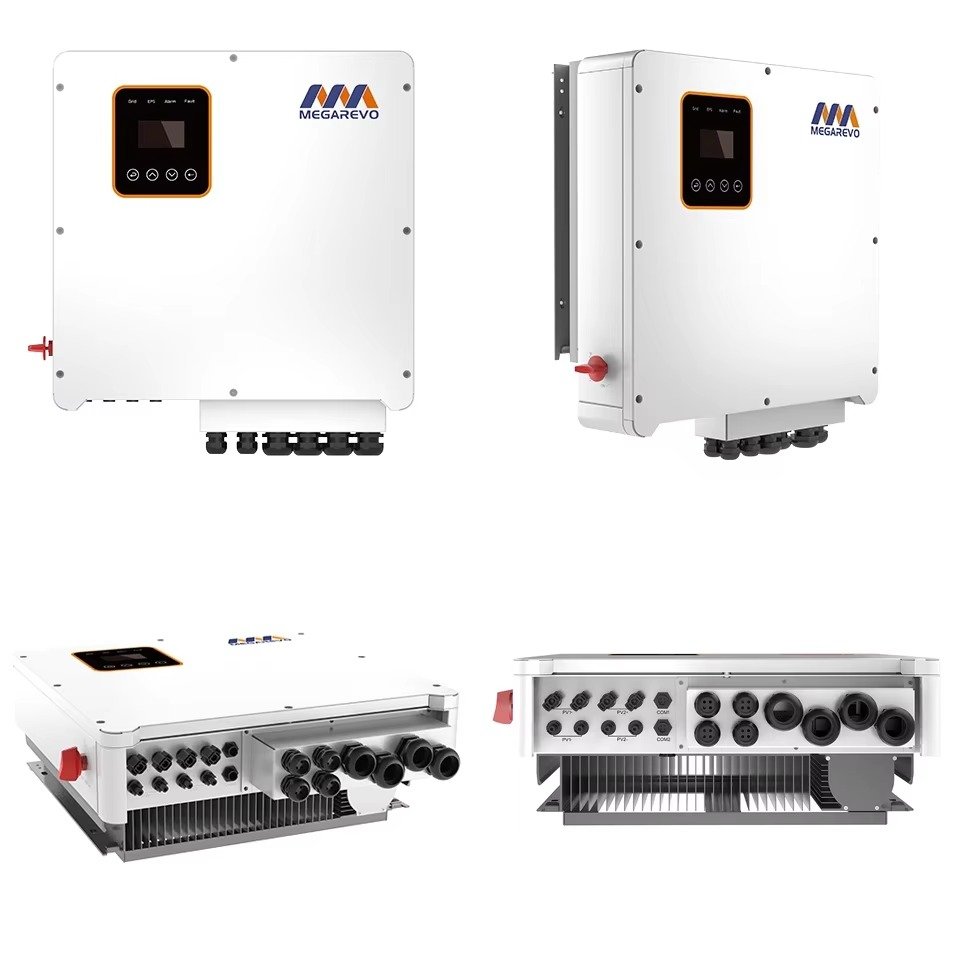

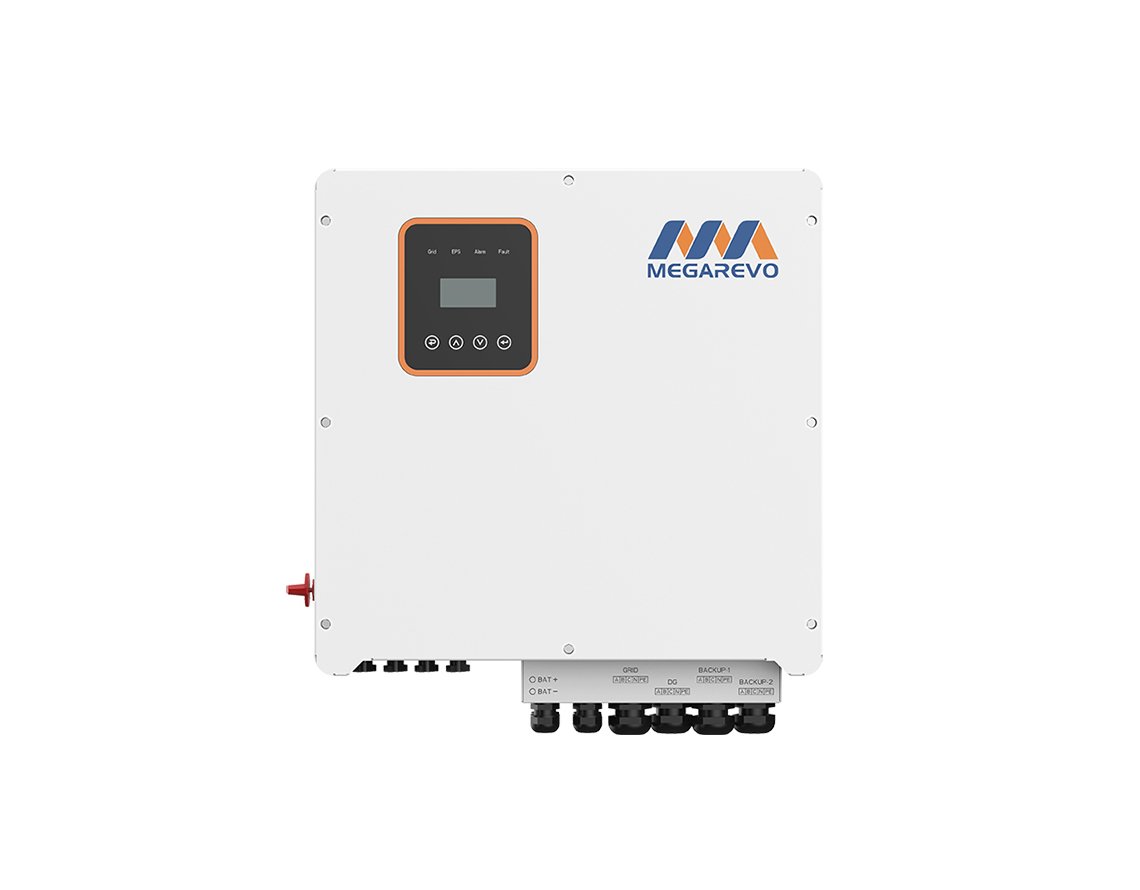

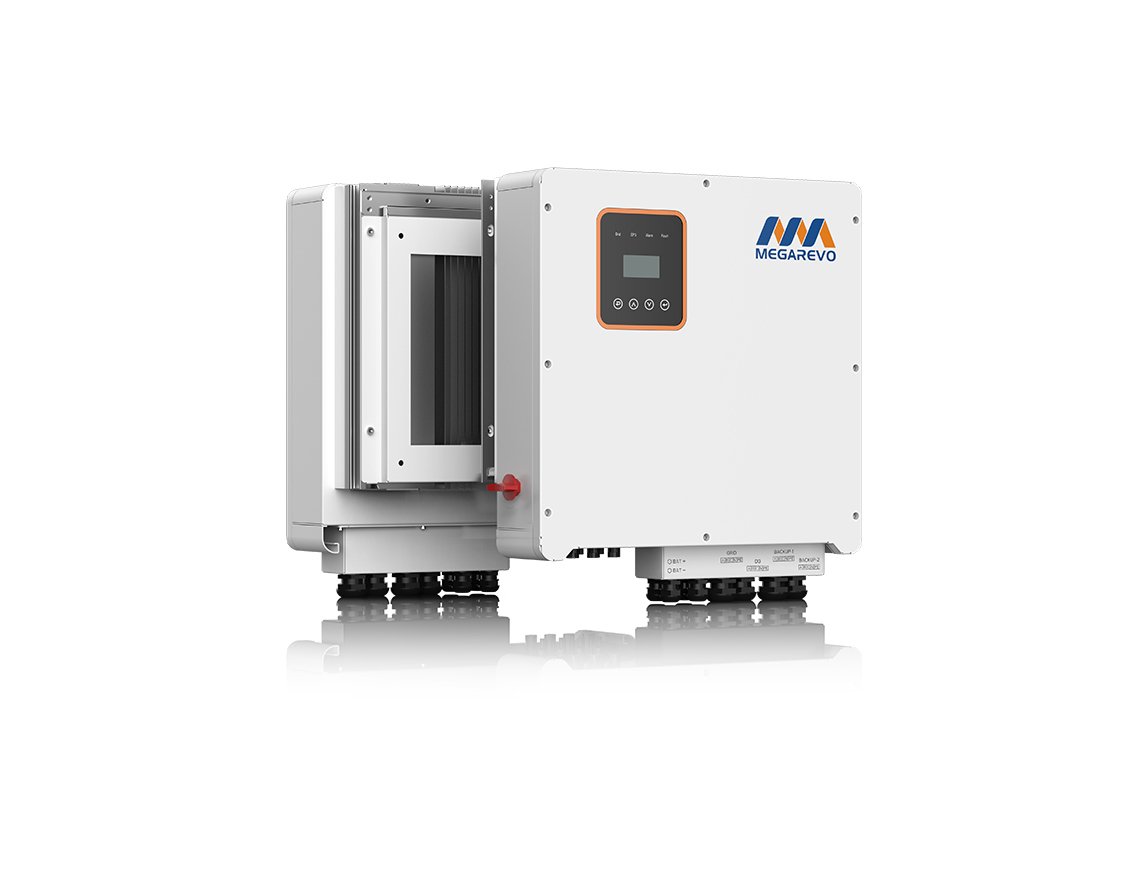

Megarevo REVO Three-Phase Hybrid Inverter 6-15kW 380V High Voltage

Model: R6KH3-P – R15KH3-P
Power: 6-15 kW three-phase
Grid: 380/400V, 50/60Hz
Battery: High voltage 150-550V
Protection: IP65
Load: 100% unbalanced, single & three-phase
Place of Origin: China
Warranty: 5 years
MOQ: 1 Set
FOB: Shanghai
Lead Time: 7-10 days

PRODUCT DETAILS

Send Your Inquiry

Description
Technical Data
Details
Download
Top

Description

The Megarevo REVO three-phase hybrid inverter covers 6 to 15kW for homes and small commercial systems on a 380/400V three-phase grid. It runs a 150-550V high-voltage battery bank, accepts up to 1000V / 22.5kWp of PV, and supports full-power discharge with automatic battery management. It feeds both single-phase and three-phase loads and keeps running through 100% unbalanced output, switching to backup in under 10ms.

We have bulk Megarevo solar inverters in stock in warehouses in China and Germany; MOQ is one set, feel free to inquire anytime.

Technical Data

PV Input Data
Battery Data
AC Output - Grid Side
AC Output - Back-up
General Data

Parameter	R6KH3-P	R8KH3-P	R10KH3-P	R12KH3-P	R15KH3-P
Max. PV input power (kW)	9	12	15	18	22.5
Max. PV input voltage (V)	1000
Min. PV input voltage (V)	125
Start-up voltage (V)	125
MPPT voltage range (V)	180~850
MPPT range at full load (V)	250~850
Rated PV input voltage (V)	600
No. of MPPT trackers	1	2	2	2	2
Strings per MPPT	1/1	2/2	2/2	2/2	2/2
Max. input current per MPPT (A)	18	20	20	20	20
Max. short-circuit current per MPPT (A)	25	30	30	30	30

Parameter	R6KH3-P	R8KH3-P	R10KH3-P	R12KH3-P	R15KH3-P
Battery voltage range (V)	150~550
Battery range at full load (V)	180~550	230~550	285~550	340~550	425~550
Max. charge / discharge power (kW)	6	8	10	12	15
Max. charge / discharge current (A)	50/50
Rated charge / discharge current (A)	40/40
Battery type	Lithium-ion / Lead-acid
Charging strategy	Self-adaption to BMS
BMS communication	CAN

Parameter	R6KH3-P	R8KH3-P	R10KH3-P	R12KH3-P	R15KH3-P
Rated output power (kW)	6	8	10	12	15
Max. apparent output power (kVA)	6.6	8.8	11.1	13.2	16.5
Max. apparent input power (kVA)	6.6	8.8	11	13.2	16.5
Rated grid voltage (V)	220/380; 230/400 three-phase
Grid voltage range (V)	187~264.5 (phase)
Grid input voltage (V)	380 / 400
Rated grid frequency (Hz)	50 / 60
Grid frequency range (Hz)	45~55 / 55~65
Rated output current (A)	8.7	11.5	14.4	17.3	21.7
Max. AC output current (A)	9.5	12.7	15.9	19.1	23.8
Power factor	>0.99 (0.8 leading ~ 0.8 lagging)
THDi	<3%
Grid type	3L+N+PE

Parameter	R6KH3-P	R8KH3-P	R10KH3-P	R12KH3-P	R15KH3-P
Rated back-up power (kW)	6	8	10	12	15
Max. back-up apparent power (kVA)	6.6	8.8	11	13.2	16.5
Back-up output voltage (V)	220/380; 230/400
Back-up output frequency (Hz)	50 / 60
THDu	<2%
Back-up switch time (ms)	<10
Peak output	110% 10min, 120% 1.25min, 150% 20ms

Parameter	R6KH3-P	R8KH3-P	R10KH3-P	R12KH3-P	R15KH3-P
Protection	Islanding, DC reverse, over/under voltage and frequency, over-current, short circuit, residual current, surge
Certifications	CE, EN 50549, VDE-AR-N 4105, G98/G99, CEI 0-21, EN 62109
Ingress protection	IP65
Operating temperature (°C)	-25 ~ +60
Relative humidity	0~95%
Operating altitude (m)	0~4,000
Cooling	Natural convection
Noise (dB)	<45
Weight (kg)	32
Dimensions WDH (mm)	566 x 593.5 x 219.5
Topology	Transformerless
Display	LCD touch screen
Communication	RS485, CAN, Wi-Fi, 4G
