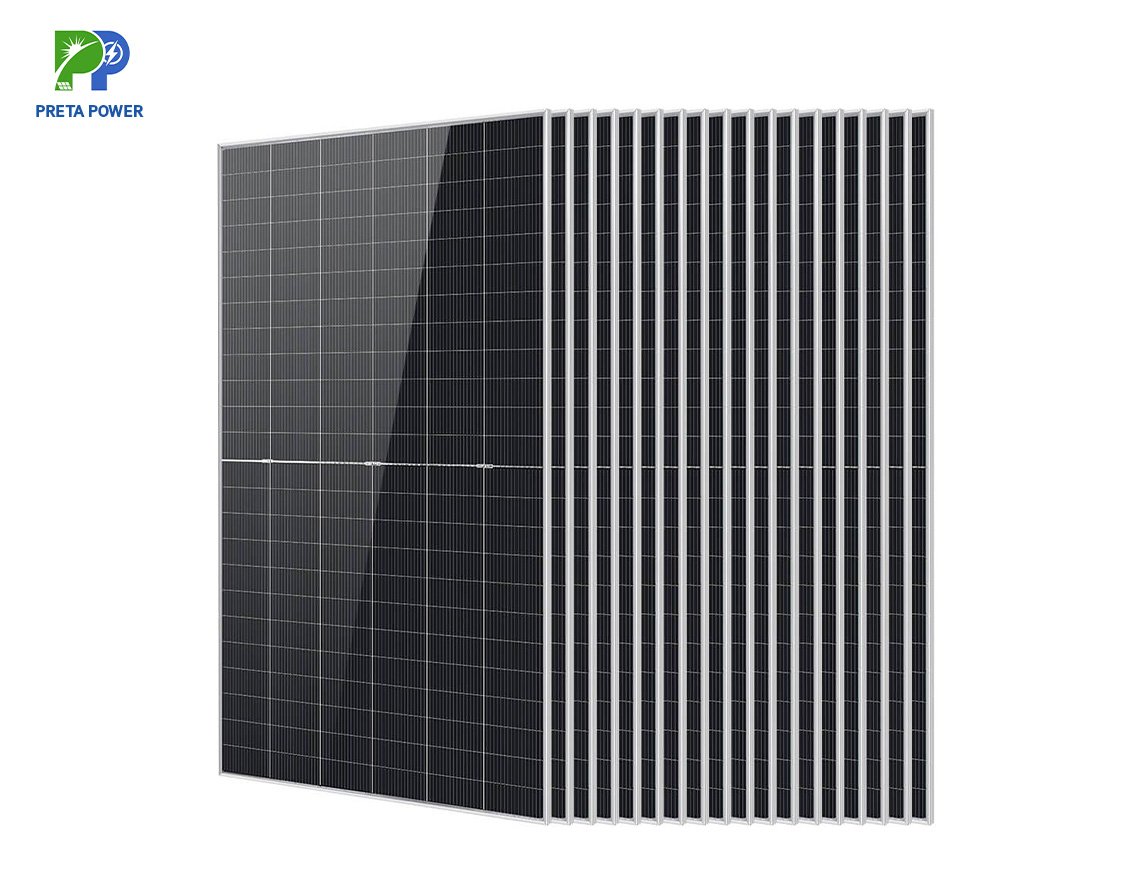

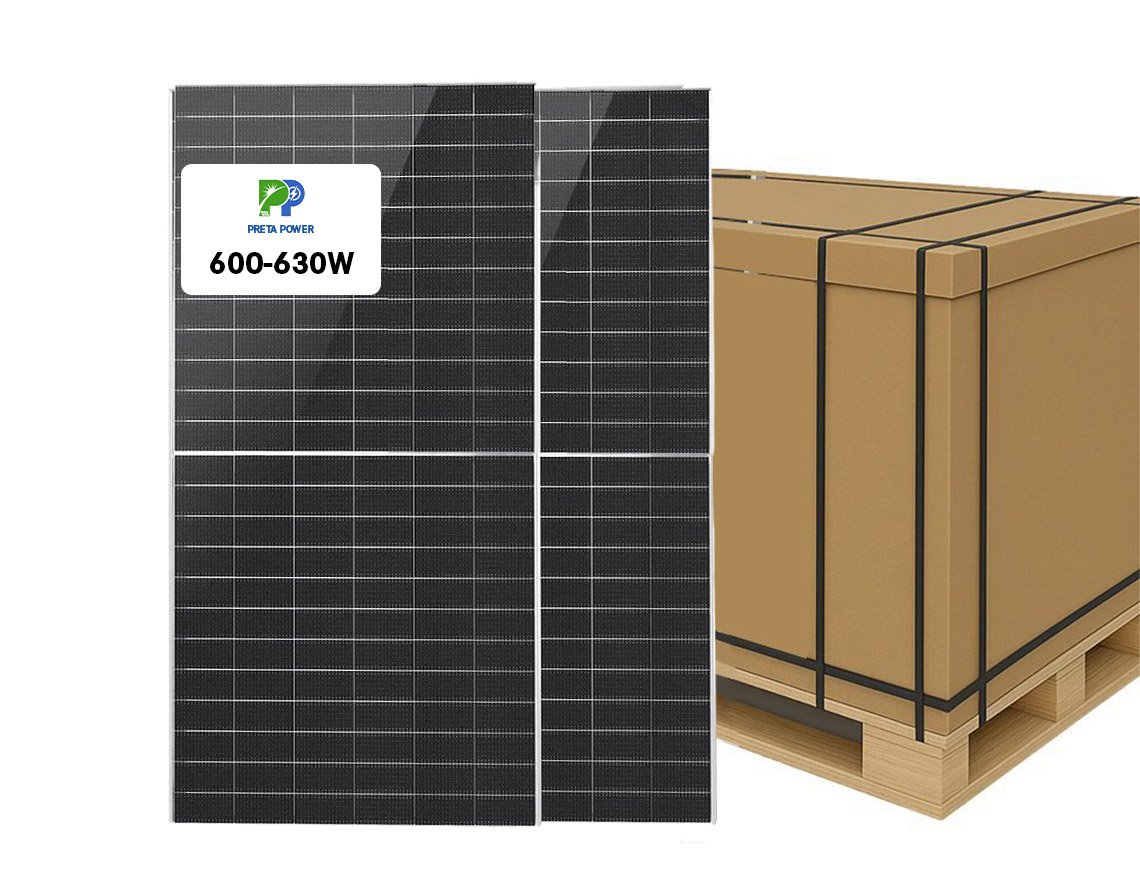

PP 600W 615W 620W 630W Solar Panels Monocrystalline
Cell Type: Monocrystalline N-type
Maximum Efficiency: 23.32%
Power range: 600-630 watt
Pallet Size: 36 pieces

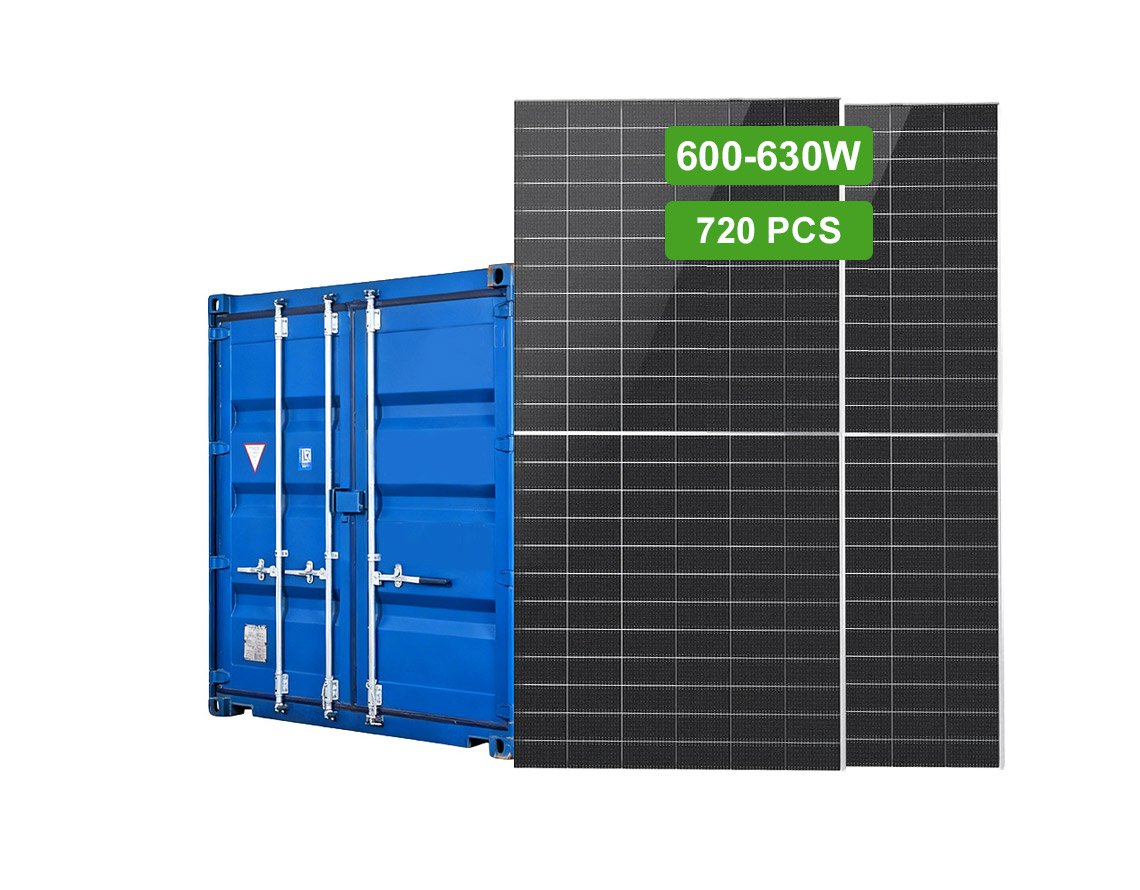

Container Size: 720 pieces
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 36 pieces
FOB: Shanghai
Support customization for frames, colors, glass thickness, and junction box brands.
PP 600-630W N-Type Solar Panels Datasheet

Description
These are PP N-type solar panels with a power range from 600W to 630W, and the max efficiency can reach 23.32%. Modules per pallet are 36 piece; modules per 40′ HQ container are 720 pieces. We are a solar panel manufacturer in China with over 8 years of experience; PP is our brand. We have large PP solar panels in stock for bulk wholesale, and we support OEM and ODM services for the solar panel frame and color, glass thickness, junction box brand, etc. Contact us for more detailed support.

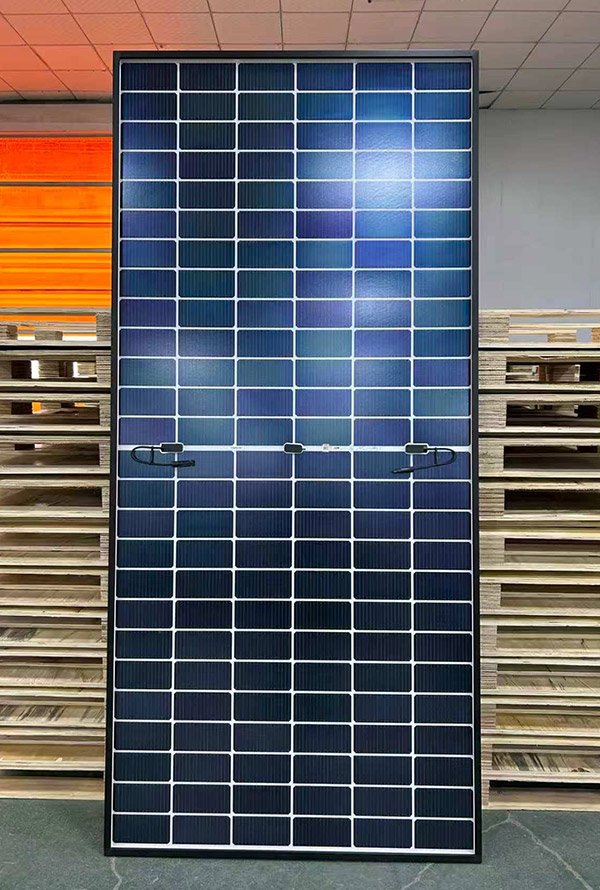

Customization Service
- Glass: Supports 3.2 mm, 2+2 mm, or customized low-iron tempered glass with anti-reflection coating for high light transmission.
- Solar Cell: Supports Tier 1 PERC, HJT, N-type, and TOPCon cells with 12BB design, delivering up to 10% more wattage than conventional cells.
- Frame: Supports 35 mm or 40 mm anodized aluminum alloy frames in black or silver to match your project requirements.
- Junction Box: Supports IP68-rated, fully glue-filled waterproof junction boxes with portrait or landscape cable exit options.
- Compatible MC4: Supports MC4, MC4 EVO2, and TS4 connectors with 500N tensile strength in female/male or fuse configurations.
- Label: Supports waterproof customized labels with your own logo in a professional silver finish for OEM orders.
Technical Data
- ELECTRICAL DATA
- MECHANICAL DATA
| Peak Power Watts-PMAX (Wp) | 600 | 605 | 610 | 615 | 620 | 625 | 630 |
| Power Output Tolerance-PMAX (W) | 0~+5 | ||||||
| Maximum Power Voltage-VMPP (V) | 40.09V | 40.34V | 40.59V | 40.84V | 41.09V | 41.37V | 41.64V |
| Maximum Power Current-IMPP (A) | 14.97A | 15.00A | 15.03A | 15.06A | 15.09A | 15.11A | 15.13A |
| Open Circuit Voltage-Voc (V) | 48.27V | 48.52V | 48.78V | 49.05V | 49.30V | 49.45V | 49.60V |
| Short-Circuit Current (ISC) (A) | 15.82A | 15.86A | 15.90A | 15.94A | 15.98A | 16.02A | 16.06A |
| Module Efficiency (%) | 22.21% | 22.40% | 22.58% | 22.77% | 22.95% | 23.14% | 23.32% |
| STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5 | |||||||
| Solar Cells | N-type Monocrystalline 182×210mm |
| Cell Orientation | 132 cells (6×22) |
| Module Dimensions | 2382×1134×30mm |
| Weight | 34kg |
| Glass | 2.0mm (0.08 inches), High Transmission, AR Coated Tempered Glass |
| Back glass | 2.0mm mesh glaze plating |
| Frame | Silver Anodized Aluminium Alloy |
| J-Box | IP 68 rated |
| Cables | (+):300mm, (-):300mm or Customized Length |
| Connector | MC4 or MC4 Compatible |

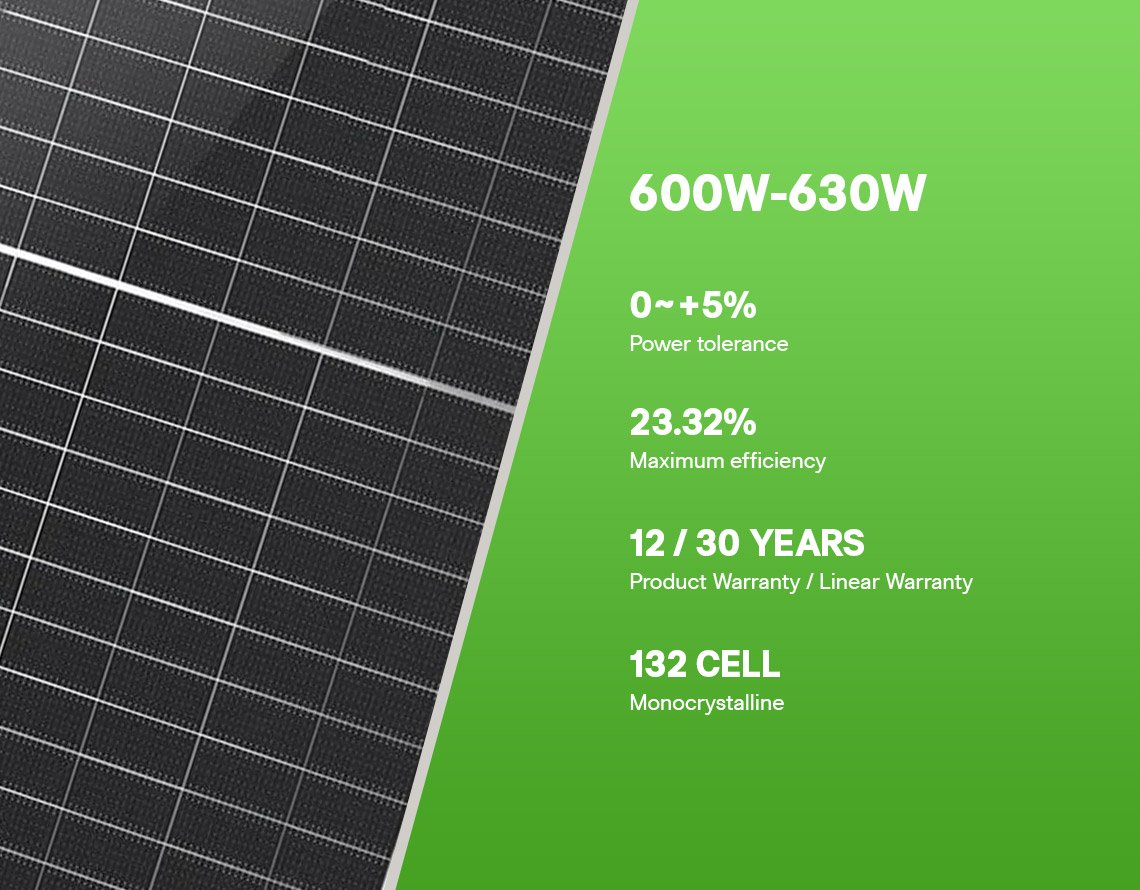

PP 600W-630W Solar Panels

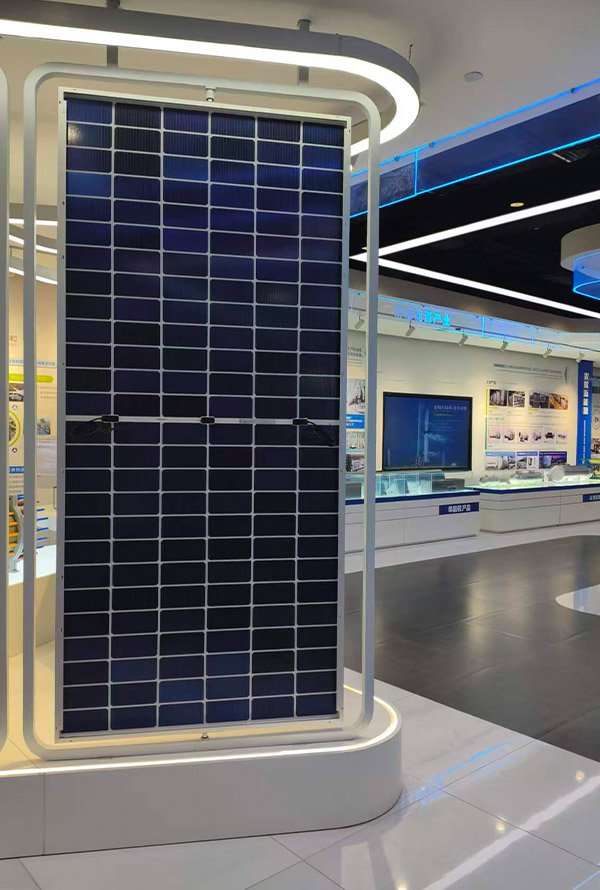

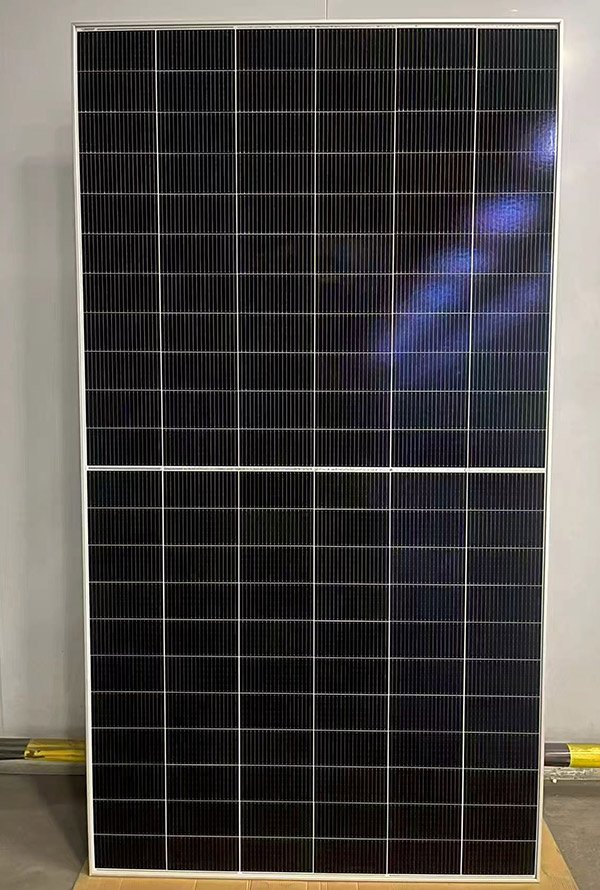

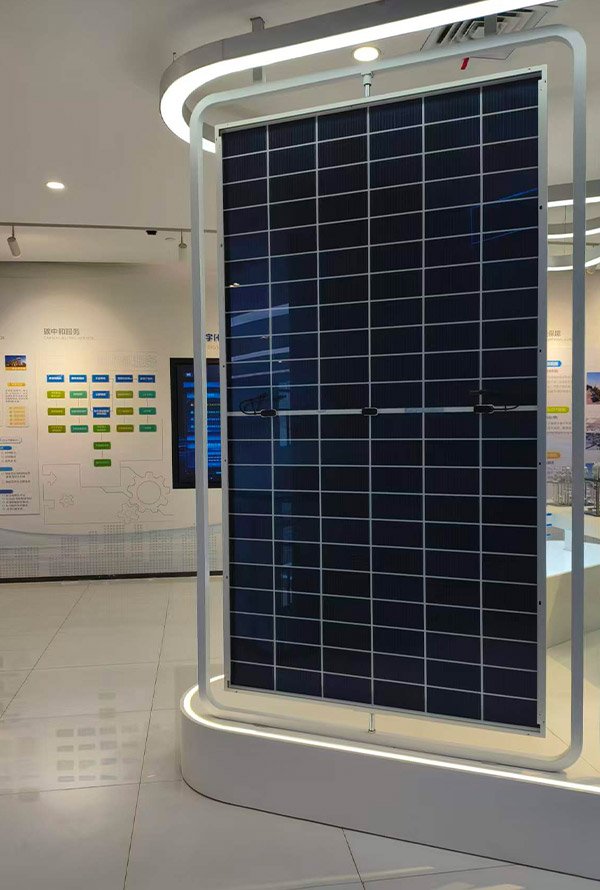

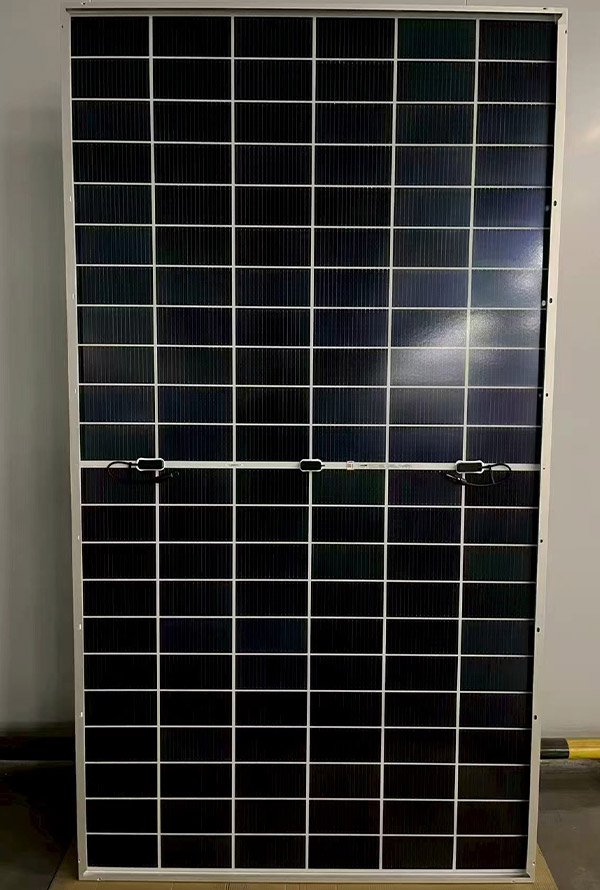

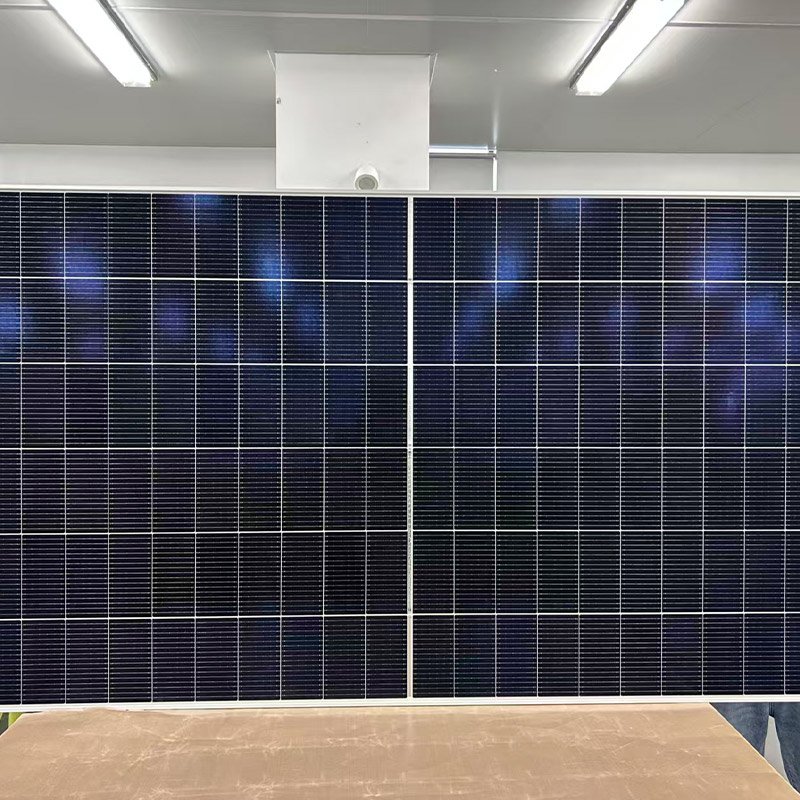

- Details View

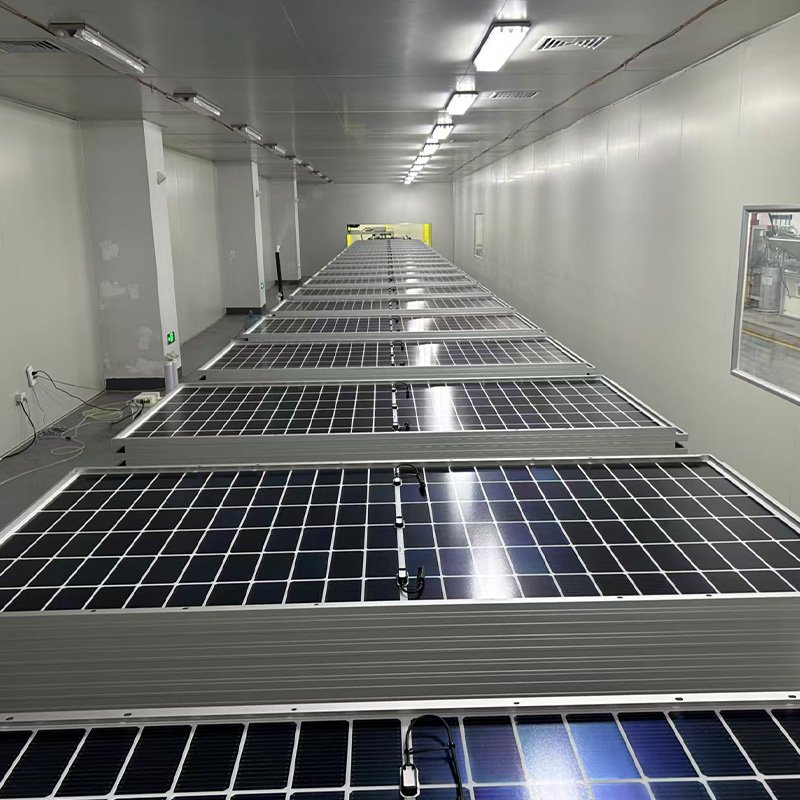

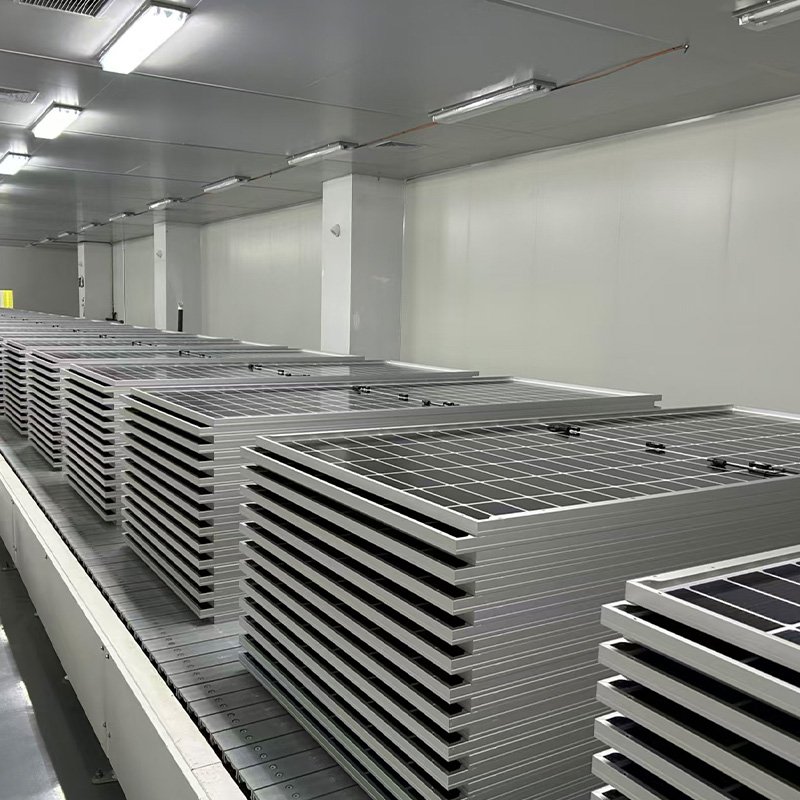

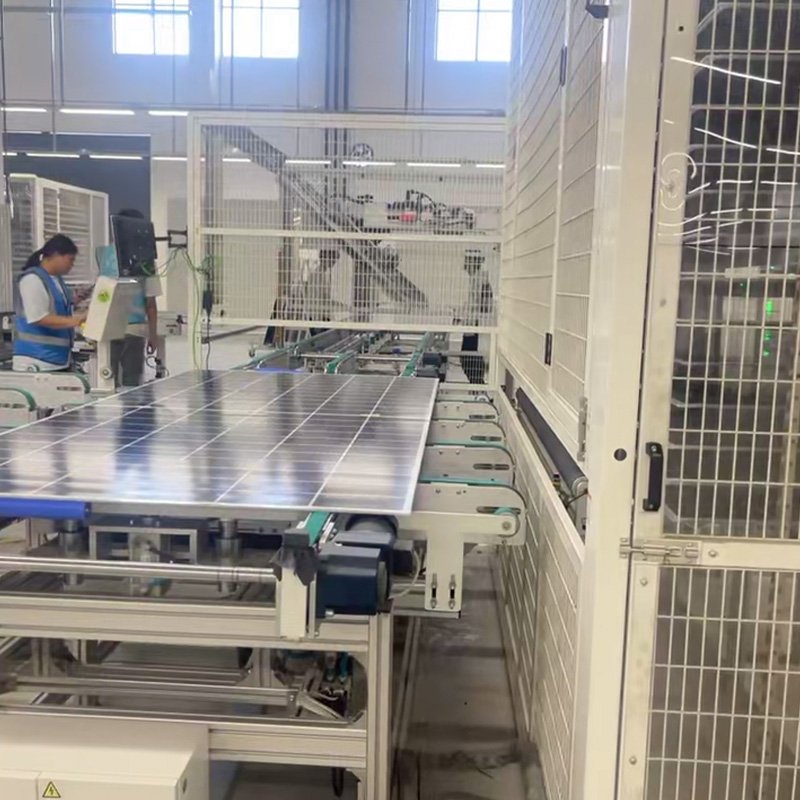

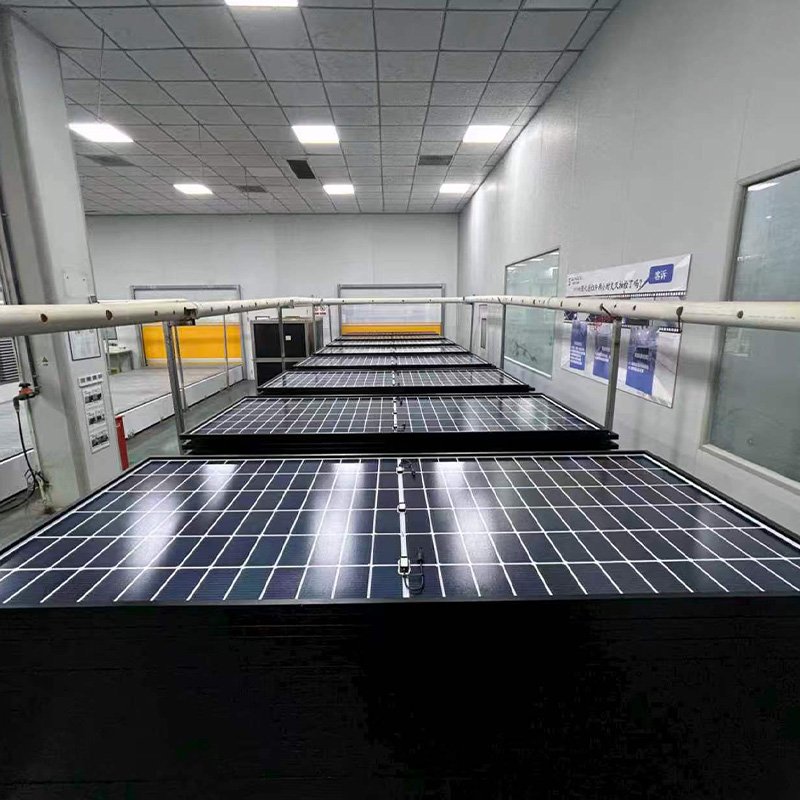

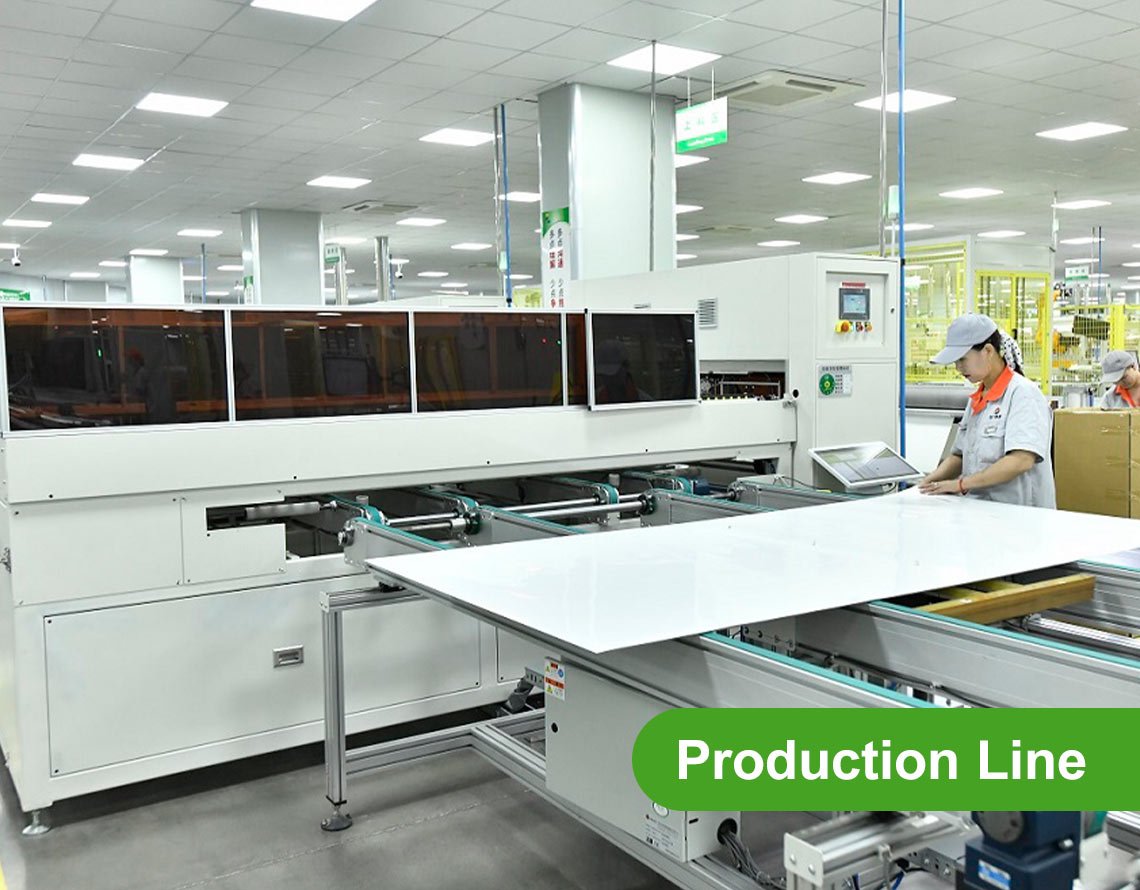

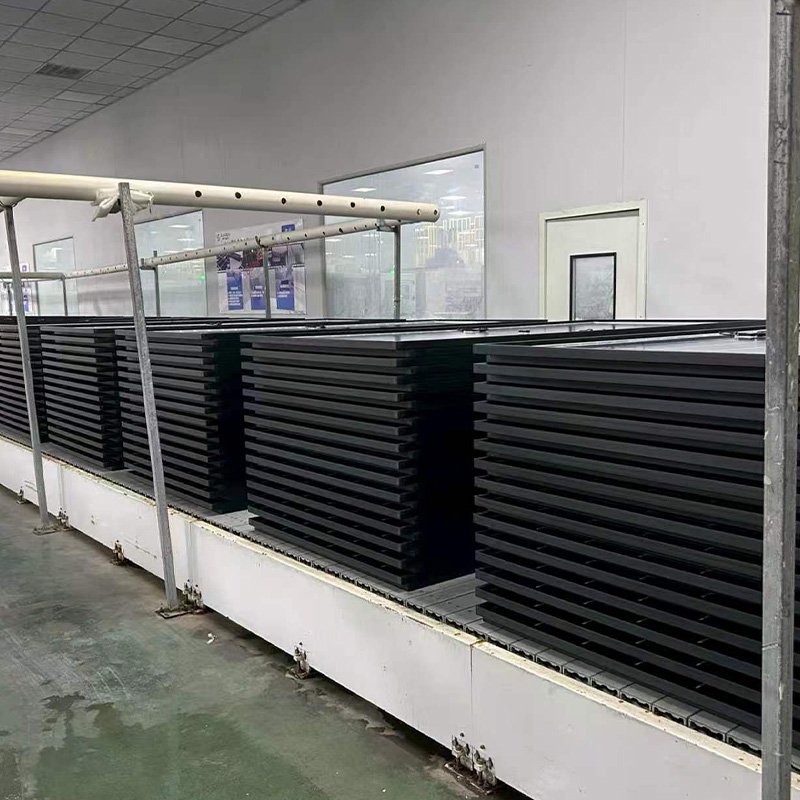

- Factory Show
