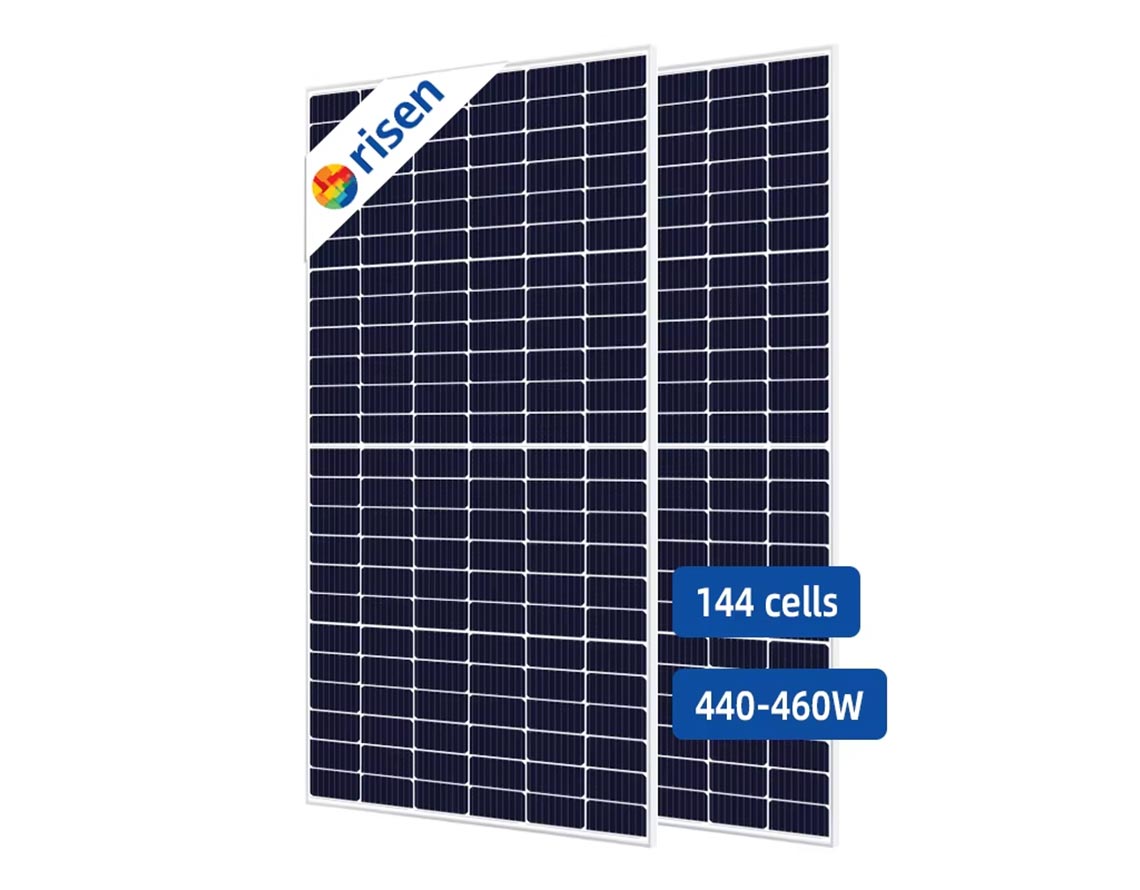

Risen Mono PERC Module 450W Solar Panels
Model: RSM144-7-440M-460M
Cell: Monocrystalline 166x83mm
Power Range:440-460W
Glass: single glass
Certification: CE, TUV
Lead Time:7-10 days
Warranty: 25 Years
MOQ: One pallet of 31 pieces
Risen RSM144-7-440M-460M PERC Solar PanelDescription
Risen 450W solar panels are Tier-1 mono PERC half-cell panels designed to deliver dependable kWh with simple, low-risk engineering. Anti-reflective tempered glass and good low-irradiance response keep production steady throughout the day; positive power binning and dual EL screening help reduce mismatch and hidden defects. A rugged anodized frame and potted IP68 junction box stand up to coastal, dusty, and high-wind sites, while the high-voltage system design drops BOS and integrates cleanly with mainstream inverters and racking. Long product and linear power warranties make it a bankable choice you can quote with confidence. Ready to move? Ask for a pallet quote today and lock in pricing for your next project.
- Specifications STC

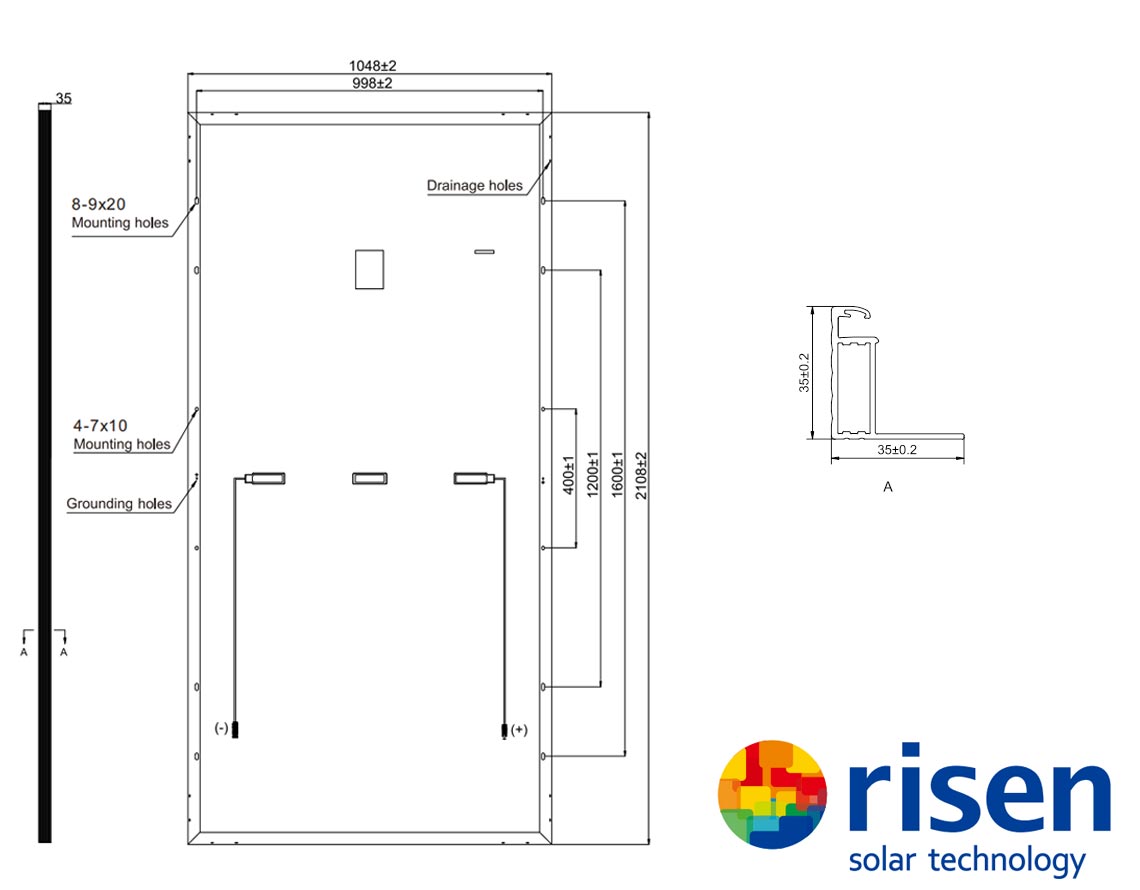

- Mechanical Data
| Parameter | RSM144-7-440M | RSM144-7-445M | RSM144-7-450M | RSM144-7-455M | RSM144-7-460M |
|---|---|---|---|---|---|
| Rated Power (Pmax) [Wp] | 440 | 445 | 450 | 455 | 460 |
| Open-Circuit Voltage (Voc) [V] | 49.50 | 49.60 | 49.70 | 49.80 | 49.90 |
| Short-Circuit Current (Isc) [A] | 11.30 | 11.40 | 11.50 | 11.60 | 11.70 |
| Maximum Power Voltage (Vmpp) [V] | 41.13 | 41.25 | 41.30 | 41.40 | 41.50 |
| Maximum Power Current (Impp) [A] | 10.70 | 10.80 | 10.90 | 11.00 | 11.10 |
| Module Efficiency [%] | 19.9 | 20.1 | 20.4 | 20.6 | 20.8 |
| Specification | Details |
|---|---|
| Solar cells | Monocrystalline 166 × 83 mm |
| Cell configuration | 144 cells (6×12 + 6×12) |
| Module dimensions | 2108 × 1048 × 35 mm |
| Weight | 24.5 kg |
| Superstrate | High-transmission, low-iron, tempered ARC glass |
| Substrate | White backsheet |
| Frame | Anodized aluminum alloy 6063-T5, silver |
| J-Box | Potted, IP68, 1500 VDC, 3 Schottky bypass diodes |
| Cables | 4.0 mm² (12 AWG); Positive +1200 mm, Negative −1200 mm (connector included) |
| Connector | Risen Twinsel PV-SY02, IP68 |
