Introduction
Many houses in urban areas are now moving towards clean energy, while solar panels on flat roofs have proved to be the most effective solutions for generating electricity. Flat-roofed structures are generally found in cities, and solar panels for residential use can be installed on these flat-roofed buildings. Flat roofs have the advantage of making the installation simple and easy, as they come with small obstructions and open space. It also has a lot of space to place the panels in any orientation. The flat roof solar panels can be installed at the right angle for maximum production without any kind of structural limitation. In this guide, we will let you know everything that you need to know about a solar system on the flat roof of an urban townhouse. The process of installation, the capacity of the panel stacking, and the common examples of residential solar achievement.
Why Urban Homes with Flat Roofs Are Perfect for Solar Panels
Urban house designs mostly feature flat roofs in modern times. This type of architecture is common in townhouses, row houses, and mixed-use buildings found on city streets. Flat roofs are perfect for solar integration, maintaining homeowners’ privacy and architectural aesthetic. Huge, unobstructed space makes it simple to lay out solar panels for these types of flat roofs. There aren’t any slopes or dormers; they are simply a large surface, making it one step easier to install solar panels. Sizing systems based on available square footage of the roof, rather than the roof angle.
Space is a constraint in basically all cities with vertical buildings. Roofs are highly valued real estate for energy production within the city limits. Besides having control over the tilt angles and orientation, solar panels on a flat roof can help an owner maximize solar gain, given an accurate geographic location and energy profile.
Flat roof solar installations are often supported by city codes and regulations, also known as “solar rights,” which an updated permitting standards and renewable energy incentives. Flat roofs also have lower shading obstacles, as typical urban buildings have a similar height, which would obstruct tall buildings from blocking sunlight.
A practical example was shown: a 3-story home in Chicago. The owner was able to put solar panels on a flat roof, installing a 10kW PV system with HBOWA Tier-1 panels and flat roof racking structure. Professional spacing and ballast mounting is used to maximize efficiency and stability without roof penetration.
Types of Mounting Systems for Flat Roofs
Choosing the correct flat roof solar panel installation system is very important for long-term protection, efficiency, and structural integrity. There are three primary flat roof solar panel mounting systems ruling the market, and each is suitable for different roof types, climates, and building conditions.

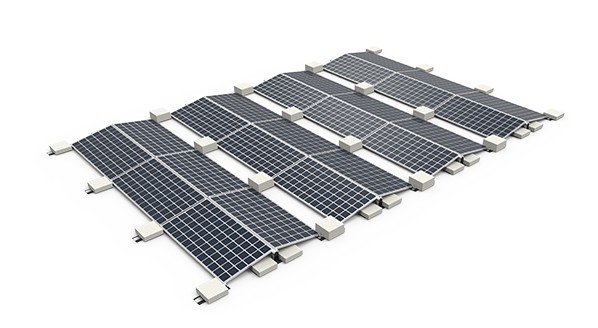

Ballasted Mounting Systems:
Flat roof solar panel installation systems of the ballasted mounting system type are entirely dependent on weight, such as concrete blocks, to keep the racking from moving. Ballasted Mounting systems are ideal for flat surfaces where you don’t want to penetrate the roof. They are easy and quick to install and so these types of mounts are ideal for new buildings with a reinforced roofing structure.
However, to make sure that the roof can handle the dead load, there is a need for additional structural analysis.

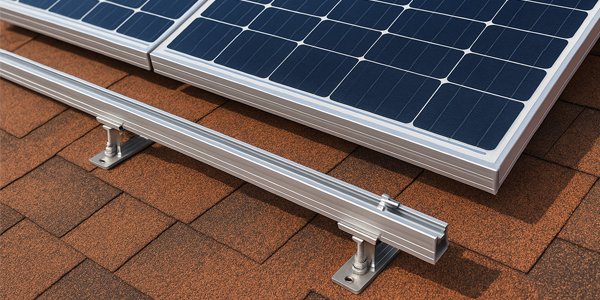

Penetrative Mounting Systems:
The ballasted mounting system type has a low need for penetrative Mounting. On the contrary, Solar panels installed using penetrative mounts are extremely wind-resistant. For an effective and efficient flat roof solar panel installation system, the penetrative mount solar panels are physically fixed into the roof structure. The Solar panel racking is anchored into the structure mechanically and then sealed using waterproof flashing materials. There is a need for the penetrative types of mounts to keep the solar panels safe where high-speed gusts are observed, usually in extreme weather.
Hybrid Ballasted and Penetrative Mounting Systems:
The hybrid flat roof solar panel mounts combine part ballast and part penetration for getting fixed onto a roof. This type of hybrid mount provides the flat roof solar panel with the required stability and reinforcement, and hence works well for flat roofs that are continuously exposed to different climate zones.

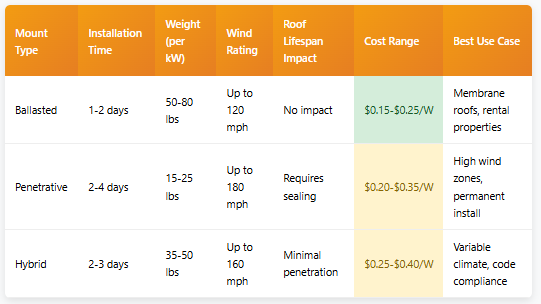

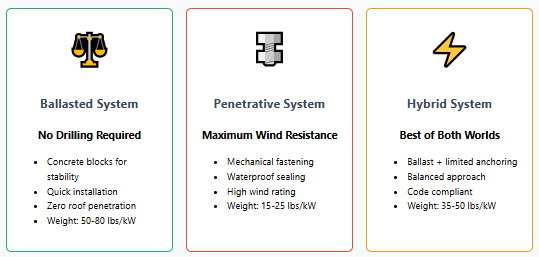

The following comparison shows the major differences:
HBOWA TIP: Always choose your solar racking flat roof system according to the wind zone classification locally, the roof’s age, and load-bearing capacity. The right solar mounts for flat roofs improve the performance and minimize long-term structural risk.
Mounting Solar Panels on Roof Without Drilling: Pros and Cons
When solar panels need to be installed on a flat roof, the condition and suitability of the roof are often taken into account. For some homeowners who are worried about the integrity of the roof, setting up solar panels without drilling mounting components to the roof is proposed. Doing so can be quite beneficial.
Commonly, with the installation of solar panels on a flat roof, a non-penetrative approach is used. The racks and panels require ballast, like concrete or cinder blocks, to keep them in position. Therefore, loads don’t need to be fastened to the rooftop development.
Firstly, this method is popular because it lessens or eliminates the odds of allowing leakage. It also prevents water concussions to causing the presentation of dilapidation of commercial and residential roofing. Likewise, this way is less complicated when applying for permits. Moreover, it cuts down the time required for setting up. Plus, regards can be maintained without disturbing the sealed up bits of the roofing.
However, one should consider that ballasting for solar panel flat roof installation isn’t the best for all conditions. When in a location that has a high exposure to the wind or if the roofing material is quite old, it may require to be reinforced. Also, the roof may need to be evaluated structurally.
For instance, a client of HBOWA who set up a 12kW photovoltaic exhibit on their 15-year-old home in Los Angeles using ballasted racking. The weighted variable of the racking passed inspection. The PV system was integrated without any holes drilled. For three summers in a row, the system has operated reliably, all without any maintenance requirements or showing of wind-induced deterioration.
How to Secure Solar Panels to Flat Roofs with Anchoring Systems
In areas that are more prone to high winds and severe conditions of weather conditions, anchoring of the solar panels is required for the long-term durability of the system. The important aspect of how to secure solar panels to a roof structure is to select the penetrative mounting system and use the proper materials that are resistant to weather.
Penetrative mounts include the use of fasteners to attach the intuitive solar racking to the structural elements beneath the roof membrane. The weather-sealed penetrative mounts must be installed properly; the weather-sealed mounts require the use of flashing, rubber gaskets, and specially designed sealants for their proper seals to prevent the entrance of moisture. The improper sealing of mounts or the mounts can lead to a build-up of molds or molds which degrade the roof over time. The fasteners, along with the mounts, can be affected by the weather conditions in which they are exposed; one such example is the case of EPDM of TPO membranes.
It is also necessary to comply with local building codes and check wind uplift calculations as well. There arises a requirement for calculation of wind for uplift in many regions of building codes, especially in conditions of the installation of solar panels above three stories or zones that are in or near coastal areas, especially.
For solar panel mounting on the roof, it is necessary for regular inspection. The technician should inspect and check the mounting points, whether the hardware is secured properly and correctly or not. The technician should also check for the wear of the sealants around them and their displacement from your roof.
Finding the Right Tilt Angle and Spacing Between PV Panels
The proper tilt angle and row space are essential to maximize pv panels on flat roof system. Unlike pitched roofs, flat roofs allow the angle to be set manually. So, the sun exposure can be adjusted. The amount of energy released by the sun depends on the set angle.
The standard tilt angle of the panel should be between 10 degrees and 30 degrees. It should depend on the latitude.
- Tilt
An improved energy generation will happen if the panel surface is perpendicular to the sun’s rays. The heavy rain may also help the panel to clean naturally. Therefore, the need for manual maintenance will be reduced.
- Space between the rows
If the rows’ panel is not appropriately spaced, then inter-row shading will occur when the sun is lower in the sky, like during winter. The panel’s height and angle must be considered while spacing them out. According to the general rule of spacing is height divided by tan(sun angle at winter solstice).
The solar panels can be installed in a flat manner without being tilted. However, the annual yield will decrease. According to the northern countries, the solar panel must be set at a 30o angle. Therefore, each row of the panel must be placed 1.5 times the panel’s height. People must also take care of the shading.

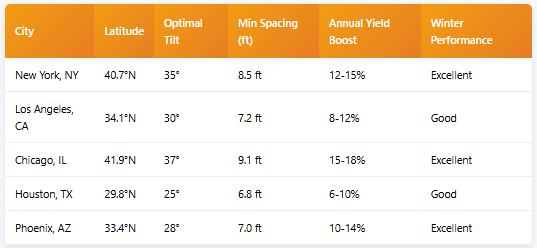

These are some tilt angles for major states of the US:
By correctly setting the angle and spacing off a flat roof solar installation, homeowners can enhance the performance, efficiency, and long-term value of their system greatly. Correctly designed flat roof solar has some of the highest output potential per square meter.
Weight Load & Roof Integrity: What to Check Before Installation
It is important to have a structural check before you place any solar panel on flat roof structure. As flat rooftops are needed to support not only the environmental solar panel systems, but also the stress of snow and pressure from wind. While laying the roof, you must calculate the loads. The load calculations need to consider the dead load of the solar array and mounts, and may need to allow for any live load from maintenance access for service of the panels or the snow build-up in wintertime.

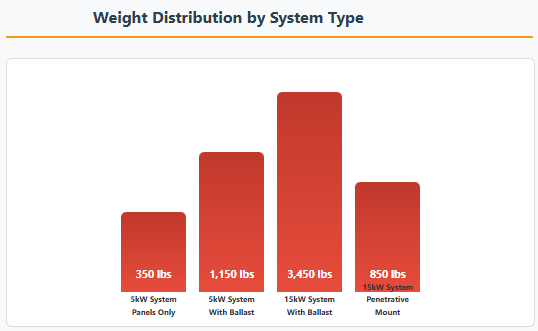

Typically, a 1 kW PV system would add 15–20 Kg/m2. For instance, a 6 kW system with ballast would add well over 500 Kg of static load to the roof. If your building is older or has multiple stories, the weight of the solar panel system must be assessed by a licensed structural engineer.
Solar panels on a flat roof installation using ballasted systems also need careful inspection. Since these systems are penetration-free, the dead loads to the roof are significant, and an engineering report should confirm that the unroof can carry this load over time.
HBOWA advises the clients to have structural evaluations carried out before any solar panel roof mount option is selected. This helps avoid permanent damage and ensures that flat roof solar panels can work safely and efficiently for years without any worry about the solar panel mounting structure.
Maintenance, Cleaning, and Safety
Flat roof solar panels do not have to be cleaned as much as traditional panels (changed). They come with an inclination to reduce the amount of effort one has to put into it. They have low solar panel installation costs since more panels can be installed on the surface. Plus, the panels may not have gaps for dust and debris.
We recommend this general maintenance schedule to our clients:
Flat roof solar panels’ brackets, points of support, and screw holes are known for leaking when they reach a state of disrepair. Wind is not an issue as these leaks (hardly) ever happen. Wind does cause the brackets to move slightly. Check for loose hardware once in a while.
As a Houston HBOWA commercial client discovered, just maintaining a quarterly inspection routine let them reduce three per cent cost per year.
Case Study: 15kW HBOWA Solar System on Flat Roof in NYC

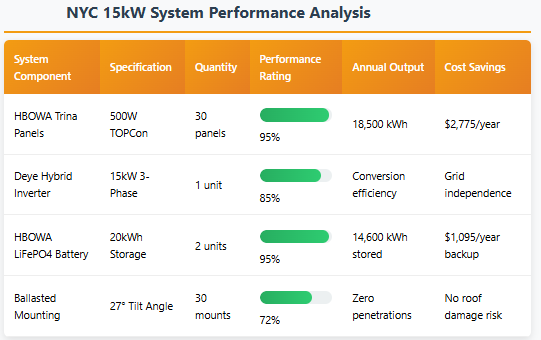

A Brooklyn, New York homeowner has recently installed a 15 kW solar on a flat roof system of HBOWA, using Trina panels of Tier-1 class and Deye hybrid inverter and HBOWA’s LiFePO4 battery bank for saving energy. The client was focused on going off the grid and used a ballasted mounting system planned at a 27-degree tilt with no roof penetrations required.
This particular case study demonstrates how solar panels can be mounted on structures with flat roofs with no harm to the roof followers. The action taken about wind loading assessed was to use concrete blocks of ballast (as per the NYC building codes and HBOWA’s engineering advisory). With the net metering and battery backup, the homeowner experienced a 30 per cent reduction in power bills from year one. The return on investment projected was achieved within 5.5 years.
The level of performance of the system, along with the zero damage to the walls of the roof type and decreased price in the power supply, makes it a perfect reference for an urban flat-roof solar system where drilling isn’t allowed.
Final Checklist Before You Install PV Panels on a Flat Roof
If you want to install PV Panels on your flat roof, there are a few things you should do. Here’s a final checklist for you before you begin.
Select the right mounting system (ballasted, penetrative, hybrid) depending on wind exposure and roof material type. Penetrative or ballasted systems are widely used for PV installations on flat roofs of modern commercial buildings. Based on the structural condition of the building and the load-carrying capacity of the roof, also calculate the required system size necessary according to the energy used.
Finally, you can have a look at the systems you have shortlisted and finalize the best one, considering all areas of the installation.
Prepare a final checklist and get the installation done!
Conclusion
Urban homes with flat rooftops are suitable for adopting solar panels in a flat roof installation. Selecting the most suitable mounting system and the exact spacing of c-frames is of utmost importance with regard to long-term efficiency and safety.
HBOWA offers tier-1 panels of brands such as Longi, Trina, Jinko, Canadian, Astronegy, and Tongwei, as well as discount solar panels, and used solar panels, hybrid inverters of brands such as Deye and Growatt, and a reliable various categories of LiFePO4 battery systems that can be used in residential, industrial, and commercial applications. HBOWA provides you with engineered solutions for your energy needs. For professional advice or free PV panels on a flat roof layout proposal, contact HBOWA now.
