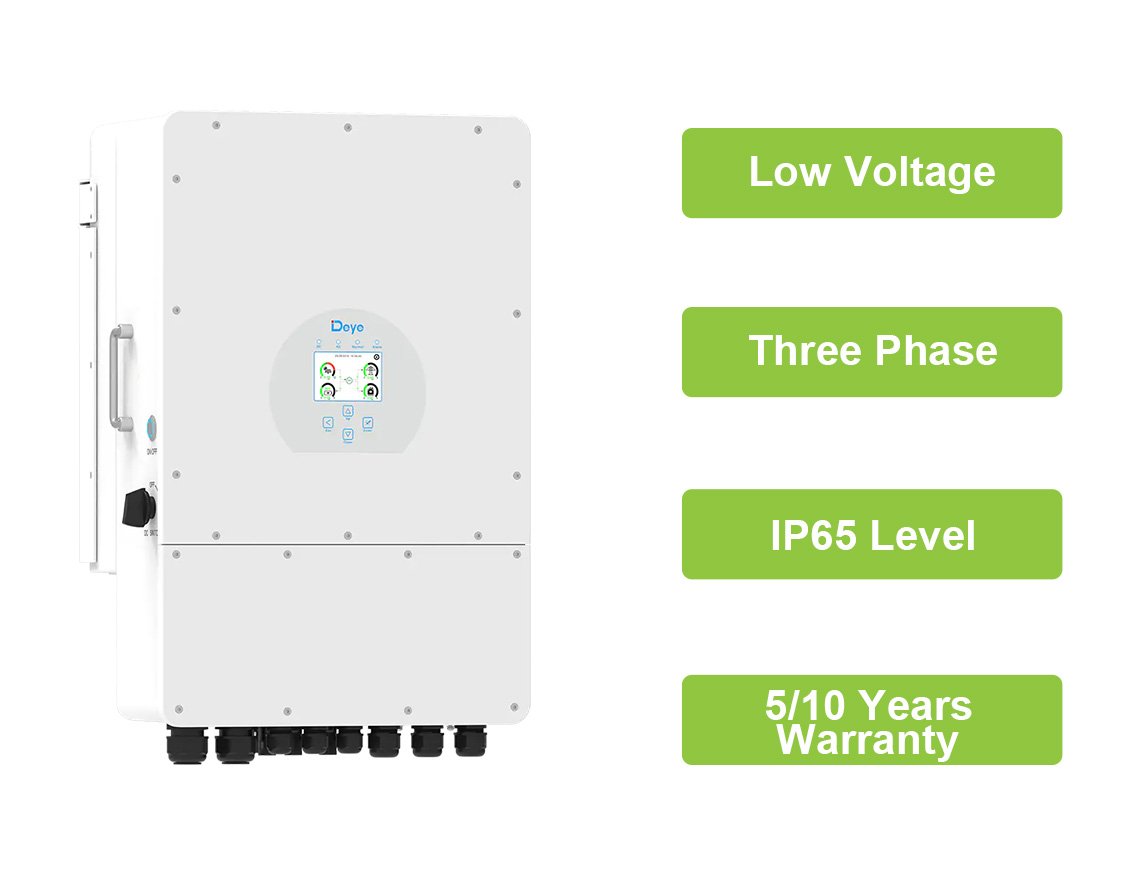

SUN-6K-SG04LP3-EU Deye Hybrid Inverter Three Phase LV
Model Number: 6KW SUN-6K-SG04LP3-EU
Colorful touch screen IP65 rate;
Battery Voltage Range: 40-60V
Three phase low voltage hybrid inverter;
Max. output up to 50% rated power;
Max. 10 pcs parallel for solar power systems;
Weight: 38kg
Warranty: 5 years (10 years optional)
Inverter DatasheetDescription
This is Deye 6KW low voltage three phase hybrid solar inverter, which is high efficient, fast discharging and charging rate, it can connect to the diesel generator and store the energy for backup needs. SUN-6K-SG04LP3-EU series supports a maximum of 10 sets in parallel to expand the system power, you can add more energy storage batteries in the energy system of flexibility for larger energy requirements.
Main Features of SUN-6K-SG04LP3-EU series:
- High Charging and Discharging Efficiency;
- Diesel Generator Connection Available;
- Support Connection with 48V lead acid and lithium batteries;
- Numerous Safety Protections for High Performance;
- Operating temperature Range: -40 to 60°C;
- Permissible Ambient Humidity: 0 -100%;
- Ingress Protection(IP) Rating: IP65, Noise levels below 66 dB;
- Safety/EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN 62109-2;
- Interfaces: CAN, RS485, and RS232 ensure seamless integration.
- Communication Ports include GPRS, WIFI, Bluetooth, 4G, and LAN(optional).
Technical Data
- SUN-6K-SG04LP3-EU Inverter Deye
| Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
| Battery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range(V) | 40-60 | ||||
| Max.Charging Current(A) | 120 | 150 | 190 | 210 | 240 |
| Max.Discharging Current(A) | 120 | 150 | 190 | 210 | 240 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
| Number of battery input | 1 | ||||
| PV String Input Data | |||||
| Max. PV Access Power (W) | 10000 | 12000 | 16000 | 20000 | 24000 |
| Max PV Input Power（W） | 7500 | 9000 | 12000 | 15000 | 18000 |
| MaxPV Input Voltage（V） | 800 | ||||
| Start-up Voltage（V） | 160 | ||||
| MPPT Voltage Range（V） | 200-650 | ||||
| Rated PV Input Voltage(V) | 550 | ||||
| Max. Operating PV Input Current (A) | 13+13 | 26+13 | |||
| Max. Input Short-Circuit Current (A) | 17+17 | 34+17 | |||
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+1 | |||
| AC Input/Output Data | |||||
| Rated AC Input/Output Active Power（W） | 5000 | 6000 | 8000 | 10000 | 12000 |
| Max AC Input/Output Apparent Power （VA） | 5500 | 6600 | 8800 | 11000 | 13200 |
| Peak Power (off-grid)（W） | 2 times of rated power, 10s | ||||
| Rated AC Input/Output Current（A） | 7.6/7.2 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 |
| Max AC Input/Output Current（A） | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 |
| Max Continuous AC Passthrough (grid to load)（A） | 45 | ||||
| Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un | ||||
| Grid Connection Form | 3L+N+PE | ||||
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max Efficiency | 97.60% | ||||
| Euro Efficiency | 97.00% | ||||
| MPPT Efficiency | ＞99% | ||||
| Equipment Protection | |||||
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, | ||||
| AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, | |||||
| Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), | |||||
| Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, | |||||
| DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level | |||||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||
| Interface | |||||
| Communication Interface | RS485/RS232/CAN | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||||
| General Data | |||||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 2000m | ||||
| Noise | ≤ 55 dB(A) | ||||
| Ingress Protection(IP) Rating | IP 65 | ||||
| Inverter Topology | Non-Isolated | ||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||||
| Cabinet size（W*H*D）[mm] | 422×658×254（Excluding connectors and brackets） | ||||
| Weight[kg] | 38 | ||||
| Warranty | 5 Years/10 Years | ||||
| the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||
| Type Of Cooling | Intelligent air cooling | ||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, | ||||
| OVE-Richtlinie R25, G98,G99, VDE-AR-N 4105 | |||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
Hybrid Inverters Details
On Off Grid

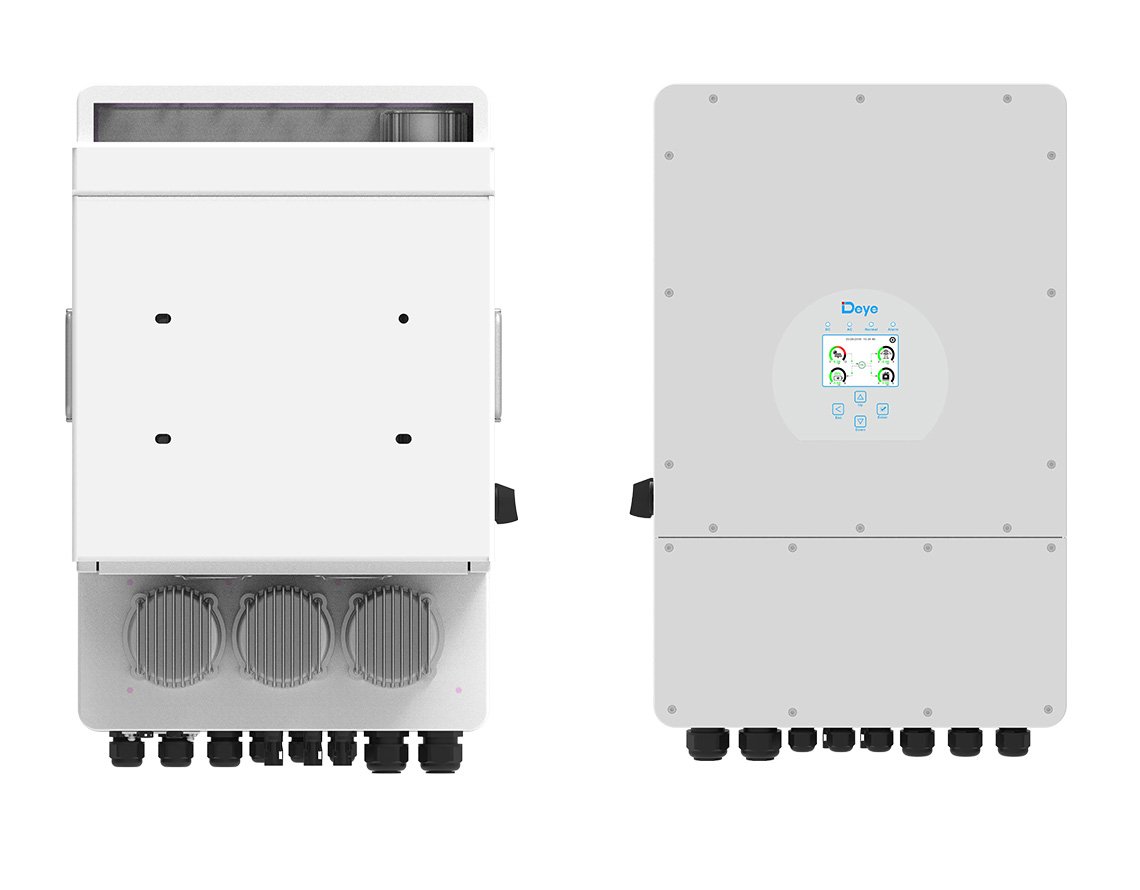

SUN-6K-SG04LP3-EU Inverter
- Three phase low voltage hybrid inverter;
- Max. output up to 50% rated power;
- Max efficiency up to 97.6%;
- AC couple to retrofifit existing solar system;
- Max. 10 pcs parallel for solar power systems;
- Support multiple batteries parallel connection;
- Max. charging/discharging current of 150A;
- Support storing energy from diesel generators;
- 48V low voltage battery, transformer isolation design;
- 6 time periods for battery charging/discharging.
