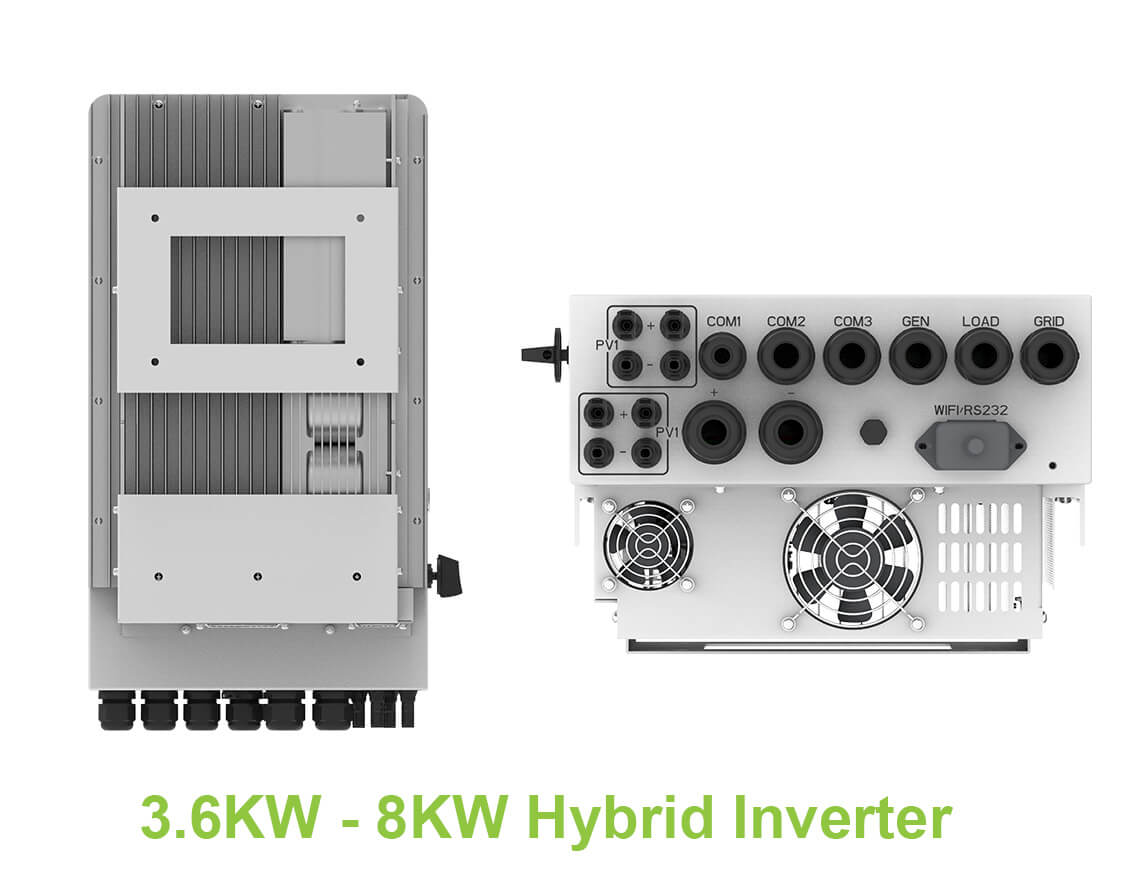

Deye SUN-6K-SG05LP1-EU Hybrid Inverter Single Phase
Model Number: 6KWDeye SUN-6K-SG05LP1-EU
Output Voltage: 220/230V, 50/60Hz
Max Efficiency: 97.6%
Colorful LCD Touch Screen
Protection Degree: IP65
Warranty: 5 years (10 years optional)
Place of Origin: China
Inverter DatasheetDescription
The hybrid inverter 6kw Deye SUN-6K-SG05LP1-EU is the hybrid single-phase low voltage type that is suitable for hybrid solar systems for European countries. It supports converting the DC generated from the solar panels to AC to supply load, and it also supports selling electricity to the utility grid. You can remotely control the hybrid inverter of the hybrid solar system with the intelligent APP installed on the phone. The ingress protection is IP65, can withstand all kinds of harsh weather, and you can install the hybrid inverter outdoors. We have comprehensive aftersales services, providing you with sun-6k-sg05lp1-eu manuals, and installation videos to make it easy for the use of the sun-6k-sg05lp1-eu inverter.
Technical Data
- Battery Input Date
- PV String Input Date
- AC Input/Output Date
- General Data
| Model | SUN-3.6K-SG05LP1-EU | SUN-5K-SG05LP1-EU | SUN-6K-SG05LP1-EU | SUN-7K-SG05LP1-EU | SUN-7.6K-SG05LP1-EU | SUN-8K-SG05LP1-EU |
| Battery Input Data | ||||||
| Battery Type | Lead-acid or Lithium-ion | |||||
| Battery Voltage Range(V) | 40-60 | |||||
| Max.Charging Current(A) | 90 | 120 | 135 | 175 | 190 | 190 |
| Max.Discharging Current(A) | 90 | 120 | 135 | 175 | 190 | 190 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||
| Number of battery input | 1 | |||||
| Model | SUN-3.6K-SG05LP1-EU | SUN-5K-SG05LP1-EU | SUN-6K-SG05LP1-EU | SUN-7K-SG05LP1-EU | SUN-7.6K-SG05LP1-EU | SUN-8K-SG05LP1-EU |
| PV String Input Data | ||||||
| Max. PV Access Power (W) | 7200 | 10000 | 12000 | 14000 | 15200 | 16000 |
| Max PV Input Power（W） | 4680 | 6500 | 7800 | 10000 | 9880 | 10400 |
| Max PV Input Voltage（V） | 500 | |||||
| Start-up Voltage（V） | 125 | |||||
| MPPT Voltage Range（V） | 150-425 | |||||
| Rated PV Input Voltage(V) | 370 | |||||
| Max Input Short-Circuit Current（A） | 17+17 | 34+34 | 34+34 | |||
| Max Operating PV Input Current（A） | 13+13 | 26+26 | 26+26 | |||
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+2 | 2/2+2 | |||
| Model | SUN-3.6K-SG05LP1-EU | SUN-5K-SG05LP1-EU | SUN-6K-SG05LP1-EU | SUN-7K-SG05LP1-EU | SUN-7.6K-SG05LP1-EU | SUN-8K-SG05LP1-EU |
| AC Input/Output Data | ||||||
| Rated AC Input/Output Active Power（W） | 3600 | 5000 | 6000 | 7000 | 7600 | 8000 |
| Max AC Input/Output Apparent Power （VA） | 3960 | 5500 | 6600 | 7700 | 8360 | 8800 |
| Peak Power (off-grid)（W） | 2 times of rated power,10s | |||||
| Rated AC Input/Output Current（A） | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 | 31.9/30.5 | 34.5/33 | 36.4/34.8 |
| Max AC Input/Output Current（A） | 18/17.2 | 25/23.9 | 30/28.7 | 35.0/33.5 | 38/36.3 | 40/38.3 |
| Max Continuous AC Passthrough (grid to load)（A） | 35 | 40 | 50 | |||
| Rated Input/Output Voltage/Range(V) | 220V/230 0.85Un-1.1Un | |||||
| Grid Connection Form | L+N+PE | |||||
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | |||||
| Power Factor Adjustment Range | 0.8 leading-0.8lagging | |||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||||
| DC Injection Current | <0.5%ln | |||||
| Model | SUN-3.6K-SG05LP1-EU | SUN-5K-SG05LP1-EU | SUN-6K-SG05LP1-EU | SUN-7K-SG05LP1-EU | SUN-7.6K-SG05LP1-EU | SUN-8K-SG05LP1-EU |
| General Data | ||||||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | |||||
| Permissible Ambient Humidity | 0~100% | |||||
| Permissible Altitude | 2000m | |||||
| Noise | ＜30 dB(A) | |||||
| Ingress Protection(IP) Rating | IP 65 | |||||
| Inverter Topology | Non-Isolated | |||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | |||||
| Cabinet size（W*H*D）[mm] | 330×580×232 (Excluding Connectors and Brackets) | |||||
| Weight[kg] | 24.9 | |||||
| Warranty | 5 Years/10 Years | |||||
| the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||||||
| Type Of Cooling | Intelligent air cooling | |||||
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105 | |||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||
Hybrid Inverters Details
Deye Hybrid Inverter Features
- Colorful touch LCD, IP65 protection degree
- AC couple to retrofit existing solar system
- Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
- Max. charging/discharging current of 190A
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator
