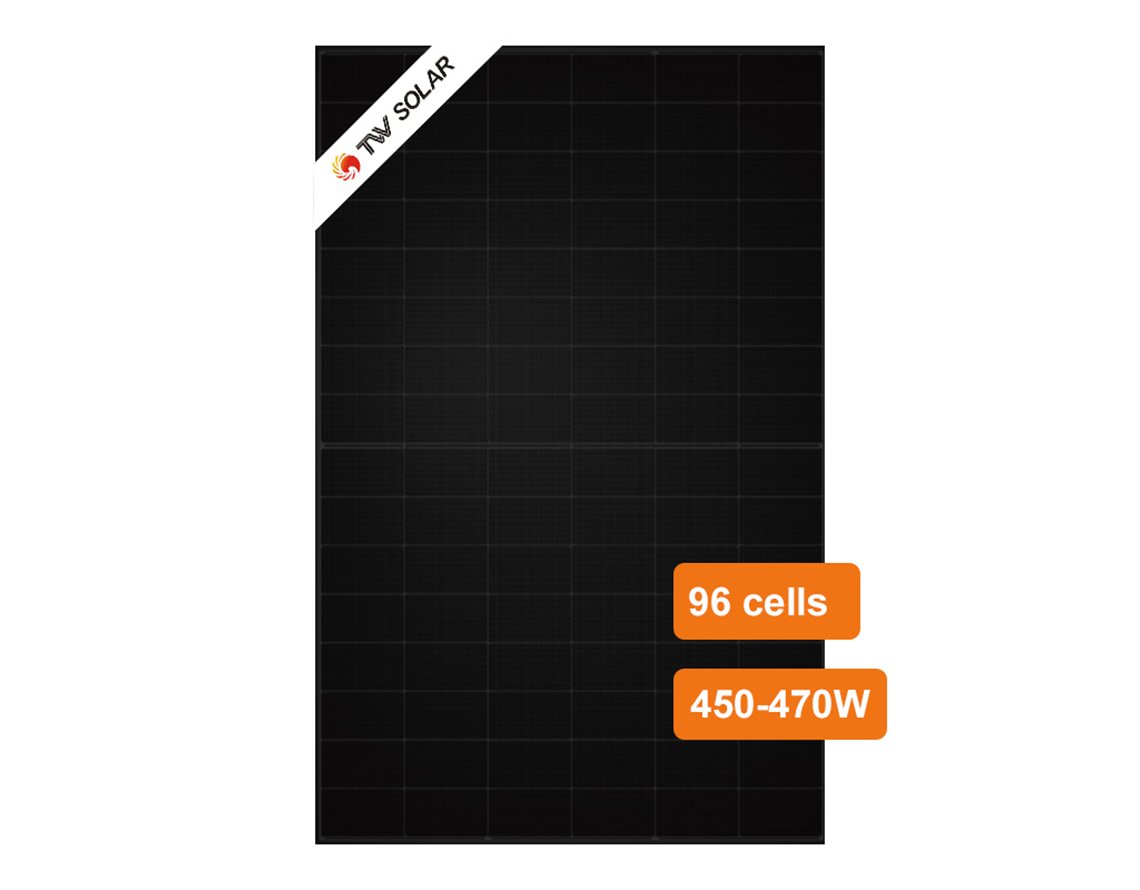

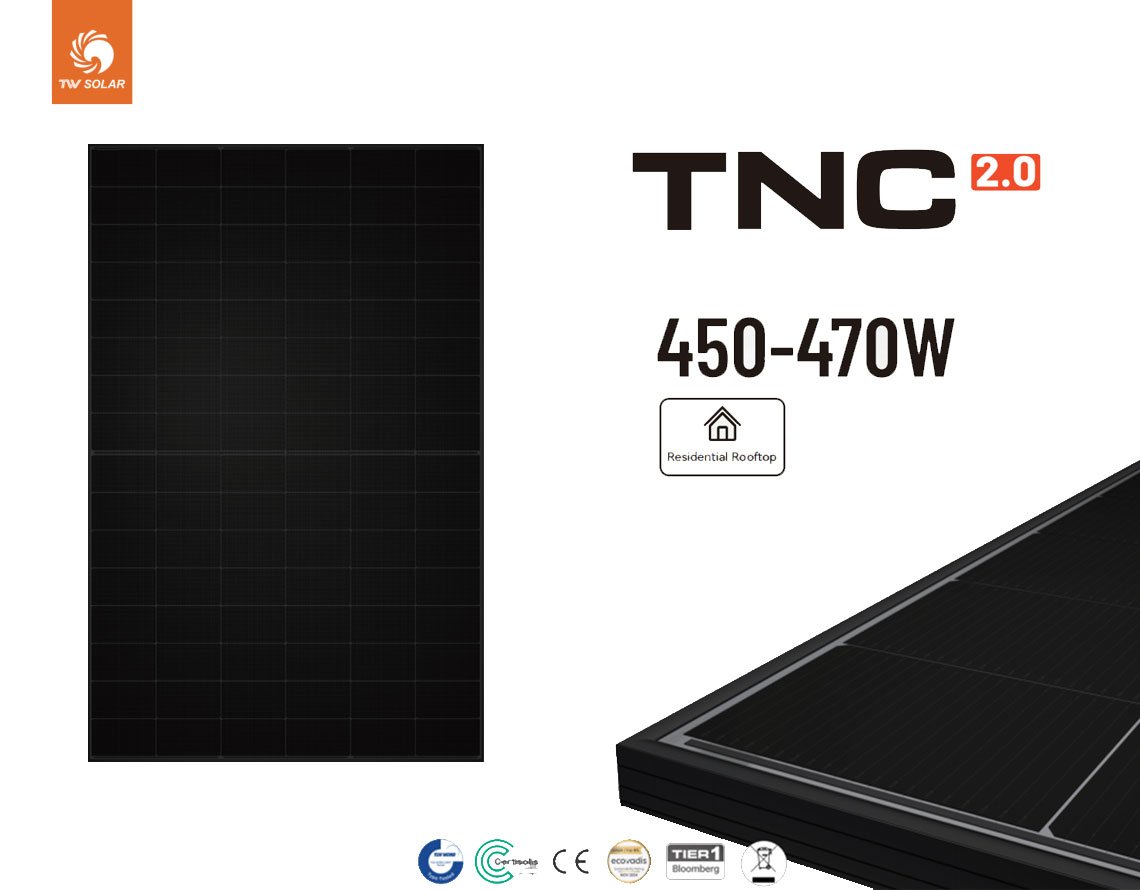

Tongwei Full Black Solar Panels 450W-470W
Model: TWMNH-48HEXXX
Cell: N-Type TNC
Power Range:450W-470W
Glass: dual glass
Certification: CE, TUV
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 36 pieces
Tongwei TWMNH-48HEXXX Solar Panels 450-470WDescription
Tongwei’s 450–470W solar modules combine high output with a compact, easy-to-handle format (1762×1134×30 mm; 23.7 kg). The N-type, half-cell monofacial dual-glass construction with a black aluminum frame delivers 22.5–23.5% efficiency. For tough sites, you get a 1500 V system rating, IP68 junction box, positive power tolerance, and robust static loads of 6,000 Pa front / 4,000 Pa rear with proven hail resistance. Operating range is −40 °C to +85 °C, max series fuse 30 A, and packaging is logistics-friendly at 36 pcs per pallet (936 pcs per 40’HC). We support flexible project starts—the minimum order quantity is one pallet.
- Specifications STC
- Mechanical Data
| Parameter | 450 | 455 | 460 | 465 | 470 |
|---|---|---|---|---|---|
| Maximum Power (Pmax) [W] | 450 | 455 | 460 | 465 | 470 |
| Open-Circuit Voltage (Voc) [V] | 35.95 | 36.10 | 36.25 | 36.40 | 36.55 |
| Short-Circuit Current (Isc) [A] | 15.81 | 15.85 | 15.89 | 15.92 | 15.95 |
| Voltage at Maximum Power (Vmp) [V] | 29.81 | 30.06 | 30.31 | 30.56 | 30.80 |
| Current at Maximum Power (Imp) [A] | 15.10 | 15.14 | 15.18 | 15.22 | 15.26 |
| Module Efficiency (η) [%] | 22.5 | 22.8 | 23.0 | 23.3 | 23.5 |
| Specification | Details |
|---|---|
| Cell Type | TNC |
| Cell Orientation | 96 (6×16) |
| Dimensions | 1762 ± 2 × 1134 ± 2 × 30 mm |
| Weight | 23.7 kg |
| Front Glass | 2.0 mm AR-coated semi-tempered glass |
| Rear Glass | 2.0 mm semi-tempered glass |
| Frame | Anodized aluminum alloy, black |
| Junction Box | IP68, 3 diodes |
| Cable | 4.0 mm² |
| Cable Length | ±1,200 mm; length customizable |
| Maximum Static Test Load | 6,000 Pa (front) / 4,000 Pa (rear) |
| Packaging (per pallet) | 36 pcs |
| Packaging (per 40′ HC) | 936 pcs |
