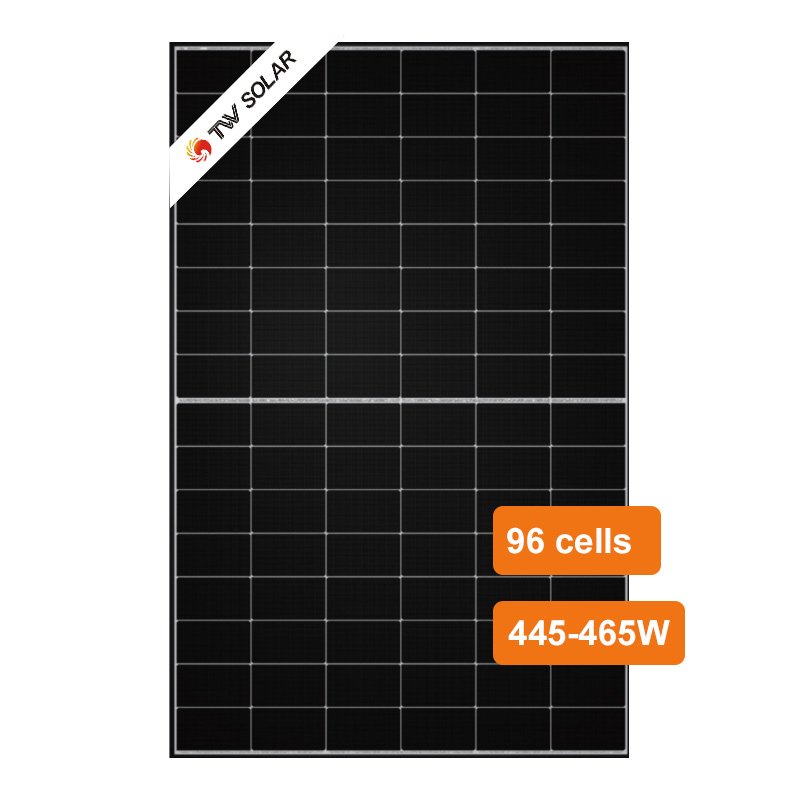

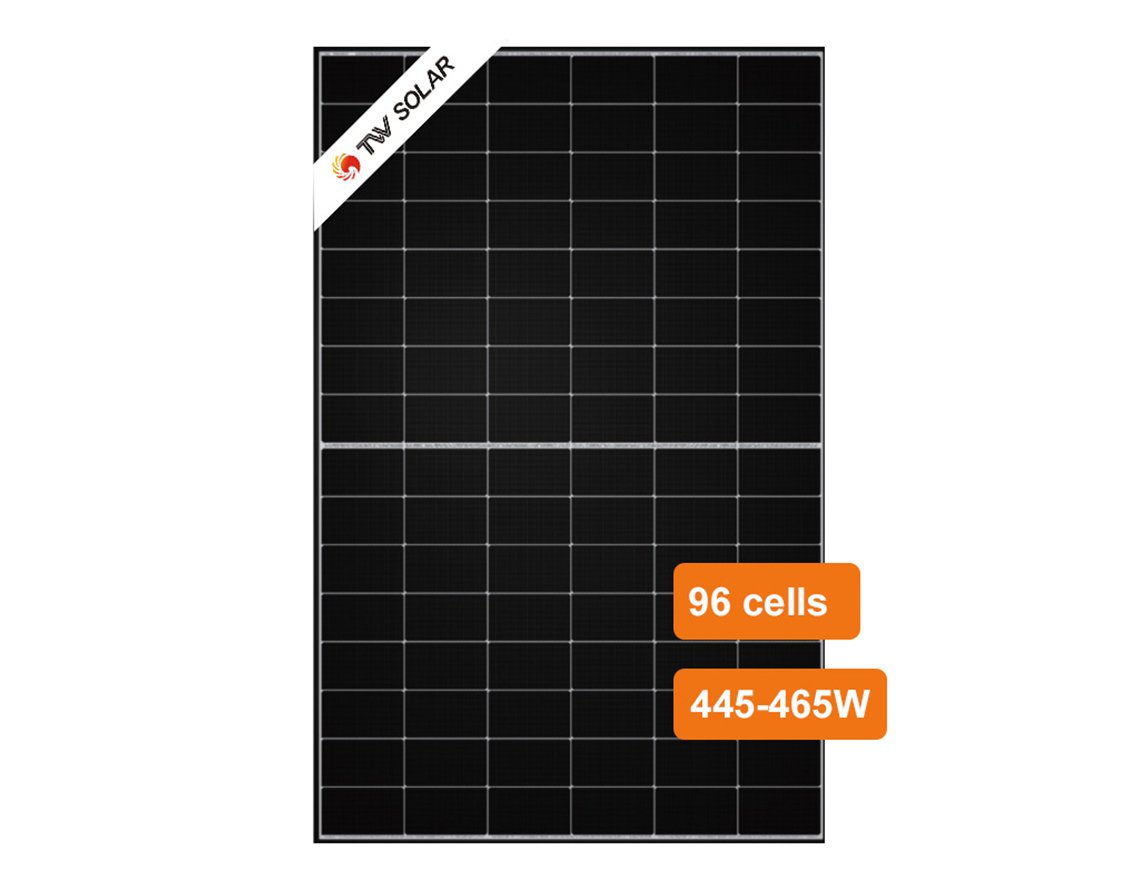

Tongwei Solar Panels N-Type Bifacial Dual Glass Black Module
Model: TWMNH-48HD
Cell: N-Type TNC
Power Range:445W-465W
Glass: dual glass
Certification: CE, TUV
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 36 pieces
Tongwei TWMNH-48HDXXX Solar Panels 445-465WDescription
Tongwei solar panels 445W–465W (TWMNH-48HD) are N-type, half-cell, bifacial dual-glass modules with a black frame and transparent back—compact, and well-suited to carports, balconies, and space-constrained C&I rooftops. They deliver 22.3–23.3% module efficiency with a 0~+3% power tolerance; operate from −40 °C to +85 °C; support 1500 V systems; use IP68 junction boxes; and withstand 5,400 Pa front / 2,400 Pa rear loads. You also get a 15-year product warranty and a 30-year linear power warranty. MOQ: one pallet. HBOWA have large Tongwei solar panels in stock, feel free to contact us anytime if you have any need.
- Specifications STC

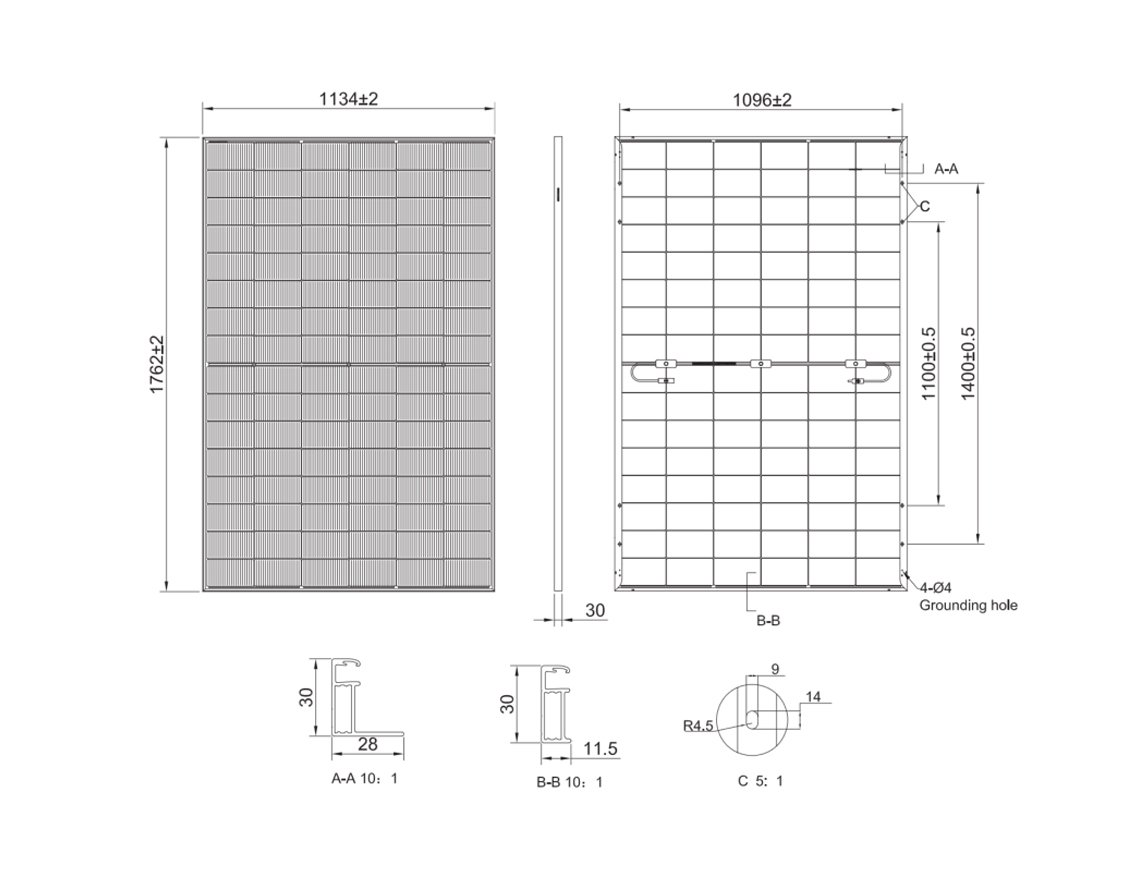

- Mechanical Data
| Parameter | 445 | 450 | 455 | 460 | 465 |
|---|---|---|---|---|---|
| Maximum Power (Pmax) [W] | 445 | 450 | 455 | 460 | 465 |
| Open-Circuit Voltage (Voc) [V] | 35.55 | 35.75 | 35.95 | 36.15 | 36.35 |
| Short-Circuit Current (Isc) [A] | 15.92 | 15.95 | 15.98 | 16.05 | 16.12 |
| Voltage at Maximum Power (Vmp) [V] | 29.93 | 30.19 | 30.44 | 30.69 | 30.94 |
| Current at Maximum Power (Imp) [A] | 14.87 | 14.91 | 14.95 | 14.99 | 15.03 |
| Module Efficiency (η) [%] | 22.3 | 22.5 | 22.8 | 23.0 | 23.3 |
| Specification | Details |
|---|---|
| Cell Type | TNC |
| Cell Orientation | 96 (6×16) |
| Dimensions | 1762 ± 2 × 1134 ± 2 × 30 mm |
| Weight | 23.7 kg |
| Front Glass | 2.0 mm AR-coated semi-tempered glass |
| Rear Glass | 2.0 mm semi-tempered glass |
| Frame | Anodized aluminum alloy, black |
| Junction Box | IP68, 3 diodes |
| Cable | 4.0 mm² |
| Cable Length | ±1,200 mm; customizable |
| Maximum Static Test Load | 5,400 Pa (front) / 2,400 Pa (rear) |
| Packaging (per pallet) | 36 pcs |
| Packaging (per 40′ HC) | 936 pcs |
