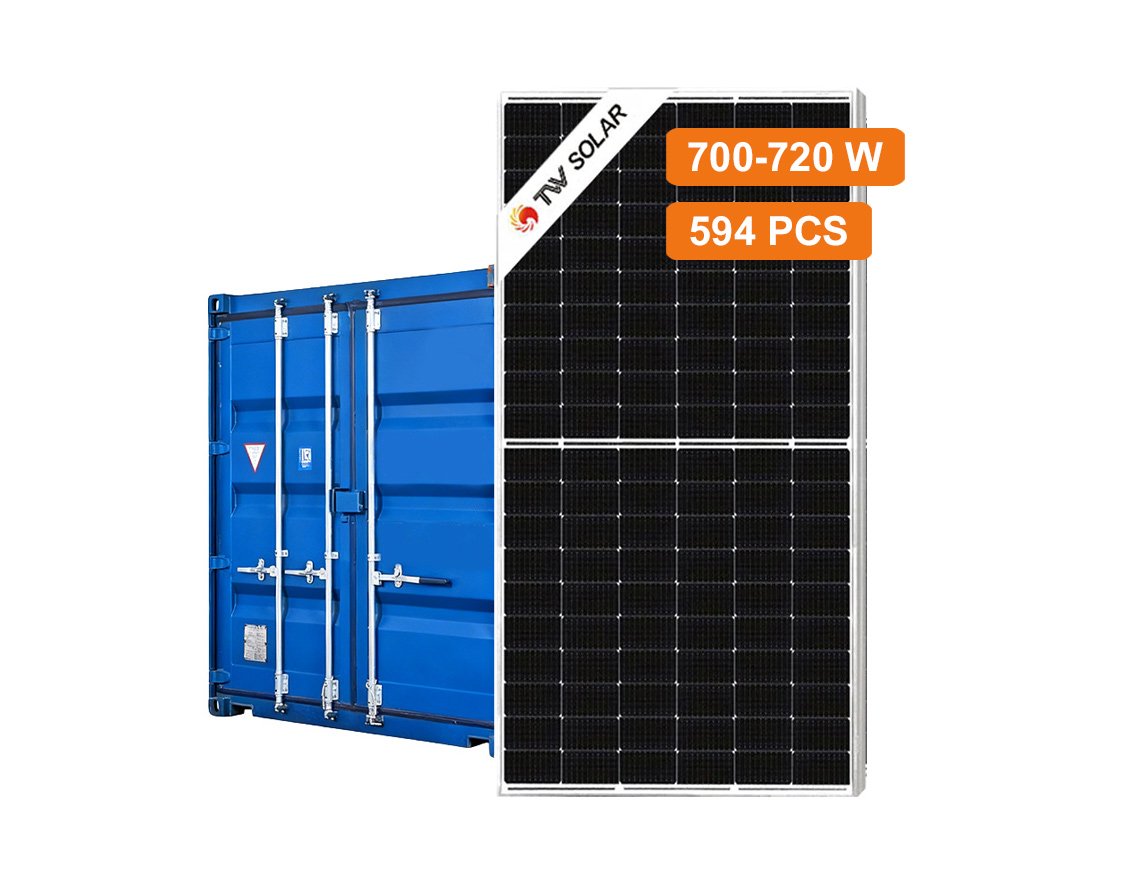

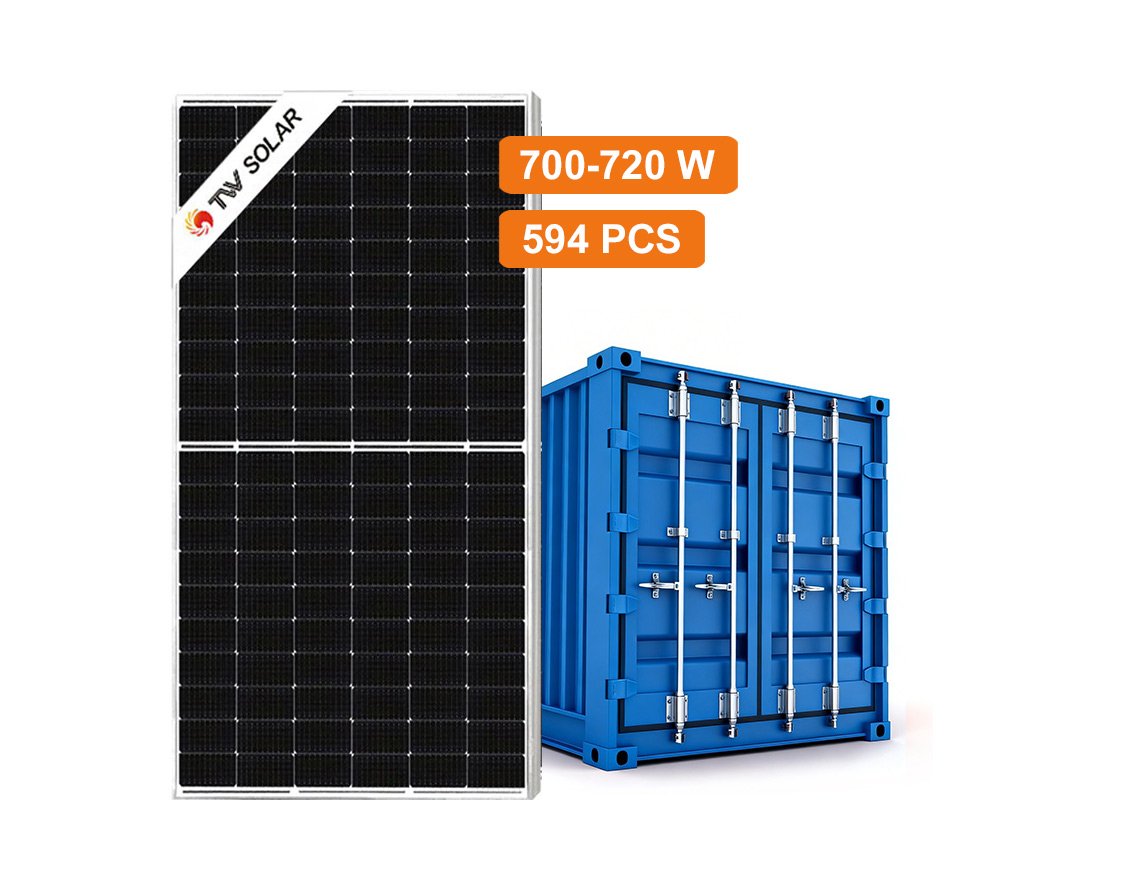

Tongwei Solar Panels 700W-720W Per Container 594 PCS
Model: TWMNF-66HD700-720W
Cell: TNC N Type
Power Range:700-720W
Glass: dual glass
Certification: CE, TUV
Warranty: 30 Years
MOQ: One container of 594 pcs
Tongwei 700-720W Solar Panels by ContainerDescription
Tongwei solar panels 700W-720W are high-power N-type, half-cell bifacial modules; per container are 594 pcs. A durable dual-glass build with an IP68 junction box is designed for harsh and salty environments. The 700W-720W TW solar modules support high-voltage strings, offer positive power sorting, so utility and C&I teams can install faster.
Planning a bulk purchase? We will lock in the price and get them ready for you.
- Specifications STC
- Mechanical Data
| Parameter | 700 W | 705 W | 710 W | 715 W | 720 W |
|---|---|---|---|---|---|
| Maximum Power (Pmax) [W] | 700 | 705 | 710 | 715 | 720 |
| Open Circuit Voltage (Voc) [V] | 48.60 | 48.77 | 48.94 | 49.11 | 49.28 |
| Short Circuit Current (Isc) [A] | 18.35 | 18.40 | 18.45 | 18.50 | 18.55 |
| Voltage at Maximum Power (Vmp) [V] | 40.35 | 40.52 | 40.69 | 40.86 | 41.03 |
| Current at Maximum Power (Imp) [A] | 17.35 | 17.40 | 17.45 | 17.50 | 17.55 |
| Module Efficiency η [%] | 22.5 | 22.7 | 22.9 | 23.0 | 23.2 |
| Item | Specification |
|---|---|
| Cells | TNC (N-type Monocrystalline Cell) |
| Cell Orientation | 132 (6 × 22) |
| Dimensions | 2384 ± 2 × 1303 ± 2 × 33 mm |
| Weight | 37.9 kg |
| Front Glass | 2.0 mm AR-coated heat-strengthened glass |
| Rear Glass | 2.0 mm heat-strengthened glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68, 3 diodes |
| Output Cable | 4.0 mm² |
| Cable Length | +400 mm, −200 mm or ±1400 mm (customizable) |
| Wind/Snow Load | 2400 Pa / 5400 Pa |
| Packaging | 33 pcs/pallet; 594 pcs per 40′ HC |
