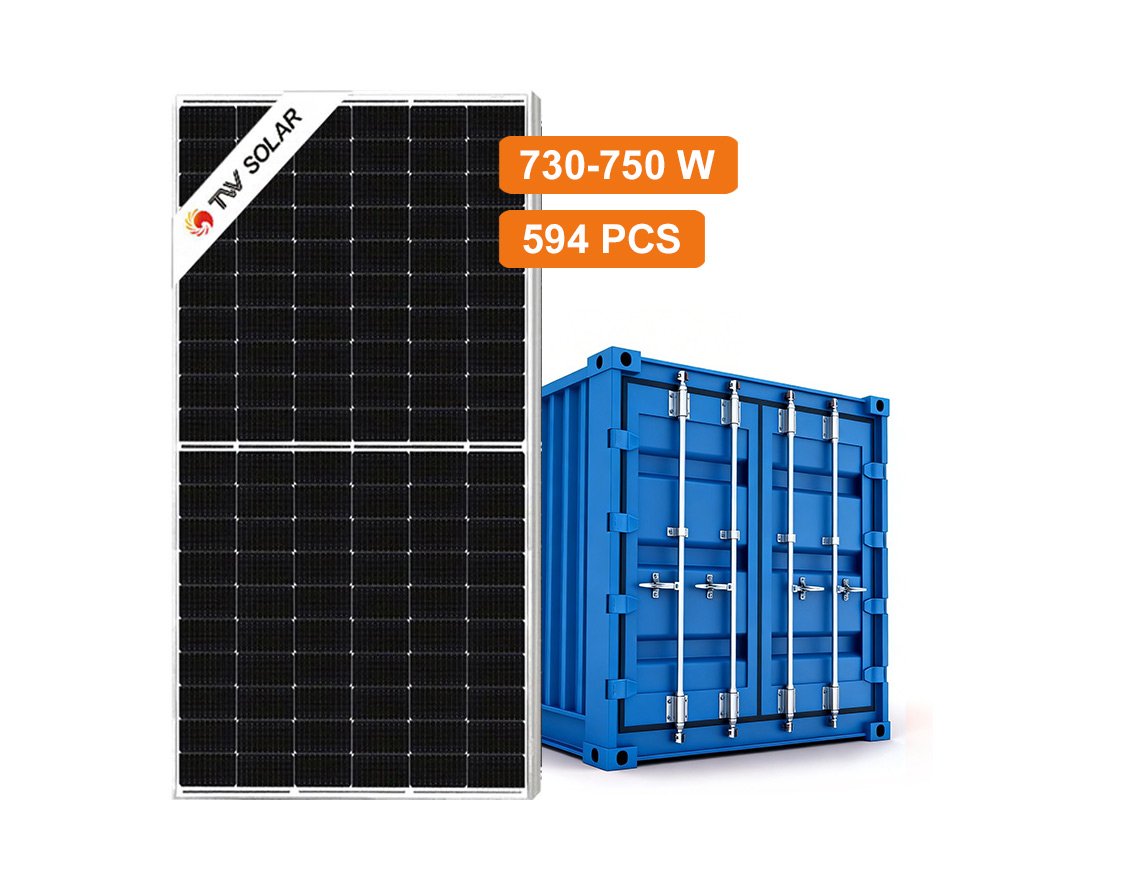

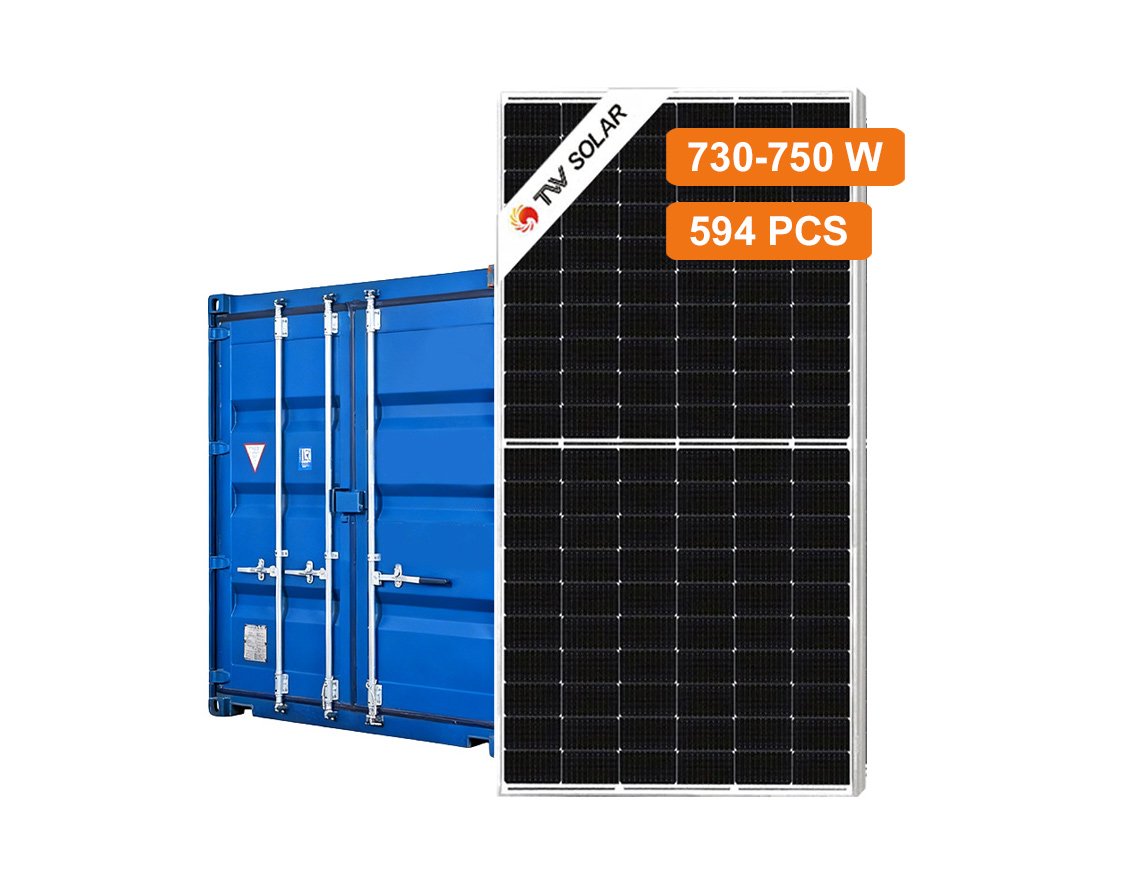

Tongwei Solar Panels 730W-750W Per Container 594 PCS
Model: TWMNF-66HD
Cell: TNC
Power Range:730-750W
Glass: dual glass
Certification: CE, TUV
Warranty: 30 Years
MOQ: One container of 594 pcs
Tongwei Solar Panels 730-750W by ContainerDescription
The N-type half-cell solar panels with bifacial dual-glass turns more light into energy and stays stable in heat and partial shade. Long material(12 years) and linear power warranties(30 years) are offered. These tongwei solar panels 730W-750W per container are 594 pcs that are suitable for C&I rooftops to utility ground mounts.
If you are sourcing solar panels in bulk, feel free to contact us directly.
- Specifications STC
- Mechanical Data
| Parameter | 730 | 735 | 740 | 745 | 750 |
|---|---|---|---|---|---|
| Maximum Power (Pmax) [W] | 730 | 735 | 740 | 745 | 750 |
| Open-Circuit Voltage (Voc) [V] | 49.55 | 49.65 | 49.80 | 49.95 | 50.10 |
| Short-Circuit Current (Isc) [A] | 18.68 | 18.75 | 18.81 | 18.87 | 18.93 |
| Voltage at Maximum Power (Vmp) [V] | 41.37 | 41.53 | 41.69 | 41.86 | 42.02 |
| Current at Maximum Power (Imp) [A] | 17.65 | 17.70 | 17.75 | 17.80 | 17.85 |
| Module Efficiency (η) [%] | 23.5 | 23.7 | 23.8 | 24.0 | 24.1 |
| Specification | Details |
|---|---|
| Cell Type | TNC |
| Cell Orientation | 132 (6×22) |
| Dimensions | 2384 ± 2 × 1303 ± 2 × 33 mm |
| Weight | 37.3 kg |
| Front Glass | 2.0 mm AR-coated semi-tempered glass |
| Rear Glass | 2.0 mm semi-tempered glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68, 3 diodes |
| Cable | 4.0 mm² |
| Cable Length | +400 mm / −200 mm or ±1,400 mm; length customizable |
| Maximum Static Test Load | 5,400 Pa (front) / 2,400 Pa (rear) |
| Packaging (per pallet) | 33 pcs |
| Packaging (per 40′ HC) | 594 pcs |
