Trina 740W 715W Solar Panels Bifacial Dual Glass
Model: TSM-NEG21C.20
Cell: N-Type monocrystalline
Power Range: 715-740W
Glass: dual glass
Certification: CE, TUV
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 33 pieces
Trina 715-740W Solar Panel Vertex N Dual GlassDescription
Trina solar panels 740W are high-output N-type i-TOPCon bifacial dual-glass modules built for utility-scale and C&I projects. Dual-glass construction and bifacial generation can add extra output in reflective environments, with up to 10%–20% additional backside power gain depending on site albedo. The 740W Trina solar module reaches up to 23.8% efficiency, uses an IP68-rated junction box, and is backed by a 12-year product warranty plus a 30-year power warranty.
Planning a bulk order? Share your project schedule, and we can help secure Trina solar panels 740W to match your delivery timeline.
- Electrical Data (STC & NOCT)
- Electrical characteristics
- Mechanical Data
| Testing Condition | STC | NOCT | BNPI | STC | NOCT | BNPI | STC | NOCT | BNPI | STC | NOCT | BNPI | STC | NOCT | BNPI | STC | NOCT | BNPI |
| Peak Power Watts-PMAX(Wp)* | 715 | 547 | 792 | 720 | 551 | 798 | 725 | 555 | 801 | 730 | 559 | 809 | 735 | 563 | 814 | 740 | 566 | 820 |
| Power Selection (W)** | 0 ~ +5 | |||||||||||||||||
| Maximum Power Voltage-VMPP (V) | 41.10 | 38.70 | 41.10 | 41.30 | 38.80 | 41.30 | 41.50 | 39.00 | 41.50 | 41.70 | 39.30 | 41.70 | 41.90 | 39.50 | 41.90 | 42.10 | 39.70 | 42.10 |
| Maximum Power Current-IMPP (A) | 17.40 | 14.14 | 19.28 | 17.44 | 14.19 | 19.32 | 17.47 | 14.23 | 19.36 | 17.51 | 14.24 | 19.40 | 17.55 | 14.25 | 19.45 | 17.58 | 14.27 | 19.48 |
| Open Circuit Voltage-VOC (V) | 49.20 | 46.70 | 49.20 | 49.40 | 46.90 | 49.40 | 49.60 | 47.10 | 49.60 | 49.90 | 47.20 | 49.90 | 50.10 | 47.50 | 50.10 | 50.30 | 47.70 | 50.30 |
| Short Circuit Current-ISC (A) | 18.44 | 14.86 | 20.43 | 18.49 | 14.90 | 20.49 | 18.54 | 14.94 | 20.54 | 18.58 | 14.98 | 20.59 | 18.62 | 15.01 | 20.63 | 18.66 | 15.04 | 20.68 |
| Module Efficiency η m (%) | 23.0 | 23.2 | 23.3 | 23.5 | 23.7 | 23.8 | ||||||||||||
| Backside Power Gain | 5% | 10% | 5% | 10% | 5% | 10% | 5% | 10% | 5% | 10% | 5% | 10% |
| Peak Power Watts-PMAX(Wp) | 751 | 787 | 756 | 792 | 761 | 798 | 767 | 803 | 772 | 809 | 777 | 814 |
| Maximum Power Voltage-VMPP (V) | 41.10 | 41.10 | 41.30 | 41.30 | 41.50 | 41.50 | 41.70 | 41.70 | 41.90 | 41.90 | 42.10 | 42.10 |
| Maximum Power Current-IMPP(A) | 18.27 | 19.14 | 18.31 | 19.18 | 18.34 | 19.22 | 18.39 | 19.26 | 18.43 | 19.31 | 18.46 | 19.34 |
| Open Circuit Voltage-VOC (V) | 49.20 | 49.20 | 49.40 | 49.40 | 49.60 | 49.60 | 49.90 | 49.90 | 50.10 | 50.10 | 50.30 | 50.30 |
| Short Circuit Current-ISC (A) | 19.36 | 20.28 | 19.41 | 20.34 | 19.47 | 20.39 | 19.51 | 20.44 | 19.55 | 20.48 | 19.59 | 20.53 |
| Solar Cells | N-type i-TOPCon Monocrystalline |
| No. of cells | 132 cells |

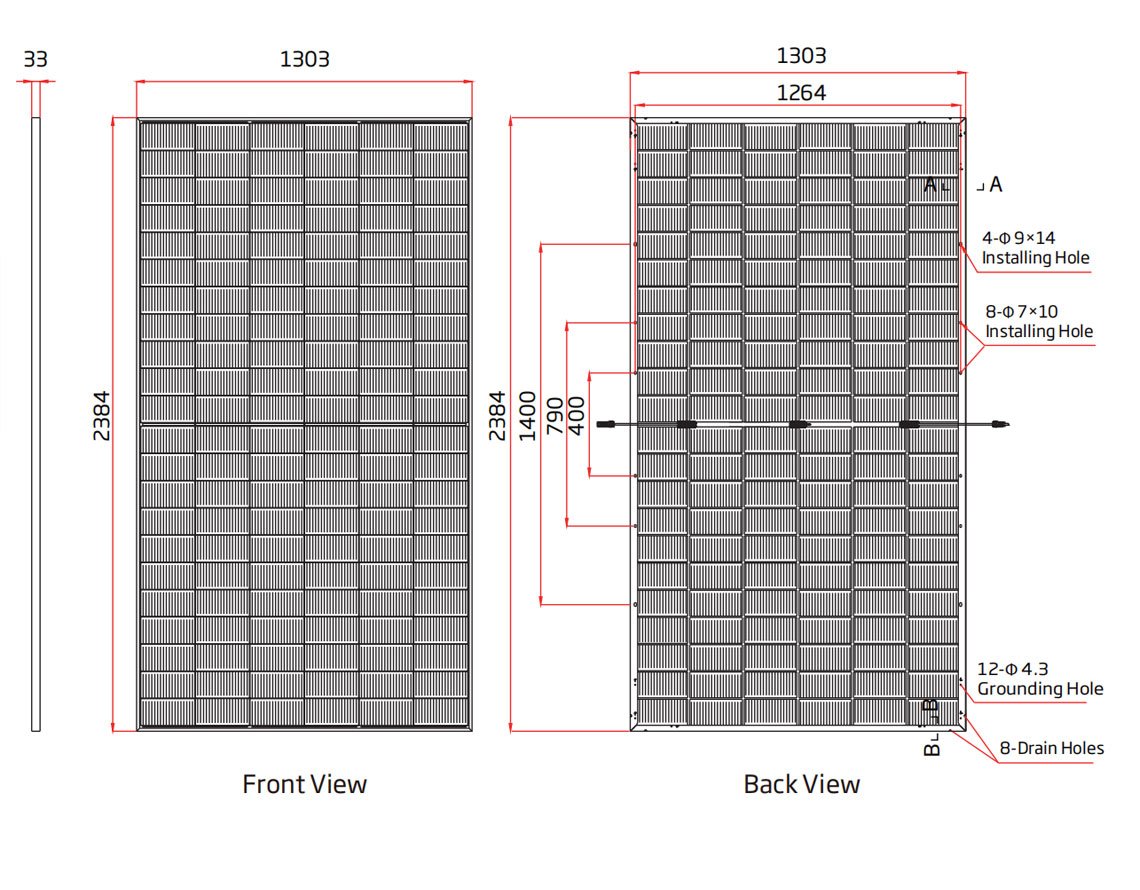

| Module Dimensions | 2384×1303×33 mm (93.86×51.30×1.30 inches) |
| Weight | 38.3 kg (84.4 lb) |
| Front Glass | 2.0 mm (0.08 inches), AR Coating Heat Strengthened Glass |
| Back Glass | 2.0 mm (0.08 inches), Heat Strengthened Glass |
| Frame | 33mm (1.30 inches) Anodized Aluminium Alloy |
| J-Box | IP 68 rated |
| Cables | Photovoltaic Technology Cable 4.0mm2 (0.006 inches2) Portrait: 370/230 mm (14.57/9.06 inches) Length can be customized |
| Connector | TS4 / TS4 Plus / MC4 EVO2* |
| Packaging | Modules per box: 33 pieces Modules per 40’ container: 594 pieces |
