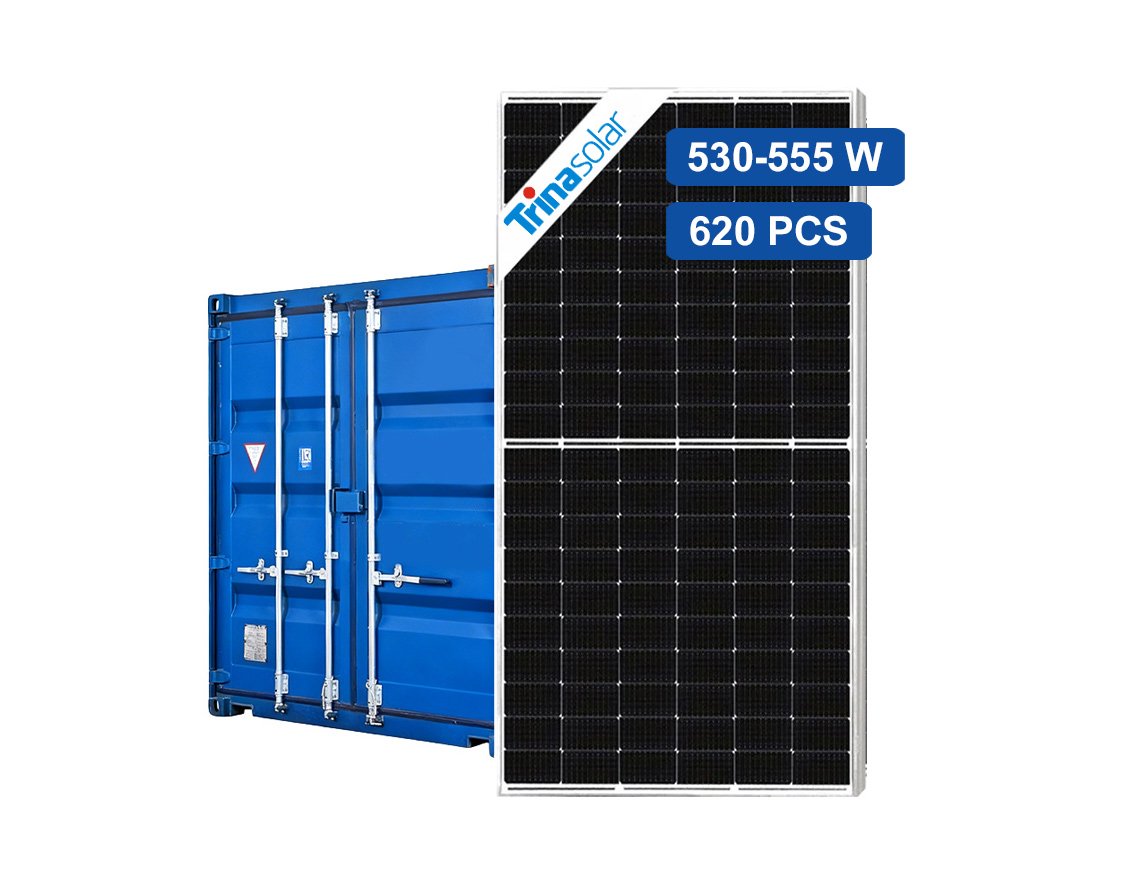

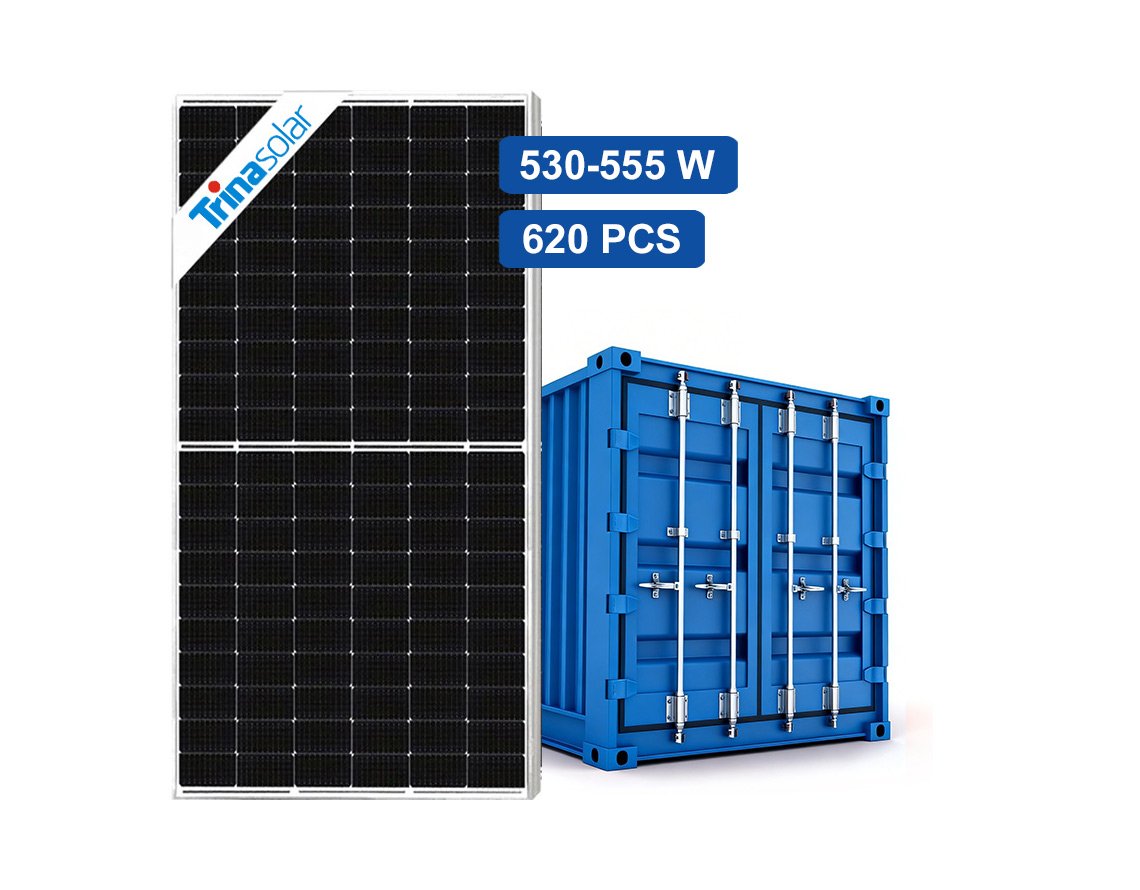

Trina Solar Panels 530-555W Per Container 620 PCS
Model:TSM-DE19
Cell: N-Type monocrystalline
Power Range: 530-555W
Glass: Single Glass
Certification: CE, TUV
Warranty: 25 Years
MOQ: One container of 620 PCS
Description
Trina Solar Panels 530-555W combines industry-leading power density and efficiency (up to 21.2 %). Engineered for compatibility with mainstream system components, it features reinforced glass and frame designs. Its optimized cell layout and incident-angle performance ensure superior yield under real-world shading and temperature conditions, suitable for commercial and utility-scale installations.
Trina solar panels 530W-555W per container are 620 pcs, if you need solar panels in bulk, feel free to contact us any time.
- Electrical Data (STC)
- Electrical Data (NOCT)
- Mechanical Data
| Parameter / Peak Power Pmax(Wp) | 530 | 535 | 540 | 545 | 550 | 555 |
| Power Tolerance – Pmax(W) | 0 ~ +5 | |||||
| Maximum Power Voltage – Vmp (V) | 30.8 | 31 | 31.2 | 31.4 | 31.6 | 31.8 |
| Maximum Power Current – Imp(A) | 17.21 | 17.28 | 17.33 | 17.37 | 17.4 | 17.45 |
| Open-Circuit Voltage – Voc(V) | 37.1 | 37.3 | 37.5 | 37.7 | 37.9 | 38.1 |
| Short-Circuit Current – Isc (A) | 18.31 | 18.36 | 18.41 | 18.47 | 18.52 | 18.56 |
| Module Efficiency – ηm (%) | 20.3 | 20.5 | 20.7 | 20.9 | 21 | 21.2 |
| Parameter / Peak Power Pmax (Wp) | 401 | 405 | 409 | 413 | 417 | 420 |
| Maximum Power Voltage – Vmp (V) | 28.6 | 28.8 | 29 | 29.2 | 29.3 | 29.5 |
| Maximum Power Current – Imp (A) | 14.01 | 14.06 | 14.1 | 14.15 | 14.19 | 14.23 |
| Open-Circuit Voltage – Voc(V) | 35 | 35.1 | 35.3 | 35.5 | 35.7 | 35.9 |
| Short-Circuit Current – Isc (A) | 14.76 | 14.8 | 14.84 | 14.88 | 14.92 | 14.96 |
| Solar Cells | Monocrystalline |
| Number of Cells | 110 cells |
| Module Dimensions | 2384 × 1096 × 35 mm (93.86 × 43.15 × 1.38 inches) |
| Weight | 28.6 kg (63.1 lb) |
| Glass | 3.2 mm (0.13 inches), High-transmission, AR-coated, heat-strengthened glass |
| Encapsulant Material | EVA / POE |
| Backsheet | White |
| Frame | 35 mm (1.38 inches) anodized aluminum alloy |
| Junction Box (J-Box) | IP68 rated |
| Cables | Photovoltaic technology cable 4.0 mm² (0.006 in²)Portrait: 280 / 280 mm (11.02 / 11.02 inches)Landscape: 1400 / 1400 mm (55.12 / 55.12 inches) |
| Connector | MC4 EVO2 / TS4* |
