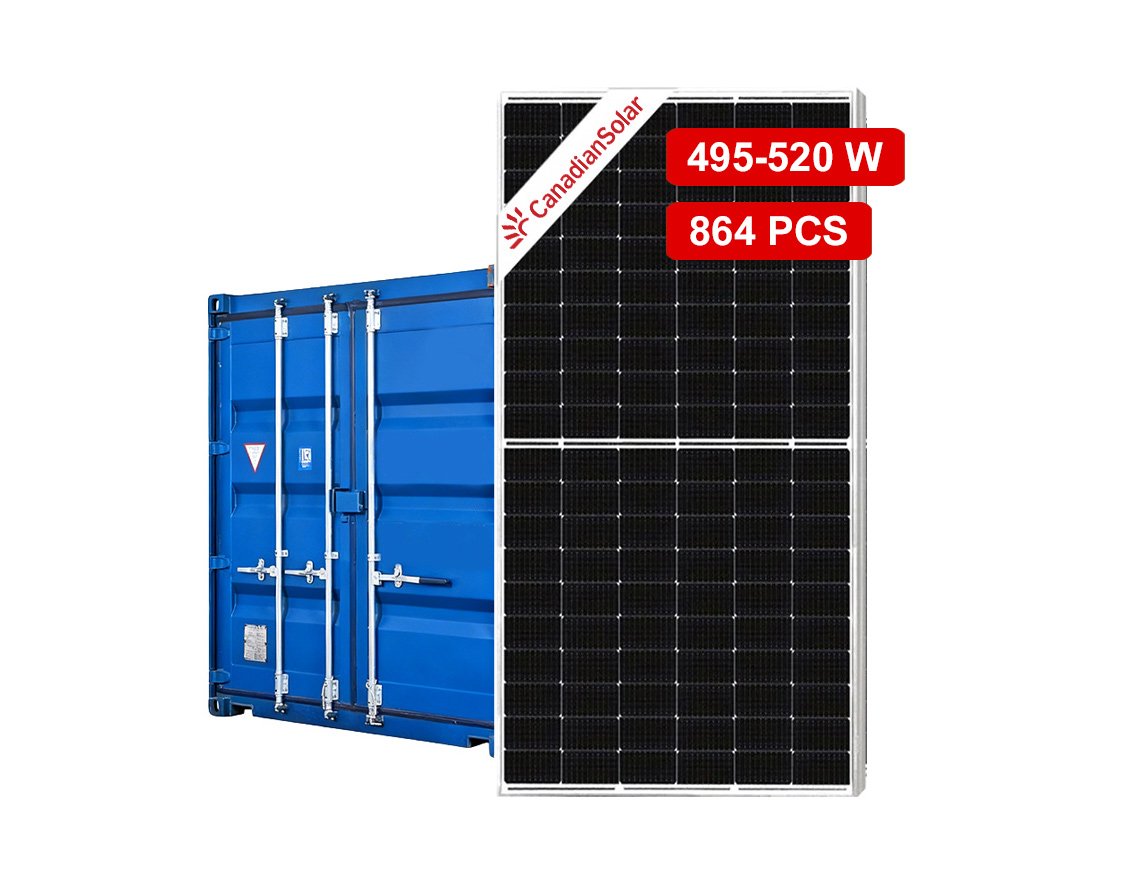

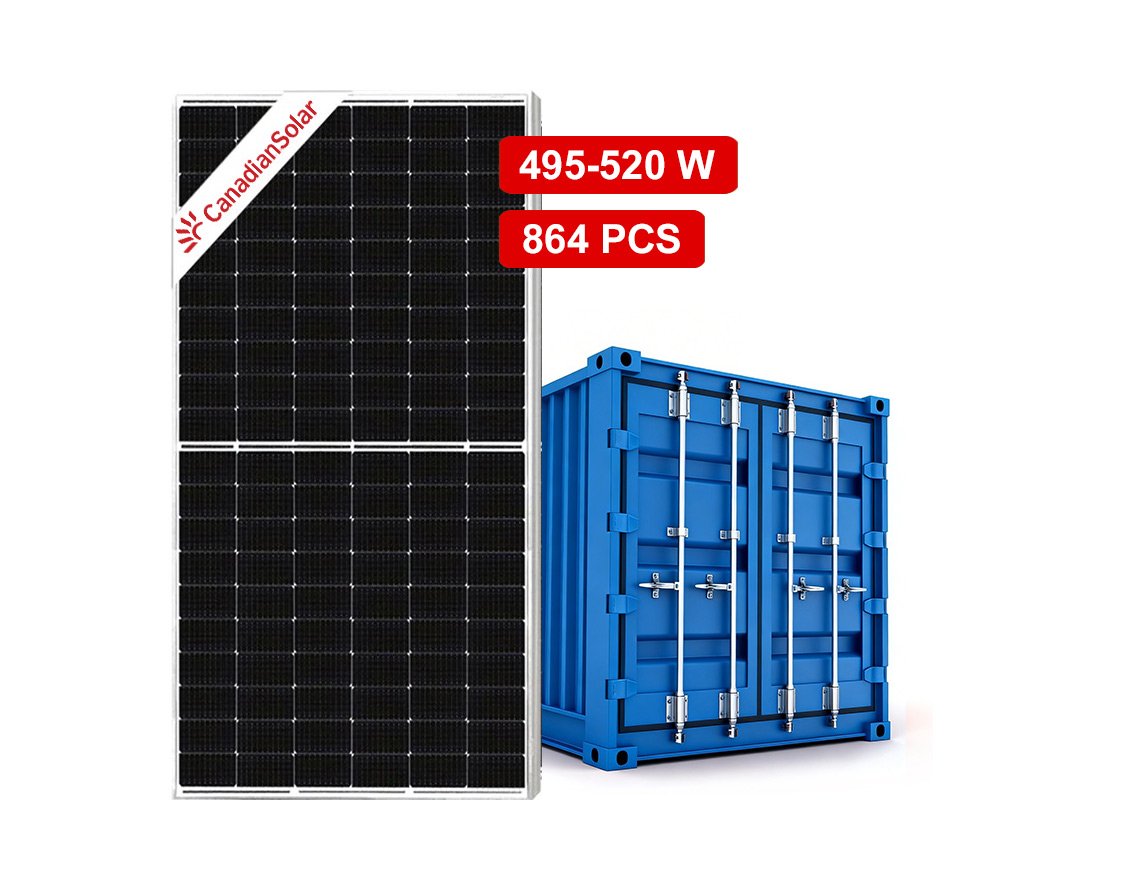

Canadian Solar Panels 495W-520W Per Container 864 PCS
Model: TOPHiKu6
Cell: TOPCon N-type monocrystalline
Power Range: 495-520W
Glass: single glass
Certification: CE, UL, IEC
Warranty: 30 Years
MOQ: One container of 864 pcs
CanadianSolar TOPHiKu6 495W-520W BY ContainerDescription
Canadian Solar Panels 445W-465W Per Container are 840 PCS, with Mono PERC technology, efficiency up to 21.5%. Built with 144 half-cut monocrystalline cells in a robust aluminum frame, these solar modules can withstand harsh weather conditions. Backed by 12-year product warranty and 25-year linear power warranty, these high-efficiency panels have proven reliability, competitive pricing, and strong bankability for diverse solar applications, suitable for residential, commercial, and utility-scale solar projects.
Sourcing Canadian solar panels 445W-465W in Bulk? Contact us now for latest bulk price.
- Electrical Data STC
- Electrical Data NMOT
- Mechanical Data
| Specification | 495W | 500W | 505W | 510W | 515W | 520W |
| Nominal Max. Power (Pmax) | 495 W | 500 W | 505 W | 510 W | 515 W | 520 W |
| Opt. Operating Voltage (Vmp) | 33.2 V | 33.4 V | 33.6 V | 33.8 V | 34.0 V | 34.2 V |
| Opt. Operating Current (Imp) | 14.91 A | 14.98 A | 15.04 A | 15.10 A | 15.16 A | 15.22 A |
| Open Circuit Voltage (Voc) | 39.4 V | 39.6 V | 39.8 V | 40.0 V | 40.2 V | 40.4 V |
| Short Circuit Current (Isc) | 15.91 A | 16.00 A | 16.05 A | 16.10 A | 16.15 A | 16.20 A |
| Module Efficiency | 22.30% | 22.50% | 22.70% | 22.90% | 23.20% | 23.40% |
| Operating Temperature | -40°C ~ +85°C | |||||
| Max. System Voltage | 1500V (IEC/UL) | |||||
| Module Fire Performance | TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) | |||||
| Max. Series Fuse Rating | 30 A | |||||
| Protection Class | Class II | |||||
| Power Tolerance | 0 ~ +10 W | |||||
| Specification | 495W | 500W | 505W | 510W | 515W | 520W |
|---|---|---|---|---|---|---|
| Nominal Max. Power (Pmax) | 374 W | 378 W | 382 W | 386 W | 390 W | 393 W |
| Opt. Operating Voltage (Vmp) | 31.4 V | 31.6 V | 31.8 V | 32.0 V | 32.1 V | 32.3 V |
| Opt. Operating Current (Imp) | 11.93 A | 11.98 A | 12.03 A | 12.07 A | 12.12 A | 12.17 A |
| Open Circuit Voltage (Voc) | 37.3 V | 37.5 V | 37.7 V | 37.9 V | 38.1 V | 38.3 V |
| Short Circuit Current (Isc) | 12.82 A | 12.89 A | 12.93 A | 12.97 A | 13.01 A | 13.05 A |
| Specification | Data |
|---|---|
| Cell Type | TOPCon cells |
| Cell Arrangement | 108 [2 × (9 × 6)] |
| Dimensions | 1961 × 1134 × 30 mm (77.2 × 44.6 × 1.18 in) |
| Weight | 23.3 kg (51.4 lbs) |
| Front Glass | 3.2 mm tempered glass with anti-reflective coating |
| Frame | Anodized aluminium alloy |
| J-Box | IP68, 3 bypass diodes |
| Cable | 4 mm² (IEC), 12 AWG (UL) |
| Cable Length (Including Connector) | 300 mm (11.8 in) (+) / 200 mm (7.9 in) (–) or customized length* |
| Connector | T6 or MC4-EVO2 or MC4-EVO2A |
| Per Pallet | 36 pieces |
| Per Container (40′ HQ) | 864 pieces |
