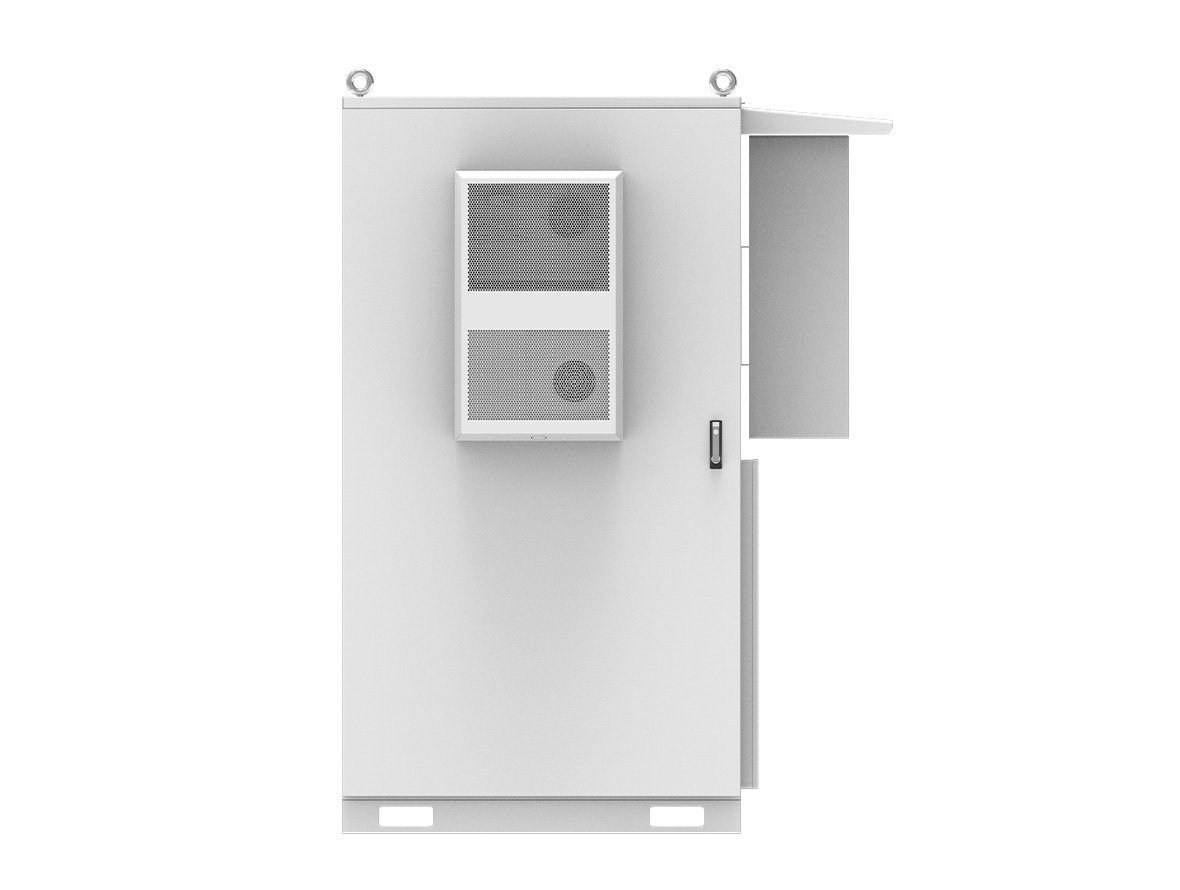

160kWh Energy Storage System 80kW Hybrid Battery Cabinet
Model:Hbowa-80kW/160kWh Outdoor
Capacity: Hybrid inverter 80KW, LiFePO4 Battery 160kWh
Cooling Type: Air-cooling
Output Voltage: AC 380V / 400V
Output Frequency: 50Hz / 60Hz
Class of Protection: IP54(outdoor)
Certificates: CE/IEC/UN38.3/MSDS
Datasheet of 80KW Hybrid Solar Inverter Default Growatt160kWh Outdoor Battery Storage System Cabinet

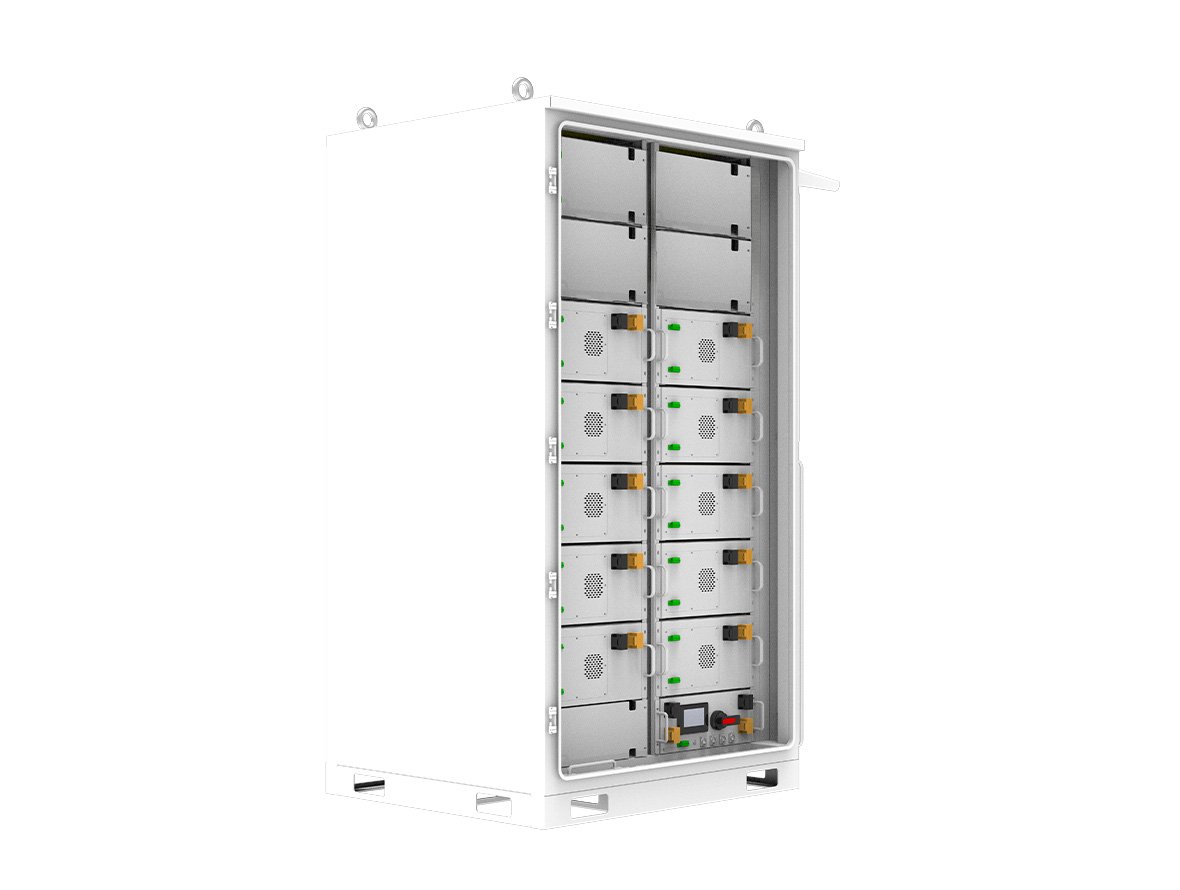

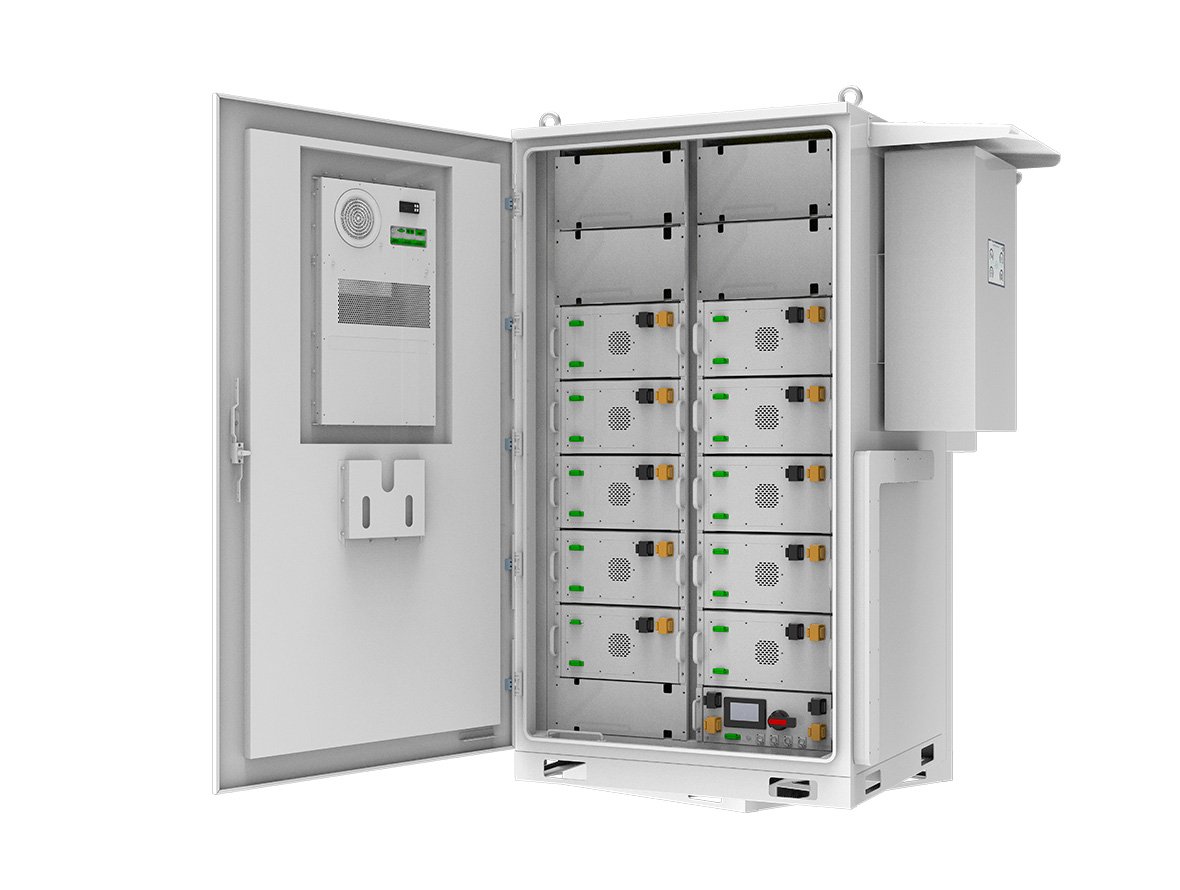

What is a 160kWh energy storage system?

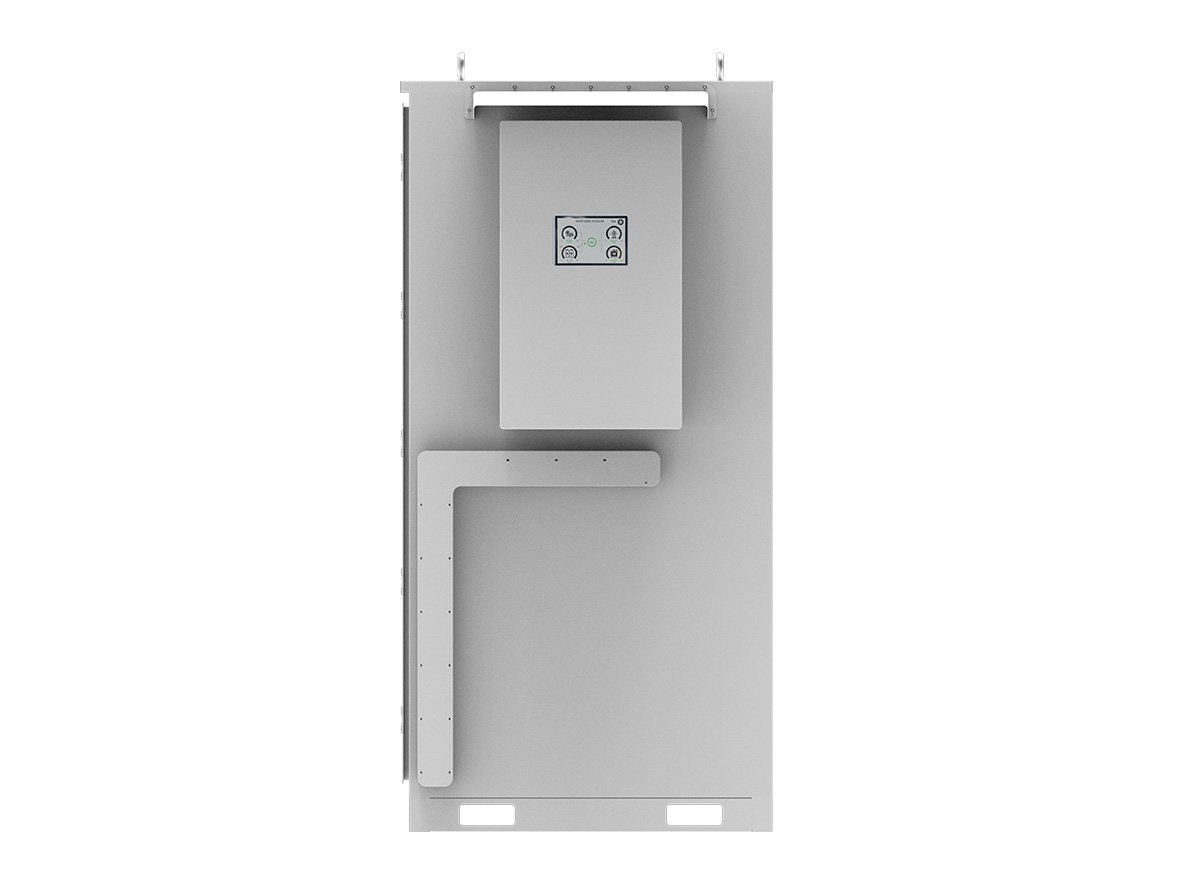

HBOWA 160kWh energy storage system is a commercial battery storage cabinet that stores about 160 kilowatt-hours of electrical energy for commercial and industrial use. HBOWA 160kWh battery system is designed as a high-voltage cabinet with an 80kW hybrid inverter, the inverter brand can be deye, Growatt, Solis, Goodwe, and so on. This cabinet can be compatible with many mainstream inverters; we support customization. The 160kWh can be used for commercial backup power, solar self-consumption, factory peak shaving, and microgrid projects.
Technical Data
| Item | Specification |
|---|---|
| Model | Hbowa-80kW/160kWh |
| Product Type | High-Voltage Energy Storage Cabinet |
| Battery Capacity | 160kWh |
| Hybrid Inverter Power | 80kW |
| Battery Chemistry | LiFePO4 / LFP |
| System Type | Hybrid solar battery energy storage system |
| Battery Voltage | High-voltage battery system |
| Cooling Method | Air cooling |
| AC Output | 380V / 400V, 3-phase |
| Frequency | 50Hz / 60Hz |
| Working Modes | On-grid, off-grid, hybrid, backup power |
| System Components | Battery modules, 80kW hybrid inverter, BMS, EMS, cooling, fire protection, high-voltage control box |
| Communication | CAN / RS485 / Ethernet, project-based |
| Installation | Indoor or outdoor cabinet installation |
| Applications | Solar storage, backup power, peak shaving, EV charging, agriculture, microgrid |
How Long Can a 160kWh Battery Last?
160kwh battery storage can last for about 1 to 8 hours, depending on the inverter efficiency, load fluctuation, ambient temperature, and so on. The table below is for your reference.
| Average Load | Approx. Runtime |
|---|---|
| 20kW load | About 7.2 hours |
| 40kW load | About 3.6 hours |
| 60kW load | About 2.4 hours |
| 80kW load | About 1.8 hours |
160kWh vs 100kWh vs 225kWh
| Model | Image | Best For | Difference |
|---|---|---|---|

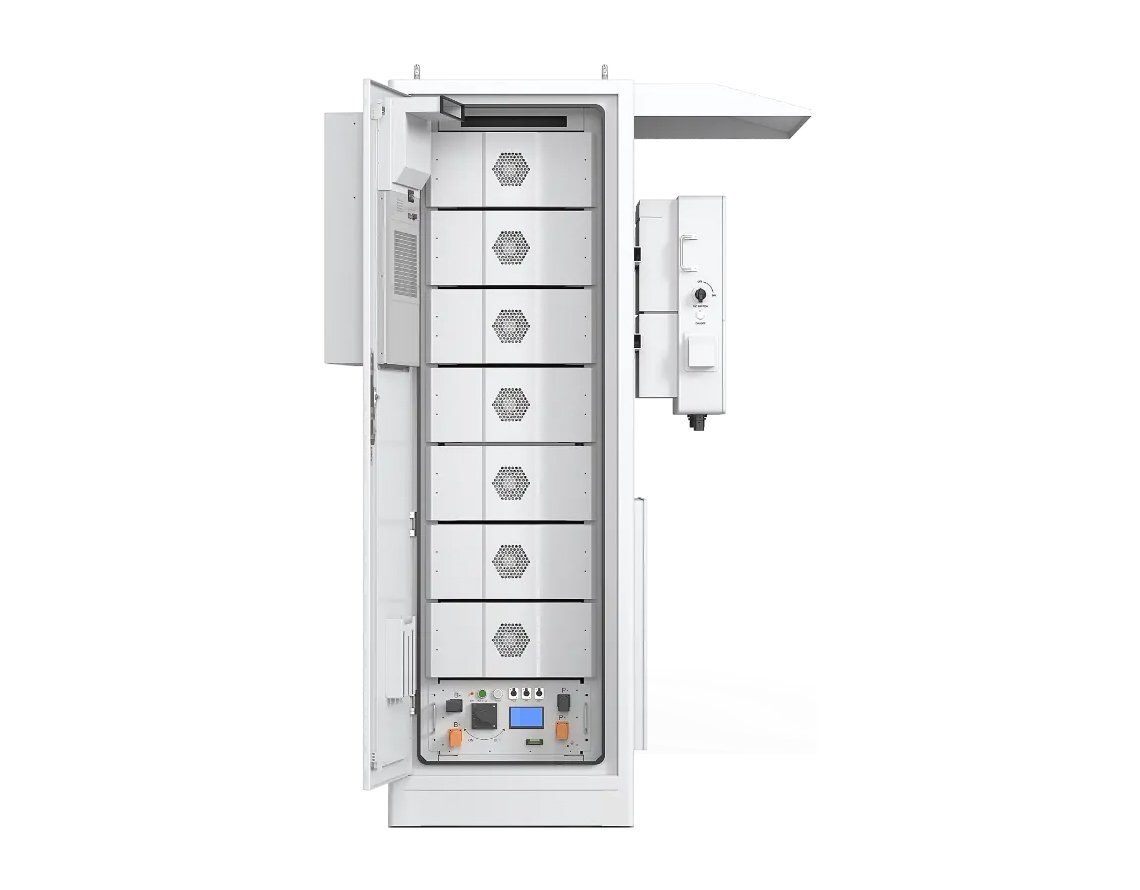

| 100kWh Battery Storage Cabinet |  | Small commercial backup and solar storage | 51.2V 314Ah * 7 |
| 160kWh Energy Storage System |  | Medium C&I backup, solar storage, and peak shaving | 51.2V 314Ah * 16 |

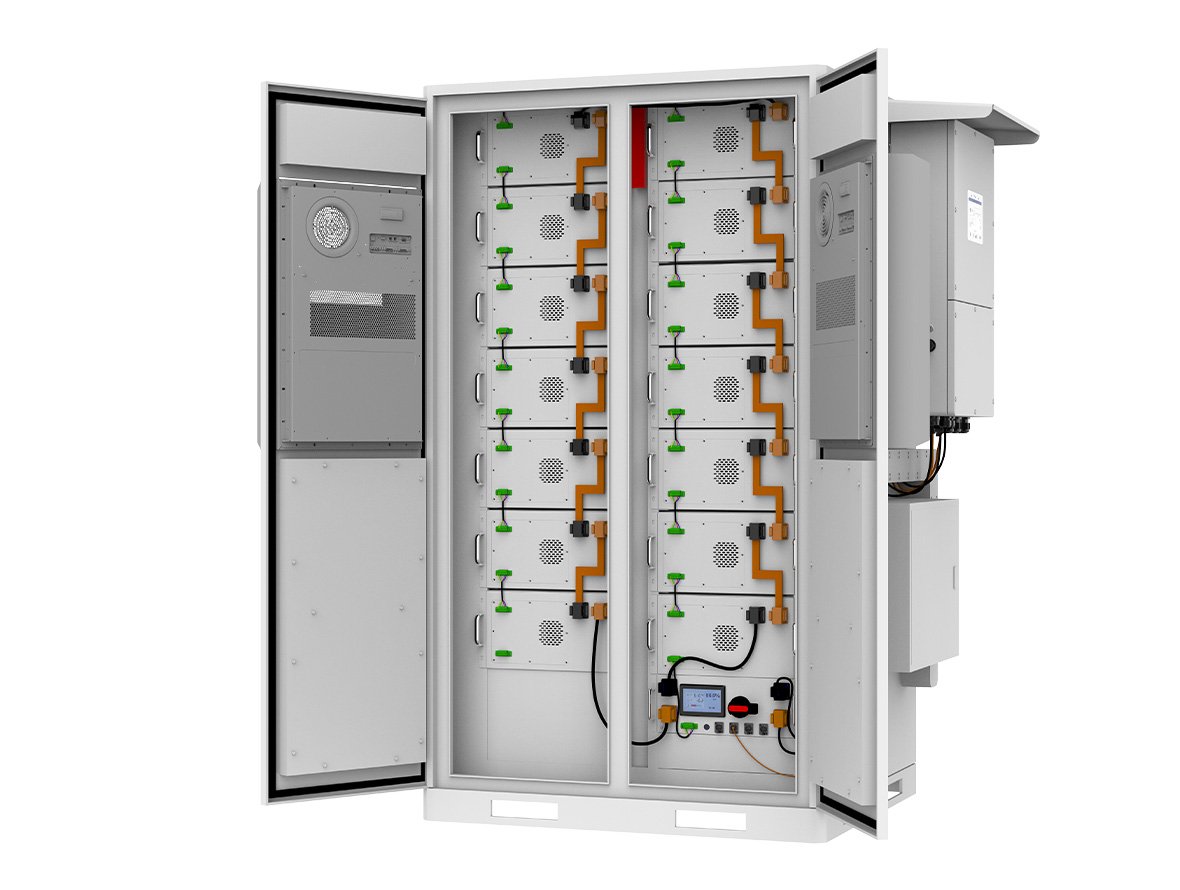

| 225kWh Energy Storage System |  | Larger factories, EV charging, and longer backup time | 51.2V 314Ah * 14 |

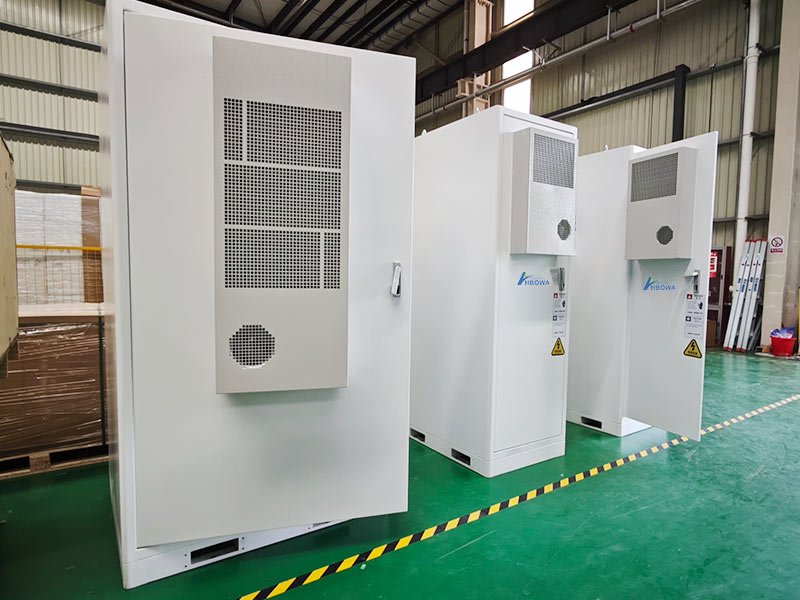

Energy Storage Cabinets in HBOWA

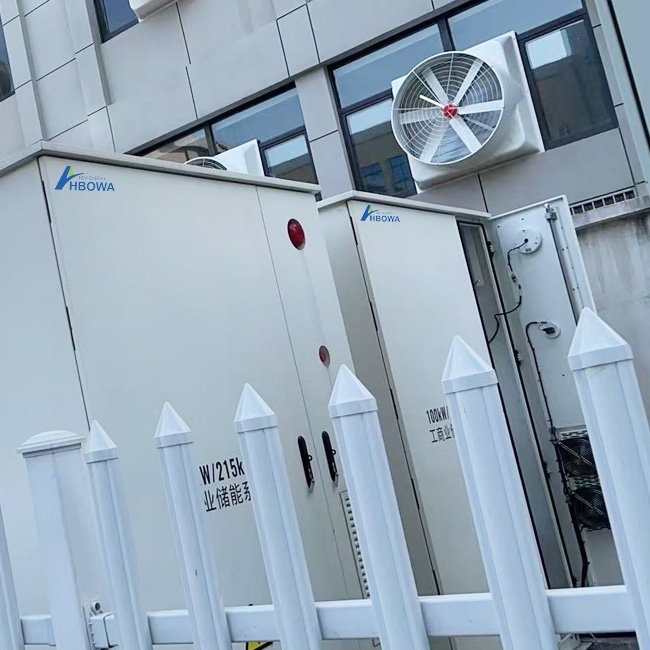

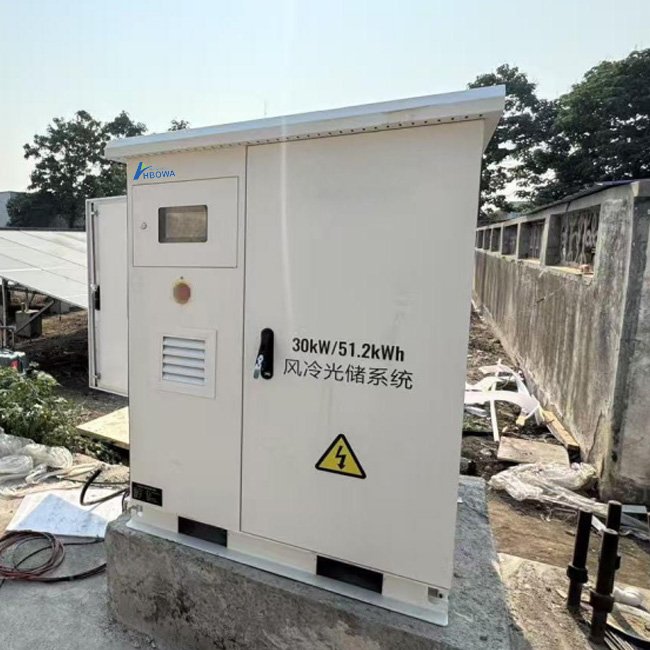

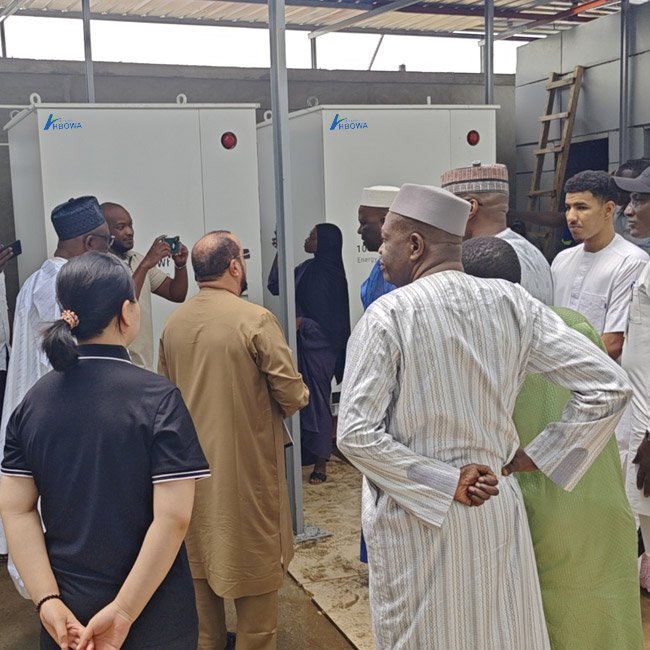

- Project Show

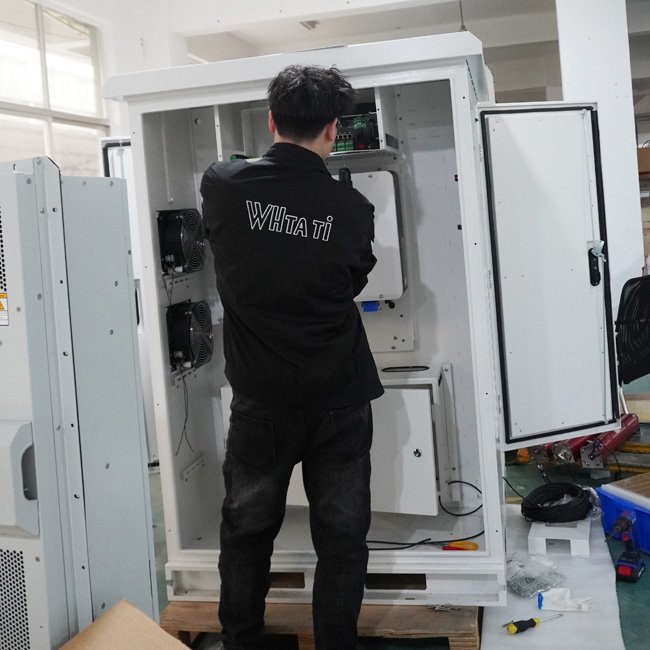

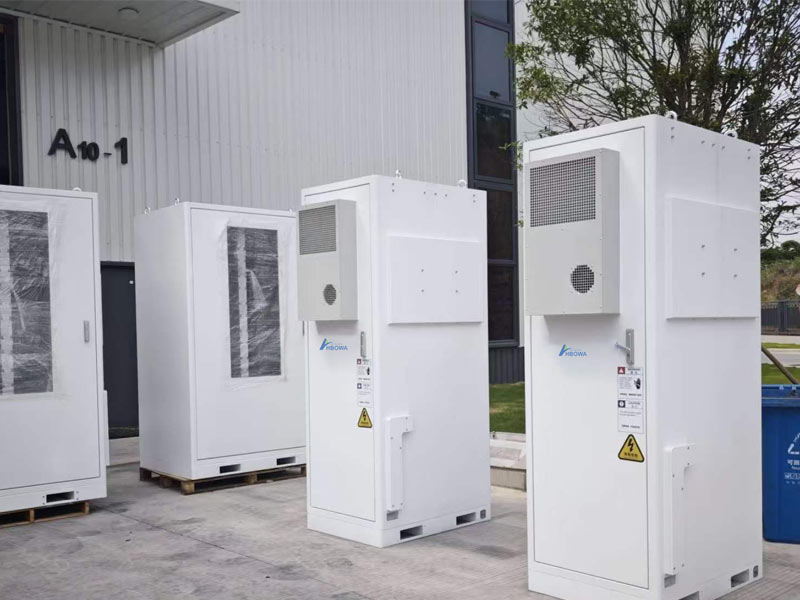

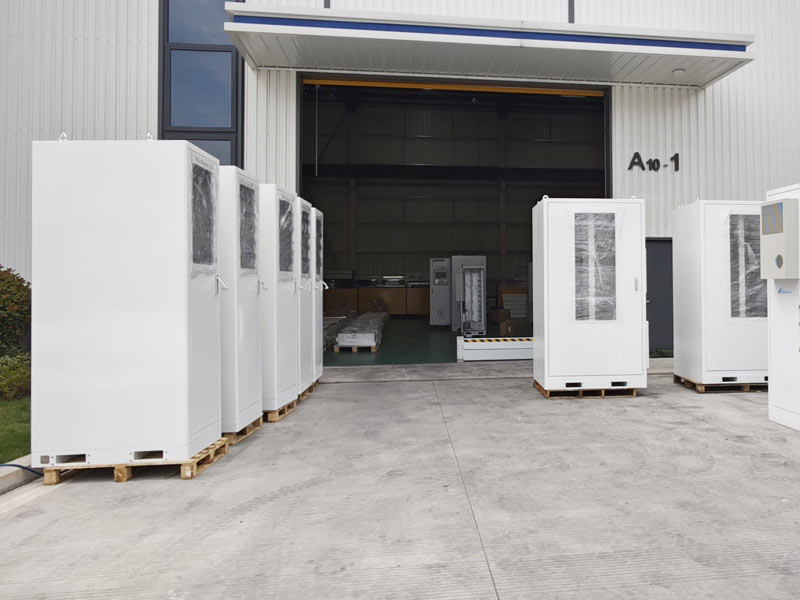

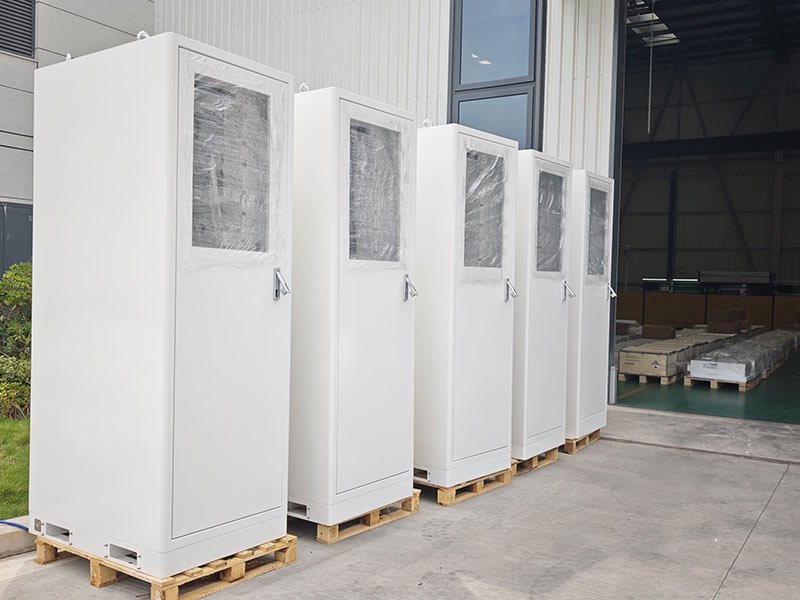

- Factory Show
- Shipping Show
- Installation Guide
- Certificates
Download Center
Related Product (7)
A 160kWh battery can power many commercial and industrial loads, such as office equipment, communication devices, security systems, pumps, refrigeration equipment, and so on.
Yes. A 160kWh battery is suitable for commercial backup power when the project needs stable power for essential loads working.
The 80kW hybrid inverter is the power conversion and control center of the system. It can convert DC into AC to power loads, and convert AC to DC to charge the battery system as well.
Yes. Multiple 160kWh cabinets can be connected in parallel to increase total battery capacity for larger project power needs. For example, two 160kWh cabinets can provide 320kWh nominal capacity. The detailed parallel number of the cabinet depends on the hybrid inverter you choose.
Please provide the following project information:
- Project country
- Grid voltage and frequency
- Existing or planned solar PV capacity
- Daily electricity consumption
- Required backup time
- Installation location: indoor, outdoor, etc.
- Whether the site has motors, pumps, compressors, or other inductive loads
- Any special requirements for certification, cooling, EMS, or cabinet expansion
