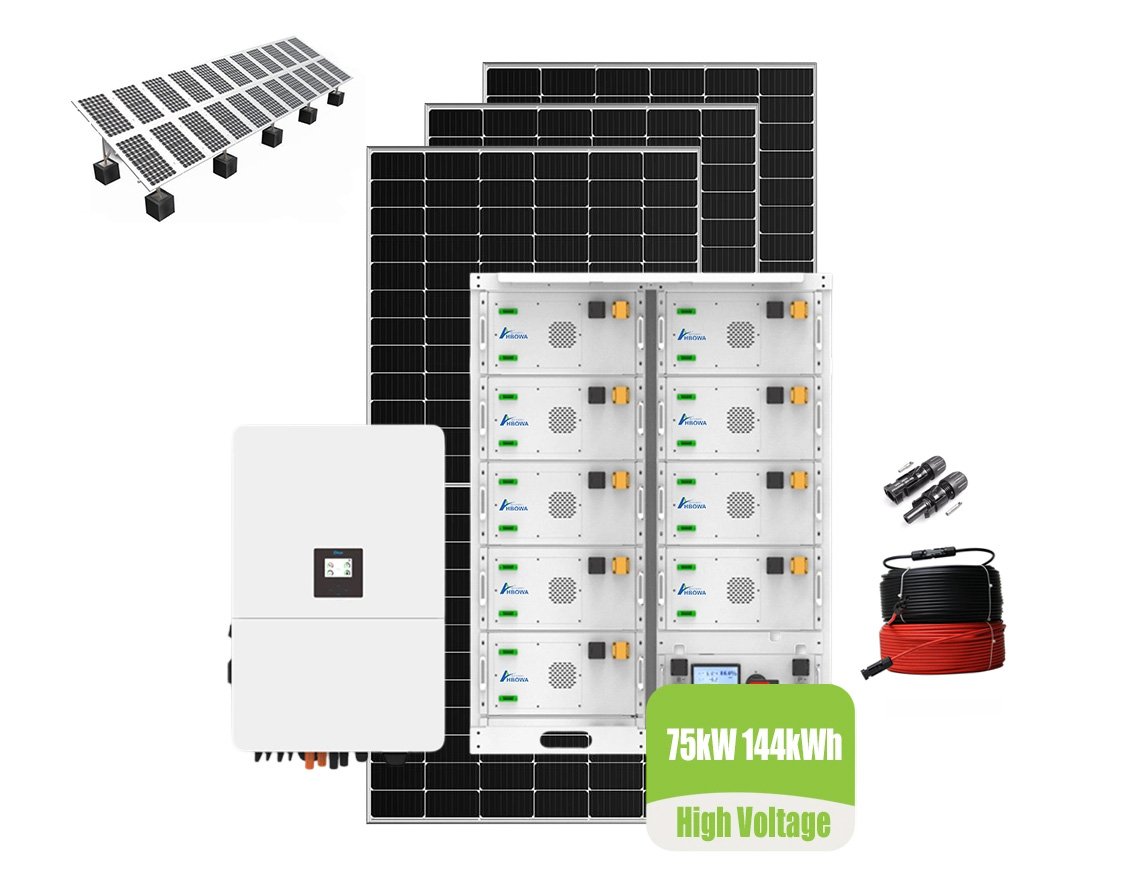

75kW Solar System Hybrid Three Phase
System: 75KW 144KWh Three phase
Output Voltage:220/380V, 230/400V 0.85Un-1.1Un
Inverter Type: 75kw hybrid inverter with MPPT controller
Battery: High-voltage LiFePO4 rack 144kwh
Complete kit: brackets, accessories, instructions included.
Certification: CE, IEC, UN38.3, CNAS by Sea, CNAS by Road, MSDS
Place of origin: China
Datasheet for 75 kW 144 kWh Hybrid Solar System 3 Phase
For More Datasheets, please view Download at the end of this page.
Description

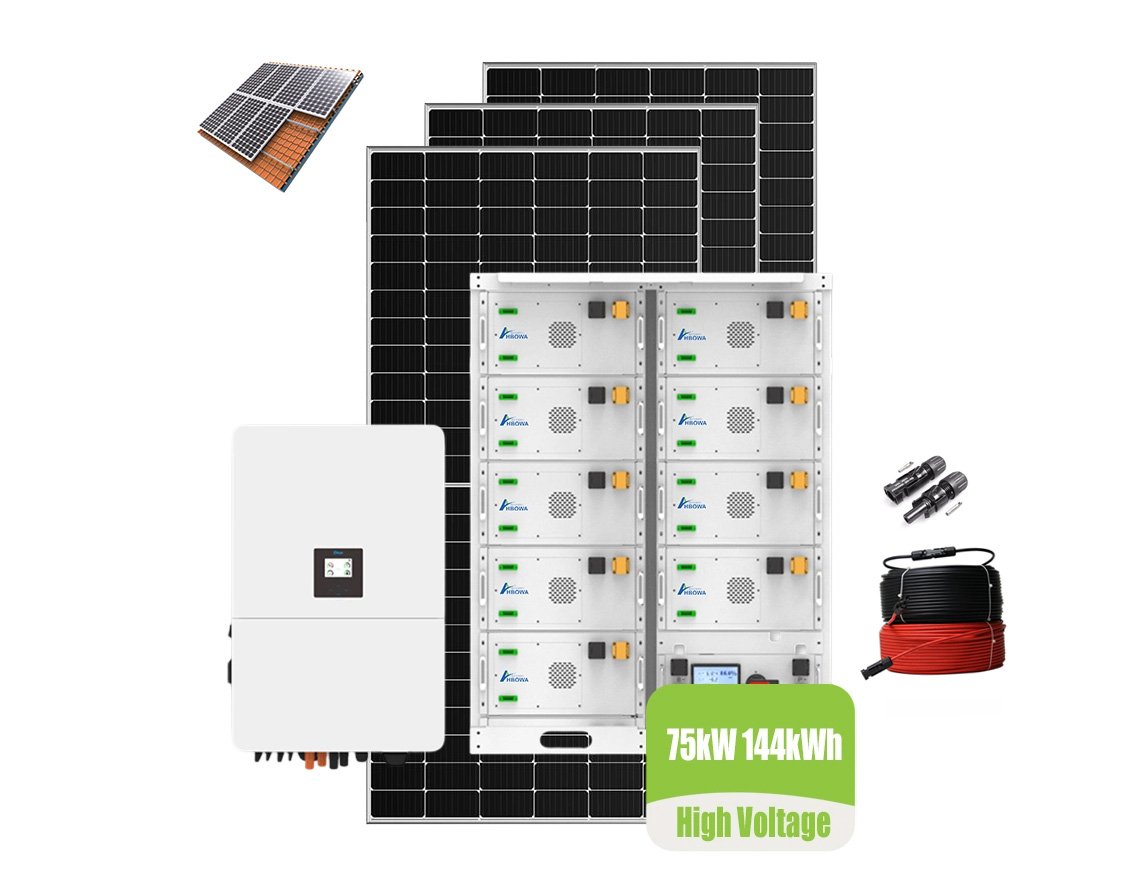

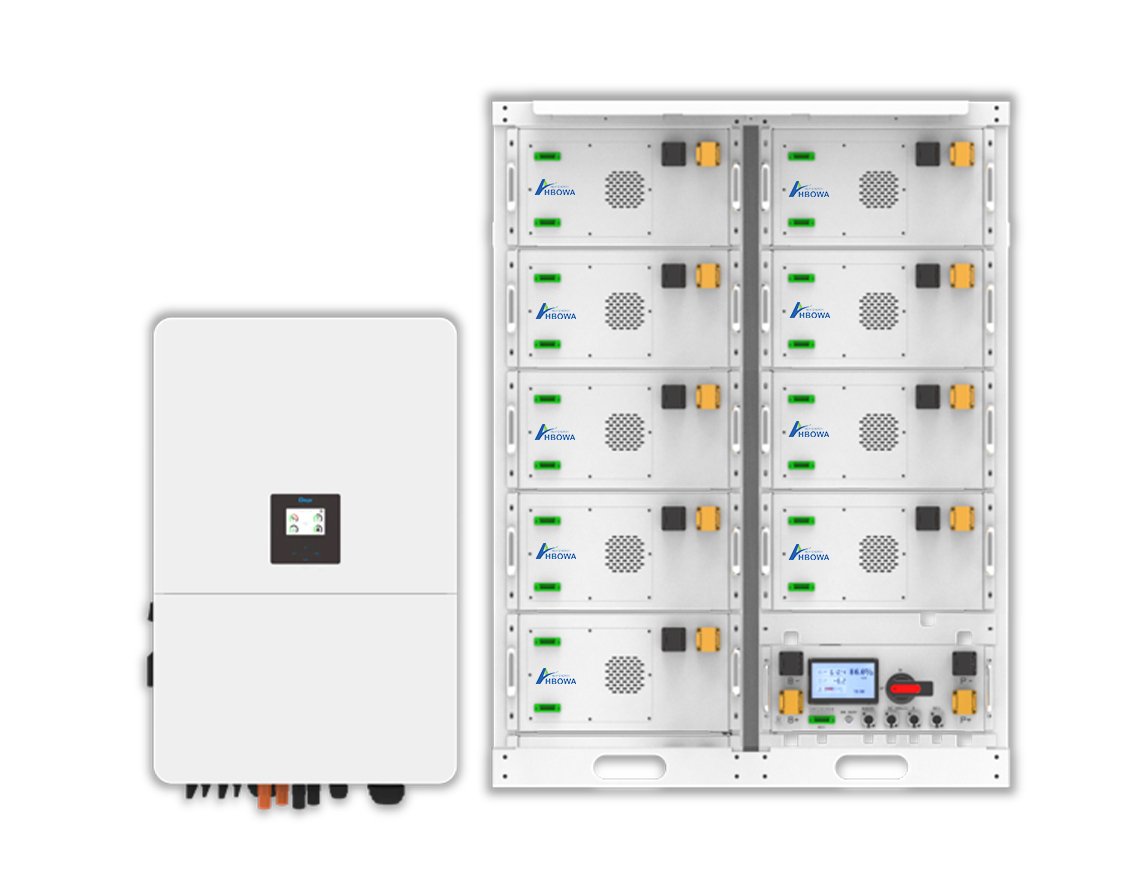

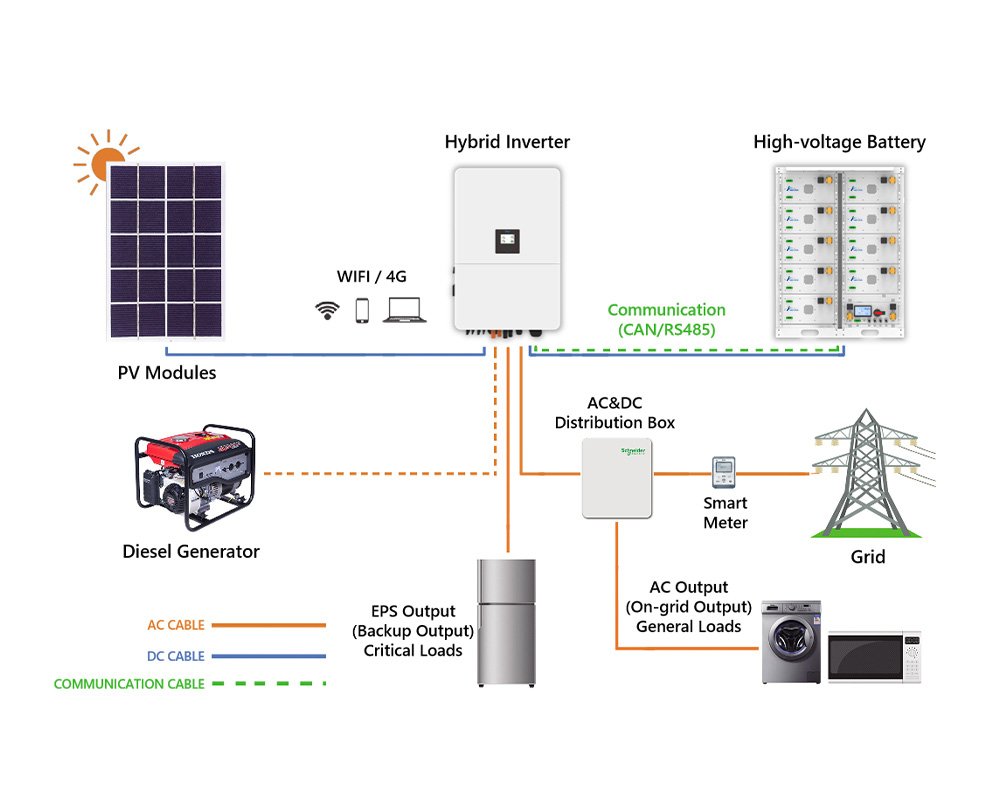

Composition of the 75 kW hybrid solar system with 144 kWh battery:
The 75kw hybrid solar system includes the 75kw hybrid three phase inverter, the high voltage LiFePO4 batteries 144kWh,625W TOPCon solar panels, a solar mounting system, and solar accessories. The 75kw hybrid solar inverter is Deye brand, if you need other brands, please tell us in advance. Our high voltage LiFePO4 batteries are certified by CE, IEC, CNAS, MSDS, and UN38.3, have been exported to many countries worldwide. This is the three phase high voltage type hybrid solar system, that is suitable for commercial and industrial 3 phase electricity applications, like factories, workshops, restaurants, retail shops, and so on. If you have requirements for backup power, peak shaving, solar plus storage, microgrid solar system, feel free to contact us for detailed solutions.
Technical Data
- DATA
| Item | Specification |
|---|---|
| System Type | 75kW High Voltage Three-Phase Hybrid ESS |
| Rated AC Power | 75kW |
| Battery Capacity | 144.7kWh |
| Battery Type | LiFePO4 Lithium Battery |
| Inverter Model | SUN-75K-SG02HP3-EU-EM6 |
| Battery Model | HBOWA-144K314 |
| Grid Connection | 3L + N + PE |
| Rated AC Voltage | 220/380V, 230/400V |
| Max. PV Access Power | 150kW |
| Battery Voltage Range | 160-1000V |
| Communication | RS485 / RS232 / CAN |
| Operating Modes | Self-consumption, Peak Shaving, Backup Power, Off-grid Backup |
| Protection Rating | IP65 |
| Battery Rack Size | 1090 × 780 × 1440 mm |
| Battery Weight | 1164kg |
| Cycle Life | ≥6000 cycles |
| Design Life | 15+ years |
| Certifications | CE / IEC / UN38.3 / MSDS / RoHS |
75KW Solar Power System
625W Solar Panel
Mono-crystalline Half Cell Panel
Maximum Power(Pmax): 625W
Maximum Power Voltage: 44.16V
Maximum Efficiency: 23.1%
Dimension: 2382*1134*30mm
Per Weight: 33.5kg Total number: 32 pieces
Warranty: 15 years
Brand panel available: Longi/JA/Jinko/Trina/…

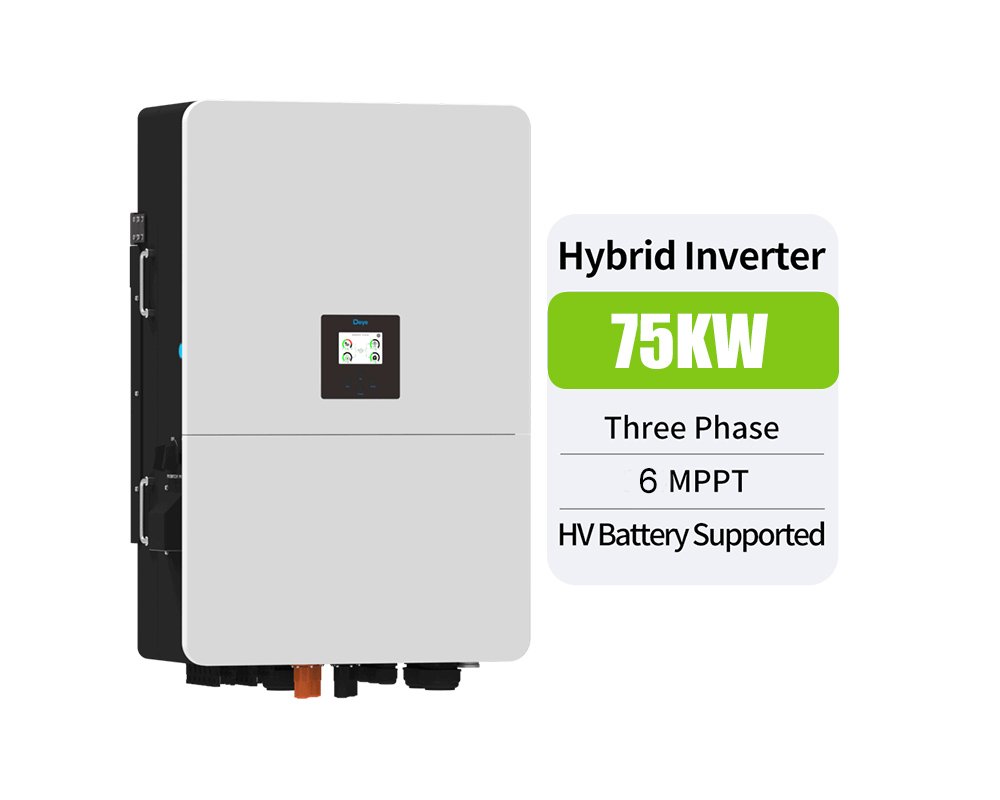

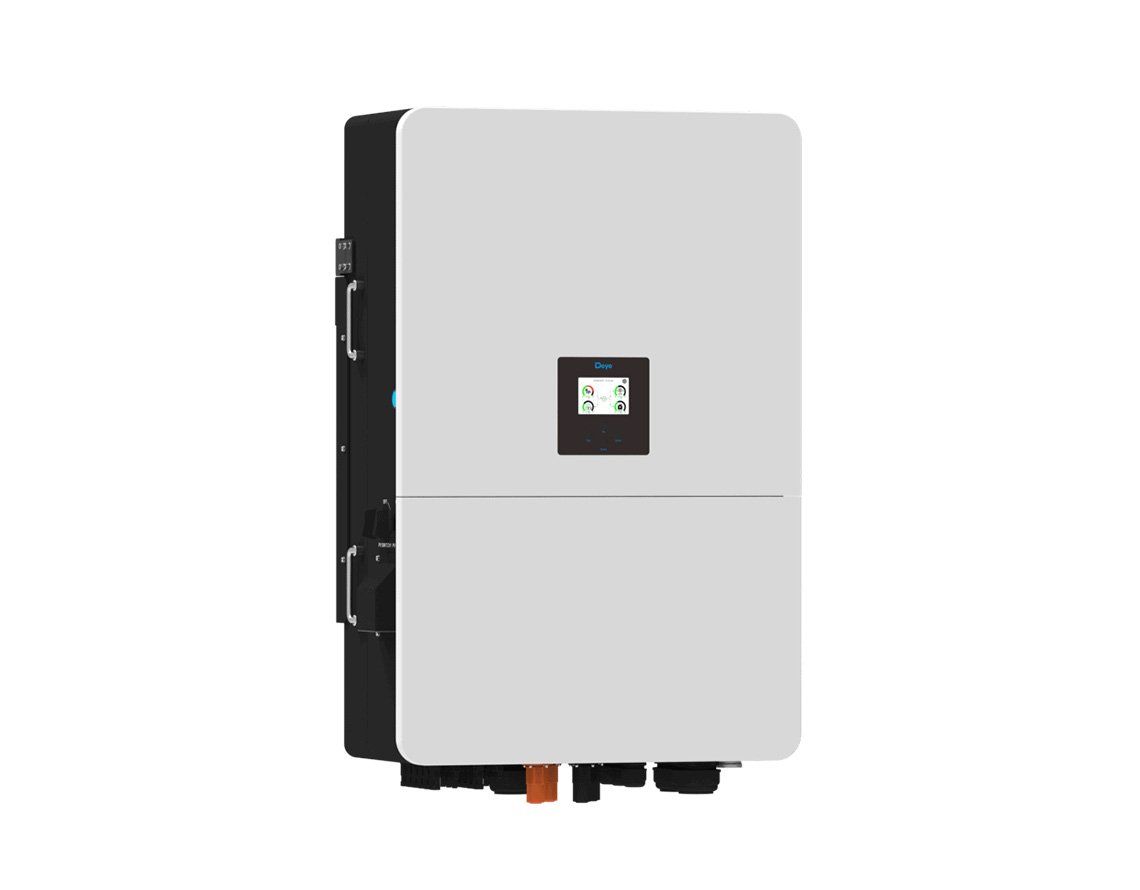

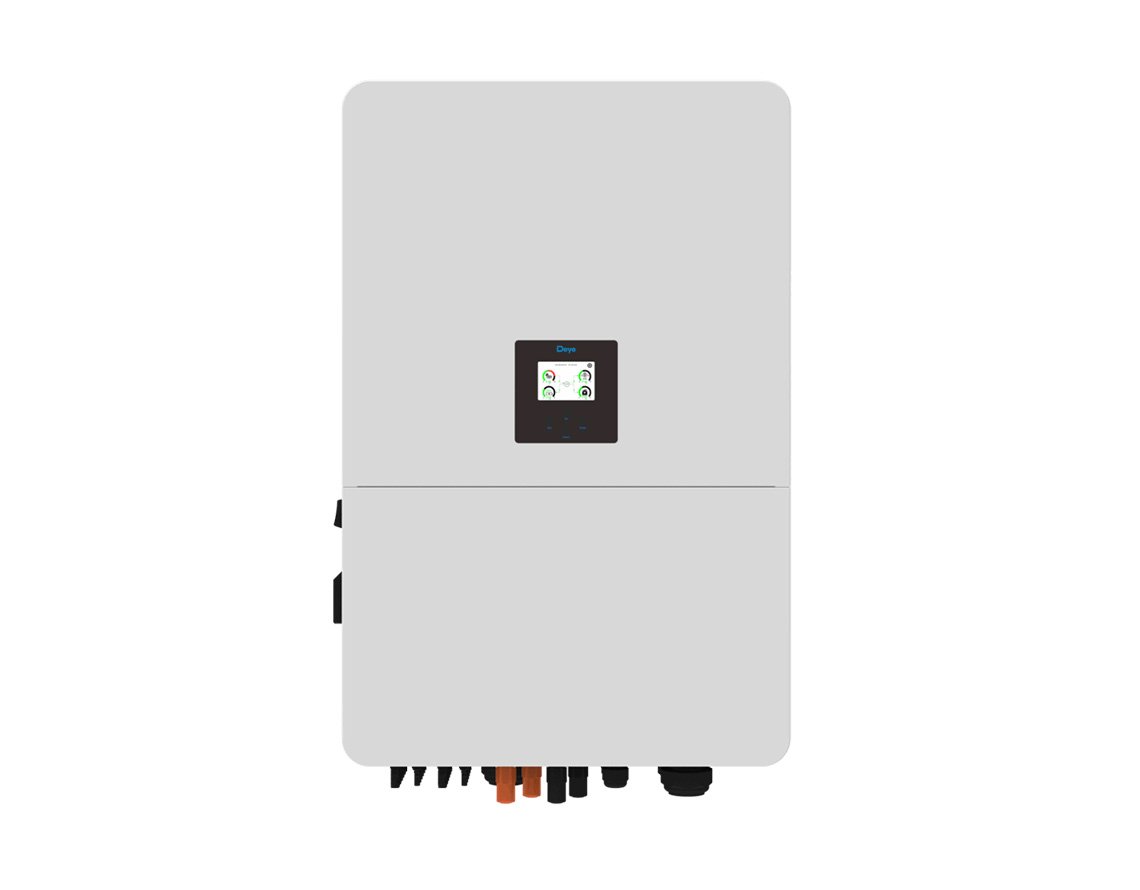

75KW Solar Power System Inverter
Integrated MPPT charger controller
Inverter Power: 75kW
Output Voltage: 3L/N/PE 220/380Vac 230/400Vac
Max Efficiency: 98.7%
Rated AC Output Power: 75kw
Communication:RS485/CAN
Protection Degree:lP65
Warranty:5 years

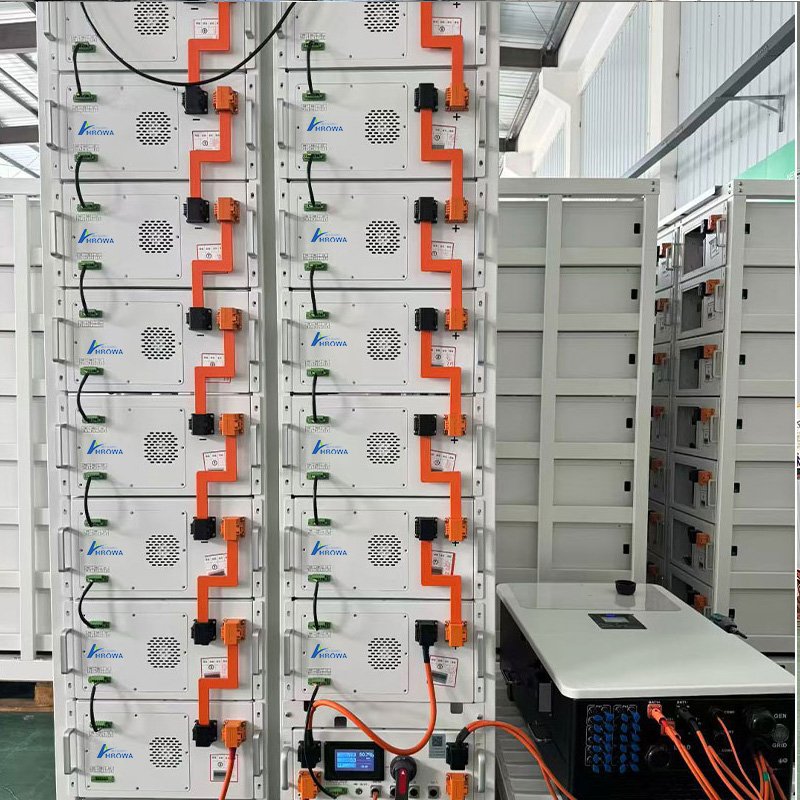

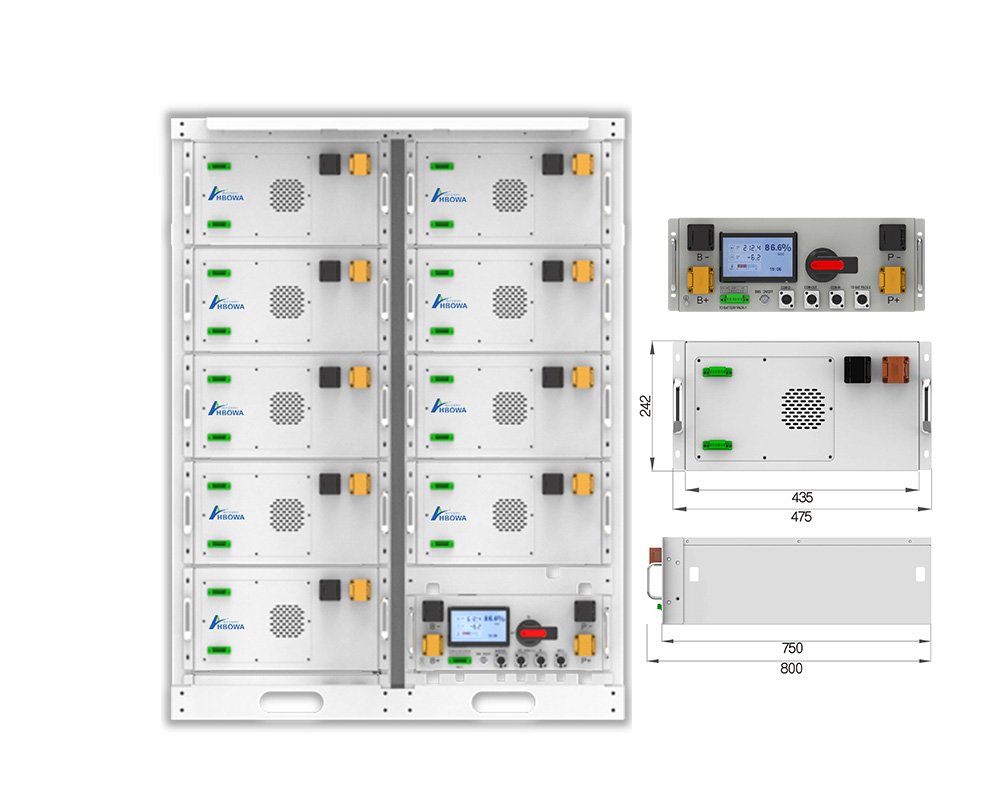

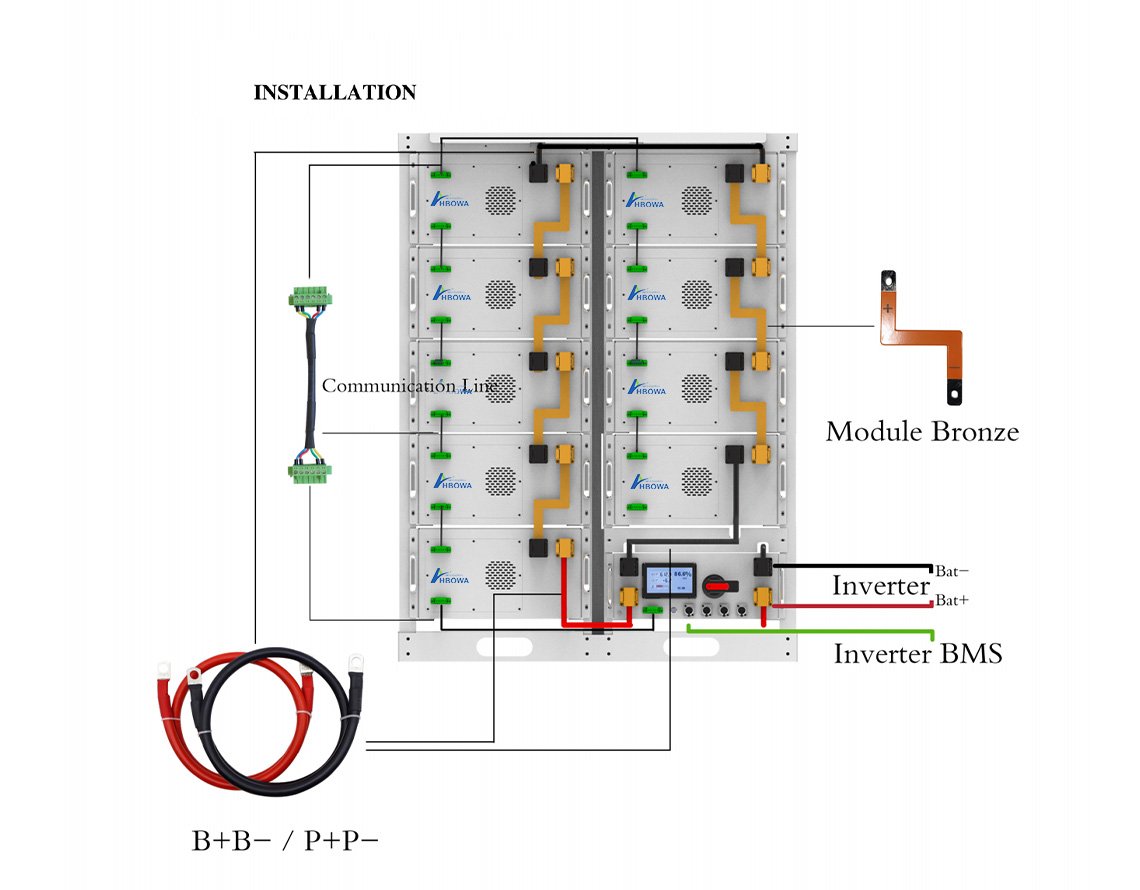

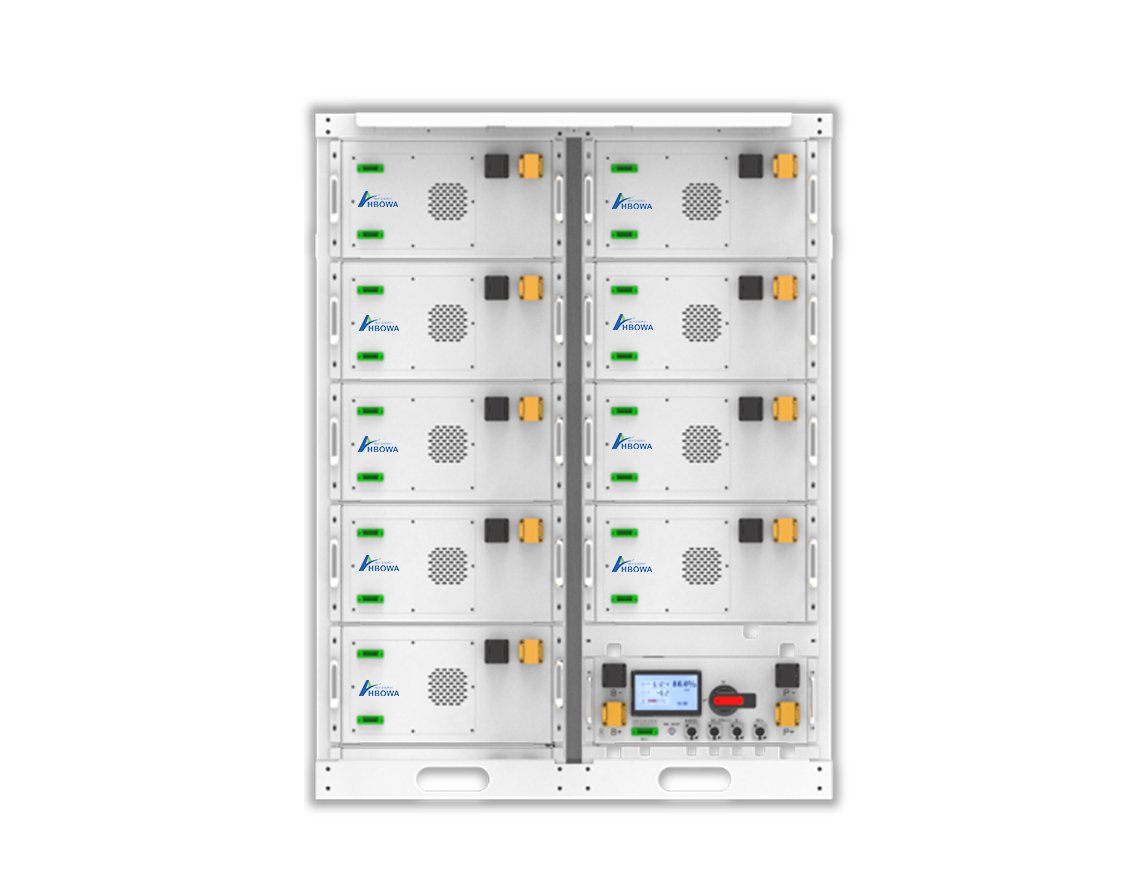

Rack Battery 144kWh LiFePO4
Battery Type: High Voltage LiFePO4 144 kWh
Cycle Time: More than 6000 times
High energy density, High Voltage
Installation type: Rack Mounted
Communication:RS485/CAN
Warranty: 5-10 years
Certificates: CE, MSDS, UN38.3, CNAS
Mounting Structure for Solar Panel
Our solar mounting structure of the 75KW solar power system offers a robust and versatile solution.
- Ground solar mounting structure
- Residential roof mounting structure
- Vertical wall solar mounting system
- All aluminum solar mounting system
Solar System Accessories
* Combiner box with voltage resistance of 500V;
* PV single core cable 4m㎡,6m㎡,10m㎡ etc;
* MC4 connectors, rated voltage:1500VDC.
* DC switches, AC breaker

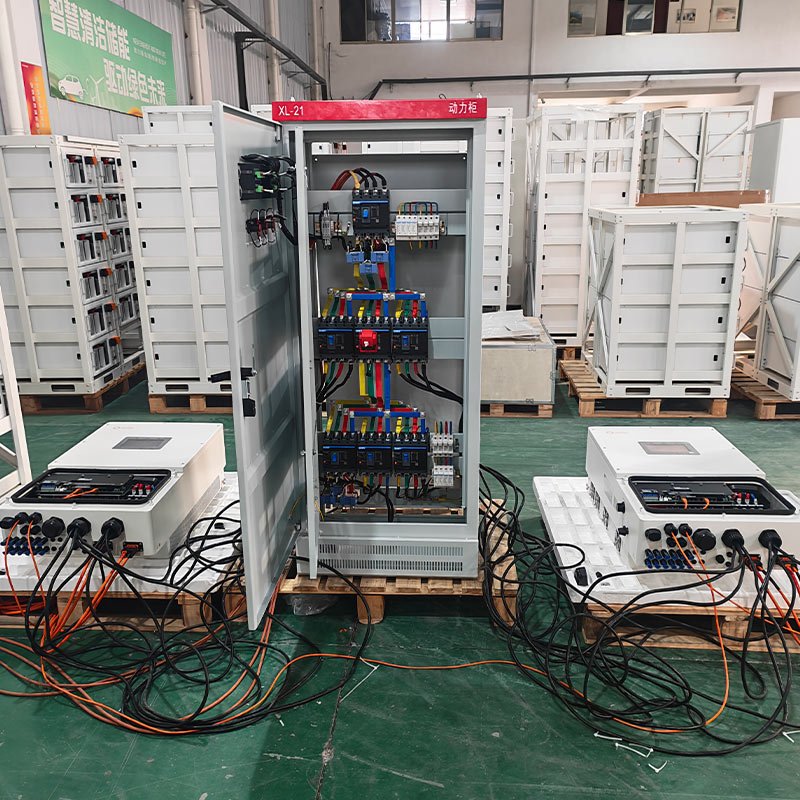

75KW Hybrid Solar Power System Details
- Detailed Images
- Battery Packs
- Certificates
- Packaging Show
