5500W Off Grid Solar Inverter Single Phase
System Type: 5.5KW solar inverter Single phase
Model Number: HBOWA GST48-5500 VII
Output Voltage:220V 230 V 240V AC 50/60HZ
Output power:5500W
Inverter: Pure sine wave AC output
Built-in 100A MPPT solar charger
Warranty: 3 year
Inverter DatasheetDescription
GST48-5500 VII series off grid solar inverter 5500w single phase is a all in one solar charge inverter, which integrates solar energy storage and utility charging energy storage function together. The inverter has high response speed, high reliability and high industrial standard. The inverter can connect to the utility grid if there is grid on end users’ area, and the grid can charge the battery via the inverter. Perfect hardware and software protection function can display the fault type for easy removal.
Technical Data
- Solar Inverter
| MODEL | GST48-5500 VII |
| Inverter Output | |
| Rated output power | 5500W |
| Rated output power | 5500VA |
| Maximum Peak Power | 10000W |
| Load Capacity with Motors | 4HP |
| Rated AC Output | 230 Vac (200 / 208 / 220 / 240 Vac), 50 / 60Hz |
| Output Voltage Waveform | Pure Sine Wave |
| Inverter and Bypass Switching Time | 10ms (typical) |

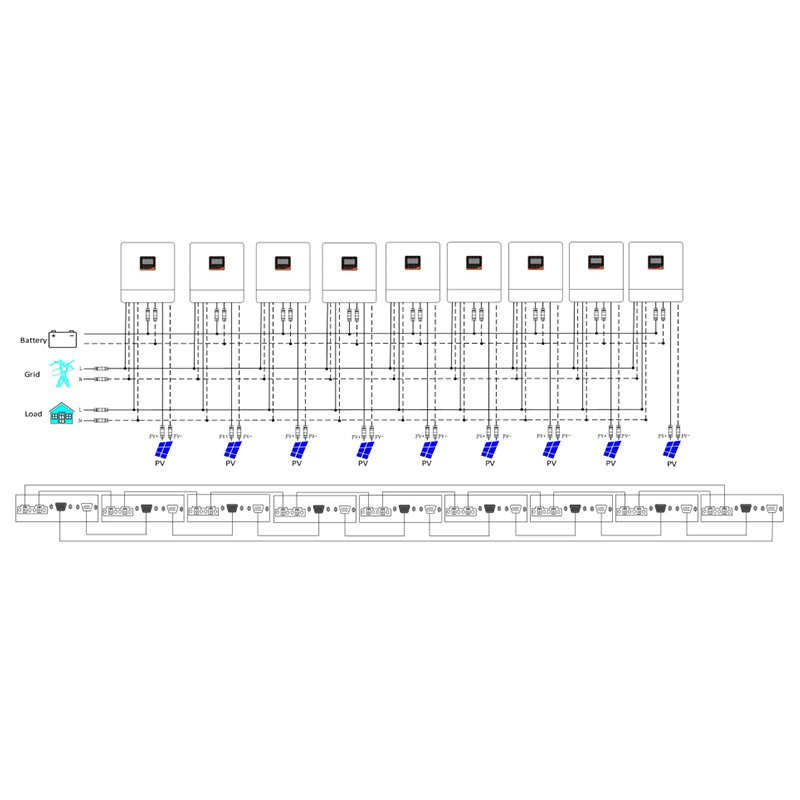

| Parallel Capacity | 9 |
| Maximum Battery Inverter Efficiency | 93% |
| BATTERY | |
| Battery Type | Lithium / Lead-acid / User Defined |
| Rated Battery Voltage | 48Vdc |
| Battery Voltage Range | 40-60Vdc |
| Max.MPPT Charging Current | 100A |
| Max.Mains Charging Current | 60A |
| Max.Hybrid Charging Current | 100A |
| Charging current error | ±3Adc |
| Charging Short Circuit protection | Blown Fuse |
| PV CHARGING | |
| PV CHARGING | 1 |
| Max. PV array power | 5500W |
| Max. PV input current | 22A |
| Max. Open Circuit Voltage | 145Vdc |
| MPPT Voltage Range | 120-450Vdc |
| MPPT Tracking Efficiency | 99.90% |
| Ingress Protection | IP20 |
| MAINS INPUT | |
| Input Voltage Range | 90-280Vac/170-280Vac |
| Frequency Range | 50/60Hz |
| Output Short Circuit Protection | Circuit breaker |
| Bypass Overload Current | 40A |
On Off Grid Inverters Details
Features
Mainly divided into three functional areas:
LCD screen,
LED display area,
Key area.
Remote Control
Remote Wifi/GPRS for option.
