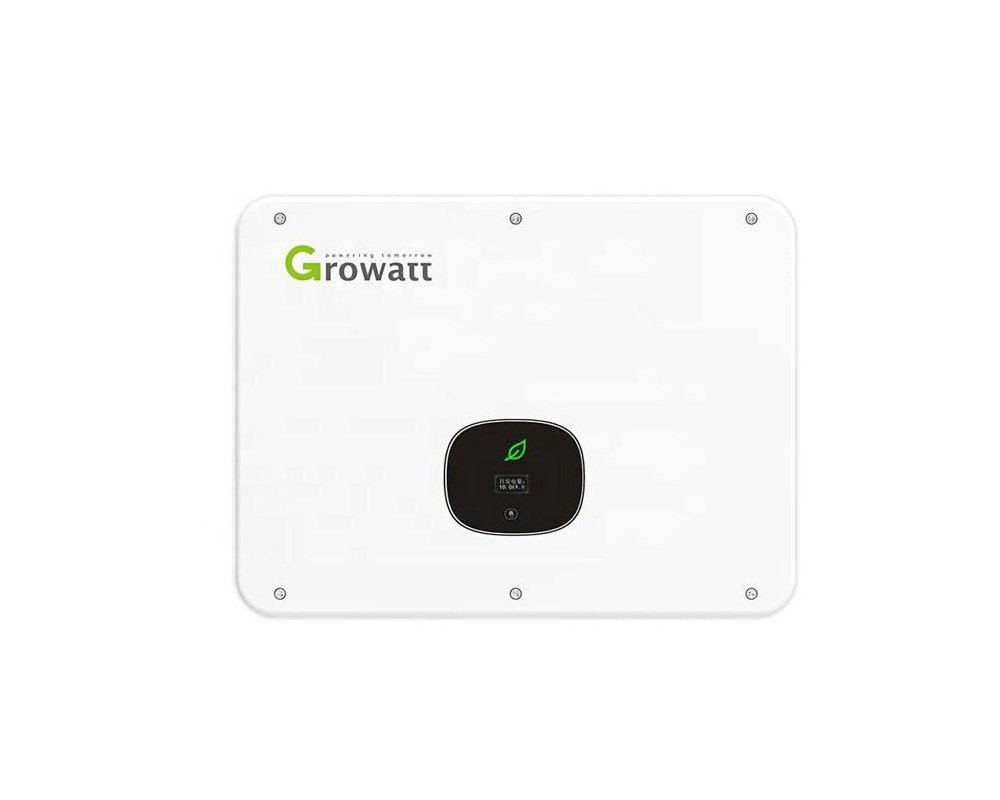

Growatt MID 20KTL3-X PV 15KW-25KW Inverter
Model Number:Growatt MID 20KTL3-X, MID 15-25KTL3-X
Output Voltage:220V/400VAC, 340-440V
Max DC voltage: 1100V
Rated Output Power: 15KW – 25KW
Number of MPPT trackers: 2MPPT
AC Connection: Three phase
Max Efficiency:98.75%
Warranty: 5 years
Fast Shipping: from the warehouse in Germany
Place of Origin: China
Description
This is the Growatt commercial and industrial PV inverter MID 20KTL3-X model, 3 phase inverter with dual MPPT trackers, the maximum efficiency can reach up to 98.75%, type II SPD on DC and AC sides and AFCI function for safety and reliability, support up to 6 sets in parallel for capacity extension. The intelligent string monitoring platform of the on grid solar inverter manages the status of the inverter wherever you are and whatever you want. We also have on grid inverter models such as MID 15KTL3-X, MID 17KTL3-X, MID 20KTL3-X, MID 22KTL3-X, MID 25KTL3-X in stock. They are all suitable for residential and commercial solar systems.
Storage Environment:
If you want to store the inverter in the warehouse, you must choose a suitable location for the Growatt on grid inverter.
* Equipment must be stored in its original packaging.
* Storage temperature should always be between -25 ° C and + 60 ° C, storage relative humidity is less than 90%.
* If you need to store a batch of inverters, the maximum number of layers in the original carton is 4.
Technical Data
- Growatt MID 20KTL3-X
| Datasheet | MID 17KTL3-X | MID 20KTL3-X | MID 25KTL3-X |
| Input data (DC) | |||
| Max. recommended PV power (for module STC) | 25500W | 30000W | 37500W |
| Max. DC voltage | 1100V | ||
| Start Voltage | 250V | ||
| Normal Voltage | 580V | ||
| MPPT voltage range | 200V-1000V | ||
| No. of MPP trackers/strings per MPP tracker | 2/2 | 2/2 | 2/2 |
| Max.input current per MPP tracker | 27A | 27A | 27A/40.5A |
| Max. short-circuit current per MPP tracker | 33.8A | 33.8A | 33.8A/50.7A |
| Output data (AC) | |||
| Rated AC output power | 17000W | 20000W | 25000W |
| Max. AC apparent power | 18800VA | 22000VA | 27700VA |
| Nominal AC voltage(range*) | 230V/400V; 340-440V | ||
| AC grid frequency;(range*) | 50/60 Hz; 45~55Hz/55-65 Hz | ||
| Max. output current | 27.4A | 31.9A | 40.2A |
| Adjustable power factor | 0.8 leading – 0.8 lagging | ||
| THDi | ＜3% | ||
| AC grid connection type | 3W+N+PE | ||
| Efficiency | |||
| Max.efficiency | 98.75% | ||
| European efficiency | 98.60% | ||
| MPPT efficiency | 99.90% | ||
| General data | |||

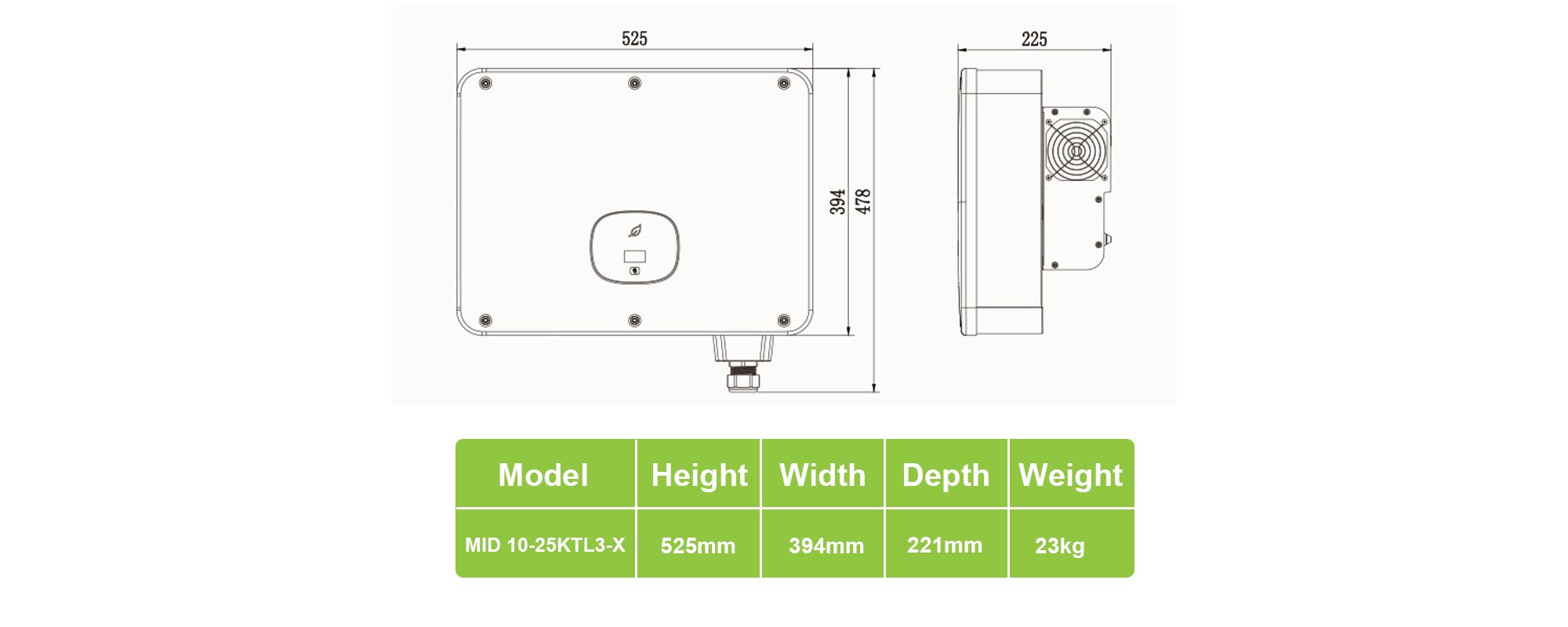

| Dimensions (W / H / D) | 525/395/222mm | ||
| Weight | 23kg | ||
| Operating temperature range | –25 °C … +60 °C | ||
| Self-Consumption (night) | <1W | ||
| Topology | Transformerless | ||
| Cooling | Smart air cooling | ||
| Protection degree | IP65 | ||
| Relative Humidity | 0~100% | ||
| Altitude | 4000m | ||
| DC connection | H4/MC4(Optional) | ||
| AC connection | Cable gland+OT terminal | ||
| Display | OLED+LED/WIFI+APP | ||
| Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN | Yes/Yes /Optional/Optional/Optional/Optional | ||
| Warranty: 5 years | Yes | ||
| CE, VDE0126, Greece, EN50549-1, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, G98/G99, G100, KSC8565 | |||
Growatt MID 20KTL3-X
Features
- On grid PV solar inverter
- 3 phase with dual MPPT trackers
- Touch screen and OLED display
- Light weight and compact
- Built-in type II DC and AC sides
- Ground fault monitoring
- Support 6 units in parallel
- 5 Years warranty
- IP65 ingress protection rate
- Wifi remote monitoring
On Grid Inverter APP Monitoring
Growatt MID 20KTL3-X Detailed Show

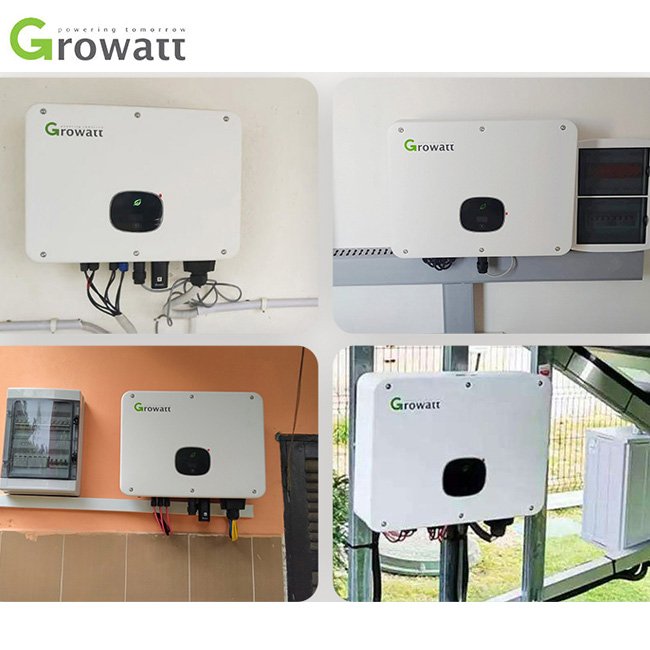

- Cases

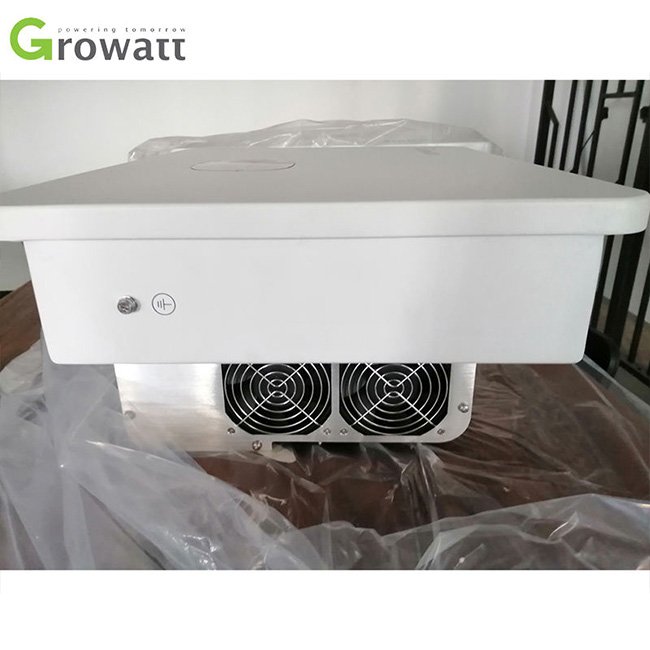

- Packing
