Growatt PV Inverter 3 Phase On Grid 3KW-15KW

Model Number: Growatt MOD 6000TL3-XH

Output Voltage:220V/380VAC, 230V/400V (340-440V)

Max DC voltage: 1100V

Number of MPPT trackers: 2MPPT

Power: 3KW-15KW available

Max Efficiency:98.6%

Warranty: 5 years

Fast Shipping: from the warehouse in Germany

Place of Origin: China

Growatt Inverter Datasheet

PRODUCT DETAILS

Send Your Inquiry

Description
Technical Data
Details
Cases
Download
Top

Description

Growatt PV inverter MOD 6000TL3-XH is the residential on grid 3 phase pv inverter that can connect to the utility grid, supply the electricity power to the load on the one way, and send excessive power to the grid to earn the electricity fee. The Growatt PV inverter is also designed with a battery interface, which can connect the battery for the energy storage use in the future with no need for other devices anymore.

Growatt PV inverter MOD 6000TL3-XH is the latest version 3 phase grid tie inverter, with a maximum efficiency of 98.6%, and smart control by wifi on the phone to see the whole solar system status. The warranty for the on grid solar inverter is 10 years. Growatt MOD-XH solar inverter series has various models such as MOD 3000TL3-XH, MOD 4000TL3-XH, MOD 5000TL3-XH, MOD 6000TL3-XH, MOD 7000TL3-XH, MOD 8000TL3-XH, MOD 9000TL3-XH, MOD 10000TL3-XH for your diverse residential power needs.

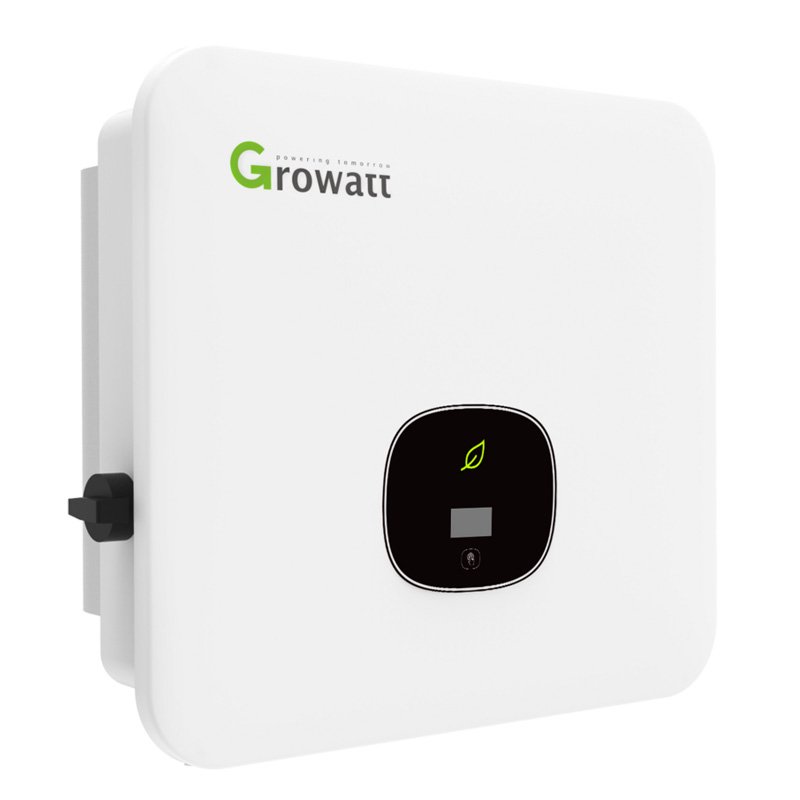

growatt pv inverter 3 phase pv inverter

Technical Data

Growatt PV Inverter

Europe Popular Growatt Hybrid Solar inverter MOD 3000TL3-XH~MOD 6000TL3-XH~MOD 10000TLX-XH
Datasheet	MOD 3000TL3-XH	MOD 4000TL3-XH	MOD 5000TL3-XH	MOD 6000TL3-XH	MOD 7000TL3-XH	MOD 8000TL3-XH	MOD 9000TL3-XH	MOD 10000TL3-XH
Input Data（DC)
Max Input PV Power	6000W	8000W	10000W	12000W	14000W	16000W	18000W	20000W
Max DC Voltage	1100V
Start Voltage	160V
Nominal Voltage	600V
MPPT Range	140V~1000V
NO. of MPPT Voltage	2
NO.of PV String per MPPT	1
Max Input Current per MPPT	16A
Input Data（DC Battery）
Compatible Battery	ARK XH Battery System(7.68kWh-25.6kWh)
Operating battery range	600V~950V
Max operating current	11A				18.5A
Max charge power	6000W				10000W
Max discharge power	3300W	4400W	5500W	6600W	7700W	8800W	9900W	11000W
Output Data（AC)
AC Nominal Power	3000W	4000W	5000W	6000W	7000W	8000W	9000W	10000W
AC Voltage	220V/380V,230V/400V (340V~440V)
AC Frequency	50/60HZ
Max Output Current	5.0A	6.7A	8.3A	10.0A	11.7A	13.3A	15.0A	16.7A
AC grid type	3W+N+PE
Protection devices
DC reverse polarity protection/DC Switch/AC/DC surge protection/Insulation resistance monitoring/AC short-circuit protection/Ground fault monitoring/Grid monitoring/Anti-islanding protection/String fault monitoring.AFCI protection Optional
General Data
Dimension	425/387/147mm	425/387/147mm	425/387/147mm	425/387/147mm	425/387/178mm	425/387/178mm	425/387/178mm	425/387/178mm
Weight	12.5kg	12.5kg	12.5kg	12.5kg	14kg	14kg	14kg	14kg
Temperature range	–25°C … +60°C
Topology	Transformerless
Cooling	Natural convection
Protection degree	IP66
Display	OLED+LED/WIFI+APP
USB/RS485/WiFi	Yes
Warranty	5 Years

Growatt PV Inverter Details

Future-Proof Battery Ready Solution

* 3 phase power solar inverter

* 2X power battery ready

* Maximum efficiency up to 98.6%

* AFCI & Type II SPD protection

* Easy extension to the smart home system

* Battery interface supported for later energy storage

Features

Off Grid Inverter

* The open station enables one-click installation and registration, facilitating quick and effortless setup.

* In case of problems, one-click dispatch and navigation are available, streamlining the troubleshooting process.

* It ensures safe operation with traceable logs, enhancing system transparency and manageability.

* Full lifecycle data storage is supported to guarantee the security and reliability of data, safeguarding valuable information of the Growatt PV inverter.
