Longi Solar Panels 450W Monocrystalline
Model: Longi LR5-54HTH
Cell Orientation: 108(6*18) cells
Power Range:445-455W
Glass: single glass
Certification: CE, TUV
Lead Time:7-10 days
Warranty: 25 Years
MOQ: One pallet 36 pieces
Longi Hi-Mo 6 LR5-54HTH 445-455W Solar Panel DatasheetDescription
Long solar panels 450W series are business-ready, half-cut mono modules that deliver strong energy yield in a compact, single-glass format. They come positively power-sorted for dependable output, use coated tempered glass, an anodized aluminum frame, and an IP68 junction box with three bypass diodes for robust performance in harsh climates. Low year-over-year degradation with a long power warranty keeps lifetime production stable, while high-voltage system compatibility, proven wind/snow and hail resistance, and palletized packaging streamline installation and logistics for scale deployments. Choose Long solar panels 450W for bankable quality and container-level supply on your schedule.
- Mechanical Parameters
- Operating Parameters
| Item | Specification |
|---|---|
| Cell Orientation | 108 (6×18) |
| Junction Box | IP68, three diodes |
| Output Cable | 4 mm², ±1200 mm; length can be customized |
| Glass | Single glass, 3.2 mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 20.8 kg |

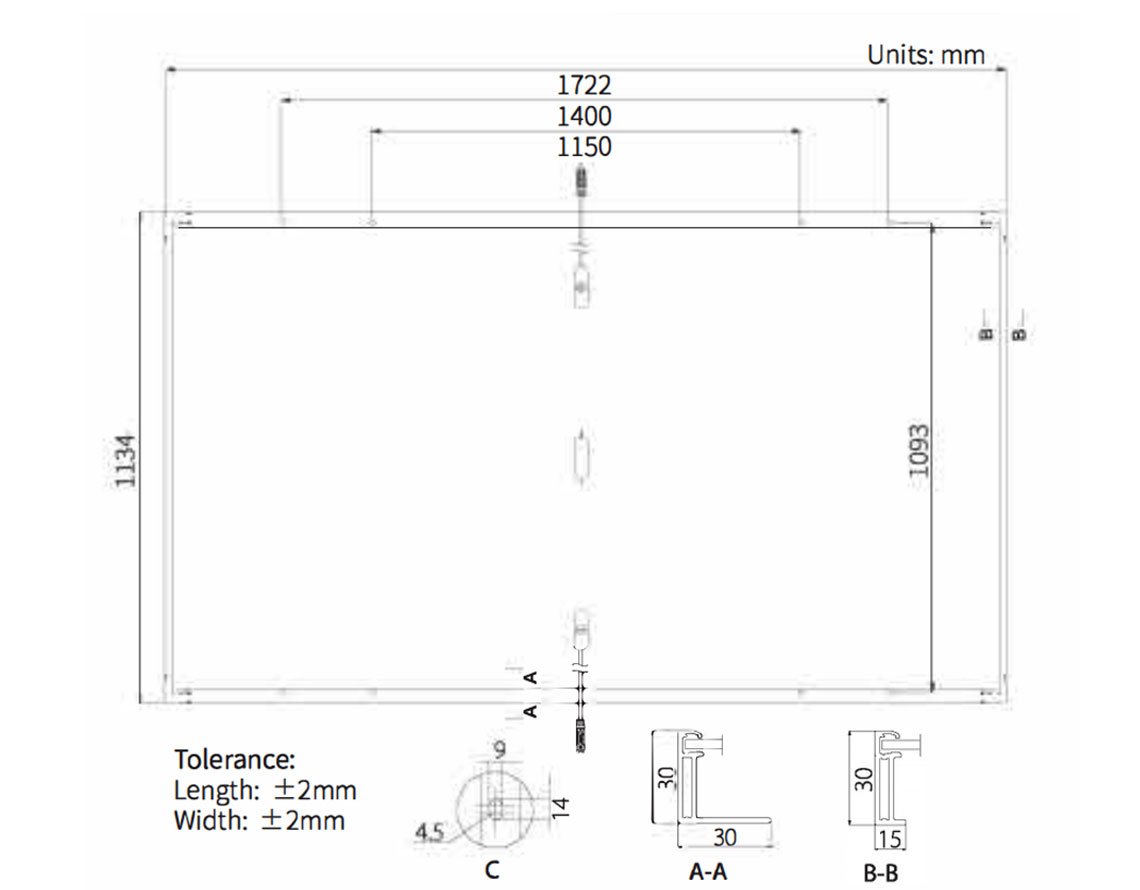

| Dimension | 1722 × 1134 × 30 mm |
| Packaging | 36 pcs per pallet / 216 pcs per 20’ GP / 936 pcs per 40’ HC |
| Item | Specification |
|---|---|
| Operational Temperature | −40 °C to +85 °C |
| Power Output Tolerance | 0–3% |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC 1500 V (IEC/UL) |
| Maximum Series Fuse Rating | 25 A |
| Nominal Operating Cell Temperature | 45 ± 2 °C |
| Protection Class | Class II |
| Fire Rating | UL type 1 or 2; IEC Class C |
