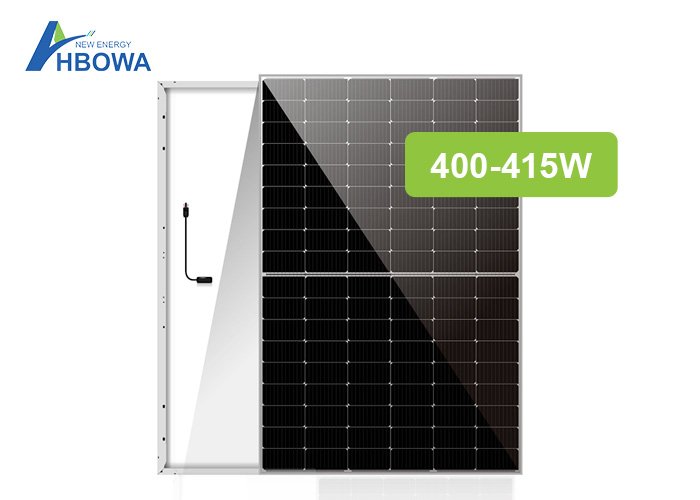

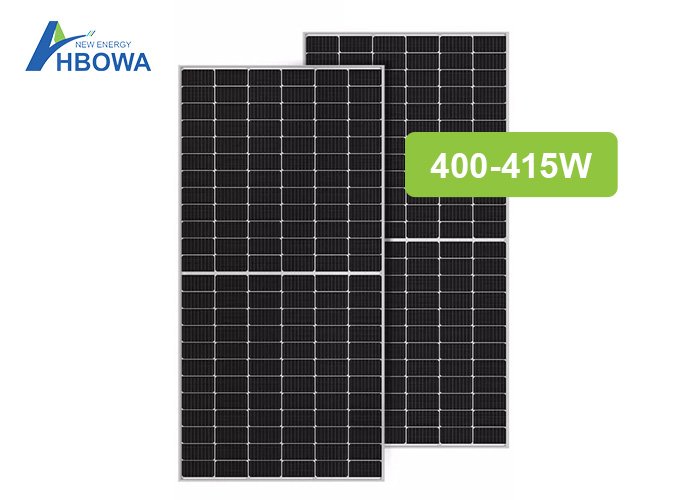

400W-415W PERC Mono-facial Solar Panel
Solar cell: PERC 182mm mono 108 cells
Power range: 400-415 watt
Certificate: CE/TUV/ISO
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 36 pieces
400W Solar Panel Datasheet
Description
This is the PERC solar panel type mono-facial single glass solar module, the max conversion efficiency is up to 21.25%, and the maximum power is 415W, with a 12-year product warranty, and a 30-year linear power warranty. The glass type is 3.2mm, anti-reflection coating, high transmission, and tempered. HBOWA, as an experienced solar panel manufacturer, can process PERC, TOPCon, HJT, single glass, bifacial dual glass, and full black glass versions to support your solar business. We also support OEM and ODM service, feel free to contact us for detailed discussions.
Technical Data
- ELECTRICAL DATA
| Module Type | GPM-400W(108) | GPM-405W(108) | GPM-410W(108) | GPM-415W(108) |
| Maximum Power (Pmax) | 400Wp | 405Wp | 410Wp | 415Wp |
| Maximum Power Voltage (Vmp) | 31.01V | 31.20V | 31.44V | 31.56V |
| Maximum Power Current (Imp) | 12.90A | 12.98A | 13.04A | 13.15A |
| Open-circuit Voltage (Voc) | 37.05V | 37.20V | 37.35V | 37.50V |
| Short-circuit Current (Isc) | 13.60A | 13.65A | 13.70A | 13.85A |
| Module Efficiency STC (%) | 20.48% | 20.74% | 21.00% | 21.25% |
| STC: Iradiance 1000W/m²,Cell Temperature 25°C, Air Mass AM1.5 | ||||
Advantages
PERC Mono Half Cells
* PERC Half Cells
* Higher Power Output
* Less Shading Effect
* Appearance Consistency
Frame for Solar Panel
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
Junction Box
*Long service life
*Heat dissipation
*lP68 protection level
*Connector MC4 compatible
*Quality diode ensures module running safety
Detailed Show
- Process
