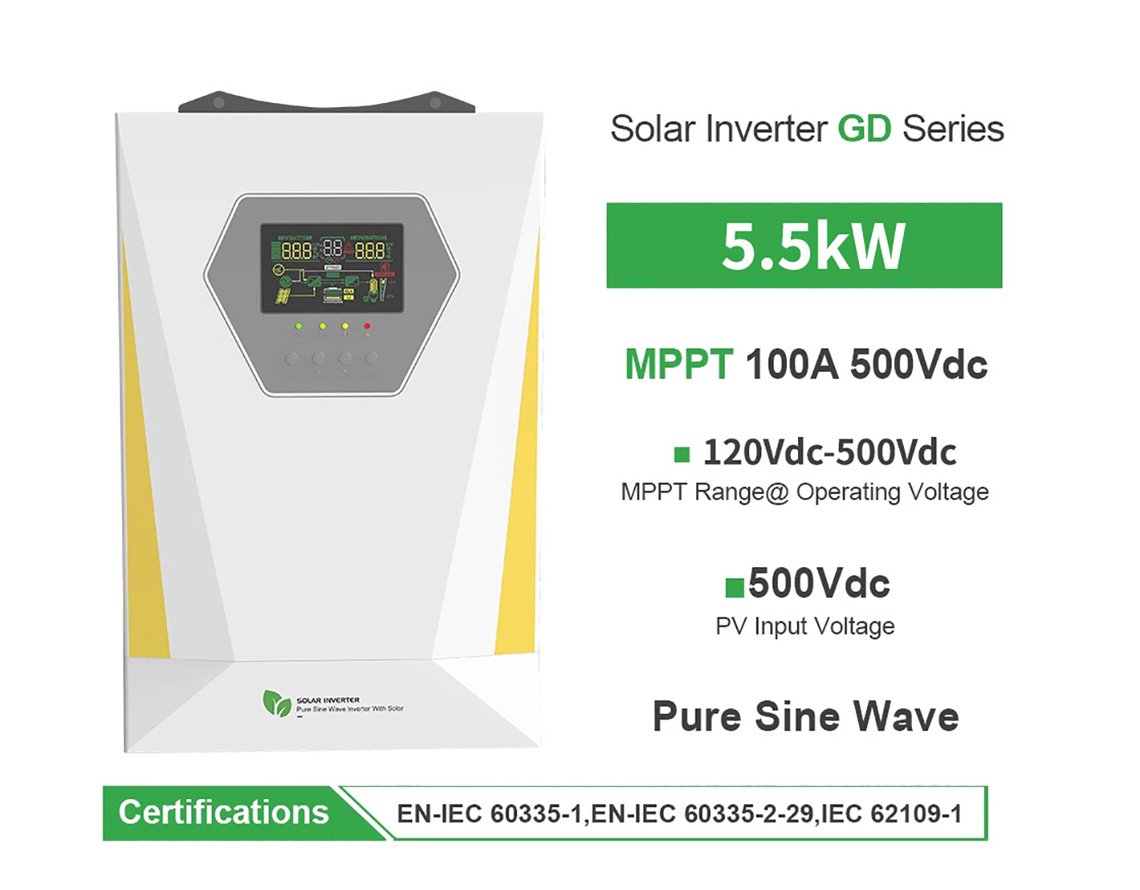

5kw Off Grid Inverter
Name: 5KW off grid inverter Single phase
Model Number: GD5548JMH
Output Voltage: 220/230/240VAC ± 5%
Battery Voltage Support: 24V/48V
Max PV Input: 5500W
MPPT Tracking Range: 120V-500VDC
Support Max. 9 Units Connection in Parallel
Inverter DatasheetDescription
As 5kw off grid solar inverter supplier, HBOWA provides you with high efficient, durable, and reliable solar inverters. 5KW off grid inverter has a compact design, supports lithium battery auto start function, it is adaptable for various home appliance loads such as air conditioners, ovens, refrigerators, fans, lights, etc with high efficient conversion. Parameters can be set on the concise control panel of the off grid inverter, easy to operate and manage. 5kw off grid solar inverter can be connected in parallel, maximum Number is 9 units, can work without batteries in the whole energy system. WIFI monitoring functions are available for intelligent operation.
Technical Data
- 5kw Off Grid Inverter
| Model | GD3024JMH | GD3624JMH | GD5548JMH | GD6248JMH | GD11048MH |
| Input Formation | L+N+PE | ||||
| AC Input | 220/230/240VAC | ||||
| Input Voltage Range | 90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode) | ||||
| Frequency | 50/60Hz (Adaptive) | ||||
| Rated Power | 3000w | 3600W | 5500W | 6200W | 11000w |
| Output Voltage | 220/230/240VAC ± 5% | ||||
| Output Frequency | 50/60HZ ± 0.1% | ||||
| Output Wave | Pure Sine Wave | ||||
| Transfer Time (Adjustable) | 10ms for Computer Equipment, 20ms for Household Equipment | ||||
| Peak Power | 6000VA | 7200VA | 11000VA | 12400VA | 22000VA |
| Overload Ability | Battery Mode: 21s@105%~150%Load 11s@150%~200%Load 400ms@>200%Load | ||||
| Rated Voltage | 24VDC | 48VDC | |||
| Constant Charging Voltage (Adjustable) | 28.2VDC | 56.4VDC | |||
| Float Charging Voltage (Adjustable) | 27VDC | 54VDC | |||
| PV Charging Method | MPPT | MPPT*2 | |||
| Max PV Input | 4200W | 5500W | 6200W | 2x5500W | |
| MPPT Tracking Range | 120~500VDC | 120-500VDC | 120-500VDC | 90-500VDC | |
| Best VMP Working Range | 300~400VDC | 300~400VDC | 300-400VDC | 300-400VDC | |
| MAX PV Input Voltage | 500VDC | 500VDC | 500VDC | 500VDC | |
| MAX PV Input Current | 18A | 18A/18A | |||
| MAX PV Charge Current | 100A | 100A | 100A | 100A | 150A |
| MAX AC Charge Current | 60A | 80A | 60A | 80A | 150A |
| MAX Charge Current | 100A | 120A | 100A | 120A | 150A |
| LCD | Can display operating mode/load/input/output | ||||
| RS232 | 5PIN/Pitch 2.54mm, Baud Rate 2400 | ||||
| Expansion Slot Communication Interface | 2x5PIN/Pitch 2.54mm, Lithium Battery BMS Communication Card, WIFI 2x5PIN/Pitch2.54mm | ||||
| Operating Temperature | -10℃~50℃ | ||||
| Storage Temperature | -15℃~60℃ | ||||
| Ork Altitude | No more than 1000m, If 1000m<, Rate power will lower, MAX 4000m, Refer to IEC62040 | ||||
| Operating Environment Humidity | 20%~95% Non Condensing | ||||
| Noise | ≤50db | ||||
| L*W*H(mm) | 495*312*146mm | 570*500*148mm | |||
| Standards and Certifications | EN-IEC 60335-1, EN-IEC60335-2-29, EC62109-1 | ||||
Off Grid Inverters Details
Solar Inverter Features
- Pure sine wave, off grid inverter 5KW;
- Compact design, light in weight
- Support working without battery;

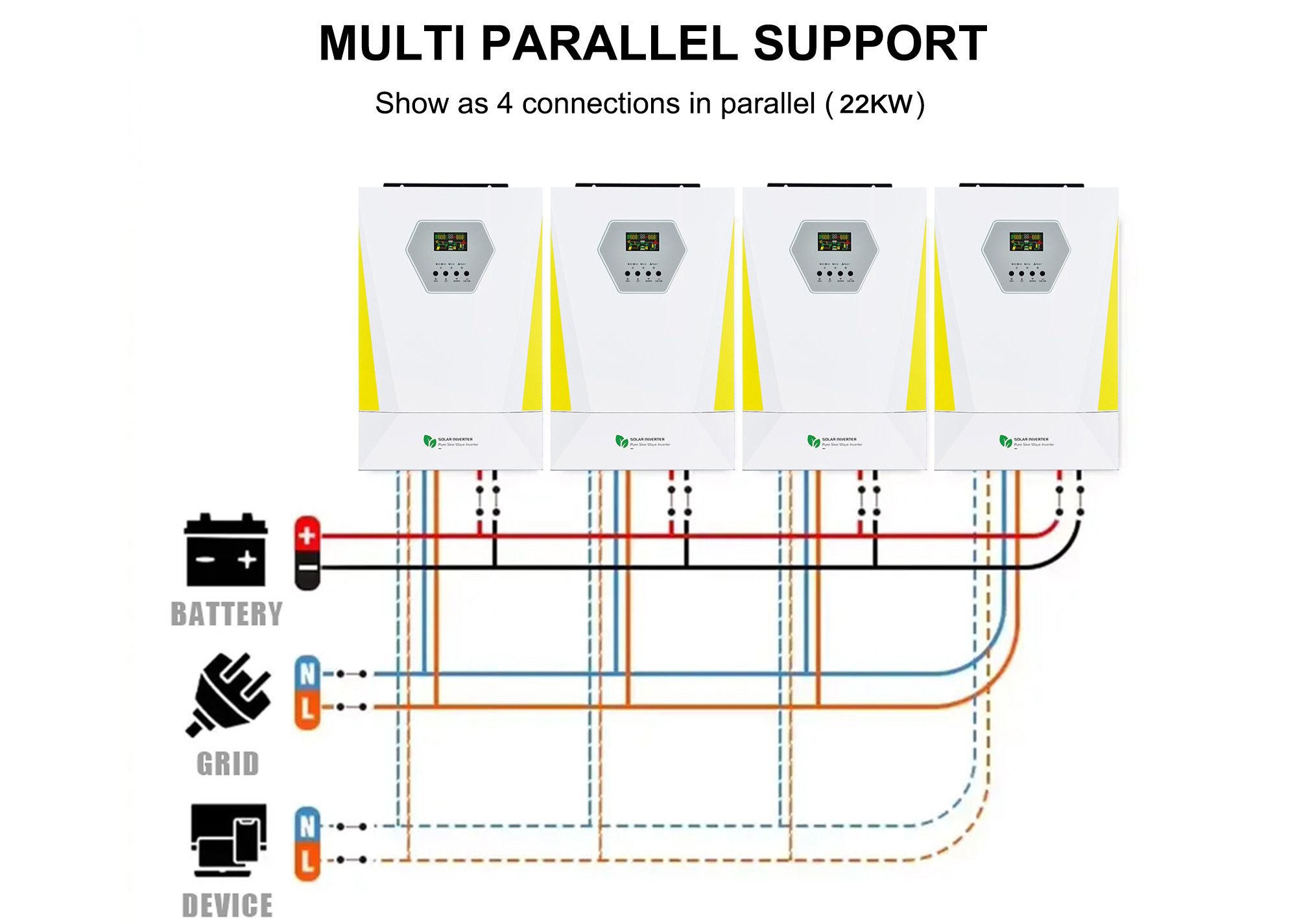

- Parallel connection maximum 9 units;
- High precision of output voltage 5%;
- Communication option: external WIFI;
- BMS function for lithium lifepo4 battery
- LCD displays operating mode, load, input, output, etc. data
Without Batteries
The high quality 5kw off grid inverter can support working without battery, the power source from the wind system, solar modular, and generators generate electricity, and transfer it to the 5kw off grid inverter, and the inverter converts the DC into the AC, the output efficiency rate can reach ±3%.
Safe and Secure
5KW off grid solar inverter has layer and layer protection systems, such as shirt-circuit protection, high/low temperature protection, overload protection, overcurrent protection, voltage protection, reverse-connection protection, and so on, providing you safe and secure experience in power supply.
WIFI Function
5KW off grid solar inverters equipped with Wi-Fi functionality offer unparalleled convenience and control. They enable real-time monitoring through both mobile devices and computers, ensuring you stay informed anywhere, anytime. With user-friendly interfaces and remote access capabilities, the off grid inverters allow you to track energy generation, consumption, and storage efficiency effortlessly. Additionally, they provide alerts and system updates, helping you optimize performance and maintain reliability in your off-grid setup.
Detailed Show
- China 5kw Off Grid Inverter
