6kw Off Grid Inverter
Name: 6KW off grid inverter Single phase
Model Number: GD6248JMH
Output Voltage: 220/230/240VAC ± 5%
Battery Voltage Support: 48V
Max PV Input: 6200W
Max PV Input Current: MPPT 100A

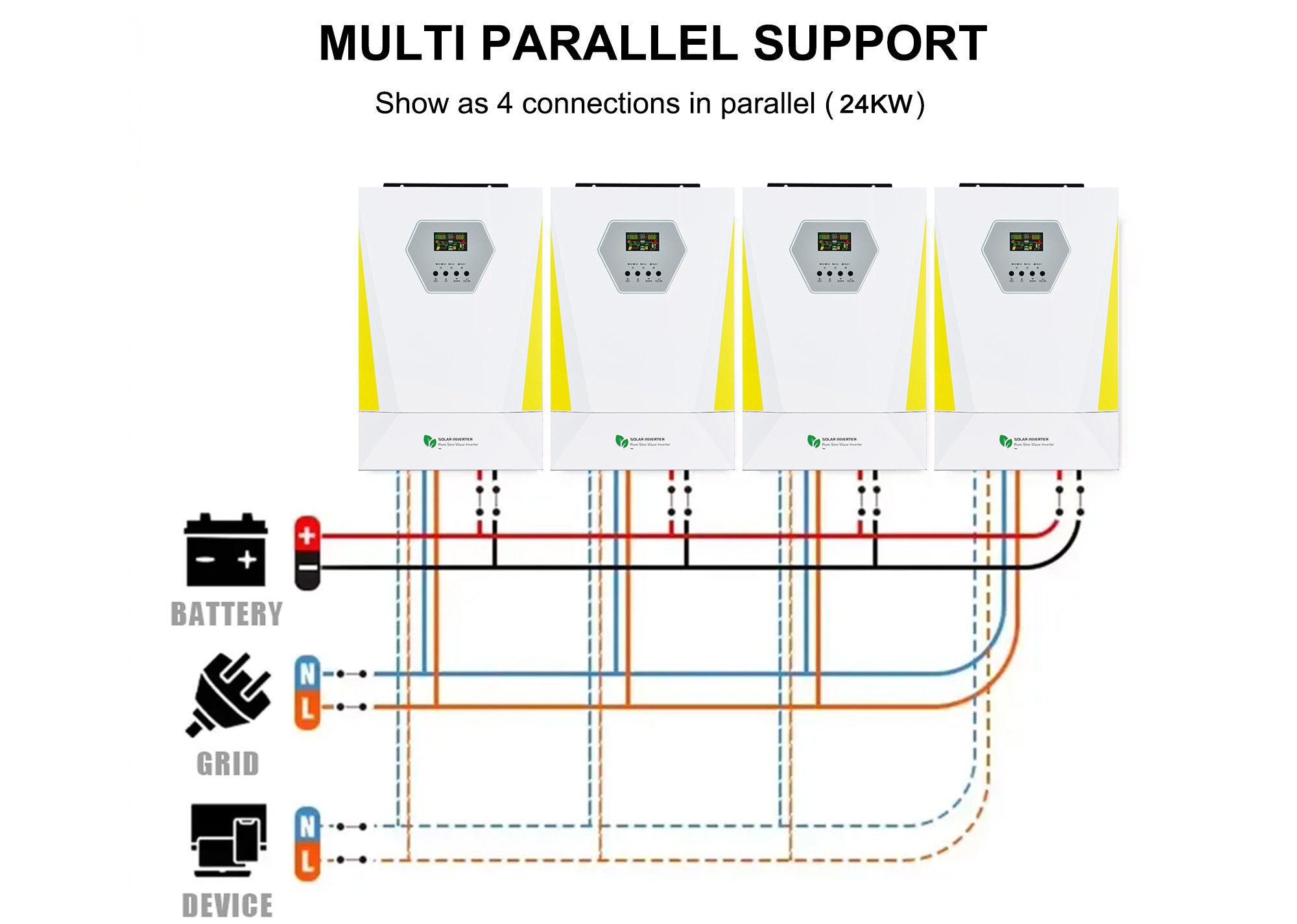

Support Max. 9 Units Connection in Parallel
Inverter DatasheetDescription
The high-frequency 6kw off grid inverter with a built-in MPPT and pure sine wave design is an all-in-one powerhouse for off-grid systems. It offers exceptional energy efficiency with up to 98% conversion rate, providing stable voltage output, even under heavy loads. Its advanced features include lightweight construction, high compatibility with various systems, and lithium battery auto-start functionality. Supporting battery-free operation, parallel connection for multiple units, and optional Wi-Fi monitoring, it ensures unparalleled flexibility and control. This 6kw off grid inverter is ideal for both residential and commercial applications seeking reliable, cost-effective solar solutions.
Technical Data
- 6kw Off Grid Inverter
| Model | GD3024JMH | GD3624JMH | GD5548JMH | GD6248JMH | GD11048MH |
| Input Formation | L+N+PE | ||||
| AC Input | 220/230/240VAC | ||||
| Input Voltage Range | 90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode) | ||||
| Frequency | 50/60Hz (Adaptive) | ||||
| Rated Power | 3000w | 3600W | 5500W | 6200W | 11000w |
| Output Voltage | 220/230/240VAC ± 5% | ||||
| Output Frequency | 50/60HZ ± 0.1% | ||||
| Output Wave | Pure Sine Wave | ||||
| Transfer Time (Adjustable) | 10ms for Computer Equipment, 20ms for Household Equipment | ||||
| Peak Power | 6000VA | 7200VA | 11000VA | 12400VA | 22000VA |
| Overload Ability | Battery Mode: 21s@105%~150%Load 11s@150%~200%Load 400ms@>200%Load | ||||
| Rated Voltage | 24VDC | 48VDC | |||
| Constant Charging Voltage (Adjustable) | 28.2VDC | 56.4VDC | |||
| Float Charging Voltage (Adjustable) | 27VDC | 54VDC | |||
| PV Charging Method | MPPT | MPPT*2 | |||
| Max PV Input | 4200W | 5500W | 6200W | 2x5500W | |
| MPPT Tracking Range | 120~500VDC | 120-500VDC | 120-500VDC | 90-500VDC | |
| Best VMP Working Range | 300~400VDC | 300~400VDC | 300-400VDC | 300-400VDC | |
| MAX PV Input Voltage | 500VDC | 500VDC | 500VDC | 500VDC | |
| MAX PV Input Current | 18A | 18A/18A | |||
| MAX PV Charge Current | 100A | 100A | 100A | 100A | 150A |
| MAX AC Charge Current | 60A | 80A | 60A | 80A | 150A |
| MAX Charge Current | 100A | 120A | 100A | 120A | 150A |
| LCD | Can display operating mode/load/input/output | ||||
| RS232 | 5PIN/Pitch 2.54mm, Baud Rate 2400 | ||||
| Expansion Slot Communication Interface | 2x5PIN/Pitch 2.54mm, Lithium Battery BMS Communication Card, WIFI 2x5PIN/Pitch2.54mm | ||||
| Operating Temperature | -10℃~50℃ | ||||
| Storage Temperature | -15℃~60℃ | ||||
| Ork Altitude | No more than 1000m, If 1000m<, Rate power will lower, MAX 4000m, Refer to IEC62040 | ||||
| Operating Environment Humidity | 20%~95% Non Condensing | ||||
| Noise | ≤50db | ||||
| L*W*H(mm) | 495*312*146mm | 570*500*148mm | |||
| Standards and Certifications | EN-IEC 60335-1, EN-IEC60335-2-29, EC62109-1 | ||||
Off Grid Inverters Details

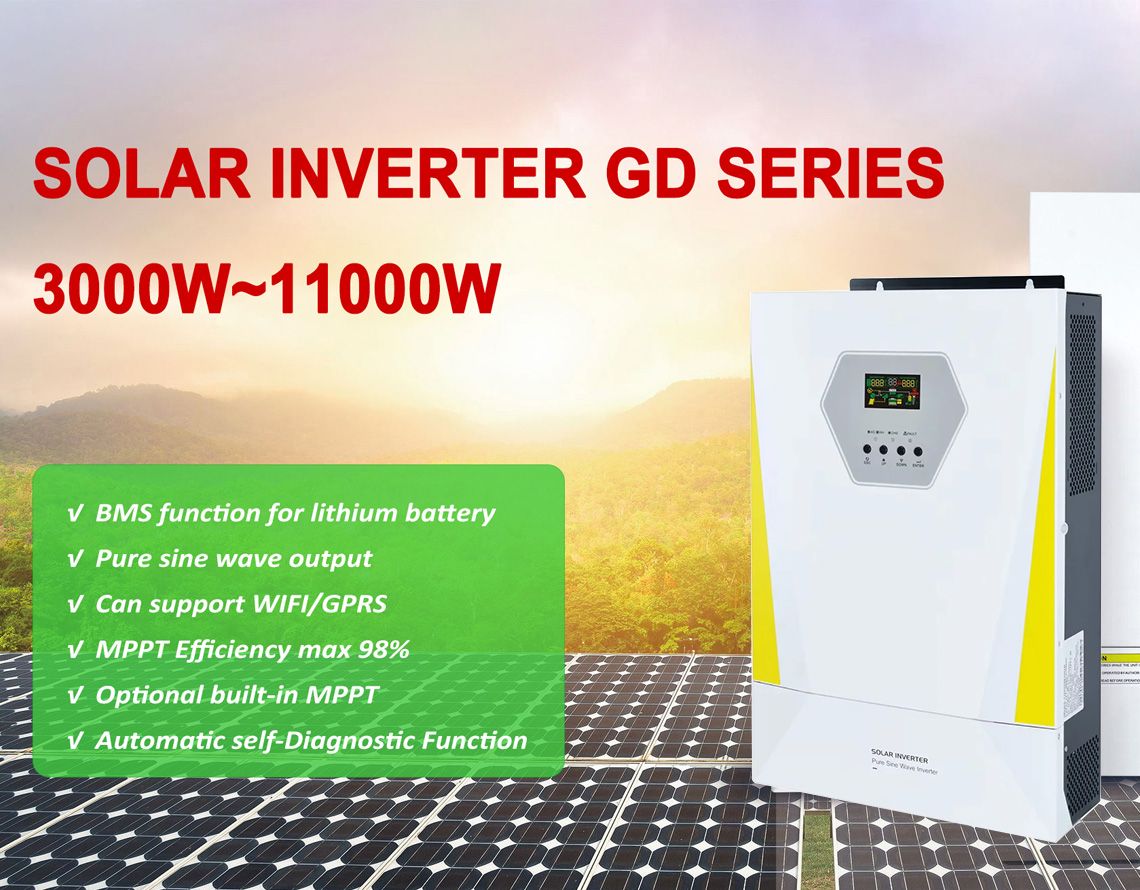

Solar Inverter Features
- Lithium battery auto-start function;

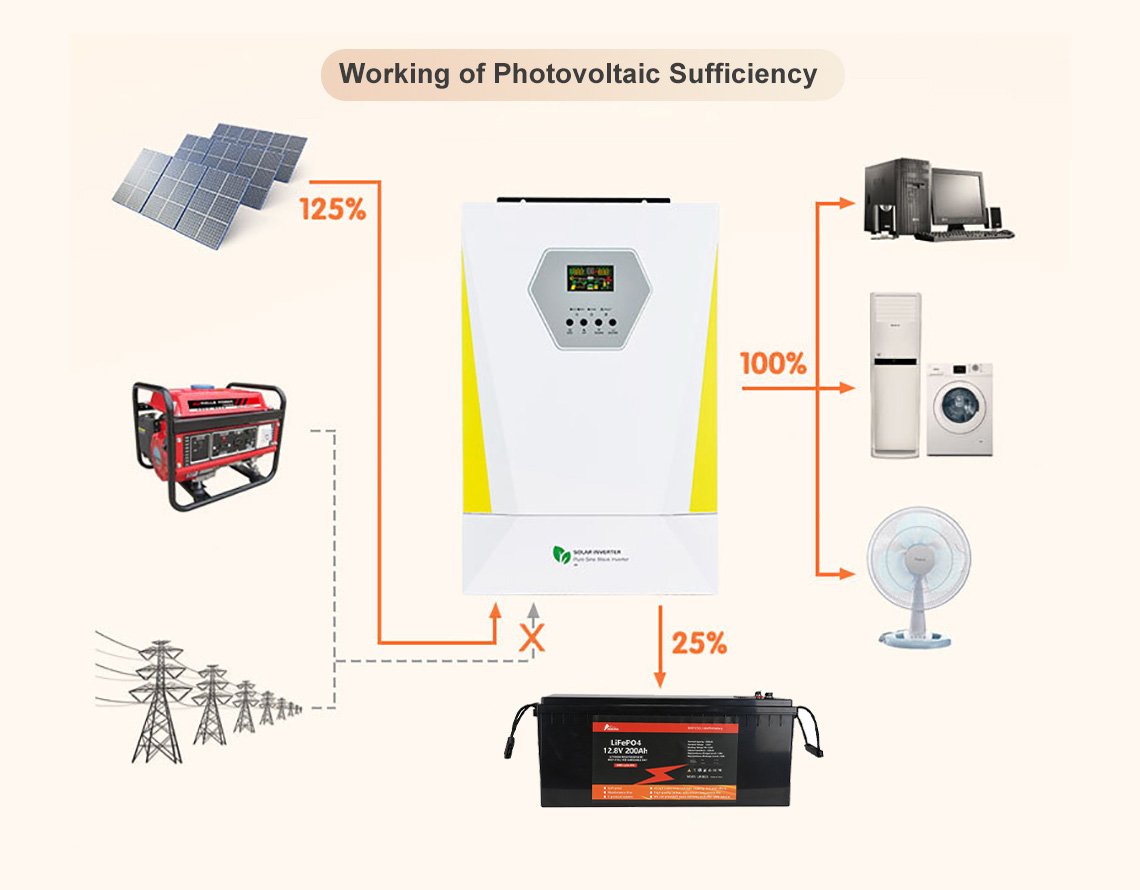

- Smart power supply mode, intelligent distribution of solar modules, utility grid and battery power;
- Compact design, easy to transport and install;
- Battery reverse connection protection with fuse switch;
- Support working without battery, reduce cost
- WIFI function available for data real time monitoring;
- BMS function for lithium battery.
Without Batteries
6KW off grid inverters that support battery-free operation significantly reduce system costs and complexity, making them an ideal solution for budget-conscious setups. By directly converting solar energy for immediate use, these inverters eliminate the need for expensive battery banks while maintaining high efficiency and reliability. Perfect for areas with consistent sunlight or applications that don’t require energy storage.
Safe and Secure
The 6KW off grid inverter is equipped with a comprehensive range of protection features. It has short-circuit protection to safeguard the circuit from excessive current caused by short circuits. The high and low temperature protection ensures its stable operation within a suitable temperature range, preventing damage due to extreme heat or cold. Voltage protection is in place to maintain proper voltage levels and protect connected devices. With reverse-connection protection, incorrect wiring connections are avoided, enhancing the safety and durability of the inverter and the entire solar power system.
Detailed Show
