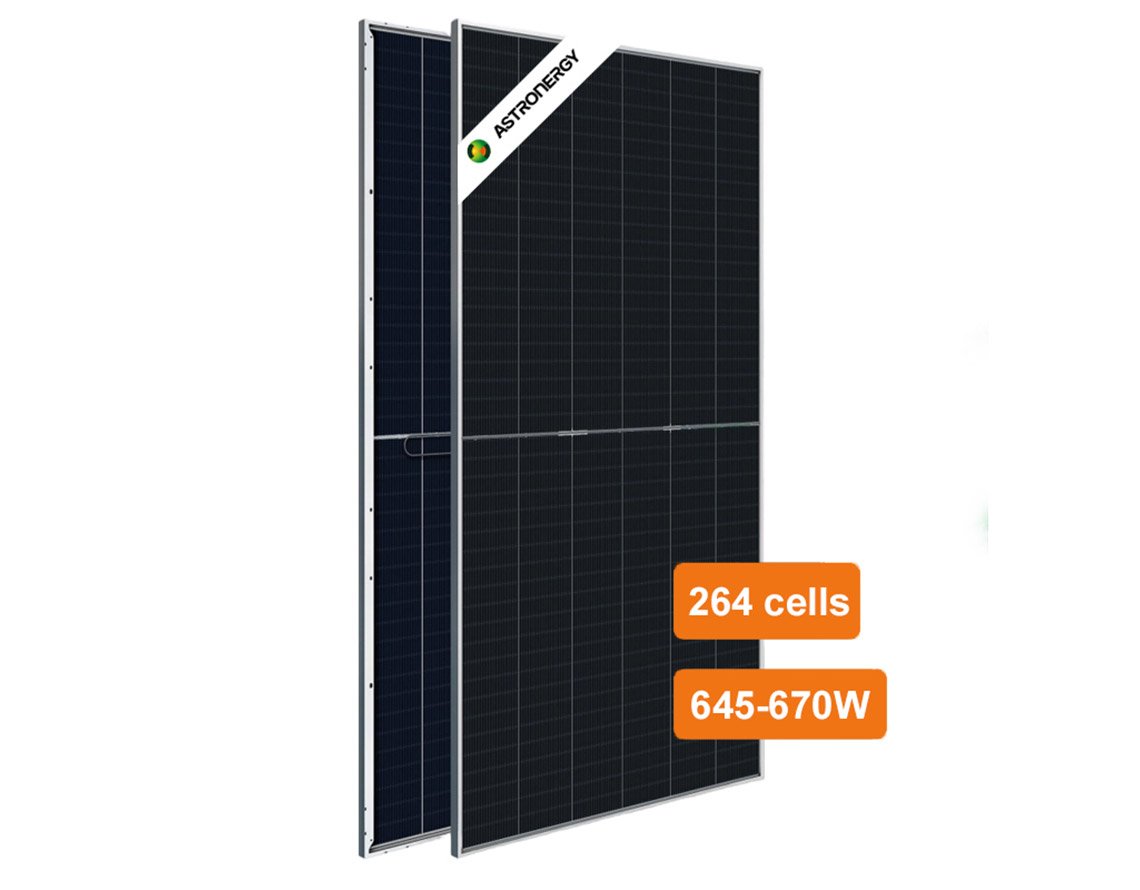

Astronergy Solar Panels 670W Bifacial N-Type
Model: CHSM66RN(DG)/F-BQ
Cell: n-type mono-crystalline
Power Range: 645-670W
Glass: Dual glass
Certification: CE, TUV
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 36 pieces
Astronergy Solar Panel 645-670W Bifacial SeriesDescription
Astronergy solar panels 670W are high-output N-type TOPCon bifacial modules built for utility-scale and C&I solar projects. Dual-glass construction and up to 85% bifaciality help capture extra backside generation in reflective environments. The 670W Astronergy solar module reaches up to 24.8% efficiency, is rated for 1500VDC systems, uses an IP68-rated junction box. It also comes with a 15-year product warranty and a 30-year linear power warranty.
Planning a bulk order? Share your project schedule and we can help secure Astronergy solar panels 670W to match your delivery timeline.
- Specifications STC
- Mechanical Data
| Rated output (Pmpp / Wp) | 645 | 650 | 655 | 660 | 665 | 670 |
| Rated voltage (Vmpp / V) | 41.02 | 41.14 | 41.27 | 41.40 | 41.52 | 41.65 |
| Rated current (Impp / A) | 15.73 | 15.80 | 15.87 | 15.94 | 16.02 | 16.09 |
| Open circuit voltage (Voc / V) | 48.83 | 48.98 | 49.13 | 49.28 | 49.43 | 49.58 |
| Short circuit current (Isc / A) | 16.50 | 16.58 | 16.65 | 16.72 | 16.80 | 16.87 |
| Module efficiency | 23.9% | 24.1% | 24.2% | 24.4% | 24.6% | 24.8% |

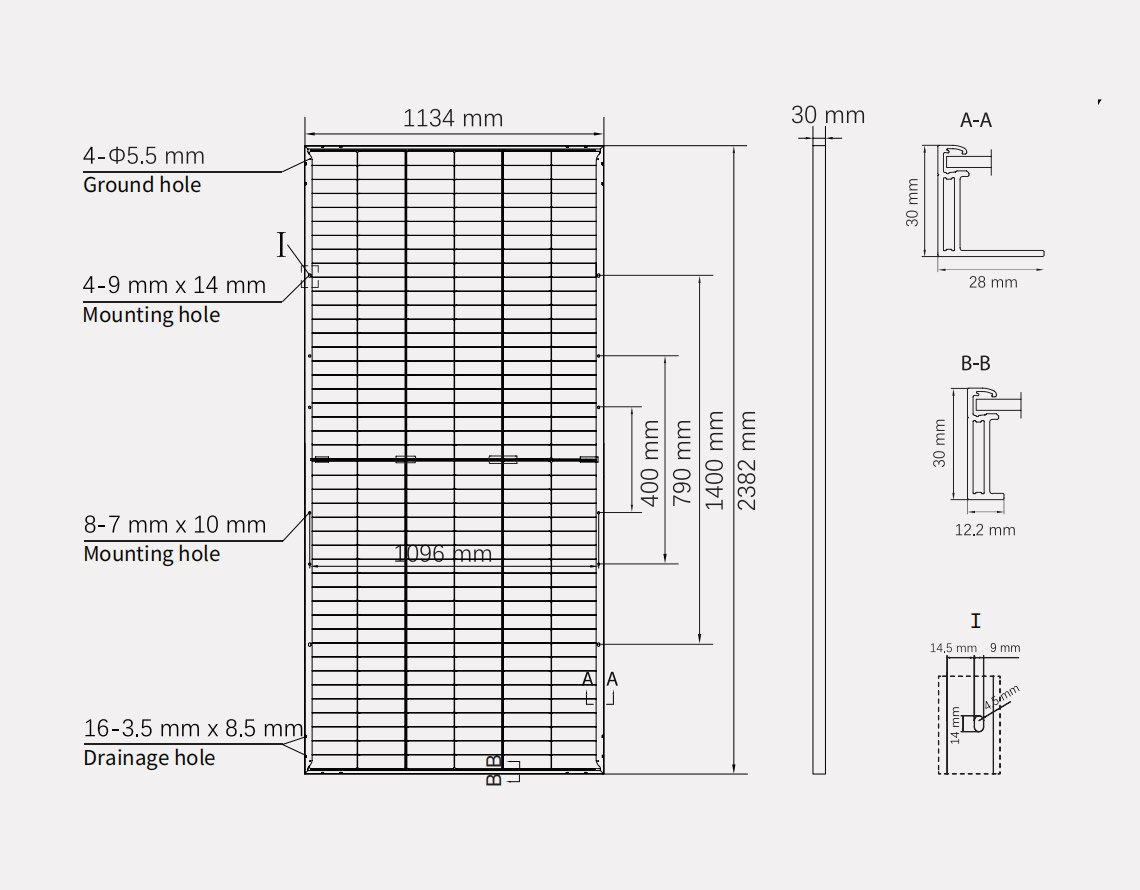

| Outer dimensions (L x W x H) | 2382 x 1134 x 30 mm |
| Cell type | n-type mono-crystalline |
| No. of cells | 264 (6*44) |
| Frame technology | Aluminum, silver anodized |
| Front / Back glass | 2.0+2.0 mm |
| Cable length (Including connector) | Portrait: (+)530 mm, (-)430 mm; Customized length |
| Cable diameter (IEC/UL) | 4 mm2 / 12 AWG |
| ① Maximum mechanical test load | 5400 Pa (front) / 2400 Pa (back) |
| Connector type (IEC/UL) | HCB40 (Standard) / MC4-EVO2A (Optional) |
| Module weight | 32 kg |
| Packing unit | 36 pcs / box |
| Weight of packing unit (for 40’HQ container) | 1203 kg |
| Modules per 40’ HQ container | 720 pcs (Subject to sales contract) |
