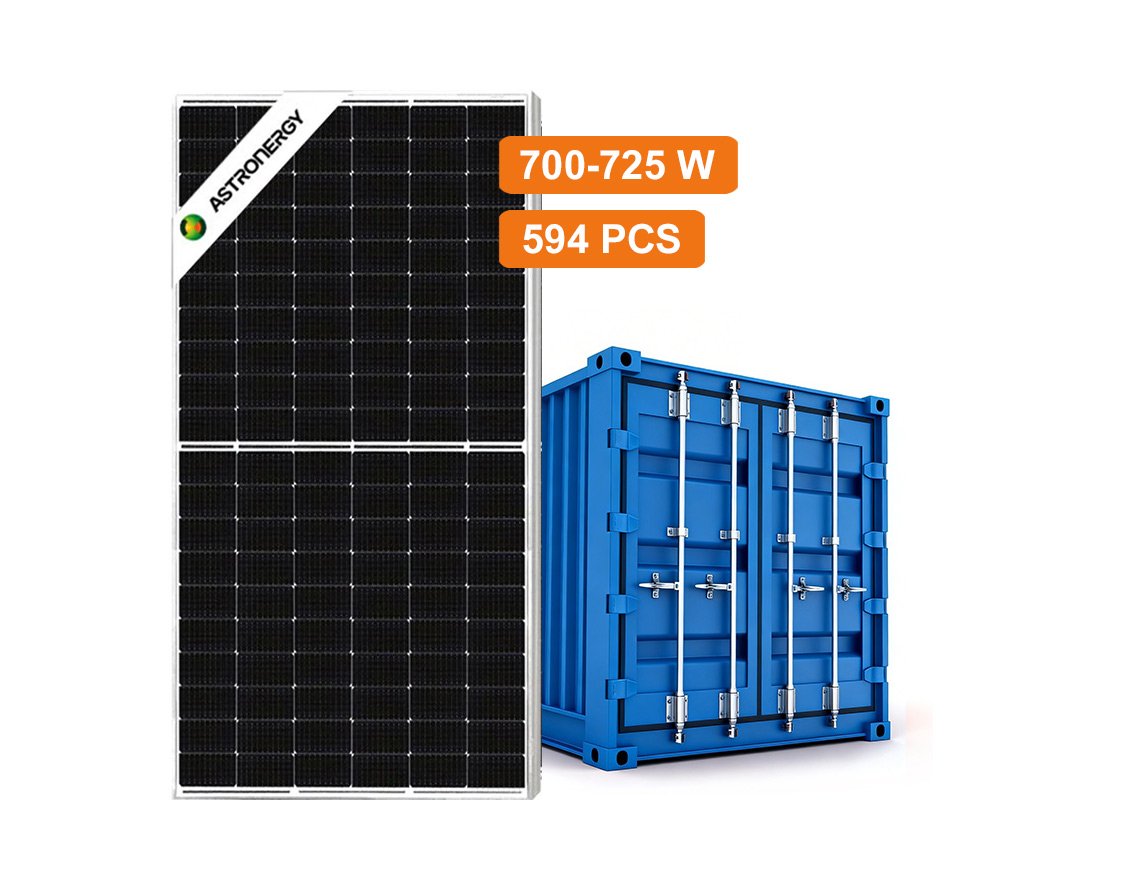

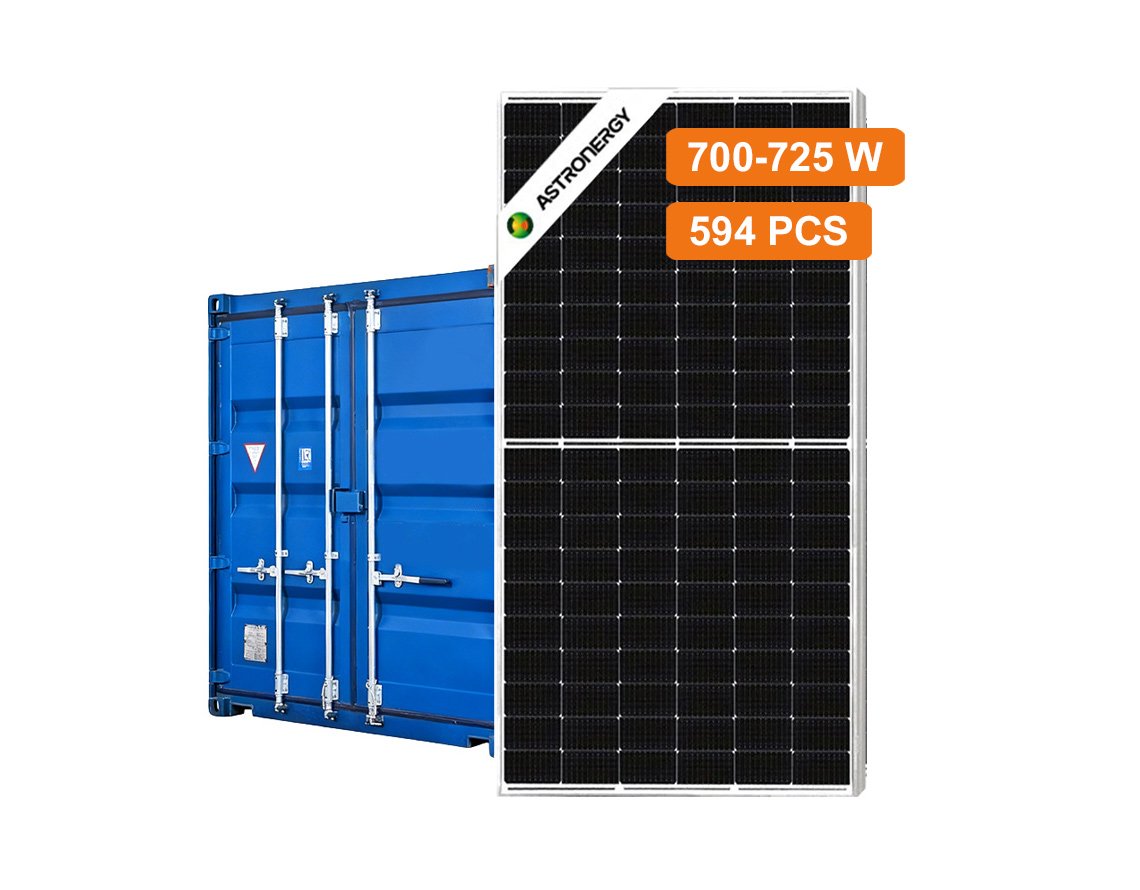

Astronergy Solar Panels 700W-725W Per Container 594 PCS

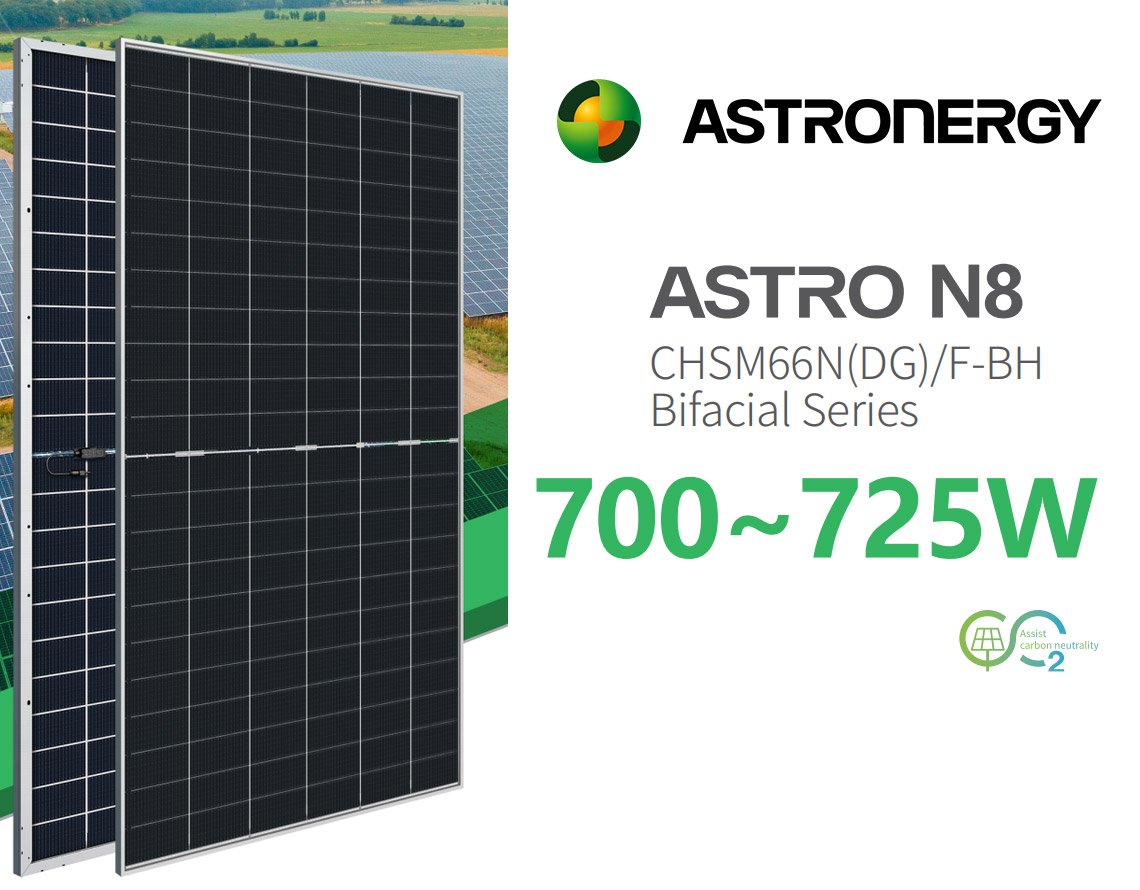

Model: CHSM66N(DG)/F-BH
Cell: n-type mono-crystalline
Power Range: 700-725W
Glass: Dual glass
Certification: CE, TUV
Warranty: 30 Years
MOQ: One container of 594 pcs
Astronergy Solar Panel 700-725W By ContainerDescription
Astronergy Solar Panels 700W-725W deliver ultra-high power output.They are n-type TOPCon technology modules with 23.3% efficiency. 132 half-cut monocrystalline cells in a dual-glass construction, Astronergy solar panels 700W-725W have superior performance in high-temperature conditions. These high-wattage panels provide EPC contractors and project developers maximum energy density and reliable long-term performance for ground-mounted solar projects such as utility-scale solar farms and large commercial installations.
If you are sourcing a large quantity of solar panels in this range, just contact us now for a bulk quote.
- Specifications STC
- Mechanical Data
| Parameter | 700 W | 705 W | 710 W | 715 W | 720 W | 725 W |
|---|---|---|---|---|---|---|
| Rated voltage (Vmpp / V) | 40.15 | 40.31 | 40.48 | 40.65 | 40.81 | 40.98 |
| Rated current (Impp / A) | 17.44 | 17.49 | 17.54 | 17.59 | 17.64 | 17.69 |
| Open-circuit voltage (Voc / V) | 48.37 | 48.57 | 48.77 | 48.97 | 49.17 | 49.37 |
| Short-circuit current (Isc / A) | 18.38 | 18.43 | 18.48 | 18.53 | 18.58 | 18.63 |
| Module efficiency | 22.5% | 22.7% | 22.9% | 23.0% | 23.2% | 23.3% |
| Specification | Value |
|---|---|
| Outer dimensions (L × W × H) | 2384 × 1303 × 33 mm |
| Cell type | n-type mono-crystalline |
| No. of cells | 132 (6 × 22) |
| Frame technology | Aluminum, silver anodized |
| Front / Back glass | 2.0 + 2.0 mm |
| Cable length (including connector) | Portrait: (+)350 mm, (−)280 mm; customized length |
| Cable diameter (IEC/UL) | 4 mm² / 12 AWG |
| Maximum mechanical test load | 5400 Pa (front) / 2400 Pa (back) |
| Connector type (IEC/UL) | HCB40 (Standard) / MC4-EVO2A (Optional) |
| Module weight | 38 kg |
| Packing unit | 33 pcs / box |
| Weight of packing unit (for 40′ HQ container) | 1295 kg |
| Modules per 40′ HQ container | 594 pcs (subject to sales contract) |
