Astronergy Solar Panels 735W Bifacial N-Type
Model: CHSM66N(DG)/F-BH
Cell: n-type mono-crystalline
Power Range: 710-735W
Glass: Dual glass
Certification: CE, TUV
Lead Time:7-10 days
Warranty: 30 Years
MOQ: One pallet of 33 pieces

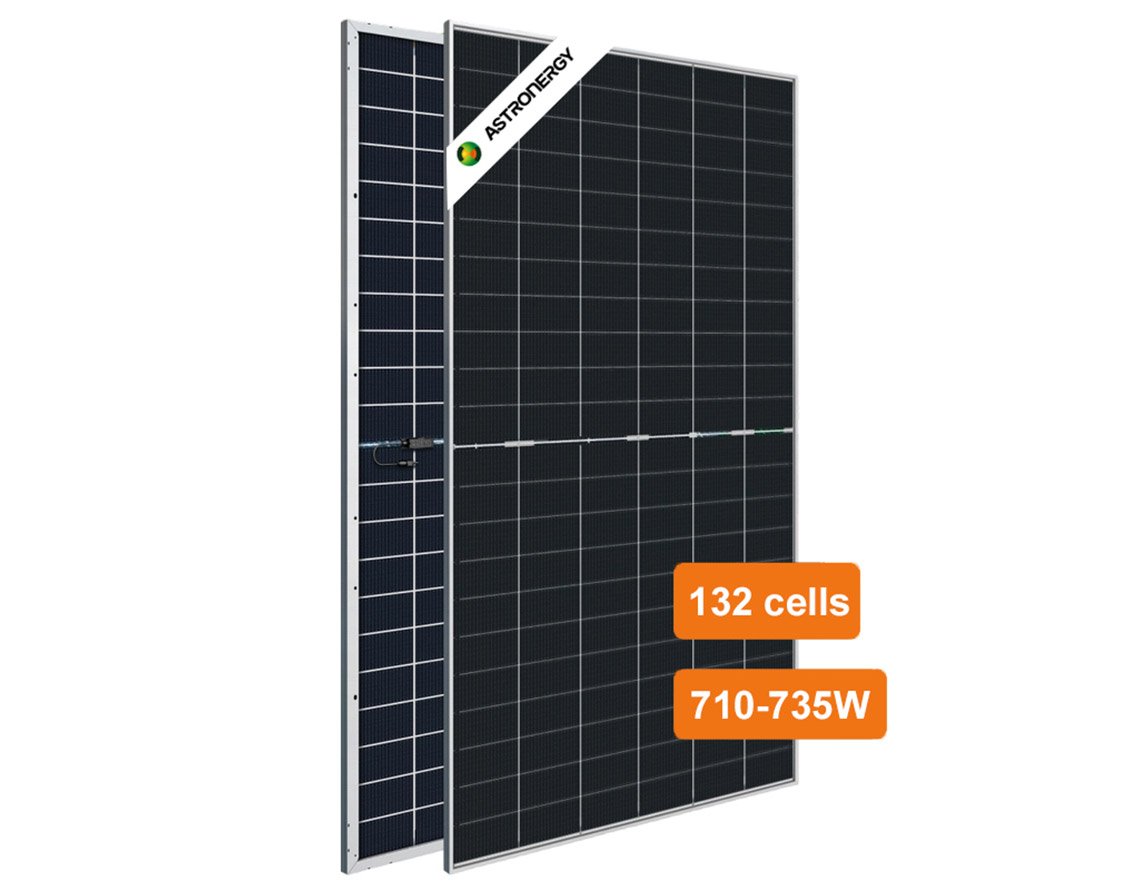

Astronergy Solar Panel 710-735W Bifacial SeriesDescription
Astronergy solar panels 735W are high-output N-type TOPCon bifacial modules built for utility-scale and C&I solar projects that need more power per module, better string efficiency, and dependable long-term field performance. Dual-glass construction and bifacial generation help capture extra backside energy in reflective environments. The 735W Astronergy solar module reaches up to 23.7% efficiency, is rated for 1500VDC systems, uses an IP68-rated junction box. It also comes with a 15-year product warranty and a 30-year linear power warranty.
Planning a bulk order? Share your project schedule and we can help secure Astronergy solar panels 735W to match your delivery timeline.
- Specifications STC
- Mechanical Data
| Rated output (Pmpp / Wp) | 710 | 715 | 720 | 725 | 730 | 735 |
| Rated voltage (Vmpp / V) | 40.48 | 40.65 | 40.81 | 40.98 | 41.24 | 41.41 |
| Rated current (Impp / A) | 17.54 | 17.59 | 17.64 | 17.69 | 17.70 | 17.75 |
| Open circuit voltage (Voc / V) | 48.77 | 48.97 | 49.17 | 49.37 | 49.57 | 49.77 |
| Short circuit current (Isc / A) | 18.48 | 18.53 | 18.58 | 18.63 | 18.67 | 18.72 |
| Module efficiency | 22.9% | 23.0% | 23.2% | 23.3% | 23.5% | 23.7% |

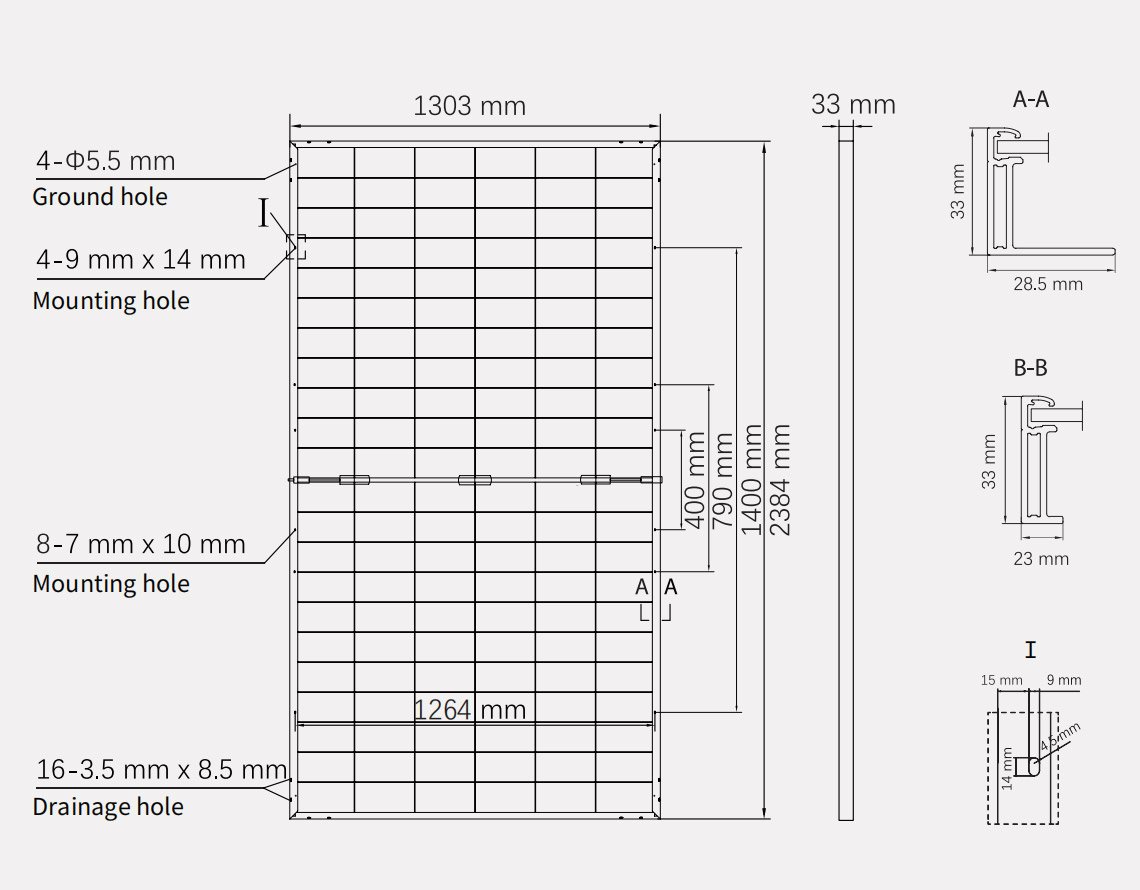

| Outer dimensions (L x W x H) | 2384 x 1303 x 33 mm |
| Cell type | n-type mono-crystalline |
| No. of cells | 132 (6*22) |
| Frame technology | Aluminum, silver anodized |
| Front / Back glass | 2.0+2.0 mm |
| Cable length (Including connector) | Portrait: (+)350 mm, (-)280 mm; Customized length |
| Cable diameter (IEC/UL) | 4 mm2 / 12 AWG |
| ① Maximum mechanical test load | 5400 Pa (front) / 2400 Pa (back) |
| Connector type (IEC/UL) | HCB40 (Standard) / MC4-EVO2A (Optional) |
| Module weight | 38 kg |
| Packing unit | 33 pcs / box |
| Weight of packing unit (for 40’HQ container) | 1295 kg |
| Modules per 40’HQ container | 594 pcs (Subject to sales contract) |
