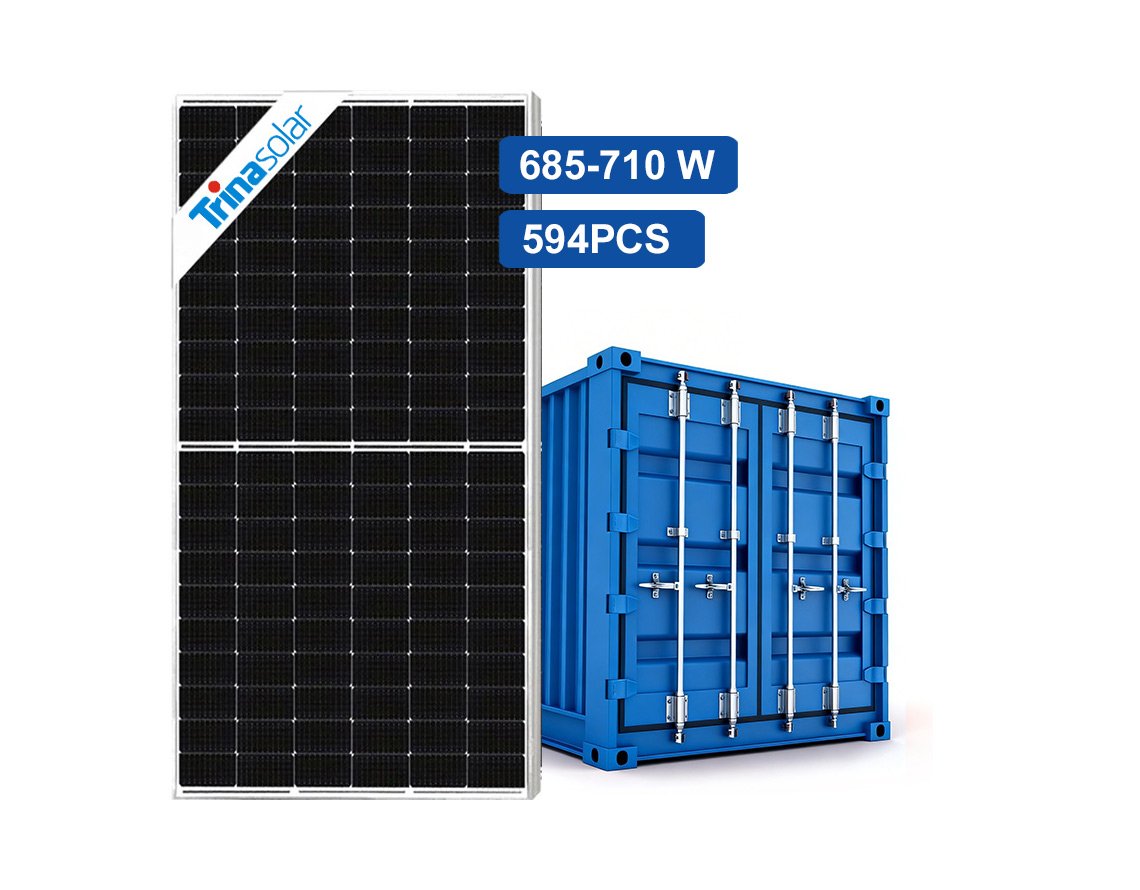

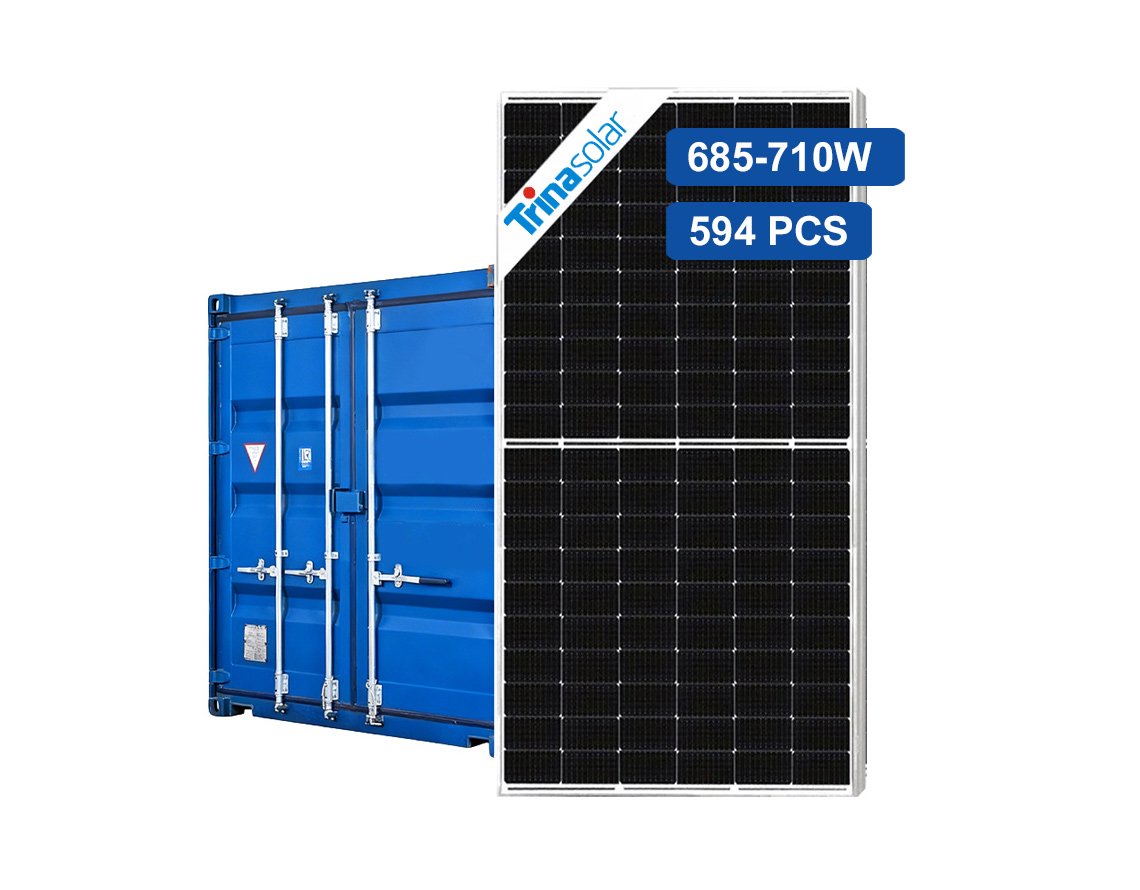

Trina Solar Panels 685W-710W Per Container 594 PCS
Model: TSM-NEG21C.20
Cell: N-Type monocrystalline
Power Range: 685-710W
Glass: dual glass
Certification: CE, TUV
Warranty: 30 Years
MOQ: One container of 594 pcs
Trina 685-710W Solar Panel By ContainerDescription
Trina 685W-710W solar panels per container are 594 pcs, and efficiency can be up to 22.5%—so you’ll harvest more clean energy from every square meter. Thanks to its bifacial, dual-glass construction, you benefit from extra rear-side yield. They are an ideal choice for maximizing ROI on both ground-mounted installations for solar farms and commercial solar projects.
If you need solar panels in bulk, feel free to contact us directly.
- Electrical Data (STC & NOCT)
- Electrical characteristics
- Mechanical Data
| Parameter | Unit | 685 W(STC) | 522 W(NOCT) | 690 W(STC) | 526 W(NOCT) | 695 W(STC) | 531 W(NOCT) | 700 W(STC) | 534 W(NOCT) | 705 W(STC) | 540 W(NOCT) | 710 W(STC) | 543 W(NOCT) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Tolerance, Pmax | W | 0 – +5 | — | 0 – +5 | — | 0 – +5 | — | 0 – +5 | — | 0 – +5 | — | 0 – +5 | — |
| Maximum Power Voltage, Vmp | V | 39.8 | 37.4 | 40.1 | 37.7 | 40.3 | 37.9 | 40.5 | 38.0 | 40.7 | 38.3 | 40.9 | 38.5 |
| Maximum Power Current, Imp | A | 17.19 | 13.93 | 17.23 | 13.95 | 17.25 | 14.00 | 17.29 | 14.04 | 17.33 | 14.08 | 17.36 | 14.12 |
| Open-Circuit Voltage, Voc | V | 47.7 | 45.3 | 47.9 | 45.4 | 48.3 | 45.9 | 48.6 | 46.1 | 48.8 | 46.3 | 49.0 | 46.5 |
| Short-Circuit Current, Isc | A | 18.21 | 14.67 | 18.25 | 14.71 | 18.28 | 14.72 | 18.32 | 14.76 | 18.36 | 14.80 | 18.40 | 14.83 |
| Module Efficiency, ηm | % | 22.1 | 22.2 | 22.4 | 22.5 | 22.7 | 22.9 | — | — | — | — | — | — |
| Backsheet Gain | Total Equivalent Power, Pmax (Wp) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) |
|---|---|---|---|---|---|
| 5% | 719 | 39.8 | 18.05 | 47.7 | 19.12 |
| 10% | 754 | 39.8 | 18.91 | 47.7 | 20.03 |
| 5% | 725 | 40.1 | 18.09 | 47.9 | 19.16 |
| 10% | 759 | 40.1 | 18.95 | 47.9 | 20.08 |
| 5% | 730 | 40.3 | 18.11 | 48.3 | 19.19 |
| 10% | 765 | 40.3 | 18.98 | 48.3 | 20.11 |
| 5% | 735 | 40.5 | 18.15 | 48.6 | 19.24 |
| 10% | 770 | 40.5 | 19.02 | 48.6 | 20.15 |
| 5% | 740 | 40.7 | 18.20 | 48.8 | 19.28 |
| 10% | 776 | 40.7 | 19.06 | 48.8 | 20.20 |
| 5% | 746 | 40.9 | 18.23 | 49.0 | 19.32 |
| 10% | 781 | 40.9 | 19.10 | 49.0 | 20.24 |
| Parameter | Specification |
|---|---|
| Solar Cells | N-type Monocrystalline |
| Number of Cells | 132 cells |
| Module Dimensions | 2384 × 1303 × 33 mm (93.86 × 51.30 × 1.30 inches) |
| Weight | 38.3 kg (84.4 lb) |
| Front Glass | 2.0 mm AR-coated, heat-strengthened glass |
| Encapsulant Material | POE / EVA |
| Back Glass | 2.0 mm heat-strengthened “white grid” glass |
| Frame | 33 mm anodized aluminum alloy |
| J-Box | IP68 rated |
| Cables | Photovoltaic cable 4.0 mm² (0.006 in²); portrait: 350 / 280 mm (13.78/11.02 in); customizable length |
| Connector | MC4 EVO2 / TS4 PLUS / TS4 |
