50-70KW On Grid Solar System Three Phase
Type: On Grid Three Phase With Growatt Inverter 3 MPPTs
Max. Power: 50-70KW
Output Voltage: 230V/400V (340-440V), 277V/480V (425-540V)
Certificate: CE/TUV/ISO
Lead Time:7-10 days
Payment: T/T, Credit Card, Paypal, Western Union
Warranty: 25 Years
Description
As a professional solar power system supplier, HBOWA provides off-grid, on-grid, and hybrid solar systems with free design to support your solar business.

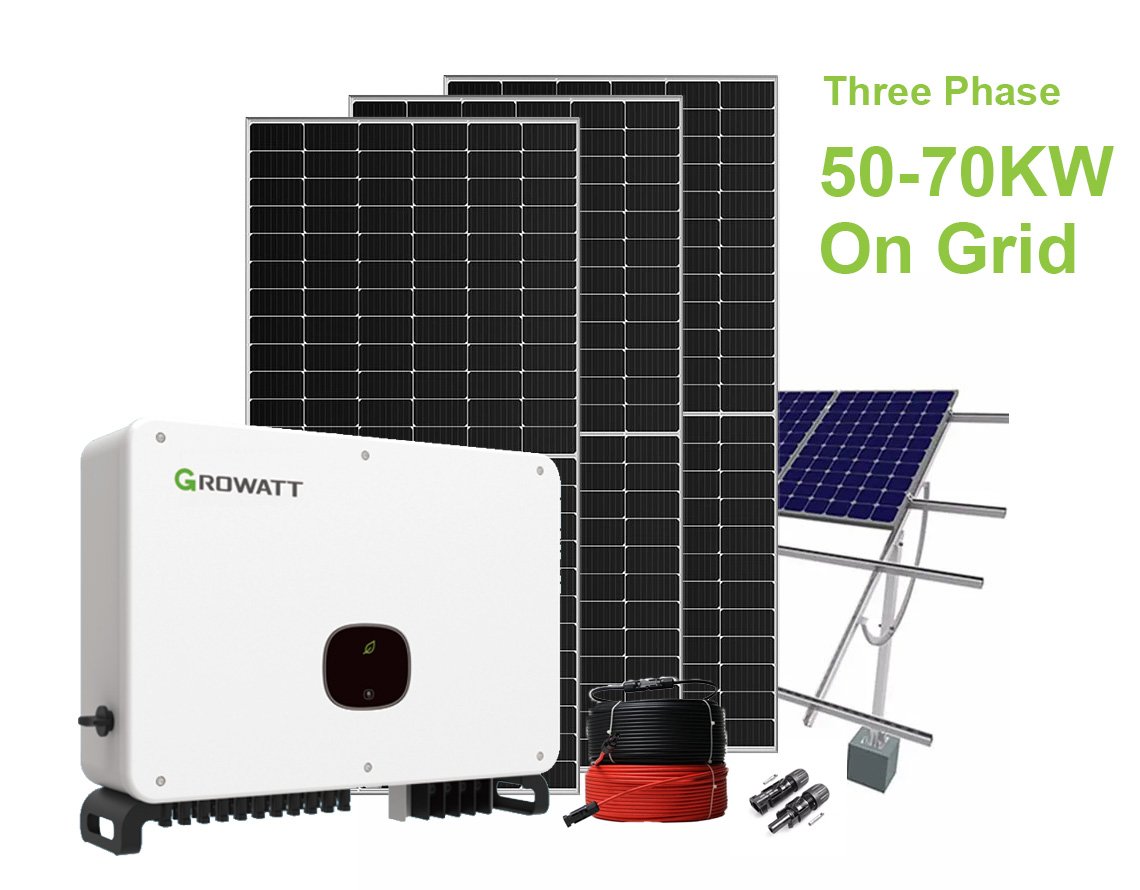

HBOWA 50KW – 70KW on-grid solar system consists of solar panels, a Growatt on-grid three-phase inverter, and system accessories. We have certificates such as CE, TUV, UL, ISO, etc. to ensure high quality and performance. OEM and ODM services are supported.
We not only produce our own brand solar panels, but also provide other brand solar products, such as Jinko, JA, Longi, Canadian, Trina, tier 1 solar panels, Growatt, Deye, and GoodWe inverters.
For more detailed information, feel free to contact our team directly.
Technical Data
- Components
- Solar Panel
- Inverter
| Model | 50000W-On | 50000W-On | 60000W-On | 60000W-On | 70000W-On |
| Bifacial solar panel 550W/41.95V | 90 pieces | 90 pieces | 112 pieces | 112 pieces | 126 pieces |

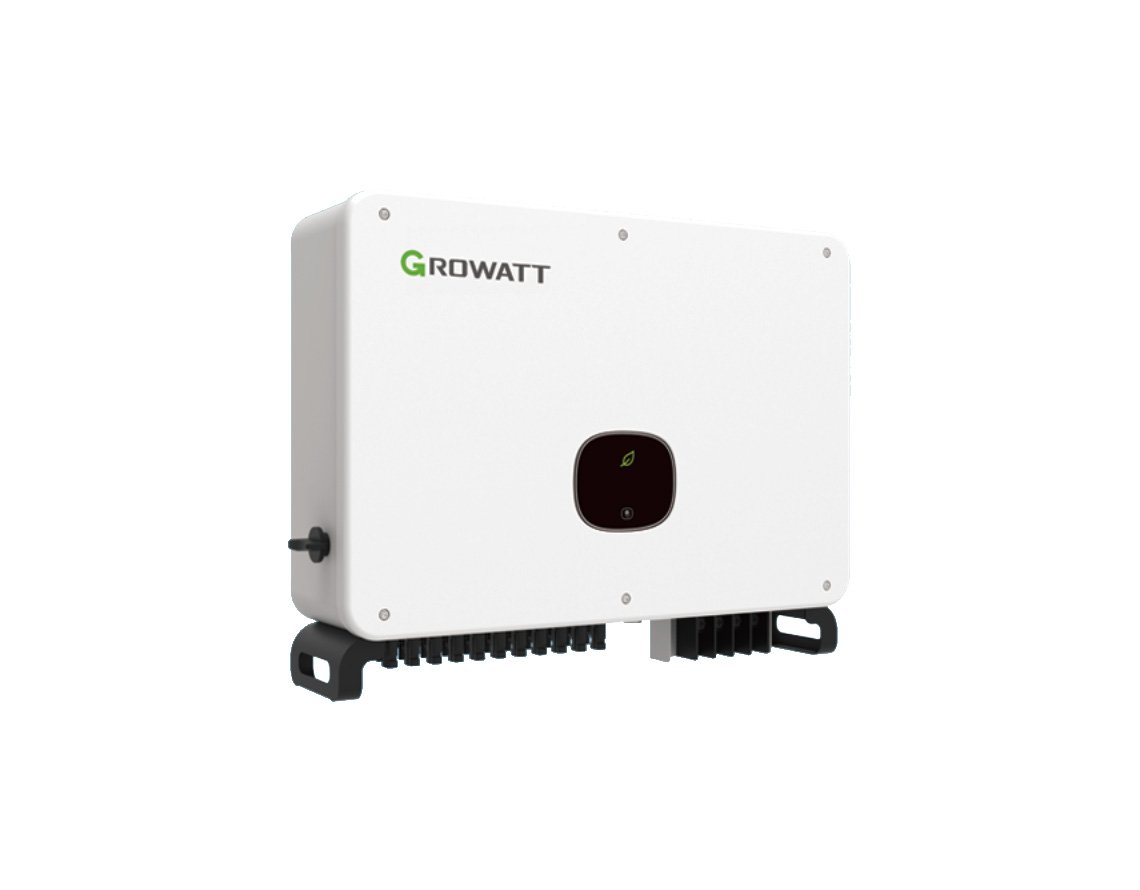

| Growatt Inverter | MAC 50KTL3-XLV | MAC 50KTL3-XMV | MAC 60KTL3-XLV | MAC 60KTL3-XMV | MAC 70KTL3-XMV |
| DC Combiner Box | Customized According to Solar System Configuration | ||||
| PV Cable 4 mm2 | 600 meter | 600 meter | 600 meter | 600 meter | 600 meter |
| Mounting Brackets | 1 set | ||||
| MC4 Connector | 50 pairs | 50 pairs | 60 pairs | 60 pairs | 60 pairs |
| Cell Type | Mono-crystalline |
| No. of Cells | 144(6*24) |
| Maximum Power | 550W |
| Maximum Power Voltage | 41.95V |
| Maximum Efficiency STC (%) | 21.29% |
| Dimensions | 2278*1134*30mm(89.69*44.65*1.18inch) |
| Weight | 27kg(59.52lbs) |
| Warranty | 25 years |
| Nominal power | 50000W | 50000W | 60000W | 60000W | 70000W |
| MPP voltage range | 200V-1000V | ||||
| Max. Input current Per MPP Tracker | 52A/39A/39A | 52A/39A/39A | 52A/52A/52A | 52A/52A/52A | 52A/52A/52A |
| Number of MPPT Trackers | 3 | ||||
| Number of PV Strings per MPPT Tracker | 4/3/3 | 4/3/3 | 4/4/4 | 4/4/4 | 4/4/4 |
| Max. PV Power ( W ) | 75000W | 75000W | 90000W | 90000W | 105000W |
| Max Efficiency | 98.80% | ||||
| Nominal Output Voltage ( V ) | 230V/400V (340-440V) | 277V/480V (425-540V) | 230V/400V (340-440V) | 277V/480V (425-540V) | 277V/480V (425-540V) |
| Communication | RS485/USB/(Wifi/GPRS/RF/LAN optional) | ||||
| Weight | 52kg | ||||
| Dimensions | 680/508/281mm | ||||
| Warranty | 5 years(10 years optional) | ||||
Advantages

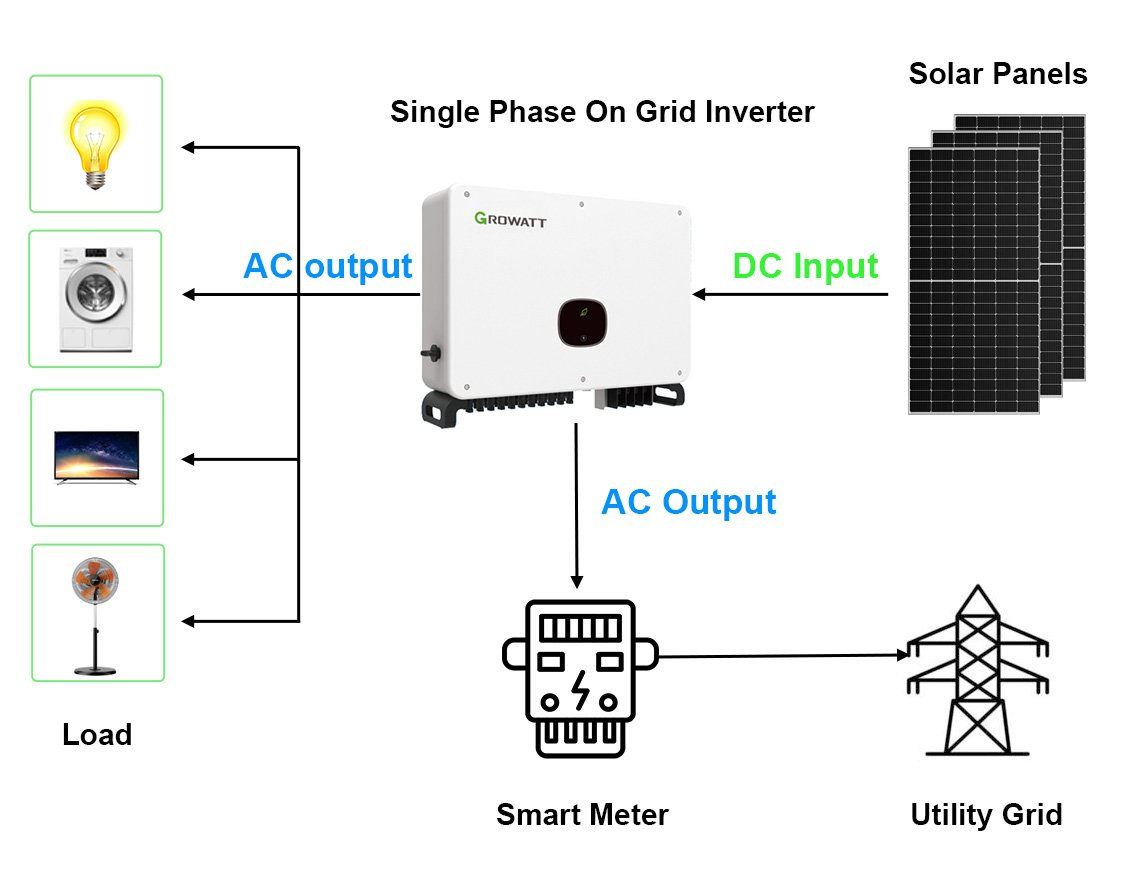

Grid-Tied Systems
The electricity in the on-grid system can be used by households, while the excess electricity does not need to be stored in additional energy storage batteries but can be directly back to the utility grid. The utility grid is a virtual energy storage system that stores excess electricity generated by solar panels, reduces electricity bills, and also obtains additional subsidies.
Packaging Service
All HBOWA solar system products are in standard wood box packaging, we also support customization for tailored packaging requirements. Each solar system component is in stock, we provide professional trade services for you to ensure a smooth purchasing experience with fast delivery and safe arrival.
